0.5 mm Pitch, 0.9 mm Height, FPC/FFC Connectors
FH19C Series/FH19SC Series
FH19C – FPC/FFC thickness: 0.2±0.03mm
Actuator color: Brown
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
FH19SC – FPC/FFC thickness: 0.3±0.03mm
Actuator color: Black
■

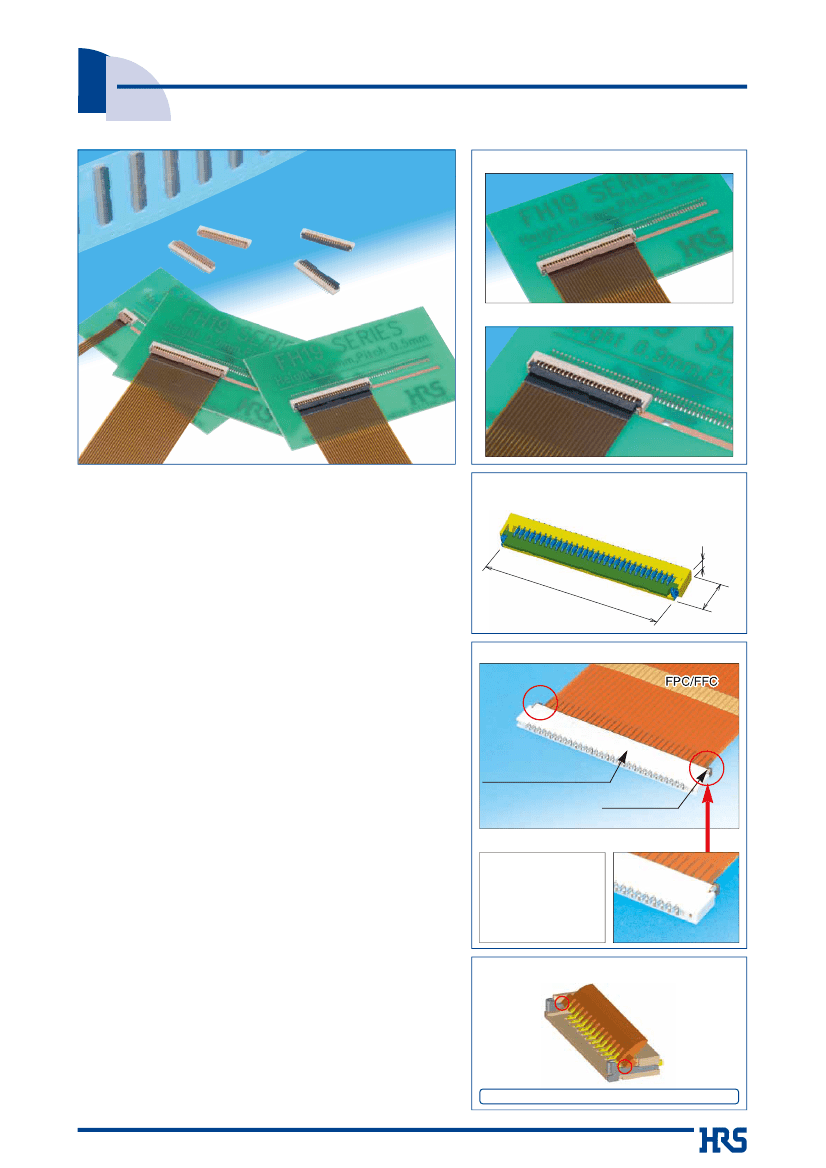

Features
1. Low-profile 0.5mm pitch FPC/FFC Connectors
Miniaturization of portable equipment and personal
mobile devices has created increased demand for a low
profile, high density, and high reliability connectors.
*The
design of this connector has been made thinner and
smaller, with a height of 0.9mm and width of 3mm.
*PCB
footprint: Reduced approximately 48% (as compared
with Hirose Electric's 0.5mm pitch FH12 Series
connectors)
*Connector
weight: Reduced approximately 78% (as compared
with Hirose Electric's 0.5mm pitch FH12 Series connectors)
●
0.9mm high (30 pos. shown)
0.9mm
3m
m
17m
m
●
Can be mounted over conductive traces
2. Conductive traces on the PCB can run under
the connector
All bottom surface of the connector is solid, without any
exposure of the contact.
3. Proven Flip-Lock Actuator System assures
easy and reliable operation
Rotating actuator permits easy insertion and reliable
connection with the FPC & FFC.
Tactile sensation confirms complete mechanical locking of
the actuator and the electrical connection.
Enclosed construction
(No exposed contacts)
Metal fittings
(Leadless)
●
Metal Fittings (Leadless Type)
No protrusions on
the sides allows
close side-by-side
board placement.
4. Accepts 0.2mm & 0.3mm thick FPC/FFC
No exposed contacts on the bottom of the connector.
The connector will also terminate with 0.2mm thick Flat
Flexible Cable (FFC).
5. Board placement with automatic equipment
Flat upper surface and tape and reel packaging facilitate
vacuum pick-up and placement. Standard reel packaging
contains 5000 connectors.
●
Actuator Temporary Hold Mechanism
6. Wide range of contact counts
The contact positions available range from 4 to 50.
7. Satisfies Halogen-free requirements
All materials and substances used in this product comply
with the Halogen-free standards.
* Defined according to IEC61249-2-21
Br: 900ppm max, Cl: 900ppm max, Br+Cl: 1,500ppm max
Actuator stays open during insertion of the FPC/FFC.
2013.11w
1
FH19C & FH19SC Series●0.5mm pitch, 0.9mm above the board, Flexible Printed Circuit & Flexible Flat Cable ZIF Connectors
■Product
Specifications
Current rating 0.5 A (Note1)
Rating
Voltage rating 50 V AC
Recommended
FPC, FFC
Operating temperature range
-55ç
to +85ç (Note 2)
Operating humidity range
Relative humidity 90% max. (No condensation)
Storage temperature range
-10ç
to +50ç (Note 3)
Storage humidity range
Relative humidity 90% max. (No condensation)
FH19C Series
FH19SC Series
Thickness: = 0.2
±
0.03mm Gold plated
Thickness: = 0.3
±
0.03mm Gold plated
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Item
Specification
1. Insulation resistance 500 M ohms min.
2. Withstanding voltage No flashover or insulation breakdown
100 m ohms max.
3. Contact resistance
*Including
FPC/FFC conductor resistance
4. Durability
Contact resistance: 100 m ohms max.
(insertion/ withdrawal) No damage, cracks, or parts dislocation.
5. Vibration
Conditions
100 V DC
150 V AC/1 minute
1 mA
20 cycles
No electrical discontinuity of 1
μ
s or more.
Frequency: 10 to 55 Hz, single amplitude of
Contact resistance: 100 m ohms max.
No damage, cracks, or parts dislocation. 0.75mm, 10 cycles in each of the 3 directions
No electrical discontinuity of 1
μ
s. min.
Contact resistance: 100 m ohms max.
No damage, cracks, or parts dislocation.
Contact resistance: 100 m ohms max.
Insulation resistance: 100 M ohms min.
No damage, cracks, or parts dislocation.
Contact resistance: 100 m ohms max.
Insulation resistance: 100 M ohms min.
No damage, cracks, or parts dislocation.
No deformation of components affecting performance.
6. Shock
7. Humidity
(Steady state)
8. Temperature cycle
9. Resistance to
soldering heat
Acceleration of 981 m/s
2
, 6 ms duration, sine half-
wave waveform, 3 cycles in each of the 3 axis.
96 hours at temperature of 40ç and humidity of
90 to 95%
Temperature:
-55ç
/
+15ç to +35ç
/
+85ç
/
+15ç to +35ç
Time
:
-30
/
2 to 3
/
+30
/
2 to 3(Minutes)
5 cycles
Reflow: At the recommended temperature profile
Manual soldering: 350ç±5ç for 5 seconds
Note 1: When passing the current through all of the contacts, use 70% of the current rating.
Note 2: Includes temperature rise caused by current flow.
Note 3: The term “storage” refers to products stored for long period of time prior to mounting and use. Operating Temperature
Range and Humidity range covers non- conducting condition of installed connectors in storage, shipment or during
transportation.Information
■Materials
Part
Insulator
Contacts
Metal fittings
Material
LCP
Phosphor bronze
Phosphor bronze
Finish
Color: Beige
Color: Brown (FH19C Series)
Color: Black (FH19SC Series)
Gold plated
Pure tin reflow plated
Remarks
UL94V-0
-------
-------
■Ordering
information
FH 19 C - 30S - 0.5 SH (05)
1
1
Series name :
2
Series No. :
3
C :
SC :
FH
19
FPC thickness : 0.2mm
FPC/FFC thickness : 0.3mm
2
3
4
5
6
7
5
Contact pitch : 0.5mm
6
Terminal type
SH: SMT horizontal mounting type
7
Material and plating specifications :
FH19C : (10)...Gold plating with nickel barrier 5,000pieces/reel
(99)...Gold plating with nickel barrier 500pieces/reel
FH19SC : (09)...Gold plating with nickel barrier 5,000pieces/reel
(99)...Gold plating with nickel barrier 500pieces/reel
4
No. of contacts : 4 to 50
2
FH19C & FH19SC Series●0.5mm pitch, 0.9mm above the board, Flexible Printed Circuit & Flexible Flat Cable ZIF Connectors
■Connector
Dimension
[FH19C Series]
A±0.15
B
G
0.5
∞Number of contacts
0.15 G
(0.15)
+0.15
0
3
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
A
(0.5)
Polarizing mark indicator
Number of contacts indicator
(130°)
(1.6)
(0.15)
(C: FPC insertion slot dimension)
D±0.1
2.15±0.2
2
1
0.15MAX
(1.3)
0.15MAX
S
1
2
Notes 1 The coplanarity of each terminal lead and metal fitting is within 0.1mm.
2 The contact terminal lead position indicates the dimension from the bottom surface of the insulator body.
3 Difference between terminal contact to be max. 0.1mm.
4 Packaged on tape and reel only. Check packaging specification.
5 Any discoloration of the plastic compound will NOT AFFECT form, fit or function of the connector.
6 After reflow, the terminal plating may change color, however this does not represent a quality issue.
Unit: mm
Part Number
FH19C-04S-0.5SH(**)
FH19C-05S-0.5SH(**)
FH19C-06S-0.5SH(**)
FH19C-07S-0.5SH(**)
FH19C-08S-0.5SH(**)
FH19C-09S-0.5SH(**)
FH19C-10S-0.5SH(**)
FH19C-12S-0.5SH(**)
FH19C-13S-0.5SH(**)
FH19C-15S-0.5SH(**)
FH19C-17S-0.5SH(**)
FH19C-20S-0.5SH(**)
FH19C-21S-0.5SH(**)
FH19C-24S-0.5SH(**)
FH19C-27S-0.5SH(**)
FH19C-30S-0.5SH(**)
FH19C-34S-0.5SH(**)
FH19C-40S-0.5SH(**)
FH19C-50S-0.5SH(**)
CL No.
580-0410-1-**
580-0418-3-**
580-0409-2-**
580-0411-4-**
580-0404-9-**
580-0403-6-**
580-0412-7-**
580-0413-0-**
580-0405-1-**
580-0406-4-**
580-0408-0-**
580-0402-3-**
580-0414-2-**
580-0407-7-**
580-0401-0-**
580-0400-8-**
580-0419-6-**
580-0416-8-**
580-0417-0-**
Number of Contacts
4
5
6
7
8
9
10
12
13
15
17
20
21
24
27
30
34
40
50
A
4
4.5
5
5.5
6
6.5
7
8
8.5
9.5
10.5
12
12.5
14
15.5
17
19
22
27
B
1.5
2
2.5
3
3.5
4
4.5
5.5
6
7
8
9.5
10
11.5
13
14.5
16.5
19.5
24.5
C
2.57
3.07
3.57
4.07
4.57
5.07
5.57
6.57
7.07
8.07
9.07
10.57
11.07
12.57
14.07
15.57
17.57
20.57
25.57
D
3.35
3.85
4.35
4.85
5.35
5.85
6.35
7.35
7.85
8.85
9.85
11.35
11.85
13.35
14.85
16.35
18.35
21.35
26.35
Note1: Embossed tape reel packaging (5,000 pieces/reel, 500 pieces/reel).
Order by number of reels.
0.9±0.1(Including contact terminal leads)
(1)
2.5±0.15
0.5
3
FH19C & FH19SC Series●0.5mm pitch, 0.9mm above the board, Flexible Printed Circuit & Flexible Flat Cable ZIF Connectors
[FH19SC Series]
A±0.15
B
0.5
∞Number of contacts
0.15 G
+0.15
0
3
G
(0.15)
A
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
5
(0.5)
Polarizing mark indicator
Number of contacts indicator
(130°)
(1.6)
(0.15)
(C: FPC insertion slot dimension)
D±0.1
2.15±0.2
2
1
0.15MAX
(1.3)
0.15MAX
S
1
2
Notes 1
2
3
4
5
6
7
The coplanarity of each terminal lead and metal fitting is within 0.1mm.
The contact terminal lead position indicates the dimension from the bottom surface of the insulator body.
Difference between terminal contact to be max. 0.1mm.
Any discoloration of the plastic compound will NOT AFFECT form, fit or function of the connector.
The contacts are protruding. 0.03mm max. from the housing top surface.
Packaged on tape and reel only. Check packaging specification.
After reflow, the terminal plating may change color, however this does not represent a quality issue.
Part Number
CL No.
580-0512-1-**
580-0518-8-**
580-0509-7-**
580-0503-0-**
580-0521-2-**
580-0504-3-**
580-0519-0-**
580-0502-8-**
580-0505-6-**
580-0506-9-**
580-0511-9-**
580-0510-6-**
580-0516-2-**
580-0513-4-**
580-0500-2-**
580-0514-7-**
Number of Contacts
12
13
14
15
16
17
18
20
21
22
24
26
27
28
30
32
A
8
8.5
9
9.5
10
10.5
11
12
12.5
13
14
15
15.5
16
17
18
B
5.5
6
6.5
7
7.5
8
8.5
9.5
10
10.5
11.5
12.5
13
13.5
14.5
15.5
C
6.57
7.07
7.57
8.07
8.57
9.07
9.57
10.57
11.07
11.57
12.57
13.57
14.07
14.57
15.57
16.57
0.93±0.1(Including contact terminal leads)
(1)
2.5±0.15
0.5
Unit: mm
D
7.35
7.85
8.35
8.85
9.35
9.85
10.35
11.35
11.85
12.35
13.35
14.35
14.85
15.35
16.35
17.35
FH19SC-12S-0.5SH(**)
FH19SC-13S-0.5SH(**)
FH19SC-14S-0.5SH(**)
FH19SC-15S-0.5SH(**)
FH19SC-16S-0.5SH(**)
FH19SC-17S-0.5SH(**)
FH19SC-18S-0.5SH(**)
FH19SC-20S-0.5SH(**)
FH19SC-21S-0.5SH(**)
FH19SC-22S-0.5SH(**)
FH19SC-24S-0.5SH(**)
FH19SC-26S-0.5SH(**)
FH19SC-27S-0.5SH(**)
FH19SC-28S-0.5SH(**)
FH19SC-30S-0.5SH(**)
FH19SC-32S-0.5SH(**)
Order by number of reels.
Note1: Embossed tape reel packaging (5,000 pieces/reel, 500pieces/reel) .
4
FH19C & FH19SC Series●0.5mm pitch, 0.9mm above the board, Flexible Printed Circuit & Flexible Flat Cable ZIF Connectors
■
Recommended PCB Land and Metal Mask Dimensions
[Common to FH19C & FH19SC Series]
Recommended metal mask thickness: 0.10 mm.
B
0.8±0.05
(0.15)
(0.15) (0.15)
(0.2)
K±0.1
(A)
0.5
∞Number of contacts
0.3±0.05 (Land)
0.1 H
0.25±0.05 (Metal mask)
H
3.3±0.05
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
0.8±0.05
J±0.1
■
Recommended FPC, FFC Dimensions
[Common to FH19C & FH19SC Series]
L±0.05
0.5±0.07
0.5±0.03
B±0.03
0.35±0.03(FPC)
0.3±0.03(FFC)
2-
R0
.2
FH19C Series FH19SC Series
0.2±0.03
0.3±0.03
2.5±0.3
(Exposed traces)
(0.15)
3.5 min. (Stiffener)
(0.05)
Note 1: Stiffener dimension should be 3.5mm min., and X dimension should be 0.5mm for improved flexibility of FPC.
Unit: mm
Number of Contacts
4
5
6
7
8
9
10
12
13
14
15
16
17
18
A
4.0
4.5
5.0
5.5
6.0
6.5
7.0
8.0
8.5
9.0
9.5
10.0
10.5
11.0
B
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.5
6.0
6.5
7.0
7.5
8.0
8.5
J
3.1
3.6
4.1
4.6
5.1
5.6
6.1
7.1
7.6
8.1
8.6
9.1
9.6
10.1
K
3.9
4.4
4.9
5.4
5.9
6.4
6.9
7.9
8.4
8.9
9.4
9.9
10.4
10.9
L
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.5
7.0
7.5
8.0
8.5
9.0
9.5
Number of Contacts
20
21
22
24
26
27
28
30
32
34
40
45
50
A
12.0
12.5
13.0
14.0
15.0
15.5
16.0
17.0
18.0
19.0
22.0
24.5
27.0
B
9.5
10.0
10.5
11.5
12.5
13.0
13.5
14.5
15.5
16.5
19.5
22.0
24.5
J
11.1
11.6
12.1
13.1
14.1
14.6
15.1
16.1
17.1
18.1
21.1
23.6
26.1
K
11.9
12.4
12.9
13.9
14.9
15.4
15.9
16.9
17.9
18.9
21.9
24.4
26.9
(X)
3.5 min. (Stiffener)
(2.5)
(3)
Unit: mm
L
10.5
11.0
11.5
12.5
13.5
14.0
14.5
15.5
16.5
17.5
20.5
23.0
25.5
5
DSP and ARM Processors
京公网安备 11010802033920号
EEWORLD
