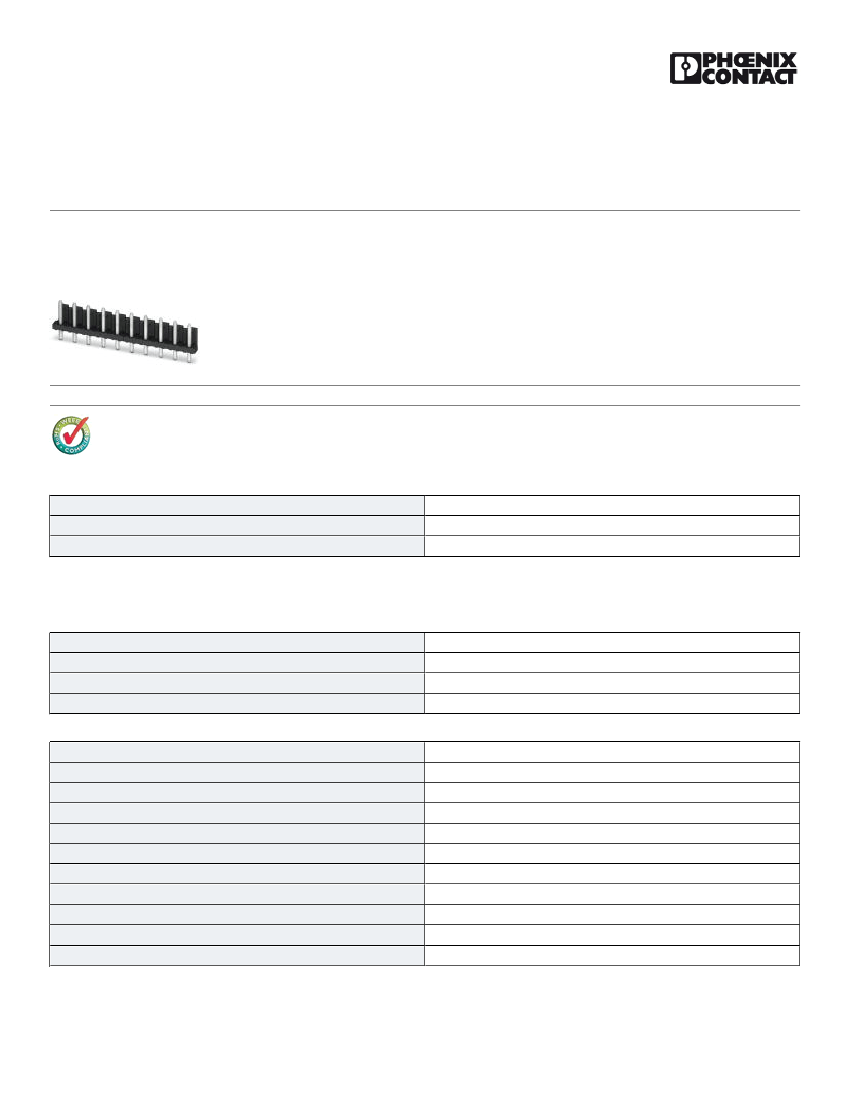

Pin strip - PST 1,3/ 7-5,0-SF - 1805672
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 7, Pitch: 5 mm, Color: green,
Contact surface: Tin, Assembly: Soldering, Voltage and current depend on the plug-in terminal block used.
The value of the weaker component is always valid. Over 16 pos. upon request. The pin strip is made of highly
temperature resistant plastic and is thus suitable for the reflow process.
Key commercial data
Packing unit
Custom tariff number
Country of origin
1 pc
85366990
Germany
Technical data
Dimensions
Pitch
Dimension a
Pin dimensions
Hole diameter
5 mm
30 mm
1,3 mm
1.5 mm
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Maximum load current
PST 1,3/..-SF
IIIa
4 kV
4 kV
4 kV
250 V
320 V
600 V
EN-VDE
12 A
12 A (depends on the plug used)
10/27/2014 Page 1 / 3
https://www.phoenixcontact.com/us/products/1805672
Pin strip - PST 1,3/ 7-5,0-SF - 1805672
Technical data
General
Insulating material
Inflammability class according to UL 94
Color
Number of positions
PA
V0
green
7
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
272607xx
27260701
27260701
27141190
27260704
27440402
27440402
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001121
EC002637
EC002637
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211801
39121432
34131203
39121432
39121432
Approvals
Approvals
Approvals
GOST / GOST
Ex Approvals
10/27/2014 Page 2 / 3
https://www.phoenixcontact.com/us/products/1805672
Pin strip - PST 1,3/ 7-5,0-SF - 1805672
Approvals
Approvals submitted
UL / null / VDE / null / cUL / null
Approval details
GOST
GOST
Drawings
Drilling diagram
a
2,4
5
Dimensioned drawing
a+4,8
a
5,65
4,85
4,85
5,65
1,4
13
1,9
Ø1,5
7,5
Ø1,3
