3-647080-3

Description

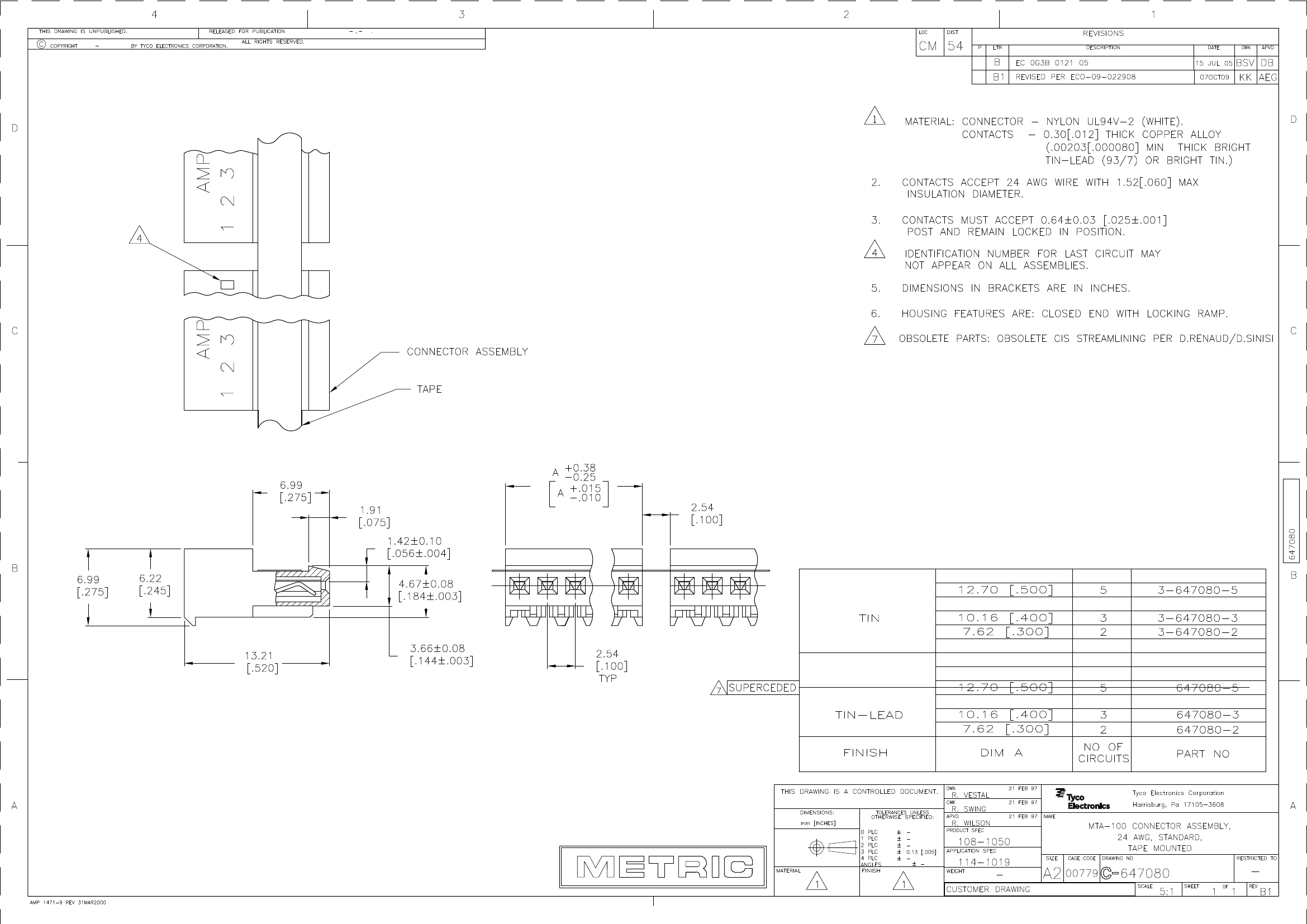

03P MTA100 CONN ASSY ON TAPE
CategoryThe connector
File Size85KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

3-647080-3 Online Shopping

Suppliers Part Number Price MOQ In stock
3-647080-3 - - View Buy Now

3-647080-3 Overview

03P MTA100 CONN ASSY ON TAPE

3-647080-3 Parametric

Parameter NameAttribute value
Connector Systemwire to board
Sealableno
Connectors and terminals terminate toWires and cables
Connector typefemale end
Connector designclosed end
stress reliefwith
Cable typeseparate conductor, stranded conductor
Number of Positions3
Rows1
Backwall/Post InterruptionsWithout
Operating voltage (VAC)250
Cable exit angle90°
Terminal base materialcopper alloy
Wire terminal termination area plating materialstin
Terminal contact plating materialtin
Terminal contact part plating material surface coatingbright light
Terminal contact plating thickness2.03 – 5.08 µm [ 80 – 200 µin ]
Terminal typesocket
Contact Current Rating (Max) (A)5
PCB terminal termination area plating material surface coatingmatte
PCB Terminal Termination Area Plating Thickness (µin)80 – 200
Wire Terminal Termination Area Plating Thickness (µin)80 – 200
Surface coating of plating material in wire terminal termination areamatte
Terminal layoutDirect plug-in
Terminal conduction (typ.)power supply
PCB terminal termination area plating materialstin
Cable termination methodPiercing crimping (IDC)
Panel mount featuresWithout
Terminal retention typelock gun
PCB mounting alignmentWithout
joint fixationwith
PCB installation and fixationWithout
Connector mounting typeCable installation
joint alignmentWithout
Joint fixation typelock bevel
Terminal positioning forcewith
Centerline (Pitch)2.54 mm [ .1 in ]
Shell colorWhite
Shell materialNylon 6/6
Shell typestandard
Insulation diameter1.52 mm [ .06 in ]
PCB thickness (recommended)1.57 mm [ .062 in ]
length11.76 mm [ .463 in ]
Cable size (mm²).2
Working group temperature range-55 – 105 °C [ -67 – 221 °F ]
Circuit ApplicationSignal
Applicable toMTA .100 Head Assembly
UL flammability ratingUL 94V-2
Agencies/StandardsCSA, UL
CSA file numberLR7189
CSA ratingverified
UL ratingRecognized
UL file numberE28476
Encapsulation methodboxes and cartons
Package quantity2800
