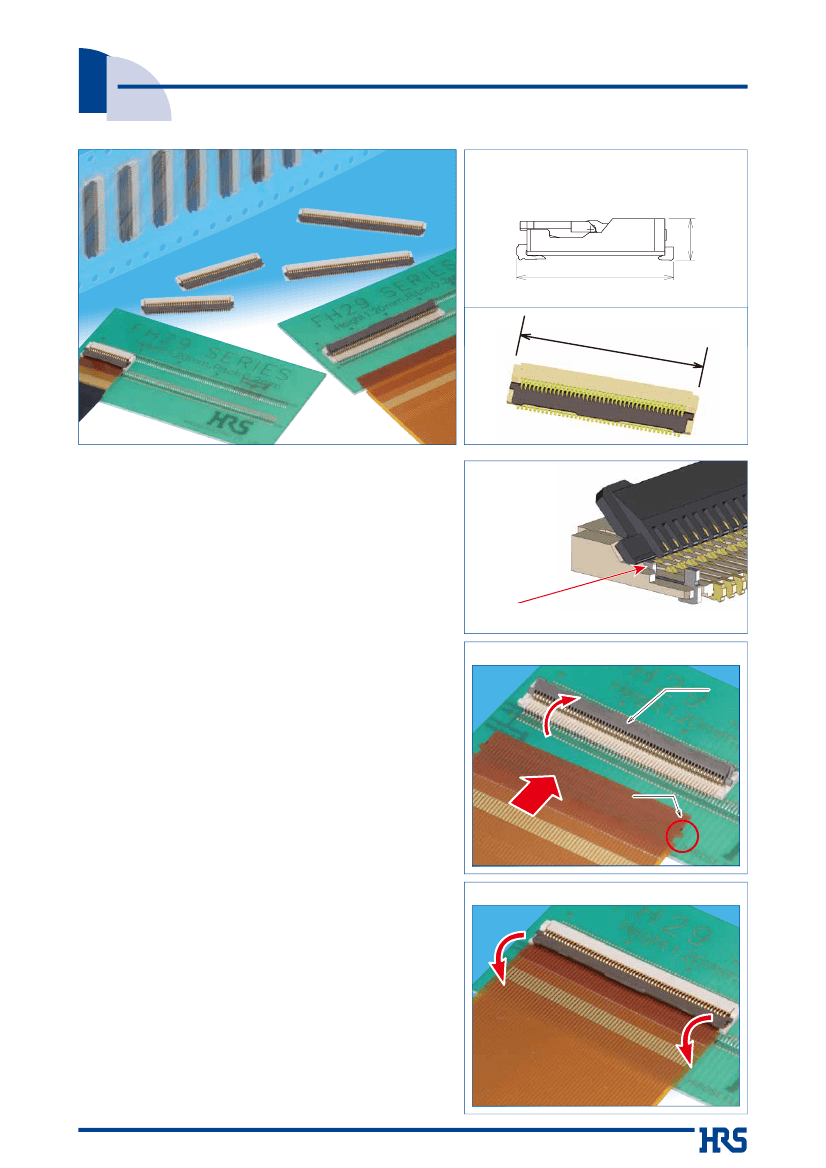

0.2 mm Pitch, 1.2 mm Height, FPC Connector
FH29 Series
●Easy
mounting with double-sided lead design
1.2 mm height, 4.55 mm mounting depth
4.55mm
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
17.82 m
m (80 p
os.)
■Features
1. Space saving 0.2 mm pitch FPC connector
Super thin, space saving design with 1.2 mm connector
height and 4.55 mm mounting depth.
*40% reduction in PCB footprint
*50% reduction in weight
(Compared to our 0.3 mm pitch FH23 Series 80 position connector.)
●With
metal fitting type
2. With metal fitting type is also available
The addition of reinforcing metal fittings improve the
operability during actuator operation.
The reinforcing metal fittings support the actuator from
below, this leads to an easier locking function.
●FPC
insertion
Actuator
3. Easy solderability on the PCB
The leads are double sided and have 0.4 mm mounting lead pitch to simplify mounting.
4. Easy FPC insertion
The FPC aligning mechanism holds onto the FPC prior to locking the
actuator. This also helps to increase the retention force of this connector.
5. Accepts standard 0.2 mm thick FPC
This connector accepts standard 0.2 mm thick FPC.
(A stiffener with adequate strength will prevent FPC
deformation and ease insertion and mating.)
FPC tab
6. Rotating one-touch ZIF mechanism
The one-touch rotating ZIF mechanism is easier to operate and
works with a light force, and a clear tactile click is delivered
upon the successful completion of the mating process
FPC
7. Molded structure aids PCB layout
The bottom of this connector is enclosed by a fully molded structure that protects
the contacts and removes any restrictions from PCB patterning and layout design.
●FPC
lock completion
8. Suitable for automatic pick-n-place mounting
Offered in tape and reel packaging that is compatible with
automatic machine mounting. (5,000 pieces per reel)
9. Halogen-free
Halogen free connectors are available; please use the FH29BW, FH29BJ and FH29DJ type
connectors. All materials and substances used to produce the FH29BW, FH29BJ, FH29DJ
series product complies with Halogen-free standards. * Defined according to IEC61249-2-21
Br: 900ppm max, Cl: 900ppm max, Br+Cl: 1,500ppm max.
10. Suitable for automatic pick-n-place mounting
The standard packaging is 5,000 pieces per reel, but it is
also offered in a 500 piece reel. (The outer diameter of the
reel will be _180 mm in this case.)
2013.11②
1.2mm
1
FH29 Series●0.2 mm Pitch, 1.2 mm Height, FPC Connector
■Product
Specifications
Rating
Operating temperature range: -55°C to 85°C (Note 2) Storage temperature range: -10°C to 50°C (Note 3)
Rated current: DC 0.25 A (Note 1)
Operating humidity range: relative humidity 90% max Storage humidity range: relative humidity 90% max
Rated voltage: AC/DC 40 Vrms
(No condensation)
(No condensation)
Recommended FPC spec. Thickness = 0.2 ±0.03 mm gold plated
Item
1. Insulation resistance 500 Mø min.
2. Withstanding voltage No flashover or insulation breakdown
100 mø max.
* including FPC conductor resistance
Contact resistance: 100 mø max.
No damage, cracks, or parts dislocation.
No electrical discontinuity of 1 μs or longer.
Contact resistance: 100 mø max.
No damage, cracks, or parts dislocation.
No electrical discontinuity of 1 μs or longer.
Contact resistance: Maximum of 100 mø max.
No damage, cracks, or parts dislocation.
Contact resistance: Maximum of 100 mø max.
Insulation resistance: . Minimum of 50 Mø min.
No damage, cracks, or parts dislocation.
Contact resistance: Maximum of 100 mø max.
Insulation resistance: Minimum of 50 Mø min.
No damage, cracks, or parts dislocation.
No deformation of components affecting
performance.
Specifications
DC 100 V
AC 120 Vrms/1 minutes
1 mA
20 mating cycles
frequency: 10 to 55 Hz, single amplitude of
0.75/mm, 10 cycles in each of the 3 directions
Acceleration of 981 m/s
2
, 6 ms duration, sine
half-wave, 3 cycles in each of the 3 axial
directions
Conditions
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
3. Contact resistance
4. Durability
5. Vibration
6. Shock
7. Humidity
(steady state)
96 hours at 40°C and humidity of 90 to 95%
Temperature: -55
➝
+15 to +35
➝
+85
➝
+15 to +35°C
Time: 30
➝
2 to 3
➝
30
➝
2 to 3 minutes
5 cycles
1) Reflow: peak temperature 250°C max, 60 seconds max at above 230°C.
2) Manual soldering: 350ç ± 10ç for 5 seconds.
8. Temperature
cycle
9. Resistance to
soldering heat
Note 1: When energizing rated current to all contacts, use 70% of rated current.
Note 2: Includes temperature rise caused by current flow.
Note 3: The term "storage" here refers to products stored for a long period prior to board mounting and use. The operating temperature
and humidity range covers the non-energized condition of connectors after board mounting and the temporary storage.
■Materials
Parts
Materials
LCP
Insulator
PA
PPS
Contacts
Phosphor bronze
Color/Finish
Beige
FH29B Series : Deep brown
FH29BW Series: Light brown
FH29BJ, FH29DJ Series: Black
Gold plated
Remarks
UL94V-0
UL94HB
UL94V-0
------
-----
■Product
Number Structure
Refer to this page when determining product specifications by model types. Please place orders with part numbers
listed in this catalog. The characteristics and specifications of the product described in this catalog are reference
values. Please make sure to check the latest delivery specifications at the time of product use.
FH 29 B W - 80S - 0.2 SHW (05)
1
1
Series name
2
Series No.
3
B: Standard type
Blank: Standard
4
W: Halogen-free (flame retardance UL94HB)
J: Halogen-free (flame retardance UL94V-0)
: FH
: 29
D: With metal fitting type
2
3
4
5
6
7
8
5
No. of contacts: 22 to 120
6
Contact pitch: 0.2 mm
7
Terminal type
SHW: SMT double-sided lead horizontal mount type
8
Plating specifications
(05) Gold plating with nickel barrier, 5,000 pieces per reel
(99) Gold plating with nickel barrier, 500 pieces per reel
2
FH29 Series●0.2 mm Pitch, 1.2 mm Height, FPC Connector
■Connector
Dimensional Drawing
[ Standard type ]
A
B
0.4
Xn
(0.15)
0.15 a
a
Δ
A**
Xn
(0.15)
0.15 a
B
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
0.4
(C: FPC insertion slot dimension)
4.55
4
b
Detailed drawing of b
0.3
(2.4)
1.2
4
(1.2)
(1.44)
(3.6)
(0.4) 0.25
(1.42)
1.2
0.25
0.79
4.55
0.45
1
1
Note 1 : The coplanarity of each terminal lead is within 0.1 max.
2 : This product is packaged and sold by tape and reel. For details on the packing, please refer to the drawing specifications on
page 7.
3 : Recesses in part structure may be added to improve molding characteristics. Black marks may appear in the mold resin, but
they will not negatively affect the performance of these connectors.
4 : Outline of the actuator is as shown by broken lines with connectors with 92 or more positions.
5 : The color of the plating may change after the reflow process, but it will not negatively affect the performance of these connectors.
■Connector
Dimensional Table
Part No.
FH29BW-22S-0.2SHW(**)
FH29BW-24S-0.2SHW(**)
FH29BJ-34S-0.2SHW(**)
FH29B-40S-0.2SHW(**)
FH29B-44S-0.2SHW(**)
FH29BW-44S-0.2SHW(**)
FH29B-50S-0.2SHW(**)
FH29BJ-60S-0.2SHW(**)
FH29BJ-70S-0.2SHW(**)
FH29BJ-80S-0.2SHW(**)
FH29BJ-90S-0.2SHW(**)
FH29B-100S-0.2SHW(**)
FH29B-120S-0.2SHW(**)
HRS No.
CL580-0325-4-**
CL580-0323-9-**
CL580-0331-7-**
CL580-0313-5-**
CL580-0314-8-**
CL580-0324-1-**
CL580-0315-0-**
CL580-0330-4-**
CL580-0327-0-**
CL580-0329-5-**
CL580-0334-5-**
CL580-0320-0-**
CL580-0328-2-**
44
50
60
70
80
90
100
120
10.62
11.82
13.82
15.82
17.82
19.82
21.82
25.82
8.4
9.6
11.6
13.6
15.6
17.6
19.6
23.6
9.24
10.44
12.44
14.44
16.44
18.44
20.44
24.44
No. of Contacts
22
24
34
40
A
6.22
6.62
8.62
9.82
B
4
4.4
6.4
7.6
C
4.84
5.24
7.24
8.44
(13
5
˚)
Unit: mm
n
11
12
17
20
22
25
30
35
40
45
50
60
(Note 1) This product is packaged on tape and reel and is only sold in full reel quantities of either 5,000 or 500 piece
reels. Please place orders by full reel quantities.
3
FH29 Series●0.2 mm Pitch, 1.2 mm Height, FPC Connector
■Connector
Dimensional Drawing
[ With reinforcement metal fittings type ]
A
B
0.4
Xn
(0.15)
0.15 a
a
Δ
A**
Xn
(0.15)
0.15 a
B
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
0.4
(0.15)
(C: FPC insertion slot dimension)
D
4.55
4
b
Detailed drawing of b
0.3
(3.6)
(0.4)
(1.42)
0.25
(1.44)
(2.4)
1.2
(1
35
˚)
1
0.25
0.79
0.45
4.55
1
Note 1 : The coplanarity of each terminal lead is within 0.1 max.
2 : This product is packaged and sold by tape and reel. For details on the packing, please refer to the drawing specifications on page 7.
3 : Recesses in part structure may be added to improve molding characteristics. Black marks may appear in the mold resin, but
they will not negatively affect the performance of these connectors.
4 : The color of the plating may change after the reflow process, but it will not negatively affect the performance of these connectors.
■Connector
Dimensional Table
Part No.
FH29DJ-44S-0.2SHW(**)
FH29DJ-50S-0.2SHW(**)
FH29DJ-70S-0.2SHW(**)
FH29DJ-80S-0.2SHW(**)
FH29DJ-90S-0.2SHW(**)
FH29DJ-100S-0.2SHW(**)
FH29DJ-110S-0.2SHW(**)
FH29DJ-120S-0.2SHW(**)
HRS No.
CL580-0337-3-**
CL580-0338-6-**
CL580-0336-0-**
------
-----
CL580-0340-8-**
CL580-0335-8-**
CL580-0339-9-**
------
-----
No. of Contacts
44
50
70
80
90
100
110
120
A
10.62
11.82
15.82
17.82
19.82
21.82
23.82
25.82
B
8.4
9.6
13.6
15.6
17.6
19.6
21.6
23.6
C
9.24
10.44
14.44
16.44
18.44
20.44
22.44
24.44
D
9.615
10.815
14.815
16.815
18.815
20.815
22.815
24.815
1.2
Unit: mm
n
22
25
35
40
45
50
55
60
(Note 1) This product is packaged on tape and reel and is only sold in full reel quantities of either 5,000 or 500 piece
reels. Please place orders by full reel quantities.
4
FH29 Series●0.2 mm Pitch, 1.2 mm Height, FPC Connector
■Recommended
PCB Layout and Stencil Dimensional Drawing
[ Standard type ]
Recommended stencil thickness: t = 0.12 mm
0.4
0.85±0.05
(A)
B
d
∞n
0.22±0.02(LAND)
0.04 d 0.2±0.01(STENCIL)
(0.45)
(0.2)
(0.2)
4.95±0.05
(0.2)
1.25±0.05(LAND)
0.85±0.05(STENCIL)
(0.2)
(0.84)
0.4
∞n
0.04 d
B
0.22±0.02(LAND)
0.2±0.01(STENCIL)
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
■Recommended
PCB Layout and Stencil Dimensional Table
Unit: mm
Part No.
FH29BW-22S-0.2SHW(**)
FH29BW-24S-0.2SHW(**)
FH29BJ-34S-0.2SHW(**)
FH29B-40S-0.2SHW(**)
FH29B-44S-0.2SHW(**)
FH29BW-44S-0.2SHW(**)
FH29B-50S-0.2SHW(**)
FH29BJ-60S-0.2SHW(**)
FH29BJ-70S-0.2SHW(**)
FH29BJ-80S-0.2SHW(**)
FH29BJ-90S-0.2SHW(**)
FH29B-100S-0.2SHW(**)
FH29BJ-120S-0.2SHW(**)
HRS No.
CL580-0325-4-**
CL580-0323-9-**
CL580-0331-7-**
CL580-0313-5-**
CL580-0314-8-**
CL580-0324-1-**
CL580-0315-0-**
CL580-0330-4-**
CL580-0327-0-**
CL580-0329-5-**
CL580-0334-5-**
CL580-0320-0-**
CL580-0328-2-**
44
50
60
70
80
90
100
120
10.62
11.82
13.82
15.82
17.82
19.82
21.82
25.82
8.4
9.6
11.6
13.6
15.6
17.6
19.6
23.6
22
25
30
35
40
45
50
60
No. of Contacts
22
24
34
40
A
6.22
6.62
8.62
9.82
B
4
4.4
6.4
7.6
n
11
12
17
20
■Recommended
PCB Layout and Stencil Dimensional Drawing
[ With reinforcement metal fittings type ]
Recommended stencil thickness: t = 0.12 mm
0.85±0.05
0.4
(A)
B
d
∞n
0.04 d
(0.45)
(0.2)
0.22±0.02(LAND)
0.2±0.01(STENCIL)
4.95±0.05
(0.2)
(0.2)
1.25±0.05(LAND)
0.85±0.05(STENCIL)
(0.6)
(0.84)
(0.2)
0.4
∞2
0.04 d
B
D
0.35±0.02(LAND)
0.25±0.01(STENCIL)
■Recommended
PCB Layout and Stencil Dimensional Table
Unit: mm
Part No.
FH29DJ-44S-0.2SHW(**)
FH29DJ-50S-0.2SHW(**)
FH29DJ-70S-0.2SHW(**)
FH29DJ-80S-0.2SHW(**)
FH29DJ-90S-0.2SHW(**)
FH29DJ-100S-0.2SHW(**)
FH29DJ-110S-0.2SHW(**)
FH29DJ-120S-0.2SHW(**)
HRS No.
CL580-0337-3-**
CL580-0338-6-**
CL580-0336-0-**
------
-----
CL580-0340-8-**
CL580-0335-8-**
CL580-0339-9-**
------
-----
No. of Contacts
44
50
70
80
90
100
110
120
A
10.62
11.82
15.82
17.82
19.82
21.82
23.82
25.82
B
8.4
9.6
13.6
15.6
17.6
19.6
21.6
23.6
D
9.615
10.815
14.815
16.815
18.815
20.815
22.815
24.815
n
22
25
35
40
45
50
55
60
0.345±0.05
∞n
0.04 d
0.22±0.02(LAND)
0.2±0.01(STENCIL)
0.7±0.05(STENCIL)
0.95±0.05(LAND)
(4.55)
(4)
(4.55)
(4)
5
京公网安备 11010802033920号
EEWORLD
