FB032-091-3-1: DescriptionBoard Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Press Fit/Wire Wrap Terminal, Hole .099-.111, Gray Insulator, Plug; CategoryThe connector The connector; File Size63KB，1 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric View All

FB032-091-3-1 Overview

Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Press Fit/Wire Wrap Terminal, Hole .099-.111, Gray Insulator, Plug

FB032-091-3-1 Parametric

Parameter Name	Attribute value
Maker	Thomas & Betts Corporation
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	FLEX-FIT
body width	0.319 inch
subject depth	0.457 inch
body length	3.741 inch
Body/casing type	PLUG
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN LEAD OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	500VDC V
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	FB
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	NO
Mixed contacts	NO
Installation option 1	HOLE .099-.111
Installation option 2	NON-THREADED
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,B
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.512 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT/WIRE WRAP
Total number of contacts	32
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

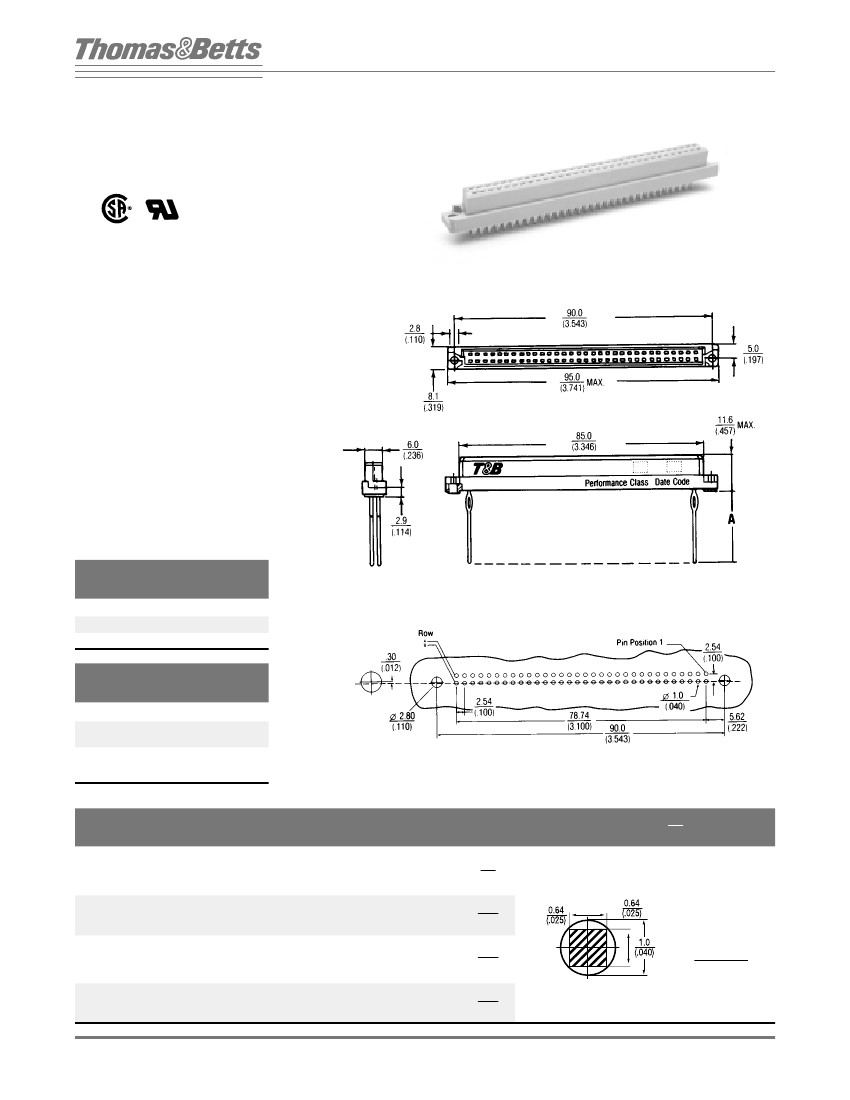

Two–Piece Connectors

Standard DIN Flex-Fit™

TYPE B

FLEX-FIT™ FEMALE

PCB CONNECTOR

LR92984

E60980

P

HYSICAL

P

ROPERTIES

I

NSULATION

M

ATERIAL

:

Glass filled thermoplastic

rated UL 94V-0

C

OLOR

:

Gray

C

ONTACTS

:

Copper alloy, nickel plate overall,

gold finish in contact zone. Tin/lead on solder

tails, tin/lead or gold on posts.

E

LECTRICAL

P

ROPERTIES

C

URRENT

R

ATING

:

2 Amps per pin

I

NSULATION

R

ESISTANCE

:

>1 x 10

9

0hms

D

IELECTRIC

S

TRENGTH

:

> 500 VDC at sea level

E

NVIRONMENTAL

P

ROPERTIES

T

EMPERATURE

R

ATING

:

-55˚C TO 125°C

I

NITIAL

I

NSERTION

F

ORCE

P

ER

P

IN

40 lbs. maximum when staked into glass

epoxy PCB substrate 0.037" diameter

finished through-hole

R

ETENTION

F

ORCE

P

ER

P

IN

10 lbs. minimum when staked into glass

epoxy PCB substrate 0.043" diameter

finished through-hole

X

1

2

3

PERFORMANCE LEVEL

level 1 - 500 mating cycles

level 2 - 400 mating cycles

level 3 - 50 mating cycles

Recommended Printed Circuit Board Layout

Y

1

2

3

TAIL PLATING

Tin/Lead

Gold Flash

(.200” From Pin TIp)

Gold Plate

(30 microinches

.200” Form Pin Tip)

Ordering Information

NO. OF CONTACTS

CONTACT LOADING

CATALOG NO.

SPECIFY X AND Y

FB032-081-X

FB064-081-X

FB032-091-X-Y

FB064-091-X-Y

FB032-101-X-Y

FB064-101-X-Y

FB032-111-X-Y

FB064-111-X-Y

A = 4.7

(.184)

A = 13.0

(.512)

A = 17.0

(.669)

A = 20.9

(.823)

TERMINATION STYLE

MM

(INCHES)

32

64

32

64

32

64

32

64

a, b

a, b, c

a, b

2, 4, 6 –32

1, 2, 3 –32

2, 4, 6 –32

1, 2, 3 –32

2, 4, 6 –32

1, 2, 3 –32

2, 4, 6 –32

1, 2, 3 –32

Press-Fit

Wire Wrap Post

0.64 x 0.64

(.025 x .025)

Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312

Dimensions shown are for reference only. Dimensions are in millimeters (inches).
