0.4 mm Contact Pitch, 1.2 mm above the board, Flexible Printed Circuit ZIF Connectors
FH 27 Series
●FPC
thickness: 0.2±0.03 mm
●1.2
mm Height, actuator fully closed.
(54 pos. shown)
■
Overview
Continuous miniaturization of personal mobile devices
created a need for a low profile, high density interconnection
system.In the same time, the demand for higher currents and
higher reliability Flexible Printed Circuits has also increased.
Hirose meets all these challenges with introduction of this connector.
24.2mm
1.2mm
4.0mm
■

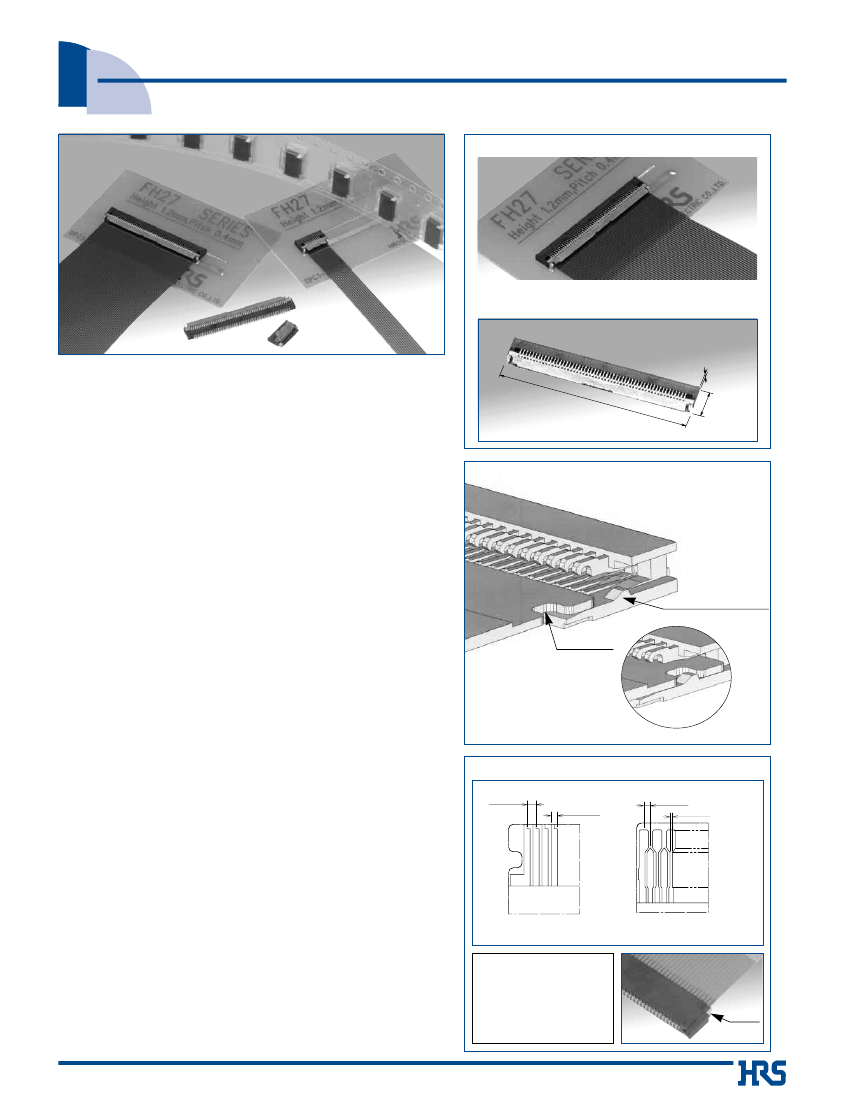

Features
1. Low profile, small PCB mounting area, weight reduction
Protruding only 1.2 mm above the board the connector
occupies 50% less area than comparable type having
contacts spaced on 0.5 mm centers.
Creative design, coupled with high manufacturing capabilities
resulted in extremely low weight of the connector.
●FPC
temporary retention
2. Higher current carrying capacity
Contact spacing of 0.4 mm allows production of wider
and simpler pattern of conductive traces on FPC.
FPC notch
FPC temporary
hold protrusion
3. FPC temporary hold and verification of correct insertion
The connector has built-in FPC hold protrusions allowing
the tactile feel of the correct FPC insertion and holding it
in position before closing of the actuator.
Temporary hold-FPC
fully inserted
4. Uses standard 0.2 mm thick FPC
5. One-finger operation of the actuator
Proven (in several other Hirose's connectors!) Flip-Lock
rotating actuator assures reliable mechanical and electrical
connection with FPC, confirming it with a definite tactile feel.
●Wider
FPC conductive traces
0.4mm
0.27mm
6. Board placement with automatic equipment
Flat top surface and packaging on the tape-and reel
allows the use of vacuum nozzles.
Standard reel contains 2,500 connectors.
0.3mm
0.1mm
7. Environmental considerations
The center cores of the embossed tape reels are made of Styrofoam.
8. Variety of contact positions
Available with 10, 40, 50,54, 57 and 60 pos.
0.4 mm pitch FPC
Metal fittings on each
side do not protrude
out allowing side-by-
side mounting of the
connectors or closer
component placement.
0.3 mm pitch FPC
■
Applications
Mobile phones, PDA’s, digital cameras, digital video
cameras, LCD connections, plasma displays (PDP), camera
modules and other compact devices requiring Flexible
Printed Circuit connections using high reliability ultra-small
profile connectors
Metal
fitting
67
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
■Product
Specifications
Rating
Rated current 0.4 A DC(Note 1)
Rated voltage 40 V AC
Operating temperature range
-55ç to +85ç (Note 2)
Operating humidity range
Relative humidity 90% max. (No condensation)
Storage temperature range
-10ç to +50ç (Note 3)
Storage humidity range
Relative humidity 90% max.
Recommended FPC
Item
Thickness: = 0.2±0.03mm tin-lead plated (Note 3)
Specification
100 V DC
120 V AC /one minute
1 mA
20 cycles
Conditions
1. Insulation resistance
500 M ø min.
2. Withstanding voltage
No flashover or insulation breakdown.
3. Contact resistance
100 m ø max.
* Including FPC conductor resistance
4. Durability
Contact resistance: 100 m ø max.
(insertion/ withdrawal)
No damage, cracks, or parts dislocation.
No electrical discontinuity of 1 μs or more.
5. Vibration
Contact resistance: 100 m ø max.
No damage, cracks, or parts dislocation.
No electrical discontinuity of 1 μs. min.
6. Shock
Contact resistance: 100 m ø max.
No damage, cracks, or parts dislocation.
Contact resistance: 100 m ø max.
7. Humidity
Insulation resistance: 50 M ø min.
(Steady state)
No damage, cracks, or parts dislocation.
Contact resistance: 100 m ø max.
8. Temperature cycle
Insulation resistance: 50 M ø min.
No damage, cracks, or parts dislocation.
9. Resistance to
No deformation of components affecting performance.
soldering heat
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 10 cycles in
each of the 3 directions.
Acceleration of 981 m/s
2
, 6ms duration, sine half-wave
waveform, 3 cycles / each of 3 axis
96 hours at 40ç and humidity of 90% to 95%.RH
Temperature: -55
ç
/
+15
ç
to +35
ç
/
+85
ç
/
+15
ç
to +35
ç
Time: 30
/
2 to 3
/
30
/
2 to 3 (Minutes)
5 cycles
Reflow: At the recommended temperature profile
Manual soldering: 350ç±10ç for 5 seconds
Note 1: When passing the current through all of the contacts, use 70% of the current rating.
Note 2: Includes temperature rise caused by current flow.
Note 3: The term ”storage” refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non- conducting condition of installed connectors in storage, shipment or during transportation.
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
BOperation
and Precautions
Operation
Precautions
1
Do not apply excessive force or use any type of tool to operate the
actuator.
1.FPC insertion procedure. Connector installed on
the board.
1
Lift up the actuator. Use thumb or index finger.
2
Fully insert the FPC in the connector parallel to mounting surface,
with the exposed conductive traces facing down.
2
The connector will assure reliable performance when the actuator is
open to 130˚maximum. Do not exceed this angle, as this may cause
permanent damage to the connector.
Over 130°
FPC conductor
surface
(Bottom side)
3
Rotate down the actuator until firmly closed. It is critical that the
inserted FPC is not moved and remains fully inserted.
3
Exercise caution when applying upward force to the connected FPC.
2.FPC removal
1
Lift up the actuator.
Carefully withdraw the FPC.
4
The connectors are straight within 0.1 mm max.
Make sure that the PC board connector mounting area flatness
can accept the connector terminals without causing any failure
of the solder joints.
F
Connector
PC board
(0.5)
1MAX 1MAX
80
F
80
(0.5)
69
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
■Connector
Dimension
A
B
0.4
0.15 H
(0.15)
H
0.5
Number of contacts indicator
(2.2)
0
(0.15)
2
(C: FPC insertion slot dimension)
D
1 0.15MAX
K
(1.7)
3
2
1 0.15MAX
1.2
0
3.5
(3.9)
A**
Polarizing mark indicator
Notes
1
Lead co-planarity including reinforced metal fittings shall be 0.1 MAX.
2
The contact terminal lead position indicates the dimension from the K surface, the bottom surface of the insulator body.
3
Packaging for this product is embossed carrier tape packaging. Refer to packaging specification.
4
Note that preventive hole for sink mark could be added for improvement.
The quality remains good, even with the dark spots, which could occasionally occur on molded plastic.
Unit: mm
Part Number
FH27-10S-0.4SH(15)
FH27-40S-0.4SH(05)
FH27-50S-0.4SH(05)
FH27-54S-0.4SH(15)
FH27-57S-0.4SH(15)
FH27-60S-0.4SH(05)
CL No.
CL580-0004-0-15
CL580-0005-3-05
CL580-0010-3-05
CL580-0001-2-15
CL580-0003-8-15
CL580-0006-6-05
Number of Contacts
10
40
50
54
57
60
A
06.6
18.6
22.6
24.2
25.4
26.6
B
03.6
15.6
19.6
21.2
22.4
23.6
C
05.24
17.24
21.24
22.84
24.04
25.24
D
06.0
18.0
22.0
23.6
24.8
26.0
RoHS
YES
Note1
Note 1 : Refer to "Ordering information".
Note 2 : Tape and reel packaging (2,500 pieces/reel).
Order by number of reels.
70
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
BRecommended
PCB mounting pattern and metal mask dimensions
E
0.8±0.05
0.4
∞Number of contacts
0.23±0.03(Land)
0.04 R
0.2±0.01(Metal mask)
Recommended metal mask thickness: .t=0.12
R
(0.2)
(0.2)
(0.25)
(0.225)
1.2±0.05
2.25±0.05
1.4±0.05
Outline of the connector
0.55±0.05
F±0.05
(0.175)
0.55±0.05
BRecommended
FPC Dimensions
0.8±0.07
2-
G±0.05
E±0.03
0.4±0.03
0.27±0.03
0.13±0.03
0.8±0.07
0.2±0.05
0.2±0.03
2.7MIN
(Uncover area)
1.9±0.1
3.2MIN(Stiffener)
2 0.5MIN
(Overlap)
R0.2MAX
2-R0.25MAX
R0
.2
(0.07)
Covering film layer
H±0.05
G±0.05
(0.07)
1
Polyimide and thermally hardening adhesive is recommended as the materials for the stiffener.
2
Overlap between covering film layer and stiffener is 0.5mm min.
