ALIGNMENT INDICATOR
D
D
ALIGNMENT DOT, COLOR-WHITE
SEAL, PANEL, SHOWN FOR REFERANCE ONLY,
TO BE ORDERED SEPARATELY, PART #1445420-02
JAM NUT, SHOWN FOR REFERANCE ONLY, TO BE
ORDERED SEPARATELY, PART # 1445904-1
24
17.5
K REF
SEE TABLE
22.25
3 PLC
C
C
14.1
1.5
3/4-20 UNEF-2A THREAD
X REF
SEE TABLE
SEAL, PERIPHERAL; QTY-1
MATERIAL: ELASTOMER, COLOR-GRAY
29
B
1. CONNECTOR CAN BE FRONT OR REAR PANEL MOUNTED.
2
MAX PANEL THICKNESS - 3.18
B
HOUSING; QTY-1
MATERIAL: THERMOPLASTIC, COLOR-BLACK
19.2
0.1
SEAL, WIRE ENTRY; QTY-1
MATERIAL: ELASTOMER, COLOR-SEE TABLE
RETAINER, SEAL; QTY-1
MATERIAL: THERMOPLASTIC, COLOR-BLACK
A
18.45
0.1
OBSOLETE
OBSOLETE
NATURAL
NATURAL
YELLOW
SEAL, WIRE ENTRY COLOR
YELLOW
135 $
115 $
135 $
115 $
K REF
15OCT2001
15OCT2001
13JUN2003
NAME
DWN
CHK
1445823-04
1445823-03
1445823-02
1445823-01
PART NUMBER
TE Connectivity
A
SECTION
X-X
SUGGESTED PANEL CUTOUT
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONS:
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
SHANE WIEST
G DOUTY
H.WAKEEM
-
-
mm
APVD
2
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
-
-
0.13
-
-
PRODUCT SPEC
APPLICATION SPEC
-
SEE
CALLOUT
SEE
CALLOUT
WEIGHT
-
CUSTOMER DRAWING
A1
00779
SIZE

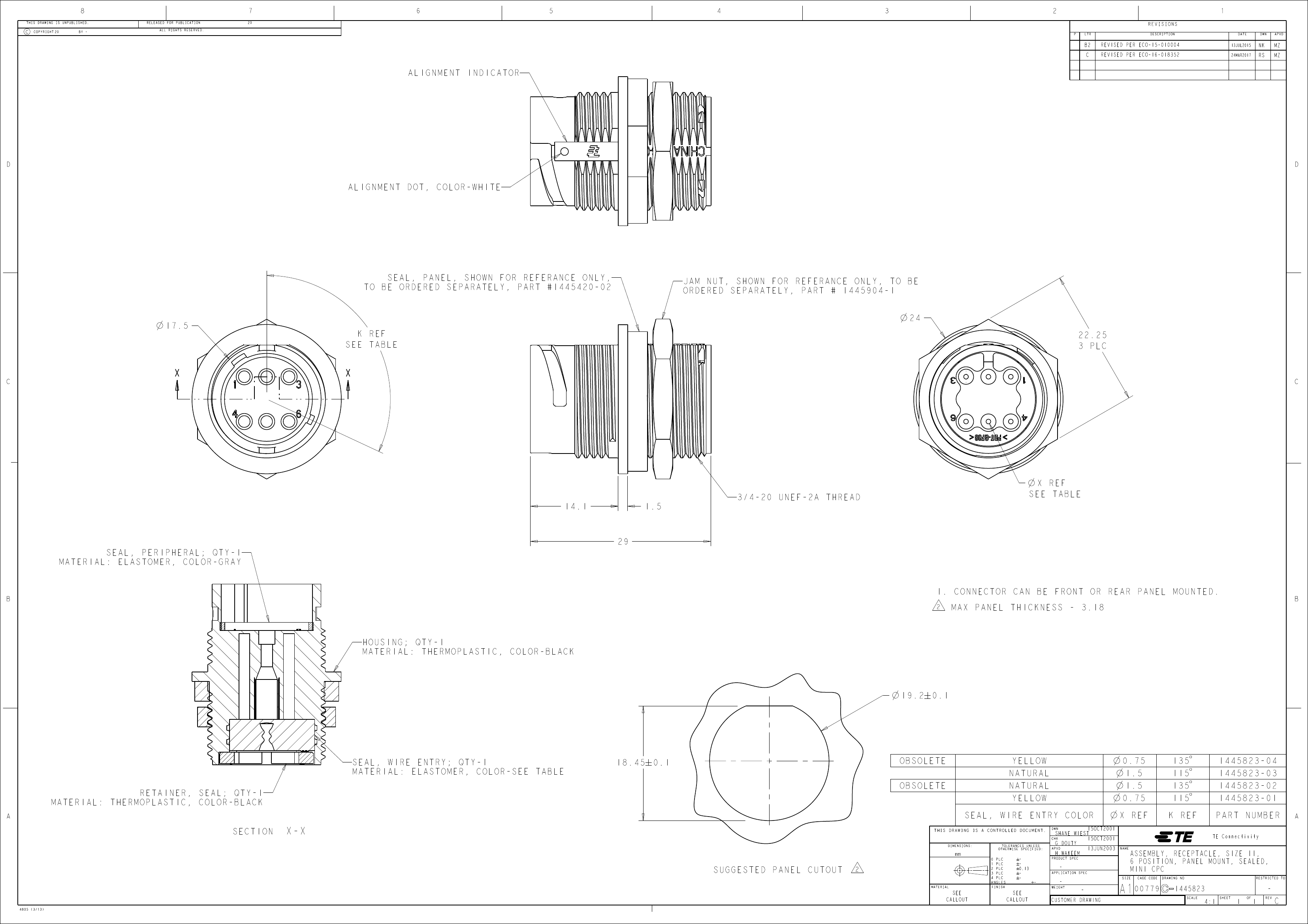

ASSEMBLY, RECEPTACLE, SIZE 11,
6 POSITION, PANEL MOUNT, SEALED,
MINI CPC
CAGE CODE
DRAWING NO
RESTRICTED TO
1445823
SCALE
4805 (3/13)
4:1
