380-107
EMI/RFI Non-Environmental Backshell
with Strain Relief
Type D - Self-Locking - Rotatable Coupling - Full Radius
38
CONNECTOR
DESIGNATORS
380 F S 107 M 16 05 F 6
Product Series
Connector
Designator
Angle and Profile
M = 45°
N = 90°
S = Straight
Basic Part No.
Length: S only
(1/2 inch increments:
e.g. 6 = 3 inches)
Strain Relief Style (F, G)
Cable Entry (Table IV, V)
Shell Size (Table I)
Finish (Table II)
A-F-H-L-S
SELF-LOCKING
ROTATABLE
COUPLING
TYPE D INDIVIDUAL
OR OVERALL
SHIELD TERMINATION
Length ± .060 (1.52)
Minimum Order Length 2.0 Inch
(See Note 4)
A Thread
(Table I)
Length ± .060 (1.52)
Minimum Order
Length 1.5 Inch
(See Note 4)
E Typ.
(Table I)

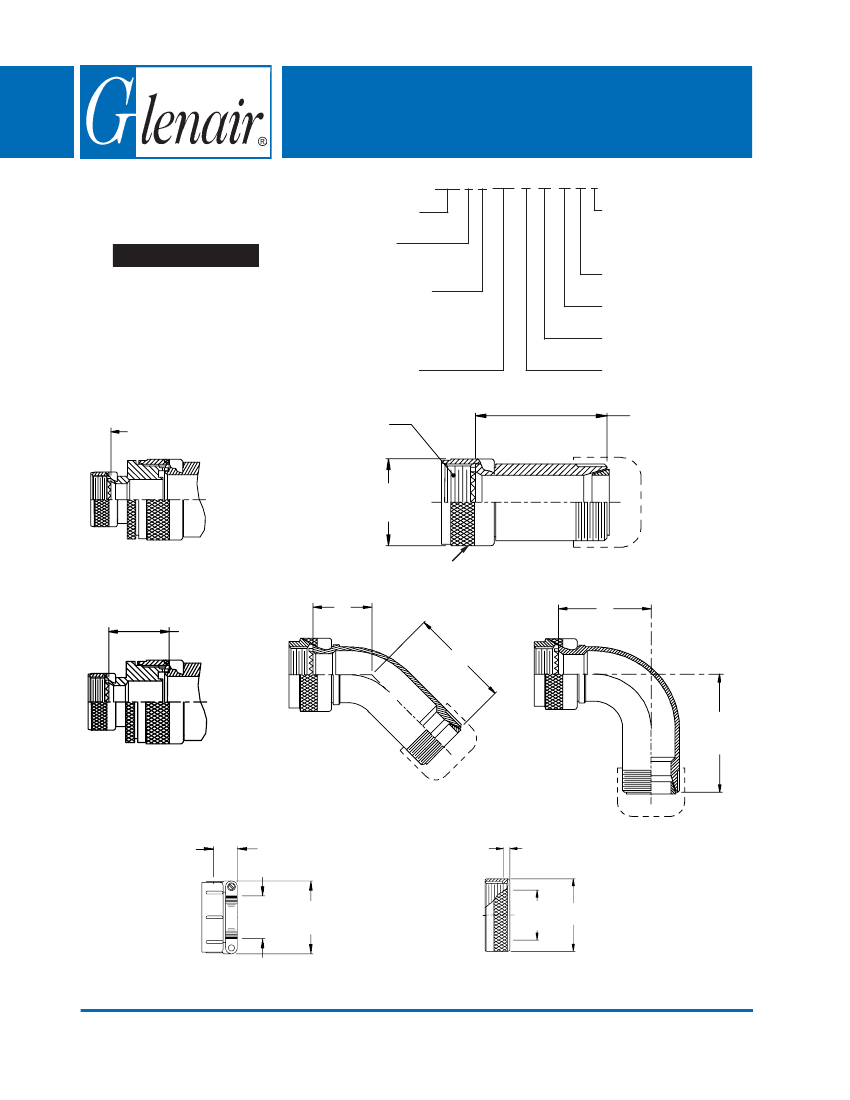

STYLE 2
(STRAIGHT
See Note 1)
1.00 (25.4)
Max
F
(Table III)
Anti-Rotation
Device (Typ.)
H
(Table III)
G (Table III)
J
(Table III)
STYLE 2
(45° & 90°
See Note 1)
STYLE F
Light Duty
(Table IV)
.416 (10.5)
Max
Cable
Range
STYLE G
Light Duty
(Table V)
.072 (1.8)
Max
K
Cable
Entry
L
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 38 - Page 64
with Strain Relief
Type D - Self-Locking - Rotatable Coupling - Full Radius
See inside back cover fold-out or pages 13 and 14 for unabridged Tables I and II.
TABLE II: STANDARD FINISHES
GLENAIR
SYMBOL
B
M
NF
FINISH
Cadmium Plate, Olive Drab
Electroless Nickel
Cadmium Plate, Olive Drab
Over Electroless Nickel
See Inside Back Cover
for Additional Finish Options
TABLE III: ELBOW DIMENSIONS
Shell Size
Conn. Desig.
H
A-F-L-S
09
08
11
10
13
12
15
14
17
16
19
18
21
20
23
22
25
24
28
32
F
Max
.963 (24.5)
1.017 (25.8)
1.067 (27.1)
1.121 (28.5)
1.170 (29.7)
1.220 (31.0)
1.274 (32.4)
1.328 (33.7)
1.377 (35.0)
1.481 (37.6)
1.584 (40.2)
G
Max
.857 (21.8)
.911 (23.1)
.961 (24.4)
1.015 (25.8)
1.064 (27.0)
1.114 (28.3)
1.168 (29.7)
1.222 (31.0)
1.271 (32.3)
1.375 (34.9)
1.478 (37.5)
H
Max
1.281 (32.5)
1.406 (35.7)
1.531 (38.9)
1.656 (42.1)
1.781 (45.2)
1.906 (48.4)
2.031 (51.6)
2.156 (54.8)
2.281 (57.9)
2.531 (64.3)
2.781 (70.6)
J
Max
1.175 (29.8)
1.300 (33.0)
1.425 (36.2)
1.550 (39.4)
1.675 (42.5)
1.800 (45.7)
1.925 (48.9)
2.050 (52.1)
2.175 (55.2)
2.425 (61.6)
2.675 (67.9)
Dash
No.
02
03
04
05
06
07
08
10
TABLE IV: CABLE ENTRY
Cable Range
K
Max
Min
Max
.968 (24.6)
.125 (3.2)
.250 (6.4)
1.046 (26.6)
.250 (6.4)
.375 (9.5)
1.156 (29.4)
.312 (7.9)
.500 (12.7)
1.218 (30.9)
.437 (11.1)
.625 (15.9)
1.343 (34.1)
.562 (14.3)
.750 (19.1)
1.468 (37.3)
.687 (17.4)
.875 (22.2)
1.593 (40.5)
.812 (20.6)
1.000 (25.4)
1.843 (46.8)
1.062 (27.0)
1.250 (31.8)
TABLE V: CABLE ENTRY
L
Cable Entry
Dash
Max
Max
No.
.125 (3.2)
.656 (16.7)
01
.781 (19.8)
.250 (6.4)
02
.906 (23.0)
.375 (9.5)
03
.500 (12.7)
1.031 (26.2)
04
1.156 (29.4)
.625 (15.9)
05
1.281 (32.5)
.750 (19.1)
06
1.406 (35.7)
.875 (22.2)
07
1.531 (38.9)
1.000 (25.4)
08
1.656 (42.1)
1.125 (28.6)
09
1.781 (45.2)
1.250 (31.8)
10
1. When maximum cable entry (page 21) is exceeded, Style 2 will be supplied.
Dimensions F, G, H and J will not apply. Please consult factory.
2. Metric dimensions (mm) are indicated in parentheses.
3. Cable range is defined as the accommodations range for the wire bundle or
cable. Dimensions shown are not intended for inspection criteria.
4. Consult factory for shorter lengths on straight backshells.
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 38 - Page 65
38
380-107
