M83513-03-A09C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> M83513-03-A09C

M83513-03-A09C: DescriptionD-Sub MIL Spec Connectors MICRO DCON PIN 9CNT 18"TEFZEL WIRE; CategoryThe connector; File Size220KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

M83513-03-A09C Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M83513-03-A09C	-	-	View	Buy Now

M83513-03-A09C Overview

D-Sub MIL Spec Connectors MICRO DCON PIN 9CNT 18"TEFZEL WIRE

M83513-03-A09C Parametric

Parameter Name	Attribute value
Product Category	D-Sub MIL Spec Connectors
Manufacturer	Glenair
RoHS	Details
Product	Connectors
Gender	Male
Number of Positions	9 Position
Number of Rows	2 Row
Termination Style	Crimp
Mounting Angle	Straight
Contact Plating	Gold
Mounting Style	Panel
Shell Size	A
Contact Material	Beryllium Copper
Current Rating	3 A
Insulation	Insulated
Qualification	EREL
Shell Material	Aluminum
Shell Plating	Cadmium
Factory Pack Quantity	1
Wire Gauge	26 AWG

Preview

Download Datasheet

View All

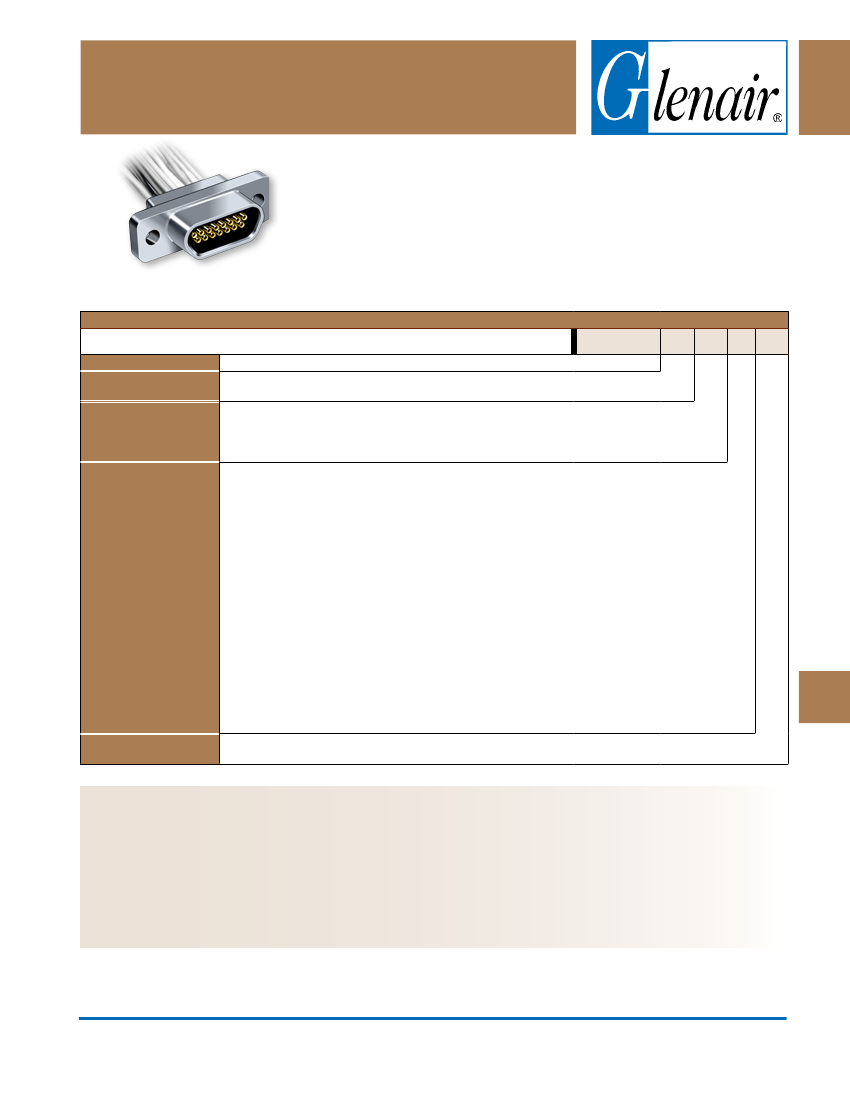

MIL-DTL-83513/03 & /04 Micro-D

Pre-Wired Crimp Terminated, Metal Shell Connector

Micro-D Pre-Wired Pigtails

These connectors feature gold-plated TwistPin contacts and

mil spec crimp termination. Specify aluminum shells for best

availability. 100% tested and backpotted, ready for use.

Choose the Wire Type To Fit Your Application

For lightest weight and smallest diameter, select M22759/33

space grade insulated wire.

How To Order MIL-DTL- 83513 Pre-Wired Metal Shell Micro-D Connectors

Sample Part Number

Base Part Number

Slash Number

m83513

M83513

/03

Pin Connector (Plug)

/04

Socket Connector (Receptacle)

A, B, C, D, E, F, G, H

(See Table I)

Codes A - H specify the shell size.

The number of contacts is shown below for reference.

-9

- 15

- 21

- 25

- 31

- 37

M22759/11-26 Teflon®-Insulated Hookup Wire

- 18 Inches (457mm), White

- 36 Inches (914mm), White

- 18 Inches (457mm), 10 Color Repeating

- 36 Inches (914mm), 10 Color Repeating

- 72 Inches (1829mm), White

- 72 Inches (1829mm), 10 Color Repeating

25 AWG Single Strand Uninsulated Wire

- .500 Inch (12.7mm), Gold Plated

- 1.000 Inch (25.4mm), Gold Plated

- .500 Inch (12.7mm), Tin-Lead Plated(2)

- 1.000 Inch (25.4mm), Tin-Lead Plated(2)

M22759/33-26 Irradiated Tefzel® Insulated Hookup Wire

- 18 Inches (457mm), White

- 36 Inches (914mm), White

- 18 Inches (457mm), 10 Color Repeating

- 36 Inches (914mm), 10 Color Repeating

- 72 Inches (1829mm), White

- 72 Inches (1829mm), 10 Color Repeating

- Cadmium

- Electroless Nickel

- Electrodeposited Aluminum

- Zinc Nickel

/04

-b

Shell Size

- 51

- 100

Wire Type

Shell Finish

- Passivated SST

- Nickel Fluorocarbon Polymer

INDEX

Notes

1. Shell Material & Finish: Cadmium plating offers better corrosion resistance compared to nickel, but cad is not acceptable for space or RoHS

applications. Electroless nickel plated aluminum is recommended for new design activity. Or, choose stainless steel shells for corrosive

environments.

2. Tin-Plated Wire: Glenair M83513 connectors do not contain any components exceeding 97% tin.

3. M22759/33 Corrosion: The M83513 spec contains a cautionary note regarding M22759/33 wire. The wire insulation is known to cause corrosion to

metal parts when stored in a sealed environment. This corrosion has been observed on M83513 connectors. Glenair has implemented a packaging

procedure to minimize or eliminate this problem. Connectors are individually wrapped with teflon tape, and the unit pack is a perforated paper

envelope. M22759/33 continues to be the preferred wire for space applications.

High Performance Micro-D Connectors and Cables

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

L-5

E-Mail: sales@glenair.com

Micro-D

MIL-DTL-83513
