48321-2002

Description
I/O Connectors SATA PLUG FOR OPTIC PTIC DISK DRIVER DIP
CategoryThe connector    The connector
File Size35KB，2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

48321-2002 Online Shopping

Suppliers Part Number Price MOQ In stock
48321-2002 - - View Buy Now

48321-2002 Overview

I/O Connectors SATA PLUG FOR OPTIC PTIC DISK DRIVER DIP

48321-2002 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codeunknown
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU
Contact completed and terminatedTIN
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact resistance30 mΩ
Dielectric withstand voltage500VAC V
Durability500 Cycles
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialTHERMOPLASTIC
Manufacturer's serial number48321
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Plating thickness30u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)1 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Termination typeSOLDER
Total number of contacts13
Base Number Matches1

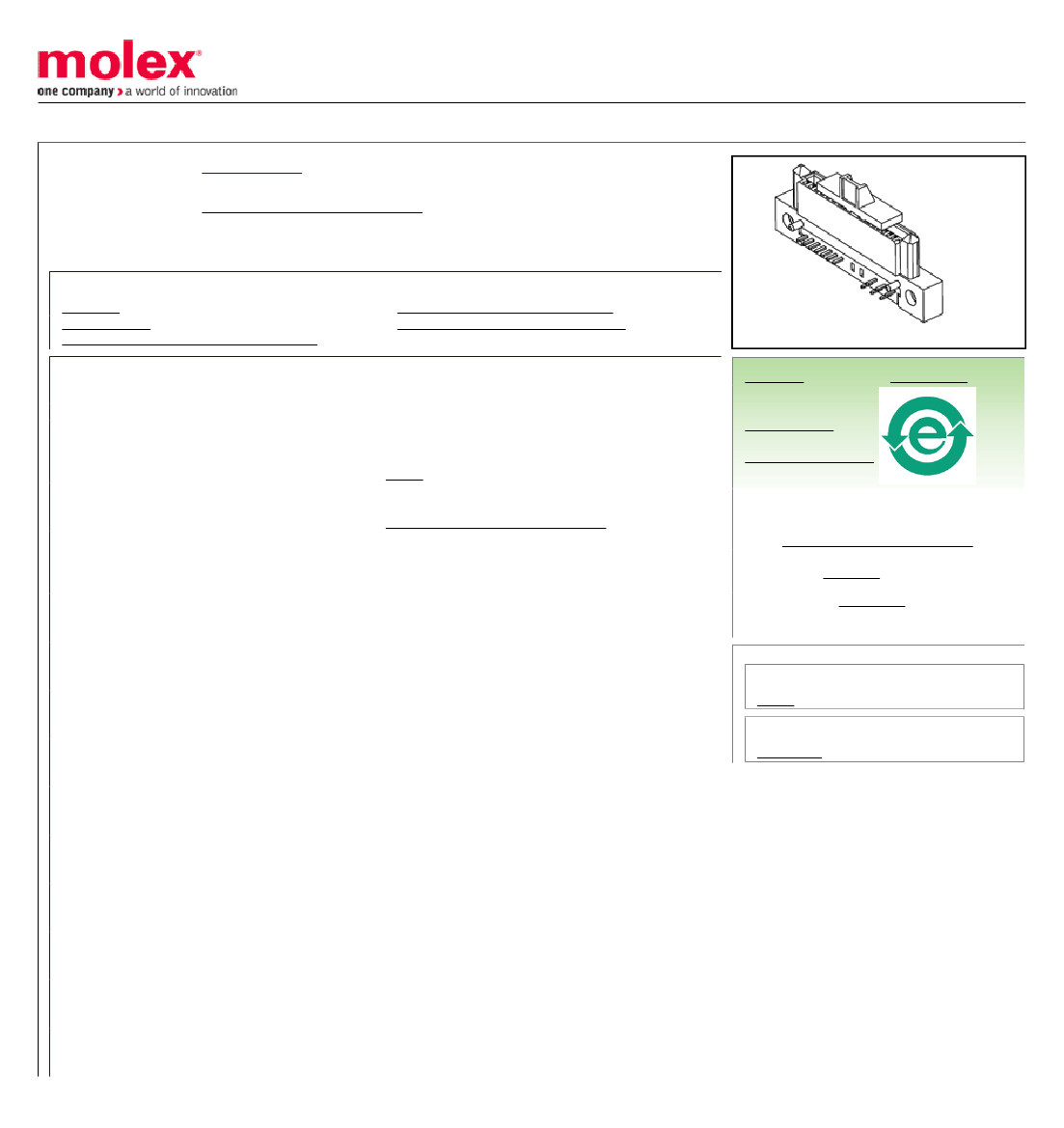

Preview

Download Datasheet
This document was generated on 10/11/2012
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
48321-2002
Active
Slimline Serial ATA ODD Connectors
1.00mm, 1.27mm Pitch Slimline Serial ATA Receptacle, Right Angle, Standard DIP with
Nut, 0.76µm Gold (Au) Plating, Mounted Height: 4.25mm, without pin alignment, Lead-
Free
Documents:
3D Model
Drawing (PDF)
Product Specification PS-48321-001 (PDF)
Test Summary TS-48321-001 (PDF)
RoHS Certificate of Compliance (PDF)
image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Low-Halogen Status
Not Reviewed
China RoHS
Series
Agency Certification
CSA
UL
LR19980
E29179
General
Product Family
Series
Application
Comments
Overview
Product Name
UPC
PCB Receptacles
48321
Board-to-Board, Signal
Standard DIP, with nut; without pin alignment
Slimline Serial ATA ODD Connectors
Serial ATA, Slimline Serial ATA
883906088323
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Pitch - Termination Interface
Plating min - Mating
Plating min - Termination
Polarized to Mating Part
Polarized to PCB
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
13
13
Black
500
94V-0
No
Yes
Yes
No
Copper Alloy
Gold
Tin
High Temperature Thermoplastic
1
Right Angle
1.60mm
Yes
Yes
1.60mm
Embossed Tape on Reel
1.00mm, 1.27mm
1.00mm, 1.27mm
0.762µm
2.540µm
Yes
Yes
No
Yes
-40°C to +85°C
Through Hole
Search Parts in this Series
48321Series
Mates With
473001xxx Slimline Serial ATA Plugs

Recommended Resources
