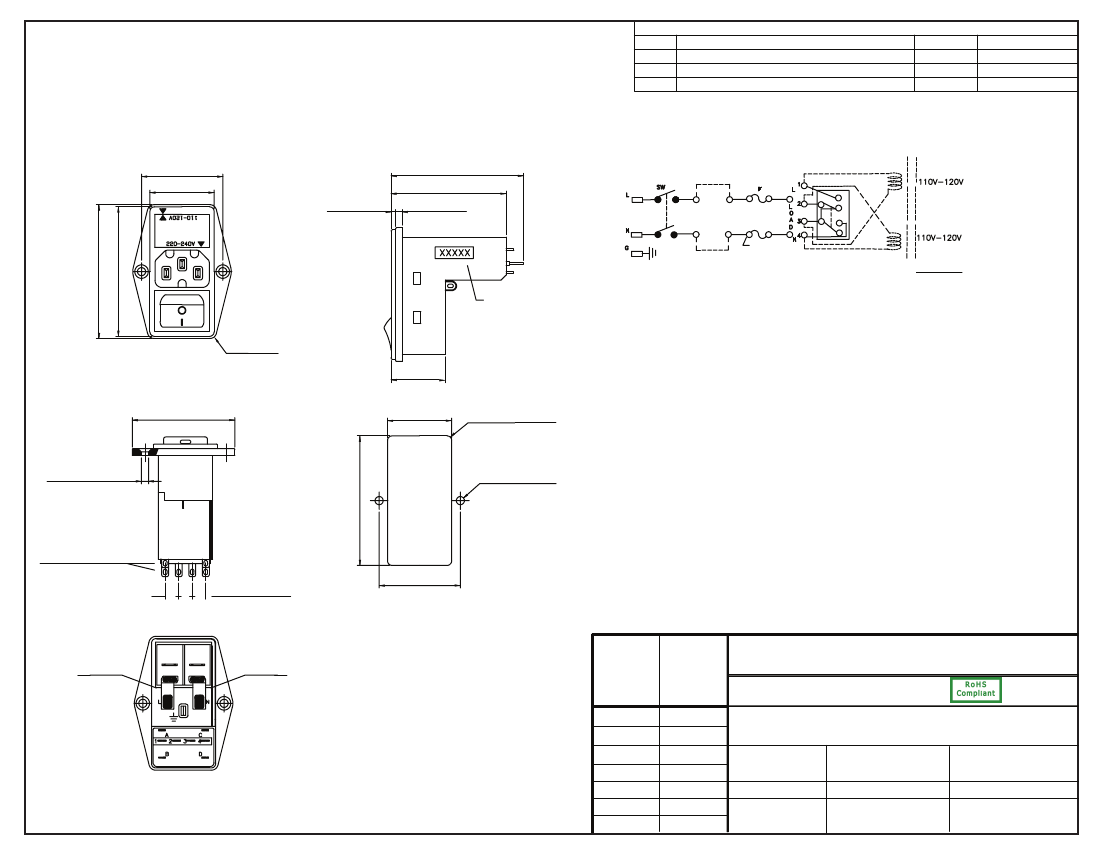

MECHANICAL DIMENSIONS:
40.0 ± 0.2
28.5 ± 0.35
2.0 ± 0.25
65.0 ± 0.35
63.5 ± 0.35
USE ONLY WITH 250V
FUSES/EMPLOYER
UNIQUEMENT AVEC
DES FUSIBLES DE 250V
REVISION
REV.
B
C
DESCRIPTION
RoHS Compliancy
Updated Specifications
DATE
06-01-06
01-24-08
APPROVED
DP
DP
ELECTRICAL SCHEMATIC:
60.5 MAX.
51.0 ± 0.35
3.0 ± 0.25
OPTIONAL
FUSE
-----------
Connected by User
DATE CODE
NOTES:
Internally Connected
R3.0(4X)
23.5 ± 0.35
50.0 ± 0.35
27.5 ±
0.2
0
R2.0 MAX(4X)
SOLDERING PINS
6.0 ± 0.25(3X)
40.0 ± 0.1
59.0 ±
0.2
0
Ø3.3 ± 0.15(2X)
Ø3.5/M3(2X)
ELECTRICAL CHARACTERISTICS:
RATED CURRENT:
UL/CSA @ 250VAC............................10/6 AMP
SEMKO @250VAC....................................10 AMP
DPST POWER SWITCH:
UL / CSA / SEMKO @ 250 VAC................6 AMP
DOUBLE 5x20mm OR 6.3x32mm FUSEHOLDER
SOLDER TAB TERMINALS
FLAMMABILITY CLASS UL94V-0
PLASTIC CASE
SCREW MOUNT TYPE
= VOLTAGE SELECTOR
110-120 VAC
220-240 VAC
APPROVALS: UL, CSA, SEMKO
RoHS COMPLIANT
CUTOUT DIMENSION FOR SOCKET MOUNTING
Dim
range
(mm)
0-1
1-6
6-18
18-50
50-120
120-250
250-500
Tolerance
+/-
(mm)
0.15
0.20
0.30
0.50
0.70
0.90
1.20
CONTROLLED
Qualtek Electronics Corp.
Part Number:
Description:
FRAME
FRAME
PPC DIVISION
763-00/001
MULTI-FUNCTION MODULE
UNIT: mm
REV. C
Approved / Date
JJH / 06-29-05
Drawn / Date
B.ZHANG
06-29-05
Checked / Date
06-29-05
