39-01-2065 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 39-01-2065

39-01-2065: DescriptionHeaders u0026 Wire Housings SOCKET 24-18AWG BULK; CategoryThe connector The connector; File Size28KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

39-01-2065 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	39-01-2065	-	-	View	Buy Now

39-01-2065 Overview

Headers u0026 Wire Housings SOCKET 24-18AWG BULK

39-01-2065 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	7 weeks 5 days
Other features	MINI-FIT JR, COMPATIBLE CONTACTS: 39-00-0077; 39-00-0038, POLARIZED
body width	0.46 inch
subject depth	0.77 inch
body length	0.543 inch
Body/casing type	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR
Contact arrangement	S0P6
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	14.6784 N
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	NYLON
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	CABLE
Number of connectors	ONE
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Guideline	UL
reliability	COMMERCIAL
Shell material	POLYAMIDE66
Termination type	CRIMP
Total number of contacts	6
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

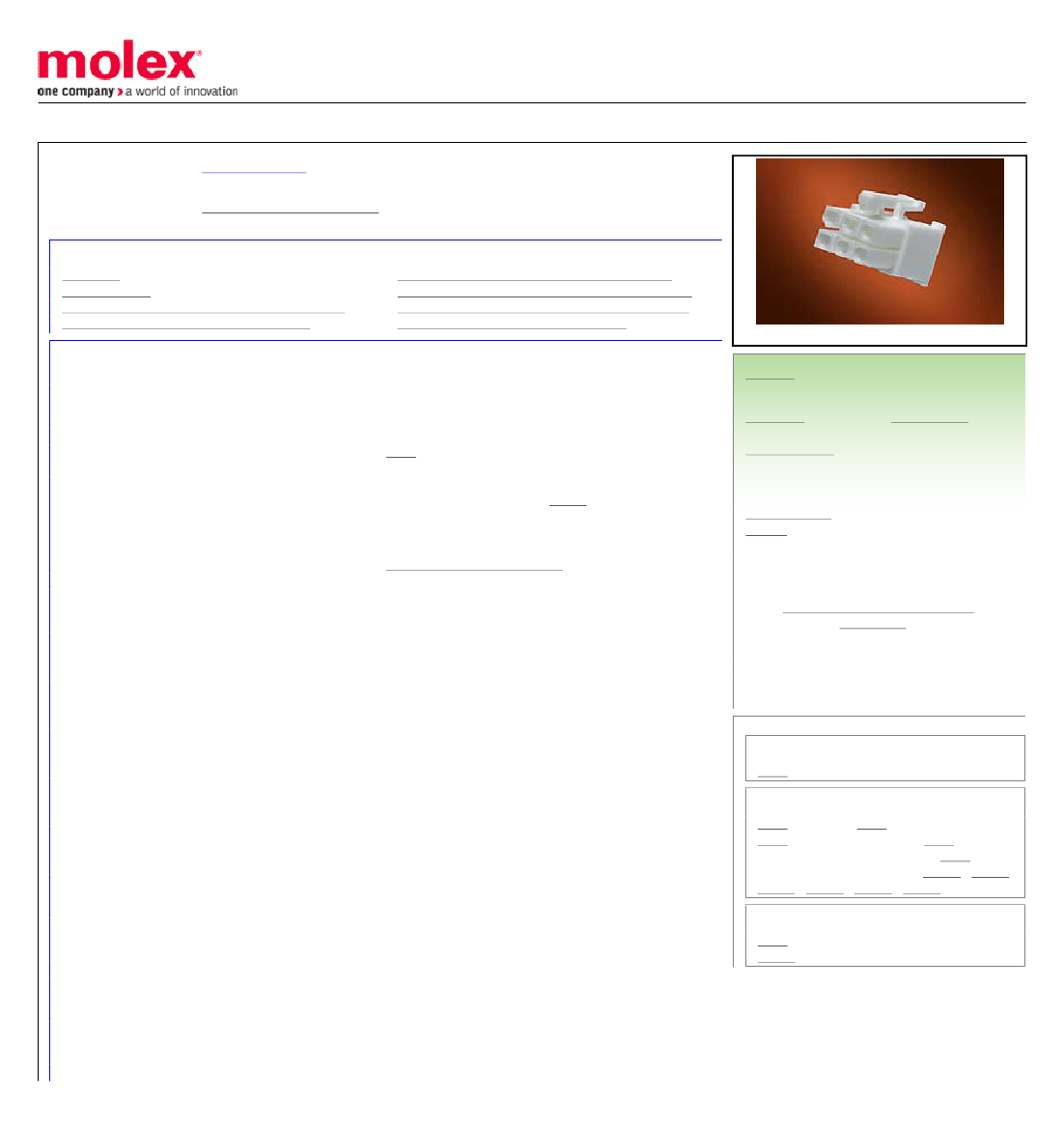

This document was generated on 12/11/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0039012065

Active

Mini-Fit Jr. Power Connectors

Mini-Fit Jr. Receptacle Housing, Dual Row, 6 Circuits, UL 94V-0, Natural

Documents:

3D Model

Drawing (PDF)

Product Specification PS-45750-001-001 (PDF)

Product Specification PS-5556-001 (PDF)

Agency Certification

CSA

General

Product Family

Series

Application

Comments

Product Specification TS-5556-002-001 (PDF)

Application Specification AS-5557-001-001 (PDF)

Packaging Specification PK-5557-002-000 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Compliant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Compliant

Not Contained

LR19980

E29179

Crimp Housings

5557

Power, Wire-to-Board, Wire-to-Wire

Current = 13A max. per circuit when header is mated

to a receptacle loaded with 45750 series terminals

crimped to 16 AWG wire. . See Molex product

specification PS-45750-001 for additional current

derating information. . Use with Strain Relief.

Mini-Fit Jr. Power Connectors

Mini-Fit Jr.

800753584334

Natural

94V-0

Receptacle

Nylon

1.405/g

Bag

4.20mm

Yes

-40°C to +105°C

13.0A

N/A

5557-06R-210

AS-5557-001-001

PK-5557-002-000

Overview

Product Name

UPC

Physical

Breakaway

Circuits (maximum)

Color - Resin

Flammability

Gender

Glow-Wire Compliant

Material - Resin

Net Weight

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Stackable

Temperature Range - Operating

Electrical

Current - Maximum per Contact

Solder Process Data

Lead-freeProcess Capability

Material Info

Engineering Number

Reference - Drawing Numbers

Application Specification

Packaging Specification

Search Parts in this Series

5557 Series

Mates With

5559 Dual Row, 5566 Vertical with Pegs,

5566 Vertical without Pegs, 5569 Right

Angle Dual Row with Flanges, 5569 Right

Angle Dual Row with Pegs, 43810 , 44068 ,

44281 , 87427 , 42404 , 42440

Use With

5556 Mini-Fit Female Crimp Terminals,

45750 Mini-Fit Plus HCS Crimp Terminal

39-01-2065 Related Products

	39-01-2065	0039012065
Description	Headers u0026 Wire Housings SOCKET 24-18AWG BULK	Headers u0026 Wire Housings MINI-FIT JR REC 06P 94V-0
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Reach Compliance Code	compliant	compliant
Other features	MINI-FIT JR, COMPATIBLE CONTACTS: 39-00-0077; 39-00-0038, POLARIZED	POLARIZED
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO
empty shell	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
MIL compliance	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO
Installation type	CABLE	CABLE
Options	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	POLYAMIDE66	POLYAMIDE
Termination type	CRIMP	CRIMP
Total number of contacts	6	6
UL Flammability Code	94V-0	94V-0
Base Number Matches	1	1
