RADSOK
®
Technology Advantages
RADSOK’S twisted grid configuration allows for 50% more current to pass
through the same size pin, while providing increased reliability, ampacity and cycle
durability as well as lower insertion force, T-rise and voltage drop.
• HIGH RELIABILITY
Unique RADSOK
®
design and construction technology create an electrical contact
interface that exceeds typical interconnect requirements. Applications in aerospace,
medical, industrial, automotive, mining, offshore, and other harsh environments
depend on the high reliability of Amphenol’s RADSOK
®
technology.
• LOW CONTACT ENGAGEMENT/SEPARATION FORCES
The hyperbolic lamella socket contact construction distributes normal forces
over a high percentage of the mating pin surface. This creates a smooth, even
engagement effort. This force distribution also contributes to excellent performance
in vibration applications with resistance to typical fretting corrosion.
• LOW CONTACT RESISTANCE
The large interface area between the socket lamella and pin surface result in
very low contact resistance, enabling the RADSOK
®
contacts’ high current ratings
compared to traditional power contact designs.
• HIGH MATING CYCLE DURABILITY
RADSOK
®
contacts with typical silver plating finishes have demonstrated survival
of 20,000 mating cycles. Specialized plating and contact lubricants can extend
cycle life to 200,000 matings or higher. Even with continuous exposure to harsh
environmental abuse (salt, sand, and high humidity), RADSOK
®
contacts have
been tested to maintain low contact resistance beyond 10,000 mating cycles.

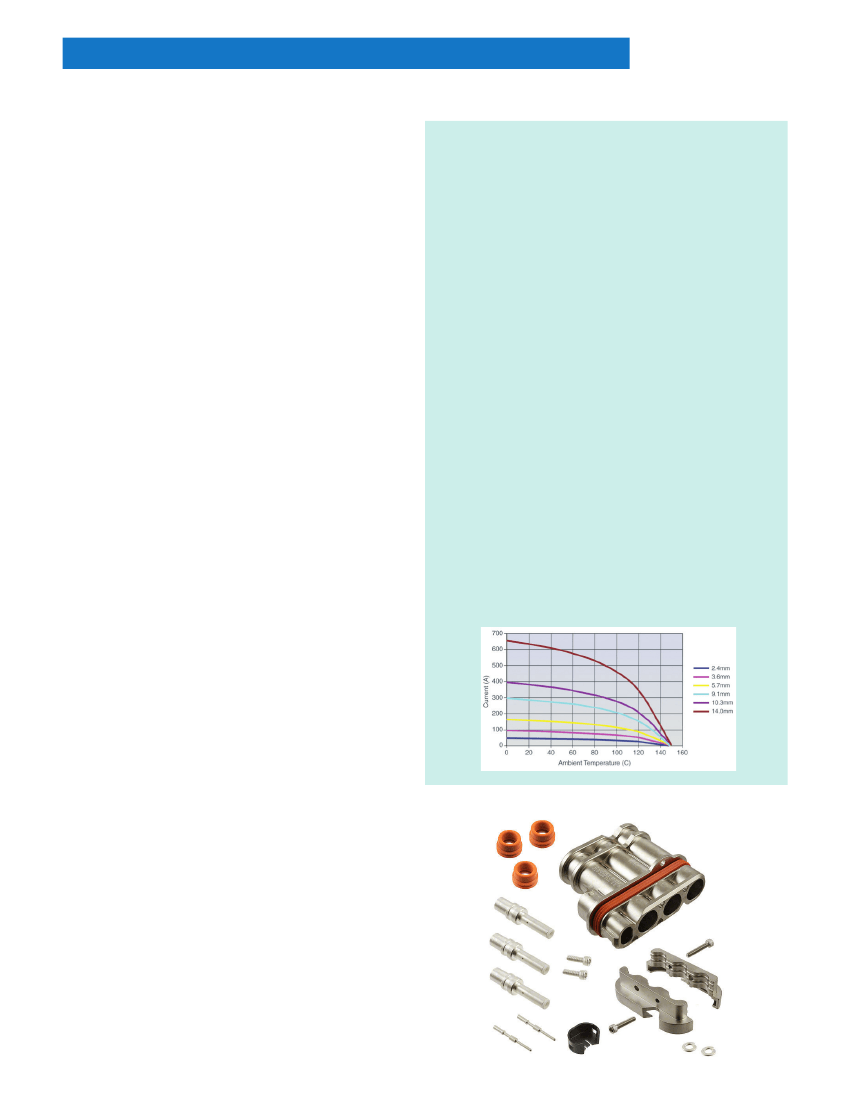

RADSOK
®
Derating Chart – Temperature vs. Current
Based on single conductors in free air. Wire cross-section same size as pin
contact cross-sectional area.
Company Overview
Manufacturing connectors for over eight decades, we take pride
that Amphenol Industrial Operations (AIO) is the undisputed
leader in interconnect systems for harsh environment
applications. Such applications require a high degree of
engineering sophistication and precision manufacturing
capability. Innovations like our RADSOK® contact technology
can provide up to 50% more current through the same size pin.
Connectors utilizing this RADSOK® technology will outperform
similar products in the market hands down.
Amphenol Industrial, a division of the Amphenol Corporation,
is a leading global manufacturer of cylindrical connectors.
Amphenol Industrial’s product lines consist of rectangular,
standard miniature, fiber optic, EMI/EMP filter, and a variety of
special application connectors.
Our manufacturing capabilities include state-of-the-art CNC
machining, die-casting, molding, impact and extruding, plating,
screw machining and process controls.
AIO also has a fully equipped material evaluation lab and an
engineering support organization utilizing the latest in computer
aided design software and analysis tools.
Our global manufacturing facilities include locations in Sidney,
NY, Fraser, MI, Midland, TX, Shenzhen and Zhuhai, China,
Winnipeg, Canada, and Nogales, Mexico.

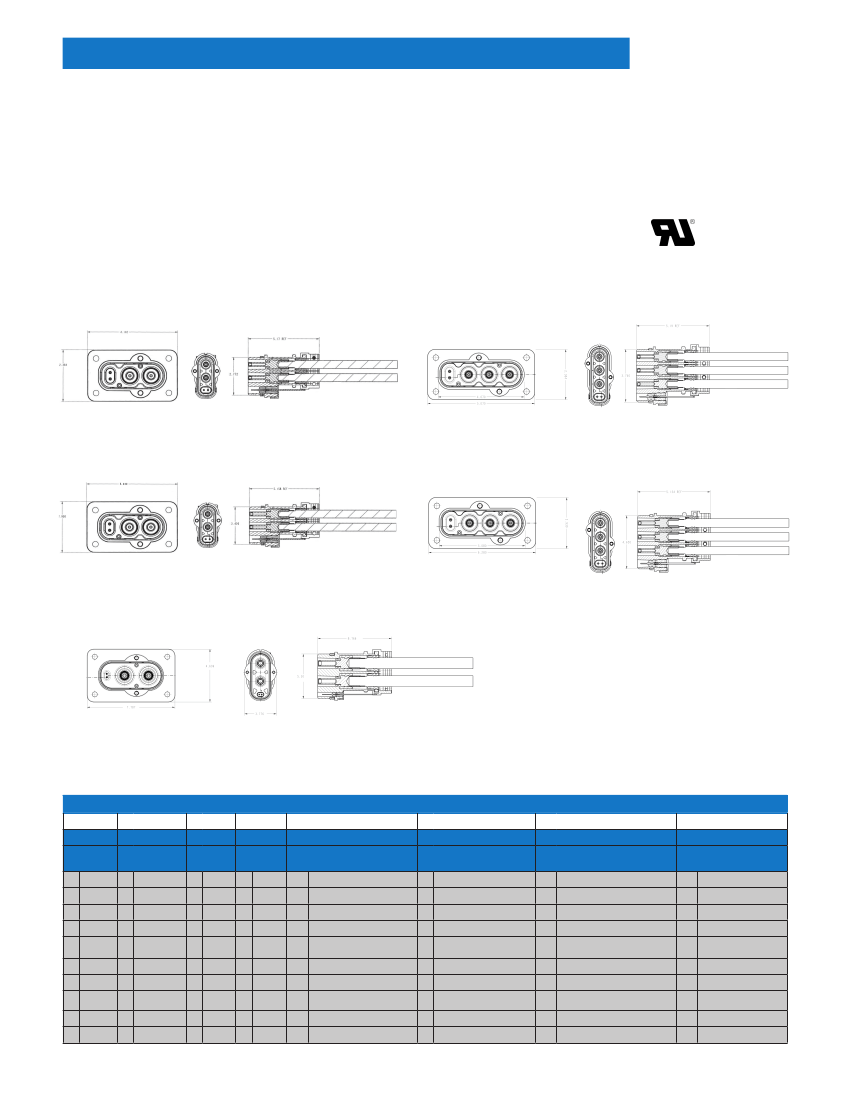

The ePower Connector Series
This series of connectors is designed for the demanding
requirements of hybrid, electric vehicles, and utility truck
electrical systems, operating at 800VDC to 1000VDC with
200A, 400A, and 700A continuous current ratings. The product
incorporates the patented RADSOK® technology for higher
amperage, lower T-rise, less resistance and mating force.
Meantime, it offers a 40% smaller footprint than three EMI
shielding cable glands and easier operation of termination with
shielded cable by a washer compressing the shield to the inside
surface of the shell. The connector series covers 2 or 3 power
contacts. As an example, one ePower 400A connector can
replace three conventional connectors, saving space and cost.
The markets and application for the ePower Series include
but are not limited to the following found in both the Military
Aerospace and Industrial segments:
• Power converters
• Hybrid electric vehicles
• Heavy equipment electrification
• Two and three phase motors
• Starter generators
www.amphenol-industrial.com
Amphenol
CODED PN
CVR-43R
CVR-43P
CVR-23R
CVR-23P
CVR-42R
CVR-42P
CVR-22R
CVP-400
CVP-200
HVIL-P-KIT
HVIL-R-SOC
PIN-11-50
PIN-11-70
PIN-11-95
CBL-GROM-11-50
CBL-GROM-11-70
CBL-GROM-11-95
CBL-CLMP-50-42
CBL-CLMP-70-42
CBL-CLMP-95-42
CBL-CLMP-50-43
CBL-CLMP-70-43
CBL-CLMP-95-43
CBL-CLMP-25-22
CBL-CLMP-35-22
CBL-CLMP-50-22
CBL-CLMP-25-23
CBL-CLMP-35-23
CBL-CLMP-50-23
PIN-08-25
PIN-08-35
PIN-08-50
DESCRIPTION
Cover for 3way 400A Receptacle
Cover for 3way 400A Plug
Cover for 3way 200A Receptacle
Cover for 3way 200A Plug
Cover for 2way 400A Receptacle
Cover for 2way 400A Plug
Cover for 2way 200A Receptacle
Cavity Plug for 400A
Cavity Plug for 200A
HVIL Plug side kit (signal grommet cover
10-643757-000, signal grommet 10-643754-000,
signal contacts 10-040557-000, signal insert
10-643738-000)
HVIL Receptacle side socket terminals
11.1mm pin contact asm 50mm2
11.1mm pin contact asm 70mm2
11.1mm pin contact asm 95mm2
11.1mm power cable grommet 50mm2
11.1mm power cable grommet 70mm2
11.1mm power cable grommet 95mm2
Cable clamp 50mm2, 2WAY 400 AMP
Cable clamp 70mm2, 2WAY 400 AMP
Cable clamp 95mm2, 2WAY 400 AMP
Cable clamp 50mm2, 3WAY 400 AMP
Cable clamp 70mm2, 3WAY 400 AMP
Cable clamp 95mm2, 3WAY 400 AMP
Cable clamp 25mm2, 2WAY 200 AMP
Cable clamp 35mm2, 2WAY 200 AMP
Cable clamp 50mm2, 2WAY 200 AMP
Cable clamp 25mm2, 3WAY 200 AMP
Cable clamp 35mm2, 3WAY 200 AMP
Cable clamp 50mm2, 3WAY 200 AMP
8.0mm pin contact asm 25mm2
8.0mm pin contact asm 35mm2
8.0mm pin contact asm 50mm2
8.0mm power cable grommet 25mm2
8.0mm power cable grommet 35mm2
8.0mm power cable grommet 50mm2
11.1mm pin insulation
8.0mm pin insulation
Flange gasket 400amp 2way receptacle
Flange gasket 400amp 3way receptacle
Flange gasket 200amp 2way receptacle
Flange gasket 200amp 3way receptacle
11.0mm RADSOK® contact assembly, BUSBAR
11.0mm RADSOK® contact assembly, 50MM2
11.0mm RADSOK® contact assembly, 75MM2
11.0mm RADSOK® contact assembly, 95MM2
8.0mm RADSOK® contact assembly, BUSBAR
8.0mm RADSOK® contact assembly, 25MM2
8.0mm RADSOK® contact assembly, 35MM2
8.0mm RADSOK® contact assembly, 50MM2

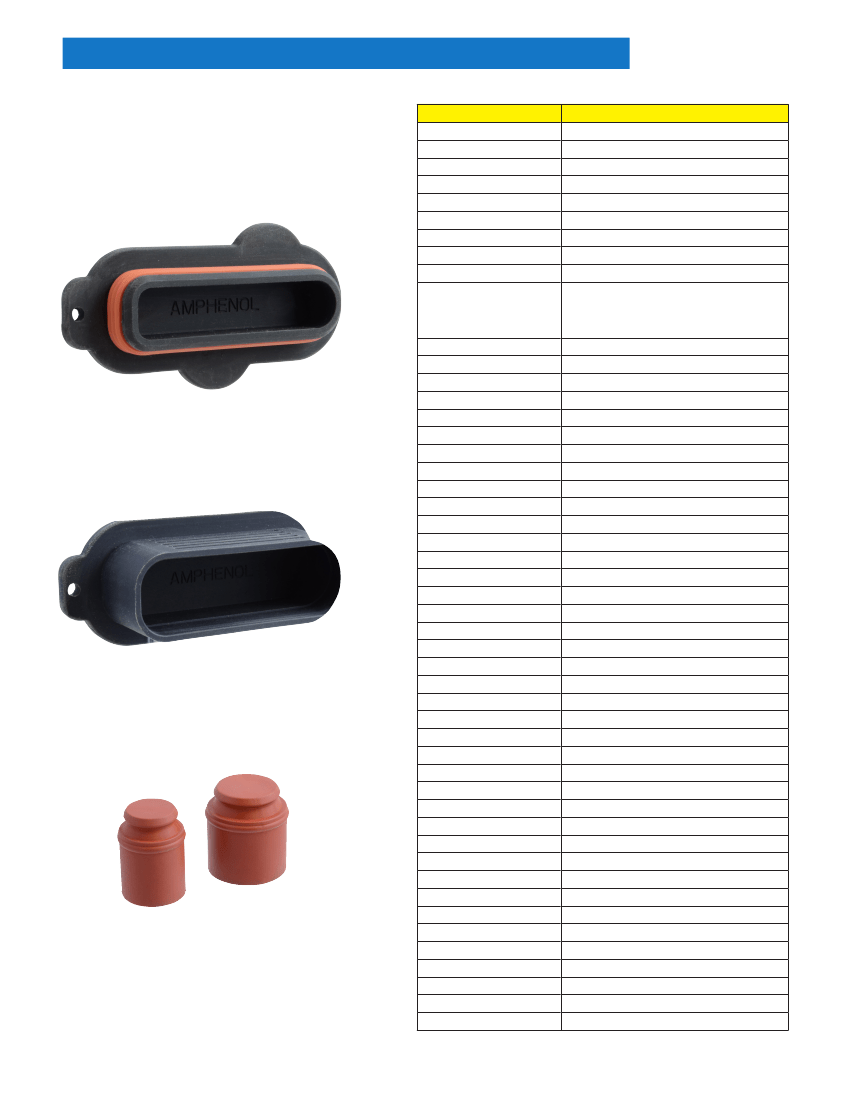

ePower Accessories
and Replacement Parts
Receptacle Cap
Plug Cap
Cavity Plugs
CBL-GROM-08-25
CBL-GROM-08-35
CBL-GROM-08-50
PIN-INSL-11
PIN-INSL-08
FG-42R
FG-43R
FG-22R
FG-23R
RAD-11-BB
RAD-11-50
RAD-11-75
RAD-11-95
RAD-08-BB
RAD-08-25
RAD-08-35
RAD-08-50
