76150-1024 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 76150-1024

76150-1024: DescriptionHigh Speed / Modular Connectors Impact DC 6x14 Open pact DC 6x14 Open Sn; CategoryThe connector The connector; File Size34KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

76150-1024 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	76150-1024	-	-	View	Buy Now

76150-1024 Overview

High Speed / Modular Connectors Impact DC 6x14 Open pact DC 6x14 Open Sn

76150-1024 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
body width	1.06 inch
subject depth	1.467 inch
body length	1.047 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	200 Cycles
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer's serial number	76150
Plug contact pitch	0.075 inch
Match contact row spacing	0.054 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	18
Number of rows loaded	18
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.3462 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.75 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.047 inch
Terminal pitch	1.905 mm
Termination type	PRESS FIT

Preview

Download Datasheet

View All

This document was generated on 10/06/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

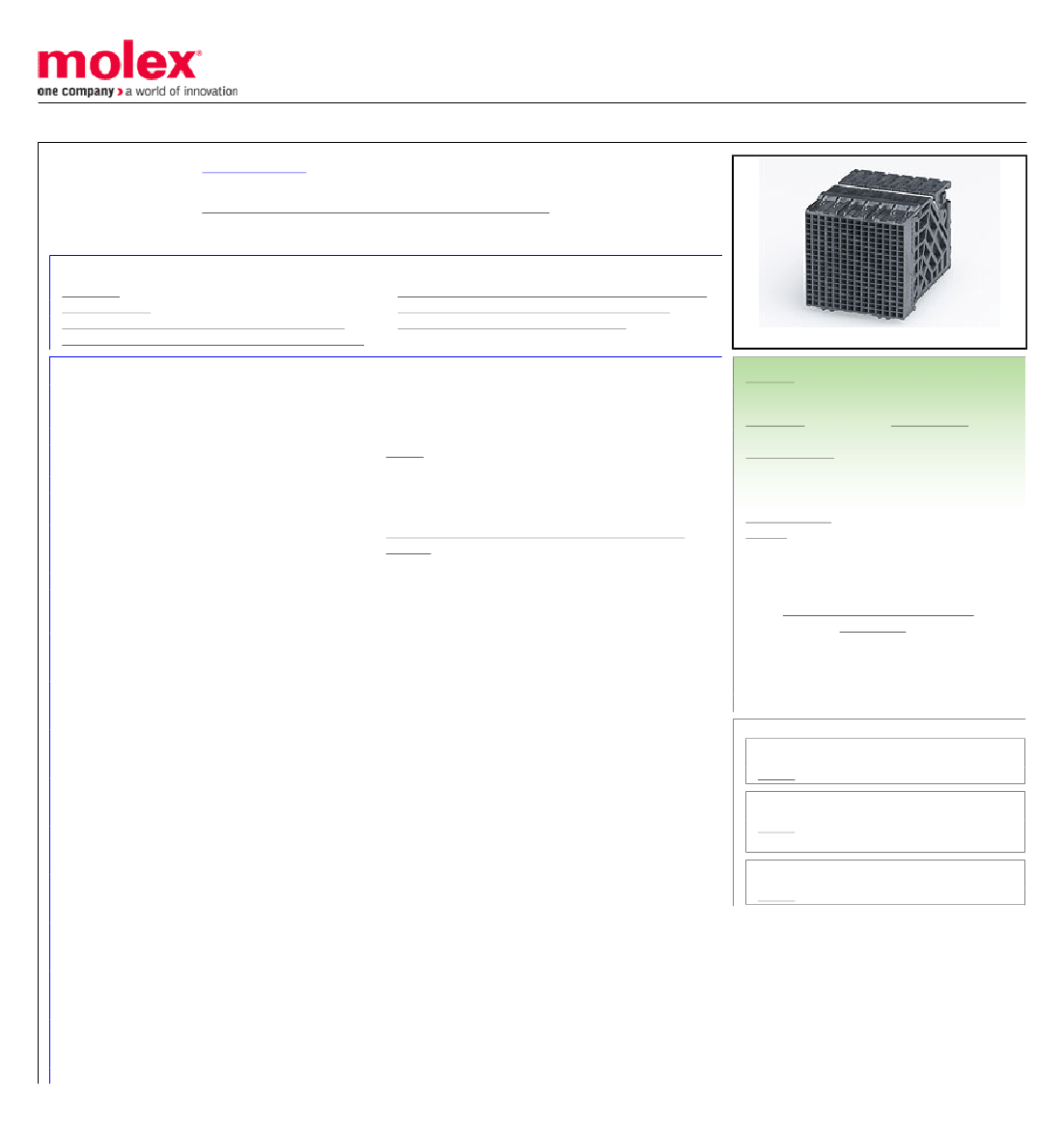

0761501024

Active

Impact Backplane Connector and Cable Assembly System

Impact 100 Ohm 6 Pair Right Angle Daughtercard Receptacle, Unguided, 14 Columns,

252 Circuits, Plated Through Hole Dimension 0.39mm, Lead-Free

Documents:

3D Model

Drawing (PDF)

Product Specification PS-76060-999-001 (PDF)

Application Specification AS-76060-990-001 (PDF)

Agency Certification

General

Product Family

Series

Application

Application Tooling Documents

Component Type

Electrical Model

Overview

Product Name

UPC

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Guide to Mating Part

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Columns

Number of Pairs

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Application Specification AS-76060-9999-001 (PDF)

Packaging Specification PK-70873-589 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

E29179

Backplane Connectors

76150

Conventional, Coplanar, Daughtercard

TM-622018799

PCB Receptacle

Yes

Impact Backplane Connector and Cable Assembly

System

Impact

883906494544

252

Black

200

94V-0

None

High Performance Alloy (HPA)

Gold

Tin

High Temperature Thermoplastic

32.326/g

Right Angle

1.20mm

None

1.00mm

Tray

1.90mm

0.762µm

-55°C to +85°C

Through Hole - Compliant Pin

Search Parts in this Series

76150 Series

Mates With

76145 Impact 100 Ohm Vertical Backplane

Header

Use With

76153 Pirate Cannon Wide Guide Module
