Modular Jacks
Modular Jacks
www.amphenolacp.com
- Modular jacks available in RJ45 & RJ11 styles
- Select series available with or without LED options
- Variety of single and Bi-color LED options
- Shielding options available on most series
- Low frequency ferrite filtering available on select series
- Right angle & vertical housing options
- Single & multiport configurations
- Single & stacked dual row options
- Terminations available in PTH, SMT and Pressfit on select series
- True Vacumm Placeble, Tape & Reel, Tray and Tube packaging
- Category 3, 5 & 6 options
- UL recognized file # E135615
- CSA recognized file # LR68598
- Fully RoHS compliant
- Lead Free IR reflow process compatible

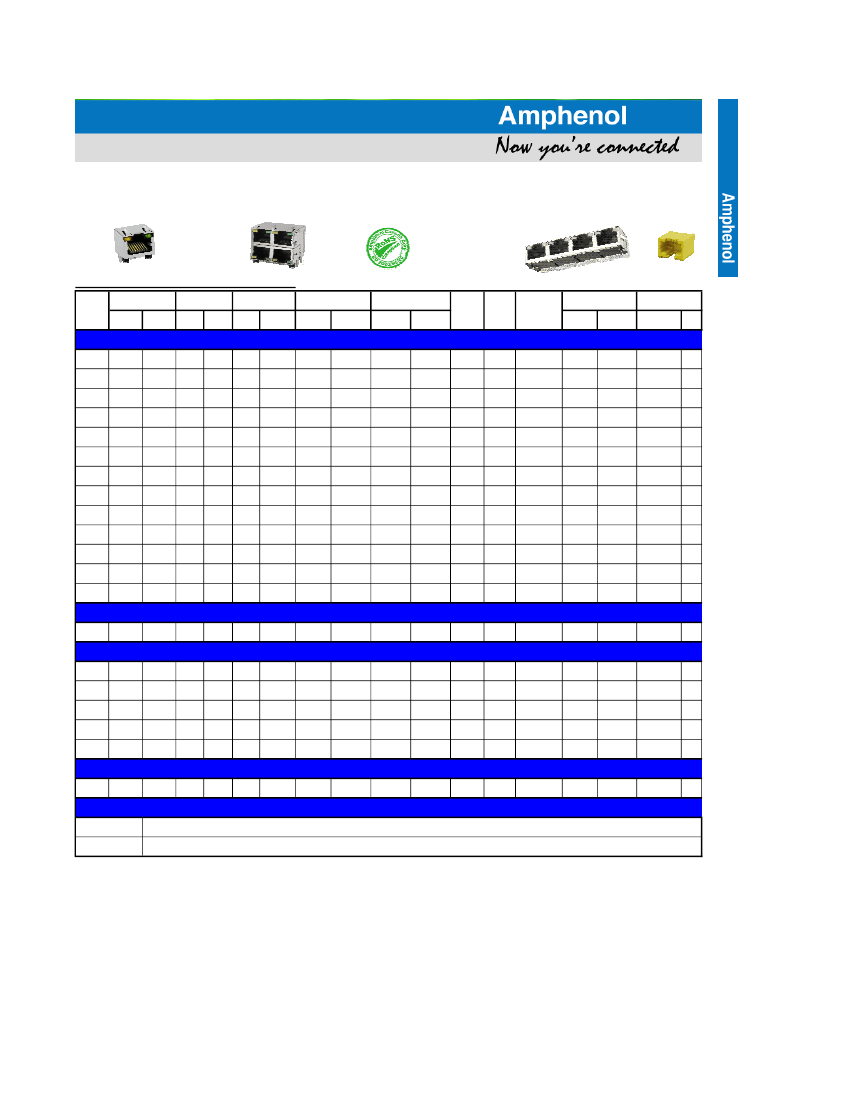

Modular Jack Quick Reference Options Table
Orientation
Series
Standard
Inverted
RJ45
RJ11
SMT
Thru hole
LED
Housing Option
Termination
Optical Indicator
Max Profile Above PCB -
in (mm)
Contacts
per port
Non-
Light-Pipe Shielded
Shielded
# of
Ports
Performance
Category
Solder Process
Reflow
Wave
Packaging
Tape & Reel Tray
Right Angle Modular Jacks single and multiport
RJHSE
RJULE
RJCSE
RJLSE
RJSSE
RJSBE
FRJAE
RJE01
RJE02
RJE03
RJE05
RJE07
RJE09
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
.530 (13.46) .490 (12.45)
.377 (9.58)
N/A
2-8
2-8
2-8
2-8
2-8
2-8
2-8
2-6
2-8
2-8
2-8
2-8
2-10
1-8
1
1
1
1-4
1-4
1-8
1-2
1
1
1
1
1-12
5
3
3
3
5
3
3
3
3
3
3
3
3
See Notes
X
X
X
X
X
X
X
X
X
X
See Notes
.531 (13.48) .521 (13.22)
.514 (13.07) .462 (11.73)
.525 (13.34) .515 (13.08)
.500 (12.69) .493 (12.52)
.510 (12.95) .500 (12.7)
.514 (13.08) .507 (12.88)
N/A
.630 (16.00)
X
X
X
X
X
See Notes
X
X
X
X
X
X
X
X
X
X
X
X
X
X
.519 (13.19) .494 (12.54)
.463 (11.75) .453 (11.50)
.530 (13.46) .500 (12.70)
.543 (13.80) .535 (13.59)
Stacked Right Angle Modular Jacks
See Notes
See Notes
X
X
X
See Notes
X
X
RJSAE
Bottom
Top
X
X
X
X
.100 (25.4) .990 (25.14)
Vertical Modular Jacks
2-8
2,4,8
5
See Notes
X
X
RJHSE-3
RJHSE-N
RJE06
RJE08
RJE23
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
.625 (15.88) .610 (15.50)
.621 (15.77) .613 (15.57)
.656 (16.65) .640 ( 16.26)
N/A
N/A
.645 (16.38)
.501 (12.72)
2-8
2-8
2-8
2-10
2-8
1
4,5
1
1
1
5
5
3
3
3
See Notes
X
X
X
X
X
X
X
X
X
See Notes
See Notes
X
X
X
X
See Notes
X
X
X
Dual Row Vertical Modular Jacks
RJSVE
X
X
X
X
.621 (15.77) .613 (15.57)
Modular Jack Accessroies
FRJ2X11
RJHSE-238D
RJ45 and RJ11 Dust Cover
Lead Free IR Reflow Solder Process Protective Heat Shield for Modular Jacks with integrated LED's
ACPRJHC07
2-8
8-10
5
See Notes
X
X

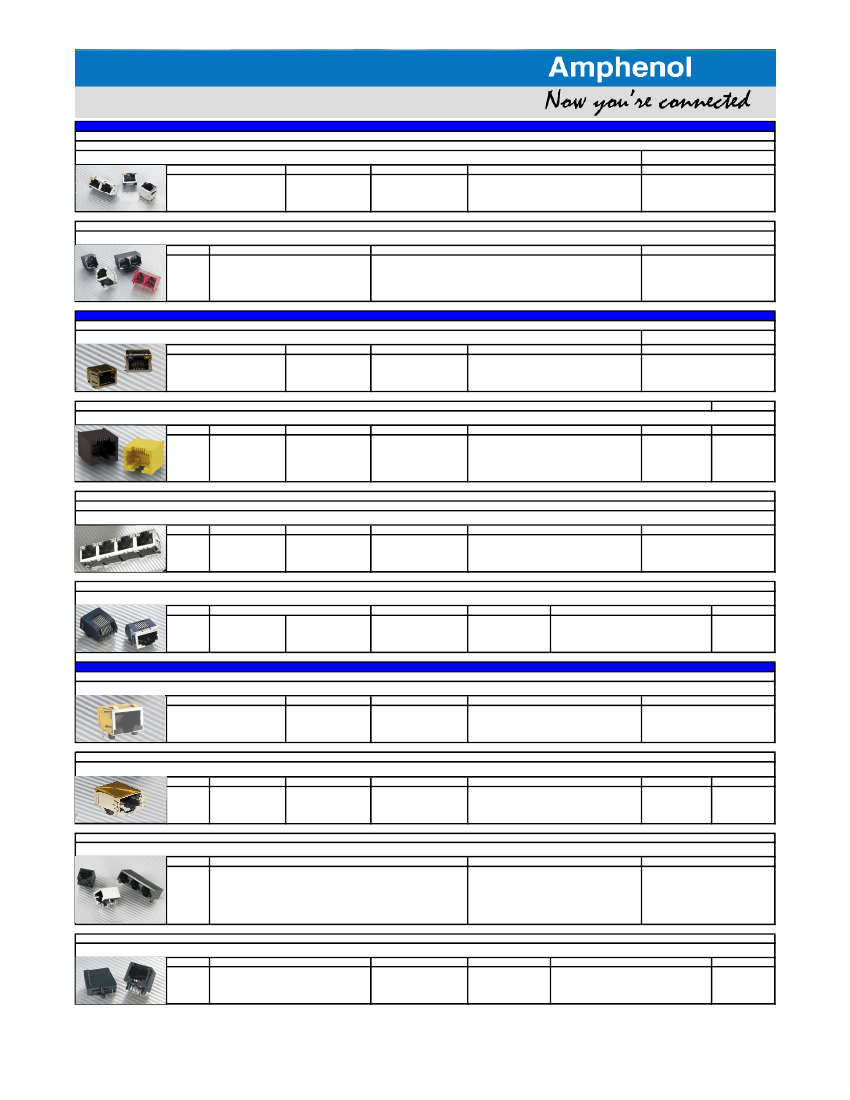

Modular Jacks
www.amphenolacp.com
Tab Up Right Angle Single and Multiport RoHS Compliant Modular Jacks with Shield and LED Options in RJ45 and RJ11 Configurations
Typical Part Number Structure for Single Port - RJHSE-XXXX
Typical Part Number Structure for Multi Port - RJHSE-XXXX-XX
RJHSE
-
X
Type
X = 5 (RJ45)
X = 7 (RJ11)
X
Shielding
X = 3 For Shield
X = 0 For No Shield
X
Number of Contacts
X = 1 to 8 (RJ45)
X = 1 to 6 (RJ11)
X
LED Option
X
≠
0 For LED's
X = 0 For No LED's
See LED Options Table
-
XX
# of ports
XX = blank for 1 port
XX = 02 for 2 port
XX = 04 for 4 port
etc. up to 8 ports
Typical Part Number Structure - RJE01-6XX-0X
RJE01
-
6
Type
X
Number of Contacts
X
Shield Option
X = 0 No Shield
X = 1 Shield
X = 2 Solder Anchor
X = 5 Shield No Tabs w PCB Tails
-
0X
# of ports
0X = 01 for 1 port
0X = 02 for 2 port
RJ11
X = 1 to 6
Surface Mount R/A Single and Multiport RoHS Compliant Modular Jacks with Shield, Light-Pipe and LED Options in RJ45 and RJ11 Configurations
Typical Part Number Structure - RJCSE-XXXX-01
RJCSE
-
X
Type & Plating
X = 5 (RJ45, 50u" Au)
X = 4 (RJ45, 30u" Au)
X = 3 (RJ45, 15u" Au)
X
Shielding
X = 3 For Shield
X = 0 For No Shield
X
Number of Contacts
X = 1 to 8
X
LED Option
X
≠
0 For LED's
X = 0 For No LED's
See LED Options Table
-
01
# of Ports
Single Port
Typical Part Number Structure - RJLSE-XXXXX-01T
RJLSE
-
X
Type
X
Plating
0 = Gold Flash
1 = 15u" Au
2 = 30u"Au
3 = 50u"Au
X
Shield Option
X = 0 No Shield
X = 1 Shield
X = 2 Solder Anchor
X
Number of Contacts
X
Housing Option
X = 1 For Black Housing
X = 2 For Yellow Housing
X = 3 For Red Housing
X = 4 Black Long Body
-
01
# of ports
T
Packaging
X=4 (RJ45)
X=6 (RJ11)
X = 1 to 8
Single Port
Tape & Reel
Typical Part Number Structure for Single Port - RJSSE-XXXX
Typical Part Number Structure for Multi Port - RJSSE-XXXX-XX
RJSSE
-
X
Type
Shield
X=3
X
No Shield
X=0
X
Number of Contacts
X = 1 to 8
X
Light-pipe/No Light-pipe
X=1
X=0
X
Light-pipe/No Light-pipe
X=1
X=0
-
XX
# of ports
XX = blank for 1 port
XX = 02 for 2 port
XX = 04 for 4 port
X=5 (RJ45)
X=7 (RJ11)
Typical Part Number Structure - RJE07-1XX-XXX0
RJE07
-
1
# of Ports
1
X
X
# of Positions # of Contacts
X=8 for RJ45
X=6 for RJ11
X = 4, 6 or 8
X = 4 or 6
-
X
Shield Option
X = 0 For No Shield
X = 1 For Shield
X
Plating Option
X = 1 For 6u"Au
X = 2 For 15u"Au
X = 3 For 30u" Au
X = 4 For 50 u" Au
X
Flange Option
X = 0 Without Flange
X = 1 Flange Present
0
Modifier
0 = Standard
Tab Down Right Angle Single and Multiport RoHS Compliant Modular Jacks with Shield, LED and Filter Options in RJ45 and RJ11 Configurations
Typical Part Number Structure - RJSBE-XXXX-CX
RJSBE
-
X
Type
X = 5 for RJ45
X = 7 for RJ11
X
Shield & filter Option
X = 0 No Shield
X = 2 Shield + Filter
X = 3 Shield
X
Number of Contacts
X = 1 to 8 (RJ45)
X = 1 to 6 (RJ11)
X
LED Option
X
≠
0 For LED's
X = 0 For No LED's
See LED Options Table
-
CX
# of ports
CX = C1 for 1 port
CX = C2 for 2 port
CX = C4 for 4 port
Typical Part Number Structure - RJULE-4X1XX-01X
RJULE
-
4
Type
RJ45
X
Plating
X = 0 For 6u"Au
X = 1 For 15u"Au
X = 2 For 30u" Au
X = 3 For 50 u" Au
1
Housing Color
Black
X
# of Contacts
X = 2 to 8
X
Shield Option
X = 0 No Shield
X = 1 Shielded Top/Side Panel Ground Tabs
X = 2 Shielded with Rear Panel Ground tab
X = 3 Shielded No Panel Ground Tabs
-
'01
# of ports
Single Port
X
Packaging
Blank = Tray
T = Tape/Reel
Typical Part Number Structure - FRJAE-XXX-XX
FRJAE
-
X
Type
X=4 (RJ45)
X=6 (RJ11)
X
Shield and Filter Option
X = 0 No Shield
X = 1 Filtered with Front Tab Shield
X = 3 Front Tab Shield Only
X = 4 Filtered Only
X = 6 Filtered with Rear tab Shield
X = 8 Rear tab Shield Only
X
Number of Contacts
-
XX
# of ports
X = 1 to 8
XX = 01 for 1 port
XX = 02 for 2 port
Typical Part Number Structure - RJE02-1XX-0XX0
RJE02
-
1
# of Ports
1
X
# of Positions
X=8 for RJ45
X=6 for RJ11
X=4 for RJ9
X=A for RJ50
X
# of Contacts
X = 4, 6 or 8
X = 4 or 6
X = 2 or 4
X = 10
-
0
Shield Option
0 = No Shield
X
Plating Option
X = 1 For 6u"Au
X = 2 For 15u"Au
X = 3 For 30u" Au
X = 4 For 50 u" Au
X
Flange Option
X = 0 Without Flange
X = 1 Flange Present
0
Modifier
0 = Standard
ACPRJHC07

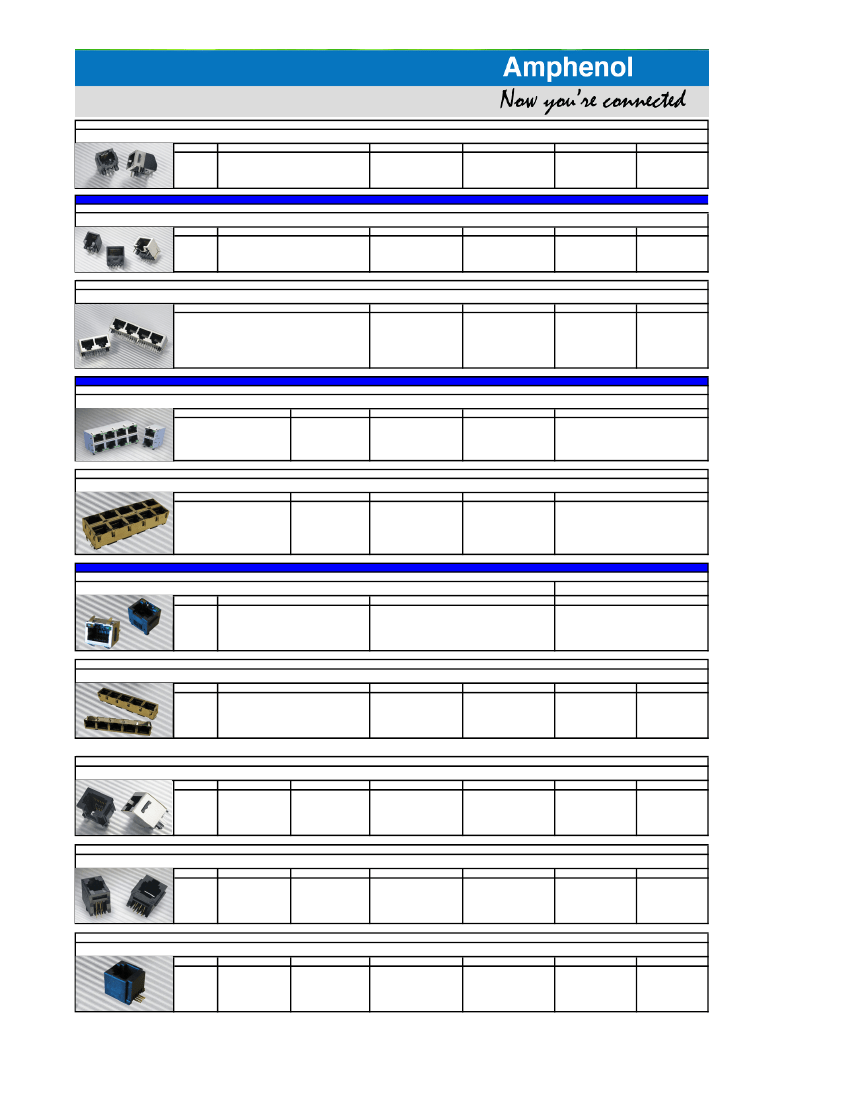

Modular Jacks
www.amphenolacp.com
Typical Part Number Structure - RJE03-1XX-XXX0
RJE03
-
1
# of Ports
1
X
# of Positions
X=8 for RJ45
X=6 for RJ11
X=4 for RJ9
X=A for RJ50
X
# of Contacts
X = 4, 6 or 8
X = 4 or 6
X = 2 or 4
X = 10
-
X
Shield Option
X = 0 For No Shield
X = 1 For Shield
X
Plating Option
X = 1 For 6u"Au
X = 2 For 15u"Au
X = 3 For 30u" Au
X = 4 For 50 u" Au
X
Flange Option
X = 0 Without Flange
X = 1 Flange Present
0
Modifier
0 = Standard
Tab Down Right Angle Single and Multiport RoHS Compliant Modular Jacks with Shield, LED and Filter Options in RJ45 and RJ11 Configurations
Typical Part Number Structure - RJE05-1XX-XX10
RJE05
-
1
# of Ports
1
X
# of Positions
X=8 for RJ45
X=6 for RJ11
X=4 for RJ9
X=A for RJ50
X
# of Contacts
X = 4, 6 or 8
X = 4 or 6
X = 2 or 4
X = 10
-
X
Shield Option
X = 0 For No Shield
X = 1 For Shield
X
Plating Option
X = 1 For 6u"Au
X = 2 For 15u"Au
X = 3 For 30u" Au
X = 4 For 50 u" Au
1
Flange Option
1 = No Flange
0
Modifier
0 = Standard
Typical Part Number Structure for Single & Multi Port - RJE09-XXX-XXXX
RJE09
-
XXX
# of Ports # of Positions # of Contacts
XXX = 188 for single port 8P8C
XXX = 1AA for single port 10P10C
XXX = 288 for dual port 8P8C
XXX = 488 for quad port 8P8C
XXX = 688 for six port 8P8C
XXX = 888 for octal port 8P8C
-
X
Shield Option
X
Plating Option
X = 1 For 6u"Au
X = 2 For 15u"Au
X = 3 For 30u" Au
X = 4 For 50 u" Au
X
Flange Option
0
Modifier
X = 0 For No Shield
X = 1 For Shield
1 = No Flange
0 = Standard
Stacked Right Angle and Vertical RoHS Compliant Modular Jacks with Shield, LED and Filter Options in RJ45 and RJ11 Configurations
Typical Part Number Structure - RJSAE-XXXX-XX
RJSAE
-
X
Type
X = 5 for RJ45
X = 7 for RJ11
X
Shield & filter Option
X = 0 No Shield
X = 2 Shield + Filter
X = 3 Shield
X
Number of Contacts
X = 1 to 8 (RJ45)
X = 1 to 6 (RJ11)
X
LED Option
X
≠
0 For LED's
X = 0 For No LED's
See LED Options Table
-
XX
# of ports
XX = 02 for 1 over 1
XX = 04 for 2 over 2
XX = 08 for 4 over 4
Typical Part Number Structure for Dual Row - RJSVE-XXXX-XX
RJSVE
-
X
Type
X
Shielding
X
Number of Contacts
X
LED Option
X
≠
0 For LED's
X = 0 For No LED's
See LED Options Table
-
XX
# of ports
XX = 01 for 1 port
XX = 04 for 4 port
XX = 05 for 5 port
XX = 08 for 8 port Dual Row
XX = 0A for 10 port Dual Row
X = 5 For Dual Row RJ45
X = 7 For Dual Row RJ11
X = P For press fit contact RJ45
X = 3 For Shield
X = 0 For No Shield
X = 1 to 8 (RJ45)
X = 1 to 6 (RJ11)
Vertical RoHS Compliant Modular Jacks with Shield and LED options in RJ45 and RJ11 Configurations
Typical Part Number Structure - RJHSE-XXXX
RJHSE
-
X
RJ45 RJ11
X
Shield Option
X = 0 No Shield
X = 3 Shield
X = P Shield
X
Number of Contacts
X = 2 to 8 (RJ45)
X = 2 to 6 (RJ11)
X
LED Option
X
≠
0 For LED's
X = 0 For No LED's
See LED Options Table
X=3 X=7
Typical Part Number Structure for Single Row - RJHSE-XXXX-XXX
RJHSE
-
X
RJ45 RJ11
X=N X=D
X
Shield Option
X = 0 No Shield
X = 3 Shield + Top & Side Tabs
X = 4 Shield + Side Tabs Only
X = 5 Shield + No Tabs
X = 6 Shield + Top Tabs Only
X
Number of Contacts
-
X
LED Option
X
≠
0 For LED's
X = 0 For No LED's
See LED Options Table
X
Housing Colour
X = 0 for Black
X = 6 For Grey
X
Number of Ports
X=4
X=5
X = 1 to 8
Typical Part Number Structure - RJE06-188-XXX0
RJE06
-
1
# of Ports
8
# of Postions
8
# of Contacts
-
X
Shield Option
X = 0 No Shield
X = 1 Shield
X
Plating
X = 1 For 6u"Au
X = 2 For 15u"Au
X = 3 For 30u" Au
X = 4 For 50 u" Au
X
Flange Option
X = 1 with Flange
2 = Without Flange
0
Modifier
1
8
8
0 = Standard
Typical Part Number Structure - RJE08-1XX-0XX0
RJE08
-
1
# of Ports
X
# of Postions
X = A for 10
X = 8 for 8
X = 6 for 6
X = 4 for 4
X
# of Postions
X = A for 10
X = 8 for 8
X = 6 for 6
X = 4 for 4
-
0
Place Holder
X
Plating
X = 1 For 6u"Au
X = 2 For 15u"Au
X = 3 For 30u" Au
X = 4 For 50 u" Au
X
Flange Option
X = 1 with Flange
2 = Without Flange
0
Modifier
1
0 = Standard
0 = Standard
Typical Part Number Structure - RJE23-1XX-XXX0T
RJE23
-
1
# of Ports
X
# of Postions
X = 8 for 8
X = 6 for 6
X = 4 for 4
X = 2 for 2
X
# of Contacts
X = 8 for 8
X = 6 for 6
-
X
Shield Option
X = 0 for No Shield
X = 1 for Shield
X
Plating
X = 1 For 6u"Au
X = 2 For 15u"Au
X = 3 For 30u" Au
X = 4 For 50 u" Au
X
Flange Option
X = 1 With Flange
X = 2 No Flange
0T
Modifier
0T = Standard part
packed in Tape and
Reel
1
ACPRJHC07

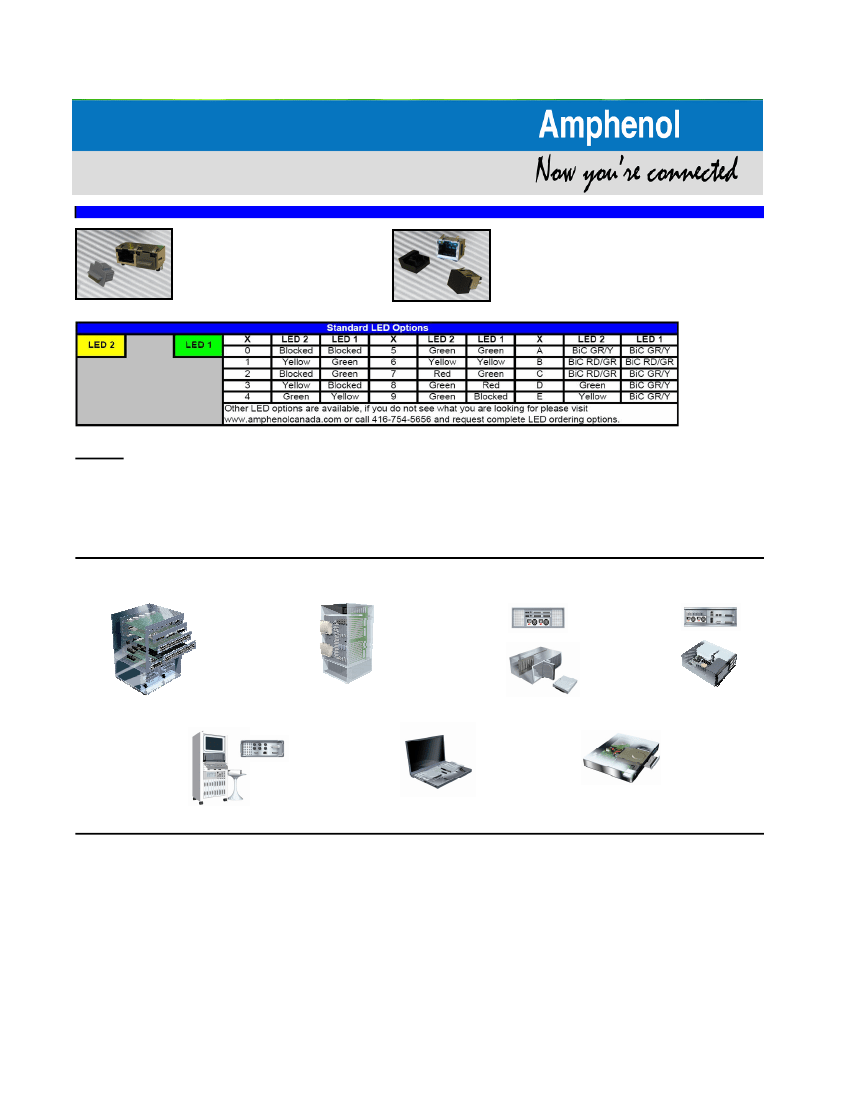

Modular Jacks
www.amphenolacp.com
Acessories for Modular Jack Connectors
FRJ-2411 dust cover for RJ45 connectors and the
FRJ-2611 dust cover for RJ11 connector are ideal
for protecting the internal structure of the
connector from dust and moisture contamination
Innovative design and research are behind the development of
the RJ protective LED Heat Shield. This shield protects the LED
during the Lead Free IR Reflow Process. Without this heat
protection many of the LED's would fail immediately after
reflow or worse, in the field.
Notes:
- Modular Jacks with integrated LED's are not suitable for Lead Free IR Reflow process unless accompanied with protective LED Heat Shield
- Standard RJE0X series with through hole termination contacts are not suitable for IR reflow but can be ordered in high temperature material.
Please contact factory for details
- Connectors suitable for IR reflow process have Moisture Sensitivity Level (MSL) of 2-2A
- Select RJSAE and FRJAE series are available with ferrite filtering. Please contact factory for details
- Low cost RJHSE series is available under RJESE series identifier. Please visit web site or contact factory for details
Amphenol Modular Jack Applications:
NETWORKING
TELECOM
STORAGE
SERVERS
MEDICAL & INDUSTRIAL
EQUIPMENT
HOME & OFFICE
EQUIPMENT
CONSUMER ELECTRONICS
Amphenol Commercial Products locations:
Amphenol Canada Corp.
Ontario, Canada
Tel: +1-416-291-4401
Fax: +1-416-292-0647
Email: sales@amphenolcanada.com
Web: www.amphenolcanada.com
Amphenol Commercial Products
Americas
Milpitas, CA, USA
Tel: +1-408-546-0397
Fax: +1-408-546-0399
Email: info@amphenolacp.com
Web: www.amphenolacp.com
Amphenol InfoCom Europe
Houten, Netherlands
Tel: +31-30-635-8000
Fax: +31-30-637-7034
Email: info@amphenol-nl.com
Web: www.amphenol-
online.com
Amphenol East Asia Limited
Hong Kong, China
Tel: +852-2699-2663
Fax: +852-2688-0974
Email: info@amphenol.com.hk
Web: www.amphenol.com.hk
Amphenol Shenzen Sales Office
Shenzen, China
Tel: +86-755-8368-3575
Fax: +86-755-8368-3567
Email: info@amphenol.com.cn
Web: www.amphenol.com.cn
Amphenol Shanghai Sales Office
Shanghai China
Tel: +86-21-6267-5566
Fax: +86-21-6272-7587
Email: info@amphenol.com.cn
Web: www.amphenol.com.cn
Amphenol China Sales Offices
Beijing
Tel: +86-10-6468-4019
Fax: +86-10-6468-4020
Xi'an
Tel/Fax: +86-29-8781-3718
Email: info@amphenol.com.cn
Web: www.amphenol.com.cn
Amphenol Australia Pty Limited
Melbourne, Australia
Tel: +61-3-8796-8888
Fax: +61-3-8796-8801
Email: info@amphenol.com.au
Web: www.amphenol.com.au
Amphenol Taiwan Corporation
Taoyuan, Taiwan
Tel: +886-3-264-7200
Fax: +886-3-327-5296
Email: info@amphenol.com.tw
Web: www.amphenol.com.tw
Amphenol Japan Infocom
Tokyo, Japan
Tel: +81-45-473-9191
Fax: +81-45-473-9203
Email: info@amphenol.co.jp
Web: www.amphenol.co.jp
Amphenol Dae Shin Limited
Bucheon, Korea
Tel: +82-32-610-3800
Fax: +82-32-673-2507
Email: info@amphenol.co.kr
Web: www.amphenol.co.kr
Amphenol East Asia Limited - South East Asia
The Concourse, Singapore
Tel: +65-6294-2128
Fax: +65-6294-3522
Email: info@amphenol.com.sg
Web: www.amphenol.com.sg
ACPRJHC07
Energy Infrastructure?
京公网安备 11010802033920号
EEWORLD
