45985-6451: DescriptionHeavy Duty Power Connectors LPH Plug Assy RtAn 0 6 Pwr 28 Sig P and G; CategoryThe connector The connector; File Size61KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

45985-6451 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	45985-6451	-	-	View	Buy Now

45985-6451 Overview

Heavy Duty Power Connectors LPH Plug Assy RtAn 0 6 Pwr 28 Sig P and G

45985-6451 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Base Number Matches	1

Preview

Download Datasheet

View All

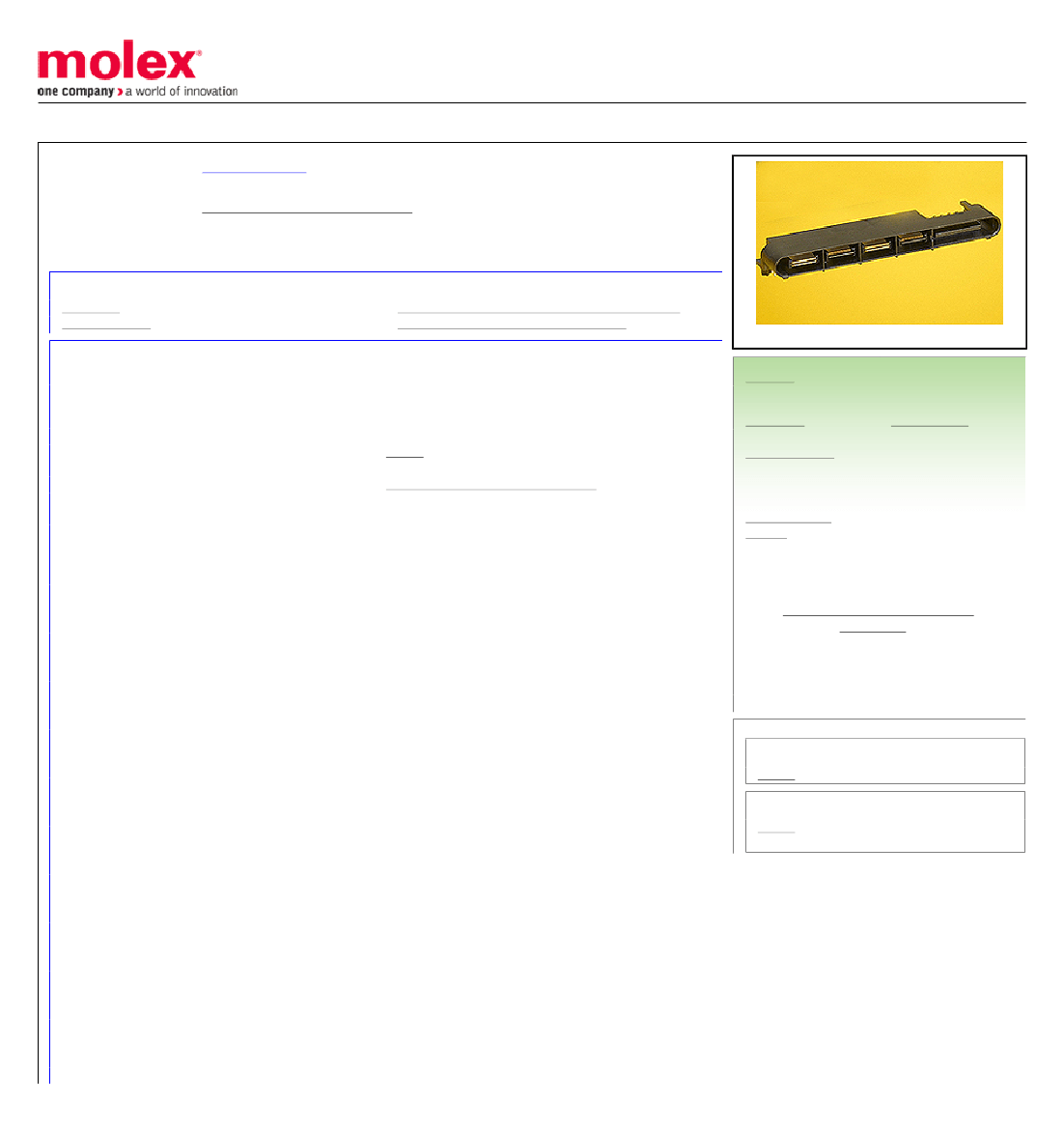

This document was generated on 12/06/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0459856451

Active

EXTreme LPHPower™ Connectors

EXTreme LPHPower Header, Right Angle, 6 Power Contacts, 28 Signal Contacts,

Select Gold (Au) Plating, for 3.18mm Thick PC Board, with Guide Pockets, with Press-

fit Plastic Pegs

Documents:

3D Model

Drawing (PDF)

Agency Certification

CSA

General

Product Family

Series

Application

Overview

Product Name

UPC

Physical

(p)ower-(s)ignal Configuration

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Product Specification PS-45984-001-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

LR19980

E29179

PCB Headers

45985

Board-to-Board, Power

EXTreme LPHPower™ Connectors

EXTreme LPHPower

822350778732

6p - 28s

Black

250

94V-0

Yes

None

High Performance Alloy (HPA)

Gold

Tin

High Temperature Thermoplastic

9.139/g

Right Angle

4.50mm

Yes

3.18mm

Tray

1.27mm, 12.00mm

0.762µm

3.810µm

Yes

Fully

Yes

-40°C to +105°C

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

45985 Series

Mates With

45984 EXTreme LPHPower PCB

Receptacles
