14004-3: DescriptionBarrier Terminal Blocks 3P 600V 90A Barrier Terminal Block; CategoryThe connector terminals; File Size67KB，1 Pages; ManufacturerEaton; Environmental Compliance

Download Datasheet Parametric Compare View All

14004-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	14004-3	-	-	View	Buy Now

14004-3 Overview

Barrier Terminal Blocks 3P 600V 90A Barrier Terminal Block

14004-3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	10 weeks
Is Samacsys	N
Fastening method	SCREW
Installation type	CABLE
Number of layers	1
Rows	2
Number of channels	3
Rated current	90 A
Rated voltage	600 V
safety certificate	UL; CSA; CE
Terminal and terminal strip types	STRIP TERMINAL BLOCK
Wire gauge	4 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

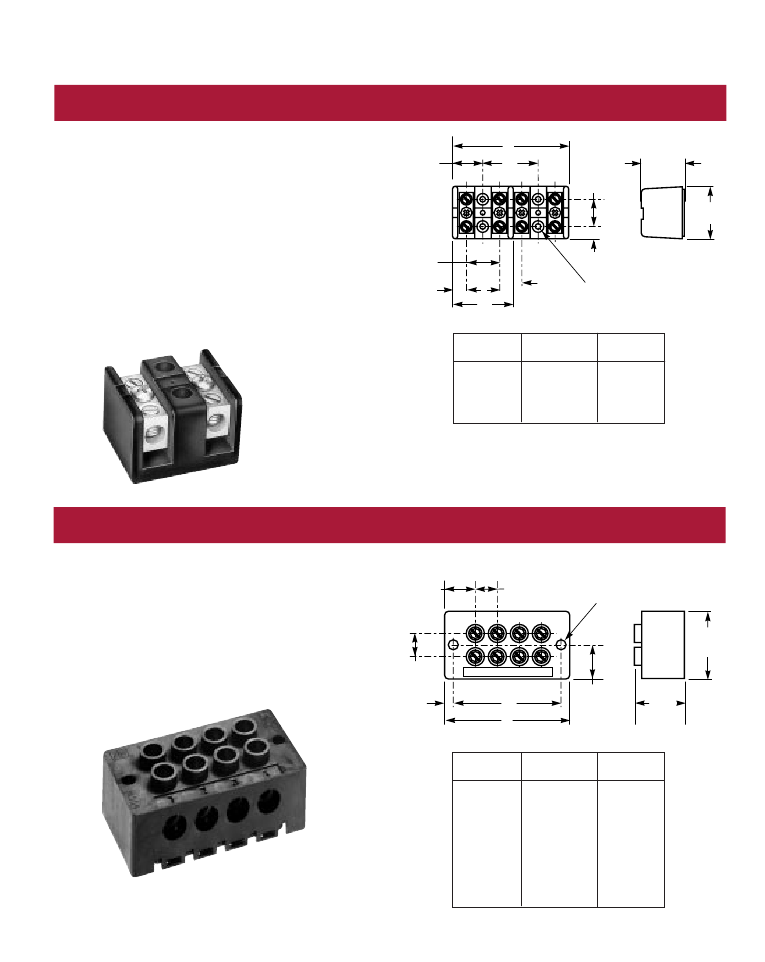

Barrier & Dead Front Terminal Blocks

Series 14002 & 14004

Barrier Terminal Blocks

Series 14002

SPECIFICATIONS

Ratings:

115A, 600V; UL/CSA

Poles:

2 to 6 poles

Wire sizes:

#2 – #14 CU/#8 AL

Operating temperature:

150°C

Marking:

Marking strip optional, consult factory.

Options:

CP = Pressure plate, rated 60A, 600V

Q = Quick-Connect, rated 50A, 600V

To order options, enter letter code

in front of Part No.:

ie; CP14002-2

Agency approvals:

UL E62622; CSA LR15364;

CE Pending

.87

(22.09)

.75

(19.05)

1.25

(31.75)

Inches (Millimeters)

1.50

(38.10)

.96

(24.38)

.39

(9.90)

Part

Number

14002-2

14002-3

14002-4

14002-5

14002-6

.62

(15.74)

.37

(9.39)

.17 (4.31) dia. holes

with .34 (8.63) dia. x

.75 (19.05) deep c'bore

1.75

2.37

3.34

3.96

4.59

–

1.59

2.21

2.84

Note: “A” dimension for 14002-2 & 14002-3 only.

(14002-2 & 14002-3 have only two mounting holes.)

14002-2

Dead Front Terminal Blocks

Series 14004

SPECIFICATIONS

Ratings:

90A, 600V; UL/CSA

Poles:

2 to 12 poles

Wire sizes:

#4 – #14 CU/#8AL

Operating temperature:

75°C

Marking:

Marking strip optional, consult factory.

Agency approvals:

UL E62622; CSA LR15364

.65

(16.51)

.50

(12.70)

Inches (Millimeters)

.21 (5.33)

dia. holes

1.50

(38.10)

.50

(12.70)

.18

(4.57)

.75

(19.05)

1.12

(28.44)

Part

Number

14004-2

14004-3

14004-4

14004-5

14004-6

14004-7

14004-8

14004-9

14004-10

14004-11

14004-12

1.81

2.31

2.81

3.31

3.81

4.31

4.81

5.31

5.81

6.31

6.81

1.43

1.93

2.43

2.93

3.43

3.93

4.93

5.43

5.93

6.43

14004-4
