PE4242-52 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> PE4242-52

PE4242-52: DescriptionSPDT, 0MHz Min, 3000MHz Max, 1.05dB Insertion Loss-Max, GREEN, ULTRA SMALL, SC-70, 6 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size822KB，8 Pages; ManufacturerpSemi (peregrine semiconductor); Websitehttp://www.psemi.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

PE4242-52 Overview

SPDT, 0MHz Min, 3000MHz Max, 1.05dB Insertion Loss-Max, GREEN, ULTRA SMALL, SC-70, 6 PIN

PE4242-52 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	pSemi (peregrine semiconductor)
package instruction	GREEN, ULTRA SMALL, SC-70, 6 PIN
Reach Compliance Code	unknown
Other features	CMOS COMPATIBLE
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	30 dBm
Maximum insertion loss	1.05 dB
JESD-609 code	e3
Maximum operating frequency	3000 MHz
Minimum operating frequency
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
RF/Microwave Device Types	SPDT
Terminal surface	Matte Tin (Sn)
Base Number Matches	1

Preview

Download Datasheet

View All

Product Specification

PE4242

Product Description

The PE4242 UltraCMOS™ RF Switch is designed to cover a

broad range of applications from 10 MHz through 3 GHz. This

reflective switch integrates on-board CMOS control logic with a

low voltage CMOS-compatible control interface, and can be

controlled using either single-pin or complementary control

inputs. Using a nominal +3-volt power supply voltage, a typical

input 1 dB compression point of +27 dBm can be achieved.

The PE4242 RF Switch is manufactured on Peregrine’s

UltraCMOS™ process, a patented variation of silicon-on-

insulator (SOI) technology on a sapphire substrate, offering the

performance of GaAs with the economy and integration of

conventional CMOS.

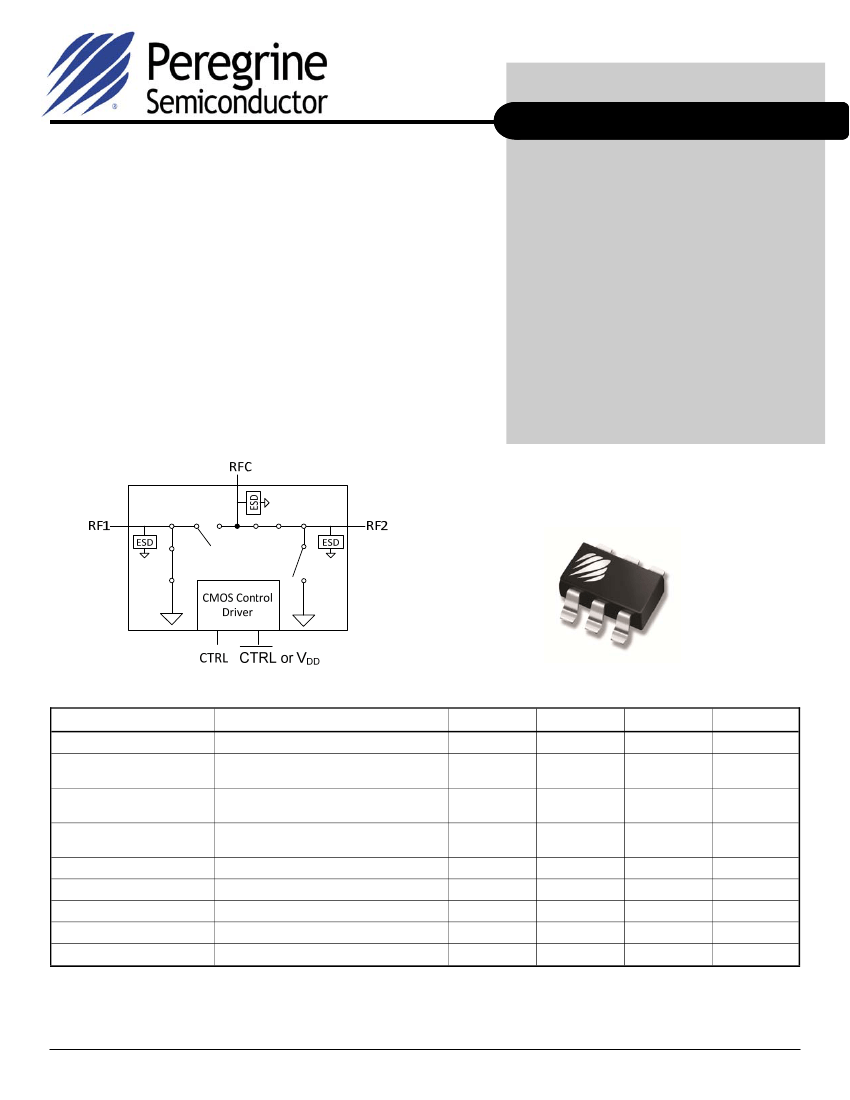

Figure 1. Functional Diagram

SPDT UltraCMOS™

10 MHz - 3 GHz RF Switch

Features



Single-pin or complementary CMOS

logic control inputs



+3.0-volt power supply needed for single

-pin control mode



Low insertion loss: 0.7 dB at 1000 MHz,

0.9 dB at 2000 MHz



Isolation of 32 dB at 1000 MHz, 23 dB at

2000 MHz



Typical input 1 dB compression point of

+27 dBm



Ultra-small SC-70 package

Table 1. Electrical Specifications @ +25 °C, V

= 3 V (Z

= Z

= 50

Ω)

Parameter

Operation Frequency

Insertion Loss

Isolation

Return Loss

‘ON’ Switching Time

‘OFF’ Switching Time

Video Feedthrough

Input 1 dB Compression

Input IP3

2000 MHz

2000 MHz, 14 dBm input power

1000 MHz

2000 MHz

1000 MHz

2000 MHz

1000 MHz

2000 MHz

50% CTRL to 0.1 dB of final value, 1 GHz

50% CTRL to 25 dB isolation, 1 GHz

Conditions

Minimum

Figure 2. Package Type

6-lead SC-70

71-0015

Typical

Maximum

3000

0.7

0.9

300

200

0.85

1.05

Units

MHz

dBm

Notes: 1. Device linearity will begin to degrade below 10 MHz

2. The DC transient at the output of any port of the switch when the control voltage is switched from Low to High or High to Low in a 50

Ω

test set-up, measured with

1ns risetime pulses and 500 MHz bandwidth.

Document No. 70-0095-04

│

www.psemi.com

Page 1 of 9

Peregrine products are protected under one or more of the following U.S. Patents: http://patents.psemi.com

PE4242-52 Related Products

	PE4242-52	PE4242-51
Description	SPDT, 0MHz Min, 3000MHz Max, 1.05dB Insertion Loss-Max, GREEN, ULTRA SMALL, SC-70, 6 PIN	SPDT, 0MHz Min, 3000MHz Max, 1.05dB Insertion Loss-Max, GREEN, ULTRA SMALL, SC-70, 6 PIN
Is it Rohs certified?	conform to	conform to
Maker	pSemi (peregrine semiconductor)	pSemi (peregrine semiconductor)
package instruction	GREEN, ULTRA SMALL, SC-70, 6 PIN	GREEN, ULTRA SMALL, SC-70, 6 PIN
Reach Compliance Code	unknown	unknown
Other features	CMOS COMPATIBLE	CMOS COMPATIBLE
Characteristic impedance	50 Ω	50 Ω
structure	COMPONENT	COMPONENT
Maximum input power (CW)	30 dBm	30 dBm
Maximum insertion loss	1.05 dB	1.05 dB
JESD-609 code	e3	e3
Maximum operating frequency	3000 MHz	3000 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
RF/Microwave Device Types	SPDT	SPDT
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)
Base Number Matches	1	1
