Precision Resistor Networks
SR04 & S4 Series
Description
The SR04 & S4 Series resistor networks are precision-class metal film components featuring tight resistance tolerance
and low values of temperature coefficient of resistance (TCR). This resistor network package provides both excellent
resistance ratio and TCR tracking.

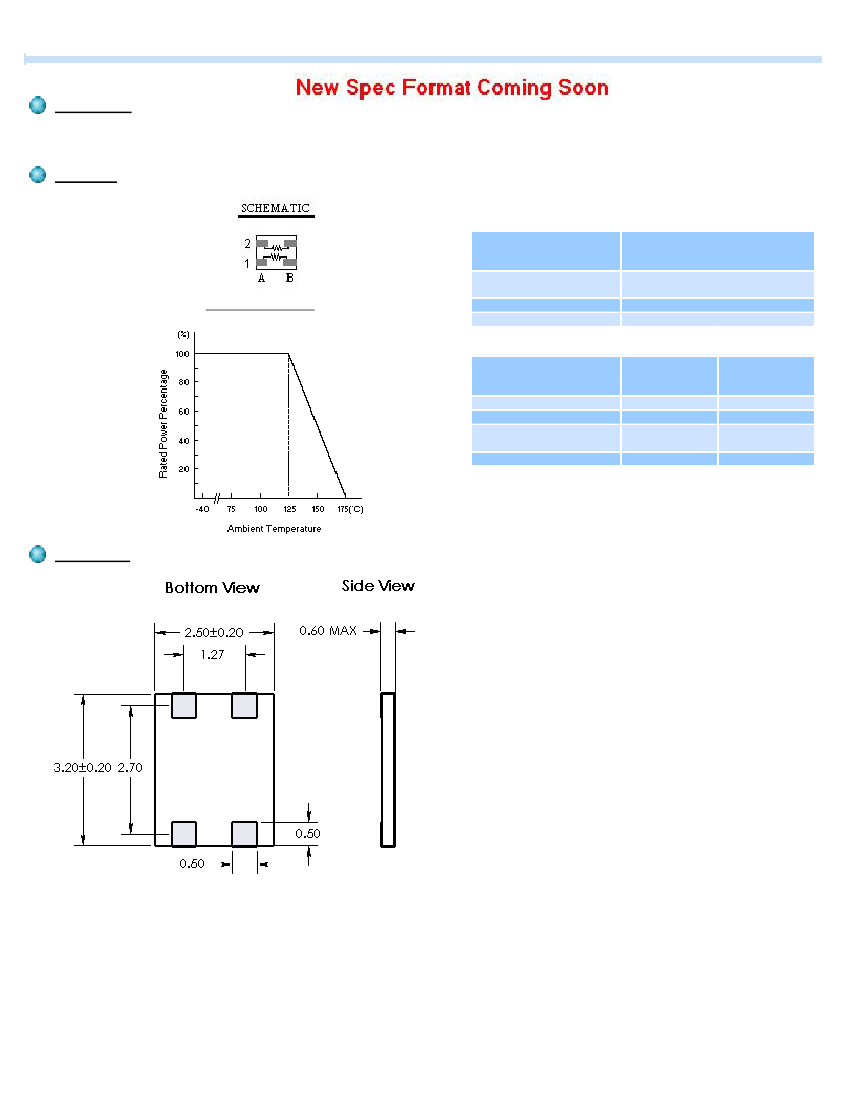

Electrical
Parameter
Resistance range
Power rating per package
Power Derating Curve
Operating temperature
Storage temperature
Tolerance Table
Resistance Value Range
10Ω - <20Ω
20Ω - <100Ω
100Ω - 5KΩ
100Ω - 10KΩ
Abs. Resistance
Tolerance
Available
≥
±0.1%
≥
±0.05%
≥
±0.01%
≥
±0.01%
Absolute TCR
Tolerance
Available
± 25 ppm/°C
± 25 ppm/°C
± 5, 10 or
25 ppm/°C
± 10 or 25 ppm/°C
SR04 series
10Ω - 10KΩ
(See Tolerance Table below for further
details)
0.1 watts @125°C
(refer to derating curve)
- 40 to +175°C
- 55 to +125°C
Mechanical

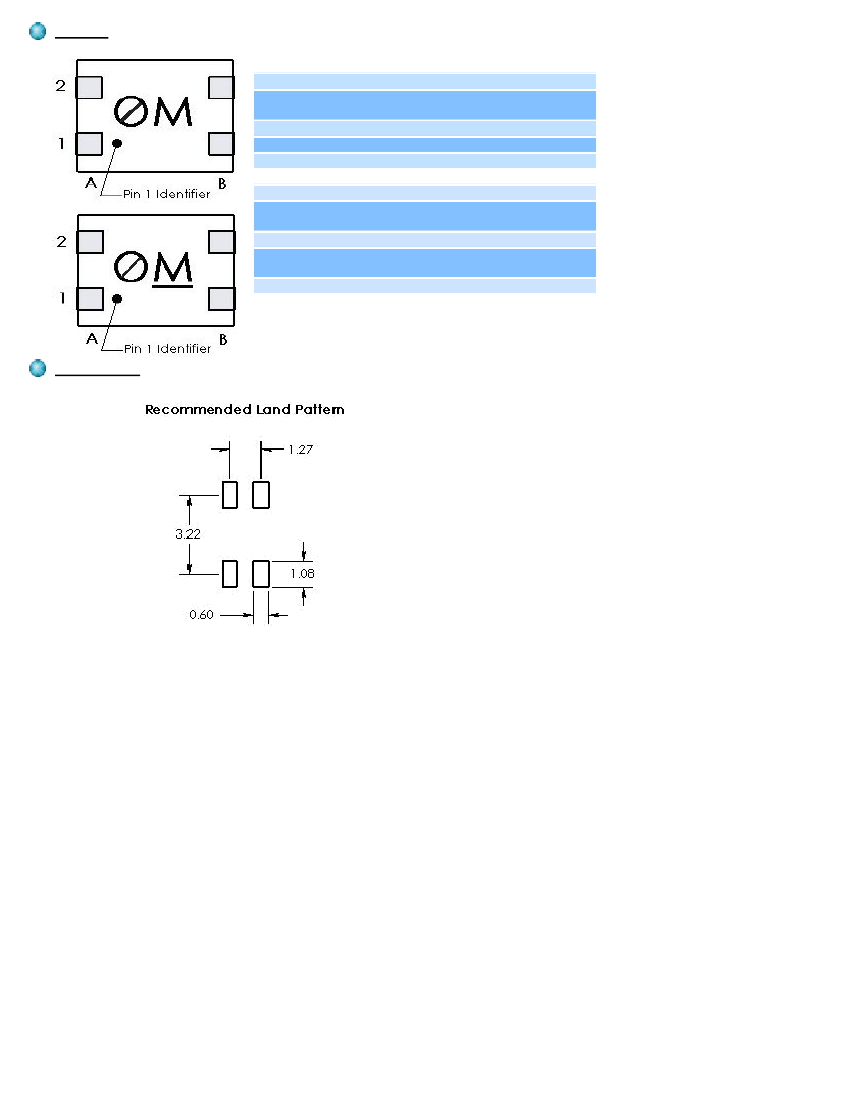

Marking
For Leaded Products (63Sn / 37 Pb Terminals):
Marking shall be on the top (pattern) side of the product and
shall include:
The TFT "Don't Stop" logo
A one digit monthly date code
A pin one identifier
For Lead Free Products (100% Sn Terminals):
Marking shall be on the top (pattern) side of the product and
shall include:
The TFT "Don't Stop" logo
A one digit monthly date code
(underlined date code signifies lead free)
A pin one identifier
Land Pattern
Packaging
Additional Comments:
All taping done in accordance with EIA 481 standards
Pieces taped with the green ( Marking )side up and showing through cover tape. The pin "1" identifier is locate in the corner on the end of the piece
closest to the sprocket hole in the carrier tape
Labels will contain the TFT part number and quantity of pieces taped
Carrier Tape - Part # 3M #US017931.
Part Number
For Leaded Products (63Sn / 37Pb Terminal Finish):
Form
Factor
SR04
Absolute
Resistance
Tolerance
T = 0.01%
Q = 0.02%
A = 0.05%
B = 0.10%
C = 0.25%
D = 0.50%
F = 1.00%
Resistance
Ratio
Tolerance
Q = 0.02%
A = 0.05%
B = 0.10%
C = 0.25%
D = 0.50%
Z = NONE
Resistance Value
Absolute TCR
Tolerance
(see note 4)
Y = 10 PPM/°C
E = 25 PPM/°C
TCR Tracking
Tolerance
(see note 2,3)
X = 1 PPM/°C
R = 2 PPM/°C
M = 5 PPM/°C
Packaging
(Tape and Reel)
1 = 100
5 = 500
A = 1000
XXXX
/
XXXX
R1 Value
R2 Value
The first 3 digits are significant
figures. The last digit specifies the
number of zeros. For values <100
ohms, R is used to designate the
decimal position.
Multiple values are separated by a
slash (/).
e.g: 1001 = 1KΩ
75R0 = 75Ω
1001/1002 = 1KΩ/10KΩ
For Lead Free Products (100% Sn Terminal Finish):
Form
Factor
S4
Absolute
Resistance
Tolerance
T = 0.01%
Q = 0.02%
A = 0.05%
B = 0.10%
C = 0.25%
D = 0.50%
F = 1.00%
Resistance
Ratio
Tolerance
Q = 0.02%
A = 0.05%
B = 0.10%
C = 0.25%
D = 0.50%
Z = NONE
Resistance Value
Absolute TCR
Tolerance
(see note 4)
Y = 10 PPM/°C
E = 25 PPM/°C
TCR Tracking
Tolerance
(see note 2,3)
X = 1 PPM/°C
R = 2 PPM/°C
M = 5 PPM/°C
Packaging
(Tape and Reel)
1 = 100
5 = 500
A = 1000
Lead Free
Designator
-C
XXXX
/
XXXX
R1 Value
R2 Value
The first 3 digits are significant
figures. The last digit specifies the
number of zeros. For values <100
ohms, R is used to designate the
decimal position.
Multiple values are separated by a
slash (/).
e.g: 1001 = 1KΩ
75R0 = 75Ω
1001/1002 = 1KΩ/10KΩ
Note 1:
Note 2:
Note 3:
Note 4:
Refer to tolerance table above.
1 ppm/°C TCR tracking available only with identical resistances.
Ratio values greater than 50:1 only available in ± 5 PPM/°C TCR tracking tolerance.
Consult factory for ± 5 PPM/°C absolute TCR availability.
Examples:
SR04TQ1001/2001YRA
= SR04 package, ±0.01% absolute resistance, ±0.02% resistance ratio, 1KΩ/2KΩ, ±10 ppm/°C absolute TCR, ±2 ppm/°C TCR
tracking, 1000 piece tape and reel
S4QQ50R0/1001EM5-C
= S4 package, ±0.02% absolute resistance, ±0.02% resistance ratio, 50Ω/1KΩ, ±25 ppm/°C absolute TCR, ±5 ppm/°C TCR
tracking, 500 piece tape and reel, lead free designator
