87609-0051

CategoryThe connector    The connector
File Size32KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

87609-0051 Online Shopping

Suppliers Part Number Price MOQ In stock
87609-0051 - - View Buy Now

87609-0051 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresLATCHED, POLARIZED
Connector typeCARD EDGE CONNECTOR
Contact to complete cooperationGOLD (15)
Contact completed and terminatedTIN (100)
Contact point genderFEMALE
Contact materialNOT SPECIFIED
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee3
MIL complianceNO
Manufacturer's serial number87609
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
Terminal pitch1.27 mm
Termination typeSOLDER
Total number of contacts168
UL Flammability Code94V-0

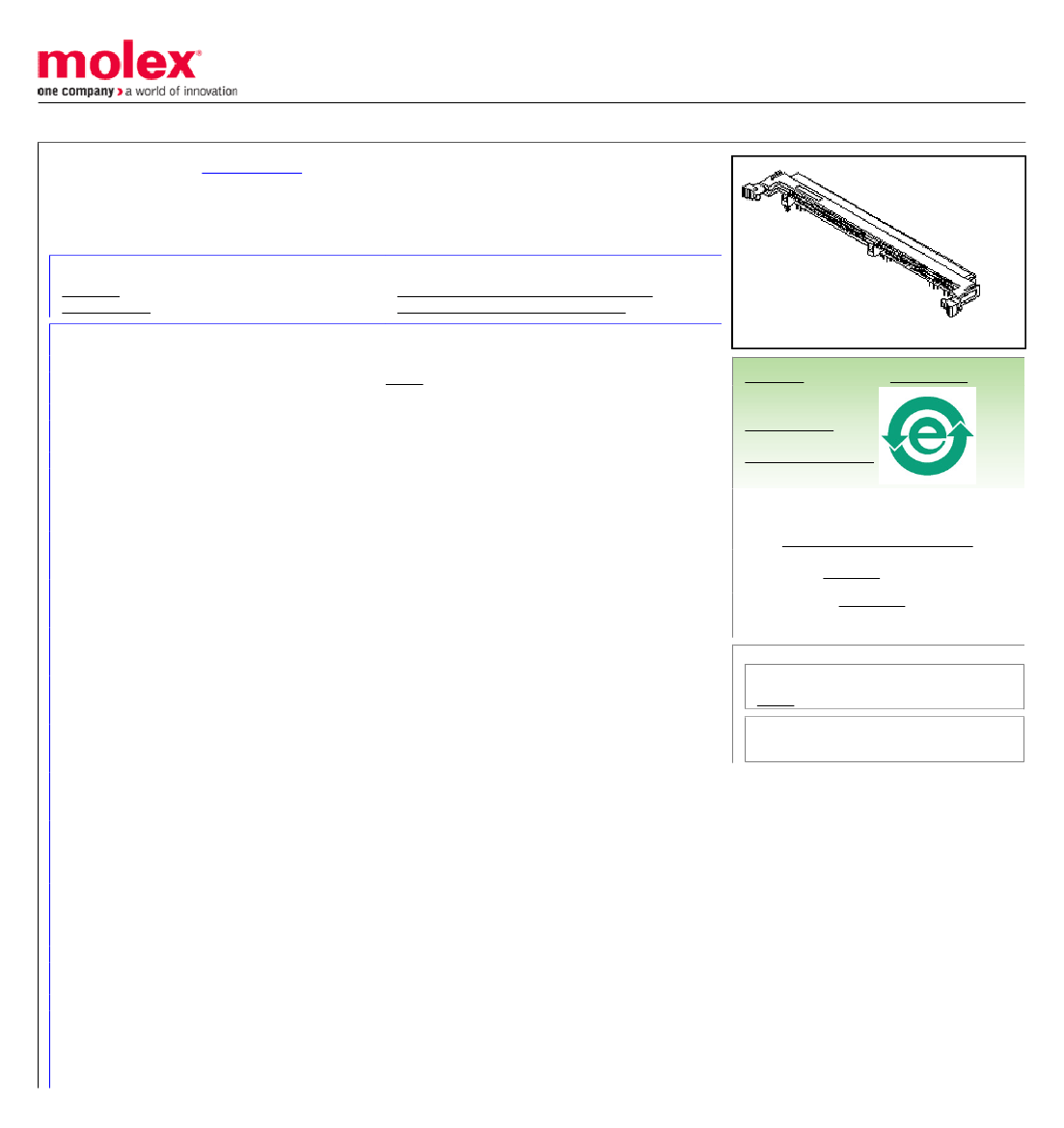

This document was generated on 12/10/2014
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
87609-0051
Active
1.27mm Pitch DIMM 8-Byte Socket, Right Angle, Multi-Key, 168 Circuits, with Beveled
Metal Pins and Plastic Pegs, with Beige Latches, 2.79mm Tail Length, 0.38µm Gold
(Au) Plating, Left Function Key, Lead-Free
Documents:
3D Model
Drawing (PDF)
Product Specification PS-87609-002 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
Memory Module Sockets
87609
<LI>Latches in Beige Color
Memory Module
MO-161
DIMM
822348698394
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Not Low-Halogen
China RoHS
General
Product Family
Series
Comments
Component Type
JEDEC Outline
Product Name
UPC
Physical
Circuits (Loaded)
Color - Resin
Durability (mating cycles max)
Entry Angle
Function Key
Keying to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Net Weight
PC Tail Length
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Plating min - Mating
Plating min - Termination
Temperature Range - Operating
Termination Interface: Style
168
Black, Natural
25
90° Angle (Side Entry)
Left
Yes
Brass, High Performance Alloy (HPA)
Gold
Tin
High Temperature Thermoplastic
17.362/g
2.79mm
Yes
Yes
1.60mm
Tray
1.27mm
0.381µm
2.540µm
-10°C to +85°C
Through Hole
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
87609Series
Mates With
JEDEC MO-161 Modules
Electrical
Current - Maximum per Contact
Voltage - Maximum
Voltage Key
1A
125V
3.3V, Center
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
Max. Cycles at Max. Process Temperature
Process Temperature max. C
30
SMC & Wave Capable (TH only)
1
240
Material Info
Reference - Drawing Numbers
Product Specification
PS-87609-002
