M80-8871801 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> M80-8871801

M80-8871801: CategoryThe connector The connector; File Size61KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

Download Datasheet Parametric Compare View All

M80-8871801 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M80-8871801	-	-	View	Buy Now

M80-8871801 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Harwin
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	POLARISED
body width	0.217 inch
subject depth	0.205 inch
body length	0.833 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (12)
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e0
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	11u inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	18
UL Flammability Code	94V-0
Evacuation force-minimum value	.1946 N

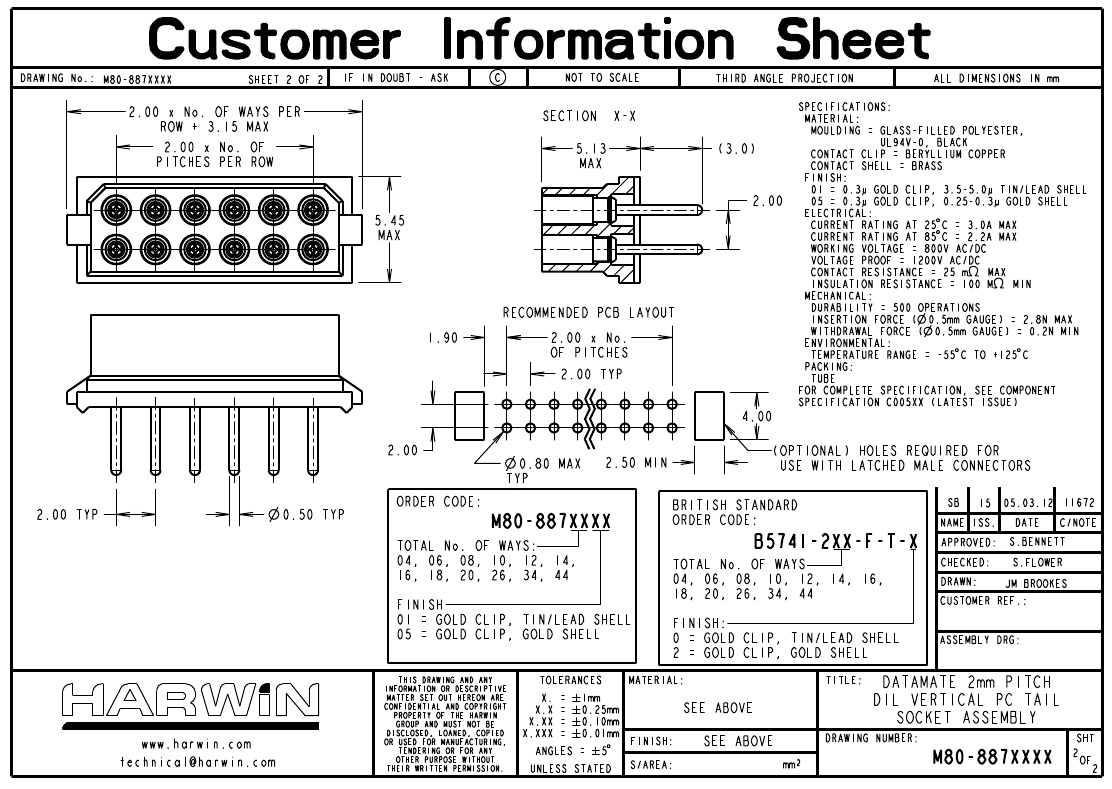

Preview

Download Datasheet

View All

M80-8871801 Related Products

	M80-8871801	M80-8871205	B5741-204-F-T-2	M80-8871605	B5741-206-F-T-0	M80-8871201	M80-8871805	B5741-208-F-T-0	B5741-208-F-T-2
Description				Automotive Connectors WIRE SEAL	Headers u0026 Wire Housings 6 PIN FEMALE PC DUAL ROW	Translation - Voltage Levels 8B Bidir Vltg-Level Translator	Automotive Connectors WIRE SEAL		Headers u0026 Wire Housings 8 PIN FEMALE PC DUAL ROW
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	not_compliant	not_compliant	compliant	not_compliant	compliant	not_compliant	not_compliant	compliant	compliant
Body/casing type	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (12)	NOT SPECIFIED	GOLD	NOT SPECIFIED	GOLD	TIN LEAD (197)	NOT SPECIFIED	GOLD	NOT SPECIFIED
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb)	Gold (Au) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	BERYLLIUM COPPER	NOT SPECIFIED	BERYLLIUM COPPER	NOT SPECIFIED	BERYLLIUM COPPER	NOT SPECIFIED	NOT SPECIFIED	BERYLLIUM COPPER	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e0	e4	e0	e4	e0	e0	e4	e0	e0
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	18	12	4	16	6	12	18	8	8
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Maker	Harwin	Harwin	Harwin	Harwin	Harwin	-	Harwin	Harwin	Harwin
Other features	POLARISED	POLARISED	-	POLARISED	-	POLARISED	POLARISED	-	-
body width	0.217 inch	0.217 inch	-	0.217 inch	-	0.217 inch	0.217 inch	-	-
subject depth	0.205 inch	0.205 inch	-	0.205 inch	-	0.205 inch	0.205 inch	-	-
body length	0.833 inch	0.596 inch	-	0.754 inch	-	0.596 inch	0.833 inch	-	-
contact mode	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	-	-
Contact resistance	25 mΩ	25 mΩ	-	25 mΩ	-	25 mΩ	25 mΩ	-	-
Contact style	RND PIN-SKT	RND PIN-SKT	-	RND PIN-SKT	-	RND PIN-SKT	RND PIN-SKT	-	-
Durability	500 Cycles	500 Cycles	-	500 Cycles	-	500 Cycles	500 Cycles	-	-
maximum insertion force	2.78 N	2.78 N	-	2.78 N	-	2.78 N	2.78 N	-	-
Insulation resistance	100000000 Ω	100000000 Ω	-	100000000 Ω	-	100000000 Ω	100000000 Ω	-	-
Insulator color	BLACK	BLACK	-	BLACK	-	BLACK	BLACK	-	-
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	-	GLASS FILLED POLYESTER	-	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	-	-
Plug contact pitch	0.079 inch	0.079 inch	-	0.079 inch	-	0.079 inch	0.079 inch	-	-
Match contact row spacing	0.079 inch	0.079 inch	-	0.079 inch	-	0.079 inch	0.079 inch	-	-
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	-	-
Installation option 1	LOCKING	LOCKING	-	LOCKING	-	LOCKING	LOCKING	-	-
Number of connectors	ONE	ONE	-	ONE	-	ONE	ONE	-	-
PCB row number	2	2	-	2	-	2	2	-	-
Maximum operating temperature	125 °C	125 °C	-	125 °C	-	125 °C	125 °C	-	-
Minimum operating temperature	-55 °C	-55 °C	-	-55 °C	-	-55 °C	-55 °C	-	-
PCB contact pattern	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	-	-
PCB contact row spacing	2.0066 mm	2.0066 mm	-	2.0066 mm	-	2.0066 mm	2.0066 mm	-	-
Plating thickness	11u inch	11u inch	-	11u inch	-	11u inch	11u inch	-	-
Guideline	UL	UL	-	UL	-	UL	UL	-	-
reliability	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	-	-
Terminal length	0.118 inch	0.118 inch	-	0.118 inch	-	0.118 inch	0.118 inch	-	-
Terminal pitch	2 mm	2 mm	-	2 mm	-	2 mm	2 mm	-	-
Evacuation force-minimum value	.1946 N	.1946 N	-	.1946 N	-	.1946 N	.1946 N	-	-
Base Number Matches	-	1	-	1	1	1	1	1	-
