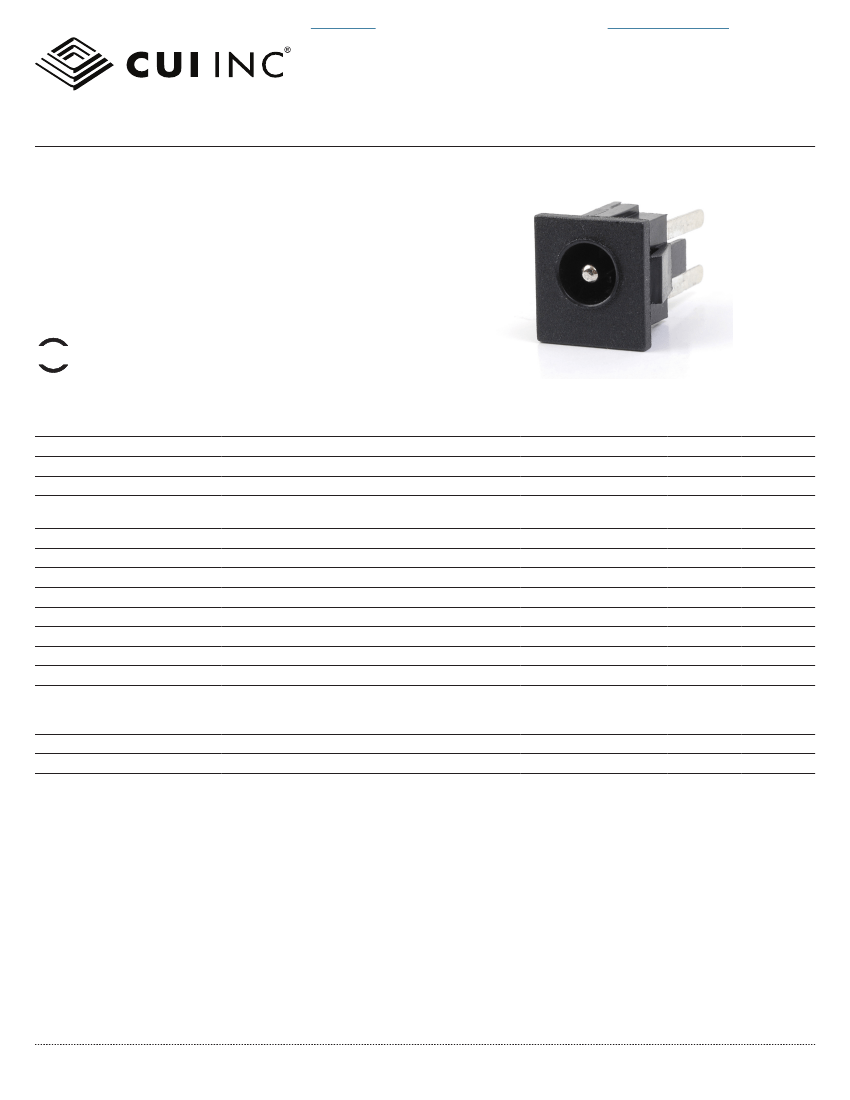

1. When measured at a current of less than 100 mA / 1 kHz
SOLDERABILITY
parameter
wave soldering
conditions/description
min
255
typ
260
max
265
units
°C
cui.com
For more information, please visit the
product page
|
For information on related products, view
External Power Supplies
CUI Inc
│
MODEL:
PJ-033A
│
DESCRIPTION:
DC POWER JACK
date
04/08/2016│
page
2 of 3

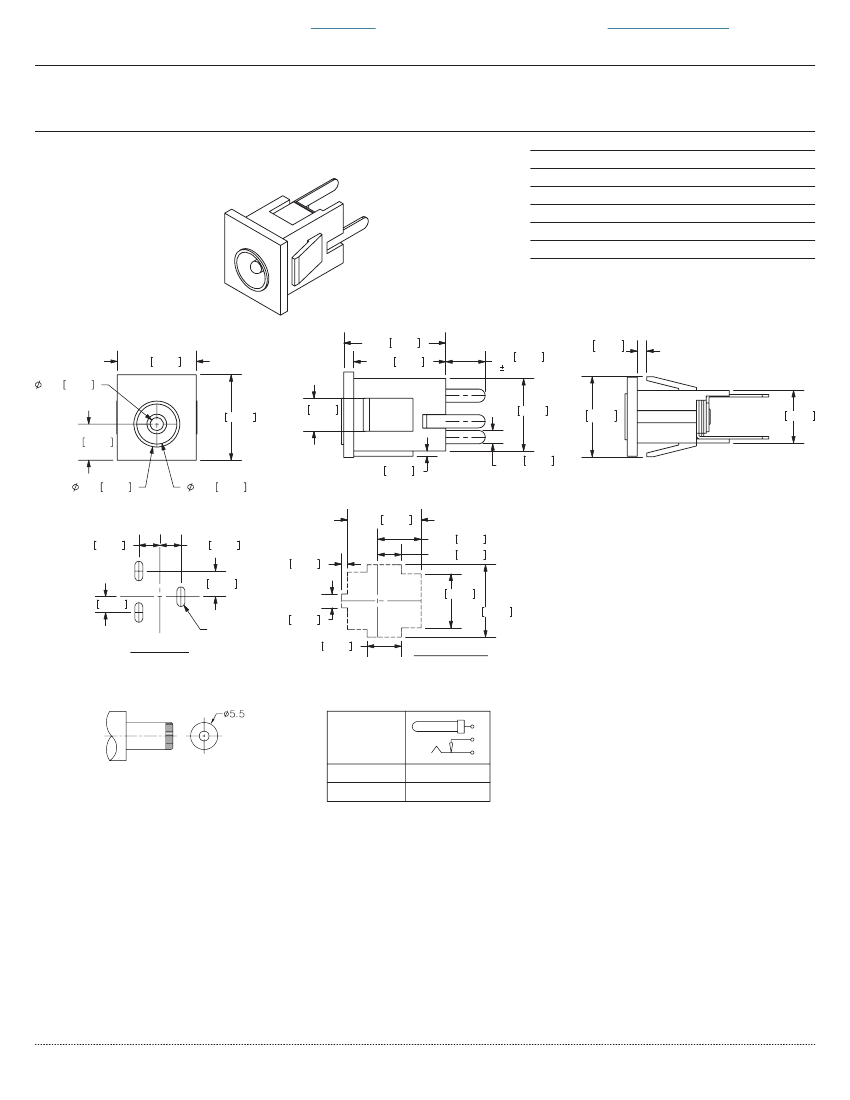

MECHANICAL DRAWING
units: mm[inches]
tolerance:
X.X ±0.2mm
X.XX ±0.1mm
X.XXX ±0.05mm
MATERIAL
center pin
terminal 1
terminal 2
terminal 3
plastic
copper
brass
copper alloy
brass
PBT
PLATING
nickel
tin
tin
tin
15.5 0.610
12.0 0.472
2.00 0.079
13.0 0.512
5.50 0.217
0.80 0.031
7.00 0.276
6.10 0.240
11.20 0.441
3.2 0.126
2
1
2.4 0.094
3
PCB LAYOUT
TOP VIEW
3.9 0.154
3.2 0.126
0.90 0.035
6.60 0.260
3.60 0.142
5.00 0.197
(2 PLCS)
14.0 0.551
2
1
3
2.00 0.079
(3 PLCS)
11.0 0.433
6.0 0.236
0.3 (3 PLCS)
1.45 0.057
(2 PLCS)
12.2 0.480
8.0 0.315
8.20 0.323
2.10 0.083
5.20 0.205
11.00 0.433
1.20X3.00
(3 PLCS)
PANEL CUT OUT
BACK VIEW
SCHEMATIC
1
3
2
PJ-033A
ø2.0 mm
MATING PLUG
Jack Insertion Depth: 8.2 mm
Model
Center Pin
Note:
1. All specifications measured at 10~35°C, humidity at 45~85%, under standard atmospheric pressure, unless otherwise noted.
cui.com
For more information, please visit the
product page
|
For information on related products, view
External Power Supplies
CUI Inc
│
MODEL:
PJ-033A
│
DESCRIPTION:
DC POWER JACK
date
04/08/2016│
page
3 of 3
REVISION HISTORY
rev.
1.0
1.01
1.02
description
initial release
changed insulator material to PBT, applied new spec template
increased voltage rating
date
07/30/2007
08/22/2013
04/08/2016
The revision history provided is for informational purposes only and is believed to be accurate.
