K44-E9P-T30 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> K44-E9P-T30

K44-E9P-T30: DescriptionD-Sub Standard Connectors .590 9P PLUG R/A RIVET INSRT 30u GOLD; CategoryThe connector; File Size239KB，3 Pages; ManufacturerKycon

Download Datasheet Parametric Compare View All

K44-E9P-T30 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	K44-E9P-T30	-	-	View	Buy Now

K44-E9P-T30 Overview

D-Sub Standard Connectors .590 9P PLUG R/A RIVET INSRT 30u GOLD

K44-E9P-T30 Parametric

Parameter Name	Attribute value
Product Category	D-Sub Standard Connectors
Manufacturer	Kycon
RoHS	No
Number of Positions	9 Position
Contact Gender	Pin (Male)
Termination Style	Through Hole
Mounting Angle	Right
Number of Rows	2 Row
Shell Size	1 (E)
Contact Plating	Gold
Current Rating	7.6 A
Gender	Male
Insert Arrangement	E09
Shell Material	Steel
Shell Plating	Tin
Factory Pack Quantity	45
Type	Plug

Preview

Download Datasheet

View All

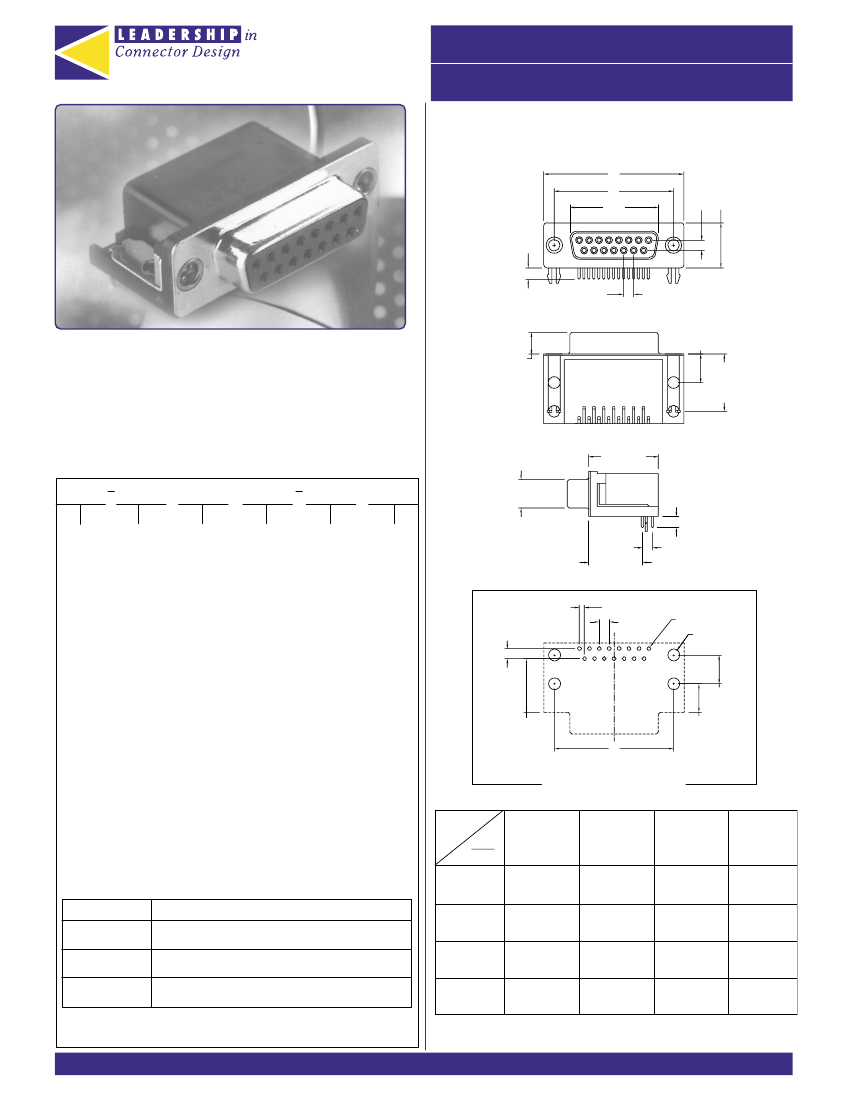

D-SUBMINIATURE CONNECTORS

KYCON

K44 Series

K44 Series Dimensions

Pictured with Board Lock Option, Dimensions in mm [In]

2.84 [.112]

8.0 [.315]

12.55 [.494]

8.00 [.315]

14.99 [.590]

16.0 [.630]

A, A1

3.18±0.20

2.77 [.109]

K44 Series

Right Angle PCB Mount

.590" Footprint

Ordering Information

K44

Series

5.9 Plug,

6.0 Socket

19.40 [.764]

3.18±0.20

Shell

Size

Number of

Contacts

Contact

Type

Mounting

Options

Plating

Options

8.36 Plug Interior,

7.90 Socket Exterior

2.84 [.112]

14.99 [.590]

2.84 [.112]

Series

K44 - Kycon D-Subminiature Connector, Right Angle,

PCB Termination, .590 Footprint

Shell Size

E - 9 Contacts

A - 15 Contacts

B - 25 Contacts

C - 37 Contacts

Number of Contacts

9, 15, 25, 37

Contact Type

P - Pin Contact (Plug)

S - Socket Contact (Receptacle)

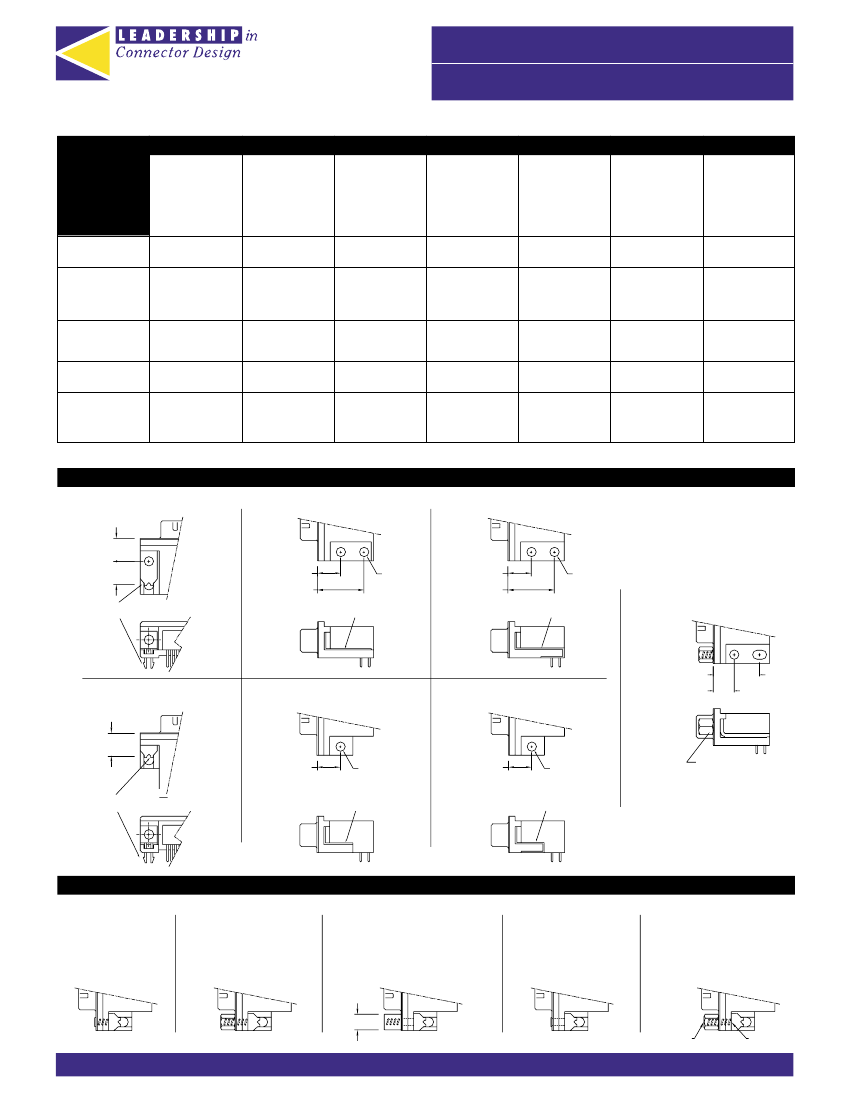

Mounting Options

(see page 36)

Plating Options

Designator

Standard

1.385 [.054]

2.77 [.109]

Ø1.09 [.043]

4-Ø3.05 [.120]

(Top View)

Recommended PCB Layout

Shell

Size

(E)

±.010

±0.25

.643

16.33

.971

24.66

1.511

38.38

2.159

54.84

±.010

±0.25

.666

16.92

.994

25.25

1.534

38.96

2.182

55.42

±.005

±0.13

.984

24.99

1.312

33.32

1.852

47.04

2.500

63.50

±.015

±0.38

1.213

30.81

1.541

39.14

2.088

53.04

2.729

69.32

Plating Description

Gold flash over nickel on contacts. Gold flash over

nickel or tin/lead over nickel on soldertails.

15µ" gold over nickel on mating end of contacts.

Tin/lead over nickel on soldertails.

30µ" gold over nickel on mating end of contacts.

Tin/lead over nickel on soldertails.

(A)

(B)

(C)

Performance Specifications

(see page 4)

2002

A = Exterior of Female Shell (S)

A1 = Interior of Male Shell (P)

8.00 [.315]

KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com

K44-E9P-T30 Related Products

	K44-E9P-T30	K44-C37S-TR15	K44-A15S-PT15	K44-E9S-PJ	K44-C37S-SJ15	K44-C37S-PJ15
Description	D-Sub Standard Connectors .590 9P PLUG R/A RIVET INSRT 30u GOLD	D-Sub Standard Connectors .590 37P RECPT R/A 4-40 J/S 15u GOLD	D-Sub Standard Connectors .590 15P RECPT R/A BRD LOCK 15u GOLD	D-Sub Standard Connectors .590 9P RECPT R/A BRD LOCK J/S	D-Sub Standard Connectors .590 37P RECPT R/A RIV 4-40 J/S 15u GLD	D-Sub Standard Connectors .590 37P RECPT R/A BRD LOCK J/S 15u GLD
Product Category	D-Sub Standard Connectors	D-Sub Standard Connectors	D-Sub Standard Connectors	D-Sub Standard Connectors	D-Sub Standard Connectors	D-Sub Standard Connectors
Manufacturer	Kycon	Kycon	Kycon	Kycon	Kycon	Kycon
RoHS	No	No	No	No	No	No
Number of Positions	9 Position	37 Position	15 Position	9 Position	37 Position	37 Position
Contact Gender	Pin (Male)	Socket (Female)	Socket (Female)	Socket (Female)	Socket (Female)	Socket (Female)
Termination Style	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Mounting Angle	Right	Right	Right	Right	Right	Right
Shell Size	1 (E)	4 (C)	2 (A)	1 (E)	4 (C)	4 (C)
Contact Plating	Gold	Gold	Gold	Gold	Gold	Gold
Current Rating	7.6 A	7.6 A	7.6 A	7.6 A	7.6 A	7.6 A
Gender	Male	Female	Female	Female	Female	Female
Shell Material	Steel	Steel	Steel	Steel	Steel	Steel
Shell Plating	Tin	Tin	Tin	Tin	Tin	Tin
Factory Pack Quantity	45	20	35	45	20	20
Type	Plug	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle
Number of Rows	2 Row	2 Row	-	2 Row	2 Row	2 Row
Insert Arrangement	E09	C37	-	E09	C37	C37
