JM38510/12302BEA datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> JM38510/12302BEA

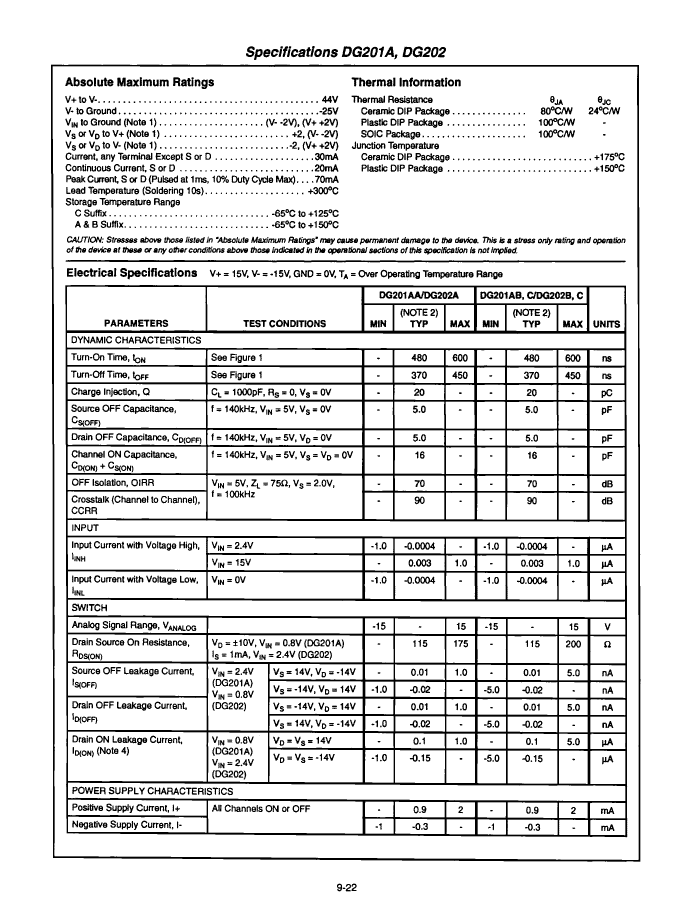

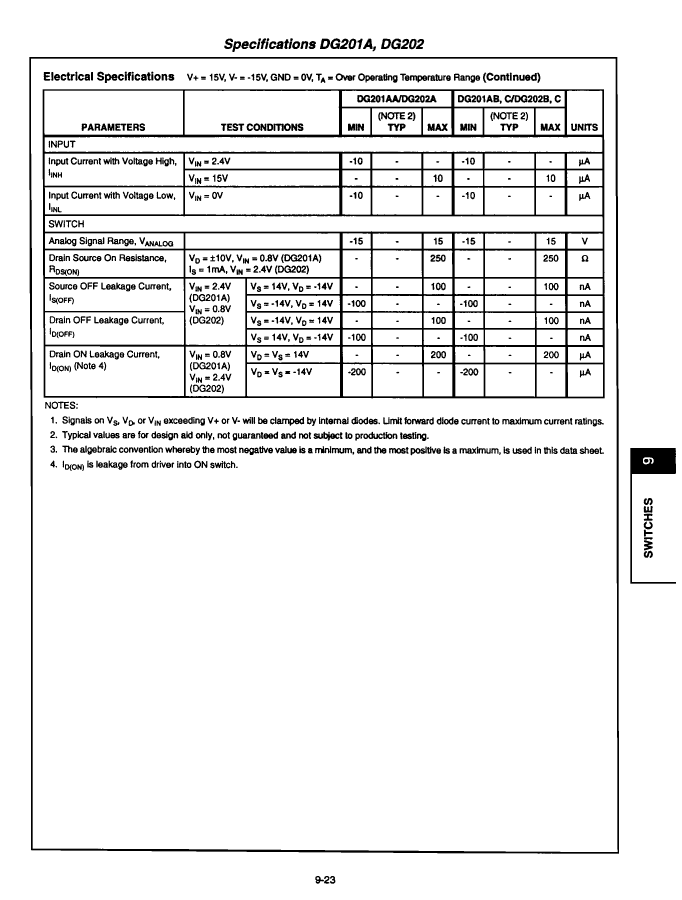

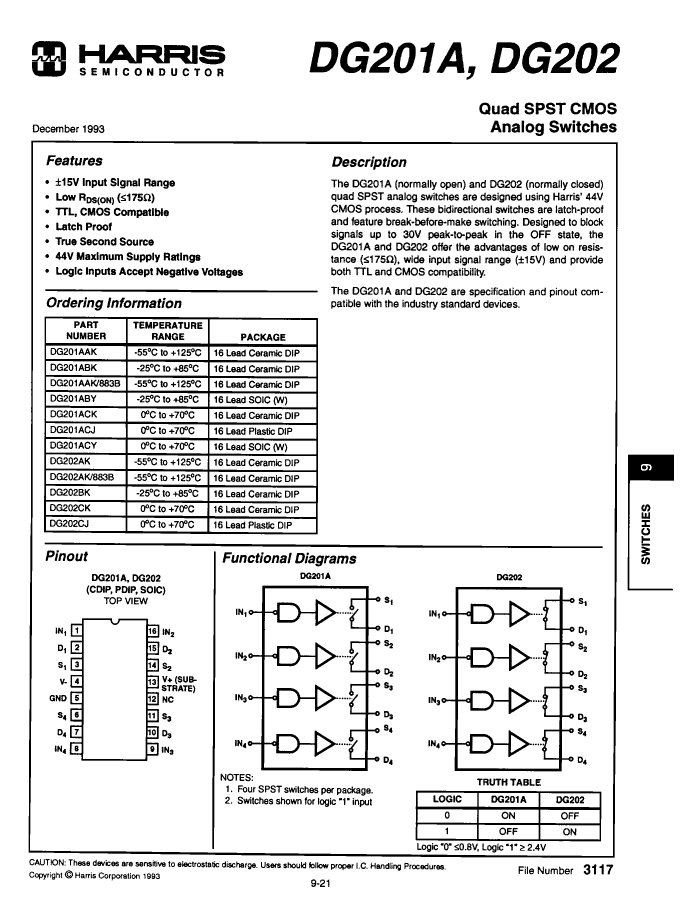

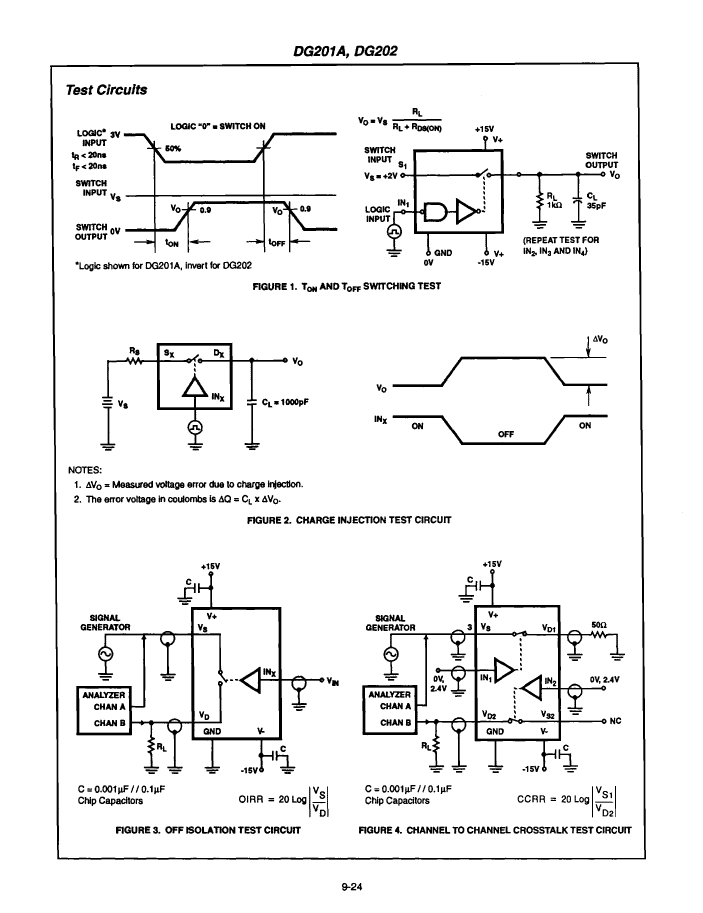

Preview

JM38510/12302BEA: DescriptionSPST, 4 Func, 1 Channel, CMOS, CDIP16; CategoryAnalog mixed-signal IC The signal circuit; File Size135KB，4 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

JM38510/12302BEA Overview

SPST, 4 Func, 1 Channel, CMOS, CDIP16

JM38510/12302BEA Parametric

Parameter Name	Attribute value
Maker	Harris
package instruction	,
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-GDIP-T16
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	1
Number of functions	4
Number of terminals	16
Nominal off-state isolation	70 dB
Maximum on-state resistance (Ron)	175 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum supply current (Isup)	2 mA
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Maximum disconnect time	450 ns
Maximum connection time	600 ns
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

JM38510/12302BEA Related Products

	JM38510/12302BEA	DG202CK	DG201ABY
Description	SPST, 4 Func, 1 Channel, CMOS, CDIP16	SPST, 4 Func, 1 Channel, CMOS, CDIP16	SPST, 4 Func, 1 Channel, CMOS, PDSO16
Maker	Harris	Harris	Harris
package instruction	,	DIP, DIP16,.3	SOP, SOP16,.25
Reach Compliance Code	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	SPST	SPST	SPST
JESD-30 code	R-GDIP-T16	R-GDIP-T16	R-PDSO-G16
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V
Number of channels	1	1	1
Number of functions	4	4	4
Number of terminals	16	16	16
Nominal off-state isolation	70 dB	70 dB	70 dB
Maximum on-state resistance (Ron)	175 Ω	200 Ω	200 Ω
Maximum operating temperature	125 °C	70 °C	85 °C
Minimum operating temperature	-55 °C	-	-25 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply current (Isup)	2 mA	2 mA	2 mA
Nominal supply voltage (Vsup)	15 V	15 V	15 V
surface mount	NO	NO	YES
Maximum disconnect time	450 ns	450 ns	450 ns
Maximum connection time	600 ns	600 ns	600 ns
technology	CMOS	CMOS	CMOS
Temperature level	MILITARY	COMMERCIAL	OTHER
Terminal form	THROUGH-HOLE	THROUGH-HOLE	GULL WING
Terminal location	DUAL	DUAL	DUAL
Base Number Matches	1	1	-
Is it Rohs certified?	-	incompatible	incompatible
JESD-609 code	-	e0	e0
normal position	-	NO	NC
output	-	SEPARATE OUTPUT	SEPARATE OUTPUT
encapsulated code	-	DIP	SOP
Encapsulate equivalent code	-	DIP16,.3	SOP16,.25
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED
power supply	-	+-15 V	+-15 V
switch	-	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal pitch	-	2.54 mm	1.27 mm
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED
