0461-2-15-15-21-27-04-0 datasheet, PDF

Datasheet> All Categories > The connector> terminals> 0461-2-15-15-21-27-04-0

0461-2-15-15-21-27-04-0: DescriptionIC u0026 Component Sockets; CategoryThe connector terminals; File Size635KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

0461-2-15-15-21-27-04-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	0461-2-15-15-21-27-04-0	-	-	View	Buy Now

0461-2-15-15-21-27-04-0 Overview

IC u0026 Component Sockets

0461-2-15-15-21-27-04-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Manufacturer's serial number	0461-2
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

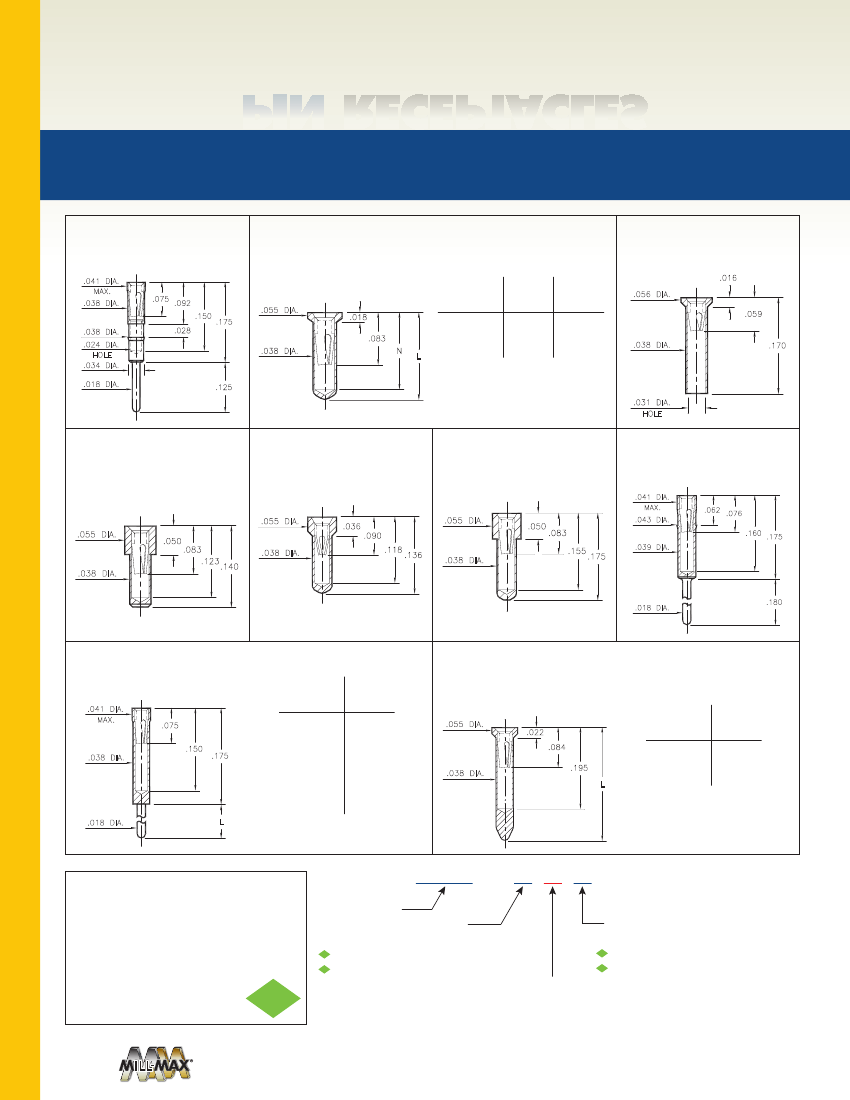

RECEPTACLES

FOR .015” - .018” DIAMETER PINS (#09 CONTACT)

FOR .015” - .020” DIAMETER PINS (#11 CONTACT)

AND .015” - .022” DIAMETER PINS (#21 CONTACT)

0467

.041 DIA.

MAX.

.038 DIA.

0467-0-15-XX-21-XX-04-0

Press-fit in .037 mounting hole

0552

0552-X-15-XX-X1-XX-10-0

.055 DIA.

.175

5522

Basic Part

Number

Length

Depth

.056 DIA.

Solder mount in .040 min. mounting hole

Also available on 16mm wide carrier tape:

1,500 parts per 13” reel

Order as: 0552-X-57-XX-X1-XX-10-0

.018

.083

.038 DIA.

5522-0-15-XX-09-XX-10-0

Solder mount in .040 min. mounting hole

.016

.075

.092

.150

.059

.038 DIA.

.024 DIA.

HOLE

.034 DIA.

.018 DIA.

.028

0552-1

0552-2

.136

.170

.120

.150

.038 DIA.

.170

.125

.031 DIA.

HOLE

0569

0569-0-15-XX-X1-XX-10-0

6023

Solder mount in .040 min. mounting hole

Also available on 16mm wide carrier tape:

2,000 parts per 13” reel

Order as: 0569-0-57-XX-X1-XX-10-0

6023-0-15-XX-21-XX-10-0

Solder mount in .040 min. mounting hole

6214

6214-0-15-XX-21-XX-10-0

Solder mount in .040 min. mounting hole

2086

.041 DIA.

MAX.

2086-0-15-XX-21-XX-04-0

Press-fit in .040 mounting hole

.055 DIA.

.036

.055 DIA.

.090

.118

.136

.050

.043 DIA.

.062 .076

.160

.175

.050

.083

.155

.039 DIA.

.083

.123

.038 DIA.

.140

.038 DIA.

.175

.018 DIA.

.180

0461

0461-X-15-XX-X1-XX-04-0

Solder mount in .020 min. mounting hole

.041 DIA.

MAX.

8579

8579-X-15-XX-X1-XX-10-0

Basic Part

Number

Length

Solder mount in .040 min. mounting hole

Also available on 24mm wide carrier tape:

1,200 parts per 13” reel

Order as: 8579-0-57-XX-X1-XX-10-0

.055 DIA.

.022

.084

.038 DIA.

.195

.075

.150

.038 DIA.

.175

0461-0

0461-1

0461-2

0461-3

0461-4

0461-5

.400

.275

.180

.125

.060

.440

Basic Part

Number

Length

8579-0

8579-1

.234

.295

.018 DIA.

PAGE 158 | PIN RECEPTACLES

SPECIFICATIONS:

Shell Material:

Brass Alloy 360, 1/2 Hard

Contact Material:

Beryllium Copper Alloy 172, HT

Dimensions: Inches

Tolerances On:

Lengths:

± .005

2011/65/EU

ORDER CODE: XXXX - X - XX - XX -

- XX - XX - 0

BASIC PART #

SPECIFY SHELL FINISH:

200

μ”

TIN/LEAD OVER NICKEL

200

μ”

TIN OVER NICKEL (RoHS)

μ”

GOLD OVER NICKEL (RoHS)

SPECIFY CONTACT FINISH:

100

μ”

TIN/LEAD OVER NICKEL

100

μ”

TIN OVER NICKEL (RoHS)

μ”

GOLD OVER NICKEL (RoHS)

Diameters: ± .002

Angles:

±2°

RoHS - 2

SELECT CONTACT:

#09, #11 or #21

CONTACT (DATA ON PAGES 250 & 251)

(For alternate contact choices, see group A on page 248)

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
