Scotchlok
E-9R Hand
Crimping Tool
™
Single-stroke, ratchet–release crimping action with integrated
wire cutter for 3M
™
Scotchlok
™
Connectors ensures a positive
connection the first time, every time.
3M's E-9R crimping tool is the latest innovation in
industry-leading Scotchlok cable connection technology
for telecom applications. This lightweight, handheld tool
features single-stroke, parallel crimping action with a
work-saving 10:1 mechanical advantage over applied
hand force. The tool’s innovative ratchet-release design
indicates a positive crimp by automatically releasing after
each successful connection. An integrated wire cutter
allows the user to trim conductors prior to each
connection without changing tools. These features and
the tool’s ergonomic design enhance user productivity by
reducing fatigue and eliminating costly, time-consuming
mis-connects.
The E-9R crimping tool is compatible with all 3M
™
Scotchlok
™
Connectors including UY, UR, UY2, UR2,
UP2, UAL, UP3, UB, 211 and UB2A units across the
entire range of applicable wire sizes. This single tool
provides superior operating characteristics in a cost-
effective replacement for the model 3M
™
E-9E and E-9Y
Hand Crimping Tools.
Single-stroke, Ratchet-Release Action
The E-9R crimper’s unique single-stroke, ratchet-release
operation provides the craftsperson with a positive crimp
indication by releasing only after the connector has been
fully depressed and the connection made (see fig. 1) –
eliminating judgment calls by the craftsperson, possible
service disruptions or costly return trips. The E-9R
provides a complete, secure crimp every time.
Integrated Wire Cutter
The E-9R tool improves efficiency by enabling users to
effortlessly cut 26 AWG to 19 AWG (0.4-0.9 mm) copper
wire and crimp all 3M
™
Scotchlok
™
Connectors without
changing tools. To reduce the potential for misuse,
the cutting surface is segregated from the crimping jaws
and will not accept connectors. A spare blade and spring
pin are conveniently stored in the handle cap (see figure
2). Simply pry the cap off with a flat screwdriver for
access to the new blade or to temporarily store the
discarded blade.
Industrial-Strength Quality
The E-9R hand crimper is specifically designed to handle
the rigors of daily commercial use. It functions effectively
across a wide range of temperatures, withstands repeated
drops and is unaffected by exposure to common solvents.
The tool’s light-weight and ergonomic design minimize
user fatigue for more productive days in demanding high-
volume environments. All ratchet adjustments are made
at the factory and last the life of the tool. Field
maintenance consists of occasional cleaning and
lubrication. The tool is tested to 50,000 crimps with no
performance degradation, backed by 3M’s standard one-
year warranty.

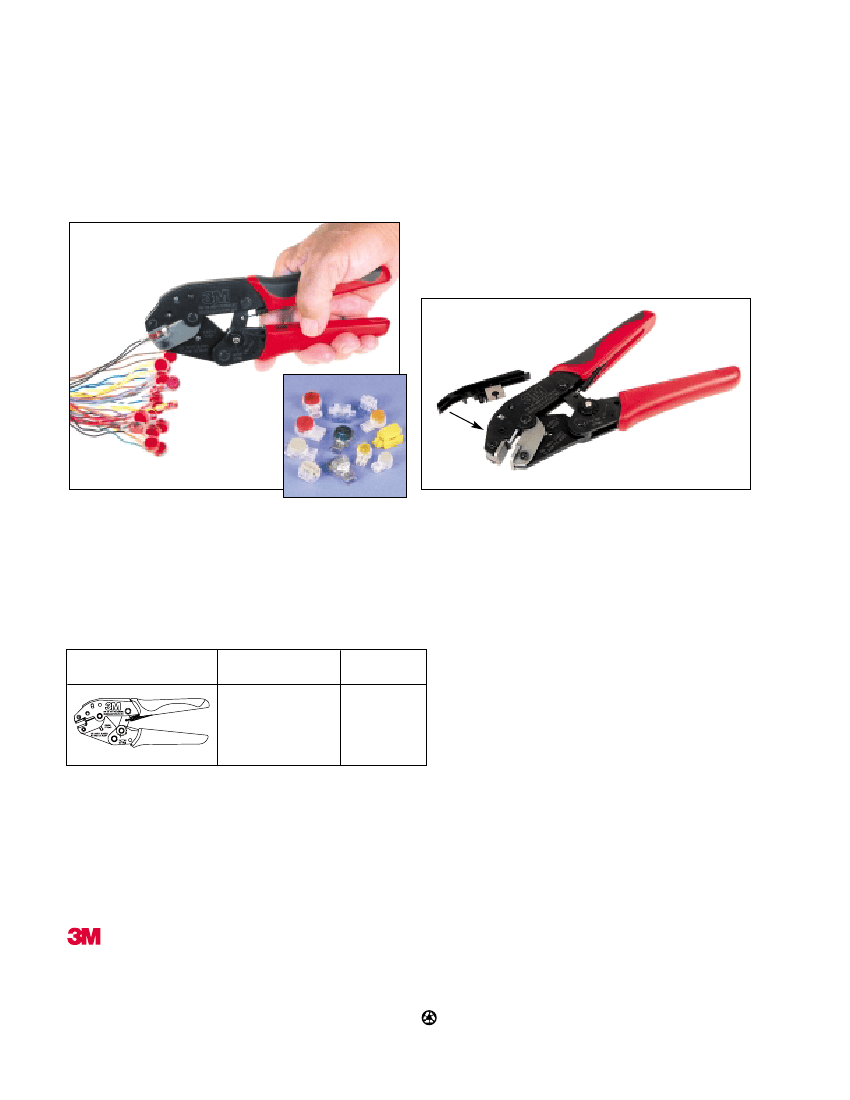

Figure 1
Figure 2
Features and Benefits
• Single-stroke, ratchet release design ensures positive
crimps with Scotchlok connectors
• Powerful 10:1 parallel crimp mechanical advantage
over applied hand force
• Trim and crimp without changing tools
• Easy maintenance, no field adjustments required
• Lightweight, ergonomic design reduces fatigue and
boosts productivity
• Reduces costly service disruptions and call-backs
• Rugged construction for daily use in
harsh environments
Product Specifications
3M Scotchlok E-9R
Tool Action
•
Single-stroke
•
Ratchet-release design
•
Positive crimp indicator
For Scotchlok
Connectors
•
UY
•
UY2
•
UP2
•
UP3
• 211
•
UR
•
UR2
•
UAL
• UB
• UB2A
Important Notice
All statements, technical information, and recommendations related to
3M’s products are based on information believed to be reliable, but the
accuracy or completeness is not guaranteed. Before using this product,
you must evaluate it and determine if it is suitable for your intended
application. You assume all risks and liability associated with such use.
Any statements related to the product which are not contained in 3M’s
current publications, or any contrary statements contained on your
purchase order shall have no force or effect unless expressly agreed
upon, in writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a
period of one (1) year from the date of purchase.
3M MAKES NO OTHER
WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE.
If this product is defective within the warranty
period stated above, your exclusive remedy shall be, at 3M’s option, to
replace or repair the 3M product or refund the purchase price of the 3M
product.
Except where prohibited by law, 3M will not be liable for any
loss or damage arising from this 3M product, whether direct, indirect,
special, incidental or consequential regardless of the legal theory
asserted.
Telecom Access Division
3M Telecommunications
6801 River Place Blvd.
Austin, TX 78726-9000
www.3M.com/telecom
800 426 8688
Fax 800 626 0329
3M and Scotchlok are registered trademarks of 3M.
Litho in USA.
40% Pre-consumer waste paper
10% Post-consumer waste paper
© 3M IPC 2002
80-6111-3154-3 (70210.0)JHA/LP
