M81511-13-14A1

CategoryThe connector
File Size50KB,1 Pages
ManufacturerGlenair
Websitehttp://www.glenair.com/
Download Datasheet Parametric Compare View All

M81511-13-14A1 Online Shopping

Suppliers Part Number Price MOQ In stock
M81511-13-14A1 - - View Buy Now

M81511-13-14A1 Parametric

Parameter NameAttribute value
Product CategoryCircular MIL Spec Backshells
ManufacturerGlenair
MIL TypeMIL-DTL-81511
QualificationEREL
Factory Pack Quantity1

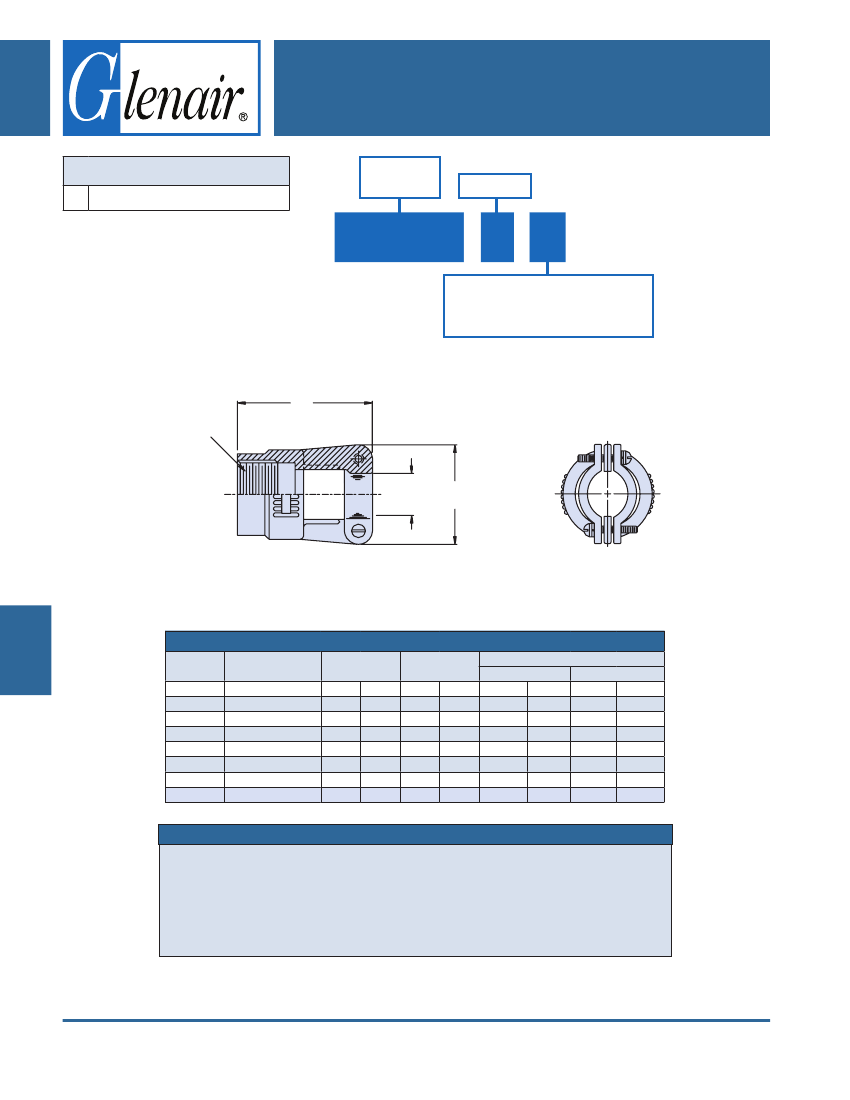

AS81511/13
Straight Non-Self-Locking Strain Relief
F
AS81511
CONNECTOR DESIGNATOR:
J
AS81511 Series I, II, III & IV
Basic
Part Number
Shell Size
M81511/13
16
A1
Adapter Connector Class Designator
A1
= Classes E, H, and P
B1
= Classes A, B, C, F, G, and T
E
A Thread
Cable
Entry
F
TABLE I: Shell Size, Cable Entry and Backshell Dimensions
Shell Size
08
10
14
16
18
20
22
24
A Thread
Class 2B
.500 - 28 UNEF
.625 - 28 UN
.875 - 28 UN
1.000 - 28 UN
1.125 - 28 UN
1.250 - 28 UN
1.375 - 28 UN
1.500 - 28 UN
E
Max
1.375 (34.9)
1.375 (34.9)
1.375 (34.9)
1.375 (34.9)
1.375 (34.9)
1.452 (36.9)
1.452 (36.9)
1.452 (36.9)
F
Max
.775 (19.7)
.955 (24.3)
1.145 (29.1)
1.210 (30.7)
1.330 (33.8)
1.470 (37.3)
1.580 (40.1)
1.720 (43.7)
.062
.125
.250
.375
.500
.625
.750
.750
Min
Cable Entry
(1.6)
(3.2)
(6.4)
(9.5)
(12.7)
(15.9)
(19.1)
(19.1)
.125
.250
.500
.625
.750
.875
1.000
1.125
Max
(3.2)
(6.4)
(12.7)
(15.9)
(19.1)
(22.2)
(25.4)
(28.6)
APPLICATION NOTES
1.
2.
3.
4.
Assembly to be identified with manufacturer’s name and part number, space permitting.
Cable Entry is defined as the accommodation entry for the wire bundle or cable.
Dimensions are not intended for inspection criteria.
For complete dimensions, see the applicable Military Specification.
Metric dimensions (mm) are in parentheses.
© 2013 Glenair, Inc.
Dimensions in inches (millimeters) and are subject to change without notice.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
1211 AIR WAY
GLENDALE, CA 91201-2497
818-247-6000
FAX 818-500-9912
www.glenair.com
F-2
E-Mail: sales@glenair.com
