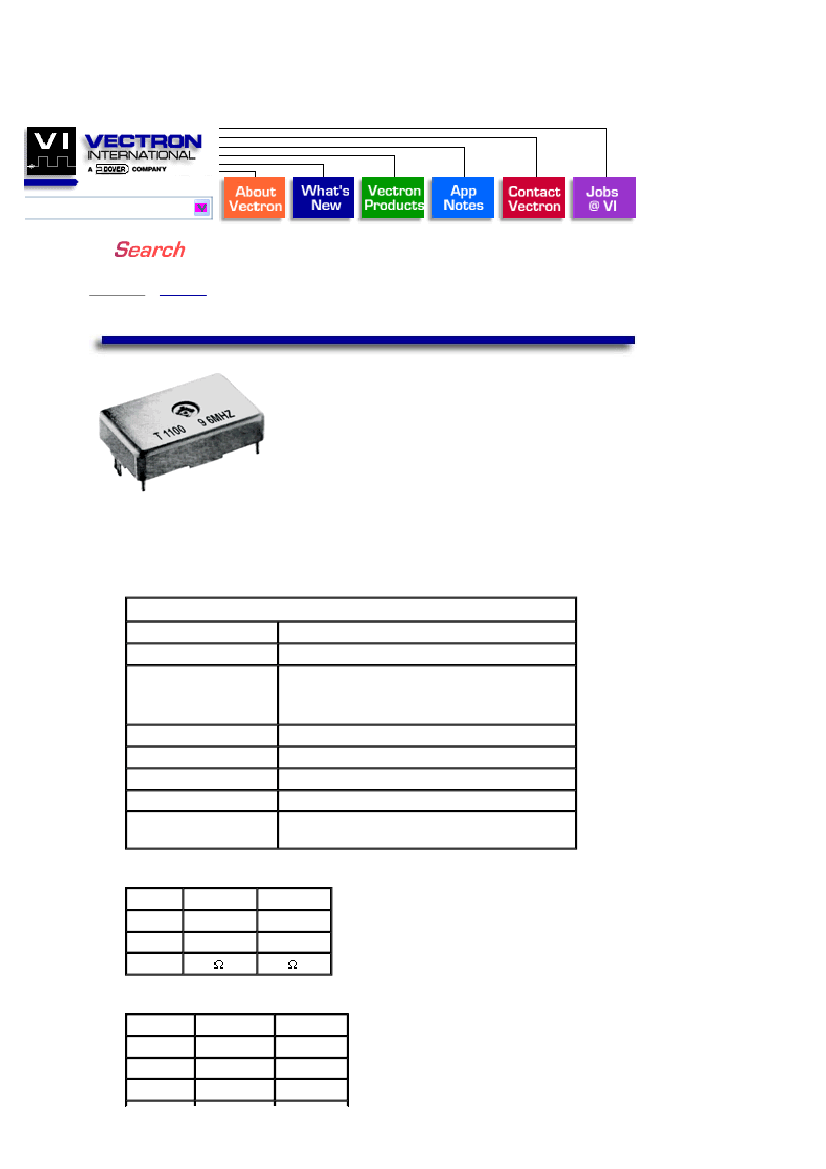

T-1100, T-1150 Series
Miniature TCXOs
Features
l
l
l
l
l
l
Low profile design
Low current
5.0 VDC and 3.3 VDC options
Voltage tune option
Low cost
Many parts in stock
SPECIFICATIONS
Frequency Range
Stability Options
8.0 MHz to 24.0 MHz
Standard Frequencies
9.6MHz, 10MHz, 12.8MHz, 15.36MHz
1
= ±1.5 PPM
-30°C to +70°C
2
= ±2.5 PPM
relative to +25°C
3
= ±3.5 PPM
<±0.3 PPM for a change in B+ of <±5%
< 1.0 PPM/Year after 30 days at +40°C
±3.0 PPM Minimum, sufficient for 5 years aging
-40°C to +80°C
A
= +5.0 VDC ±5%
B
= +3.0 VDC ±5%
Stability vs. Supply
Aging
Mechanical Trim
Storage Temperature
Input Voltage
T-1150 +5.0 VDC
Output
1.0 V P-P
Current
<2.0 mA
Load
+3.0 VDC
0.8 V P-P
<1.0 mA
10 K /10pf 10 K /10pf
T-1100 +5.0 VDC
Logic "1"
4.5V Min.
Logic "0"
0.4V Max.
Current
+3.0 VDC
2.6V Min.
0.4V Max.
10 mA Max. 5 mA Max.
file://P:\Web%20Development\vectron.web\products\tcxo\t1100t1150.htm
8/26/2003
Vectron Products - Miniature TCXOs - T-1100, T-1150 Series
Load
2 TTL
2 TTL
Page 2 of 3
Optional Voltage Control
0
No VCO Option
1
±3.0 PPM Min. 2.5V ± 1.5V*
2
±6.0 PPM Min. 2.5V ± 1.5V*
* 3.0 VDC units' VC is +1.5V±1.0V. Option 2 is not available.
VCO Option is only available with ±2.5 PPM vs. Temp.
T-1100/1150

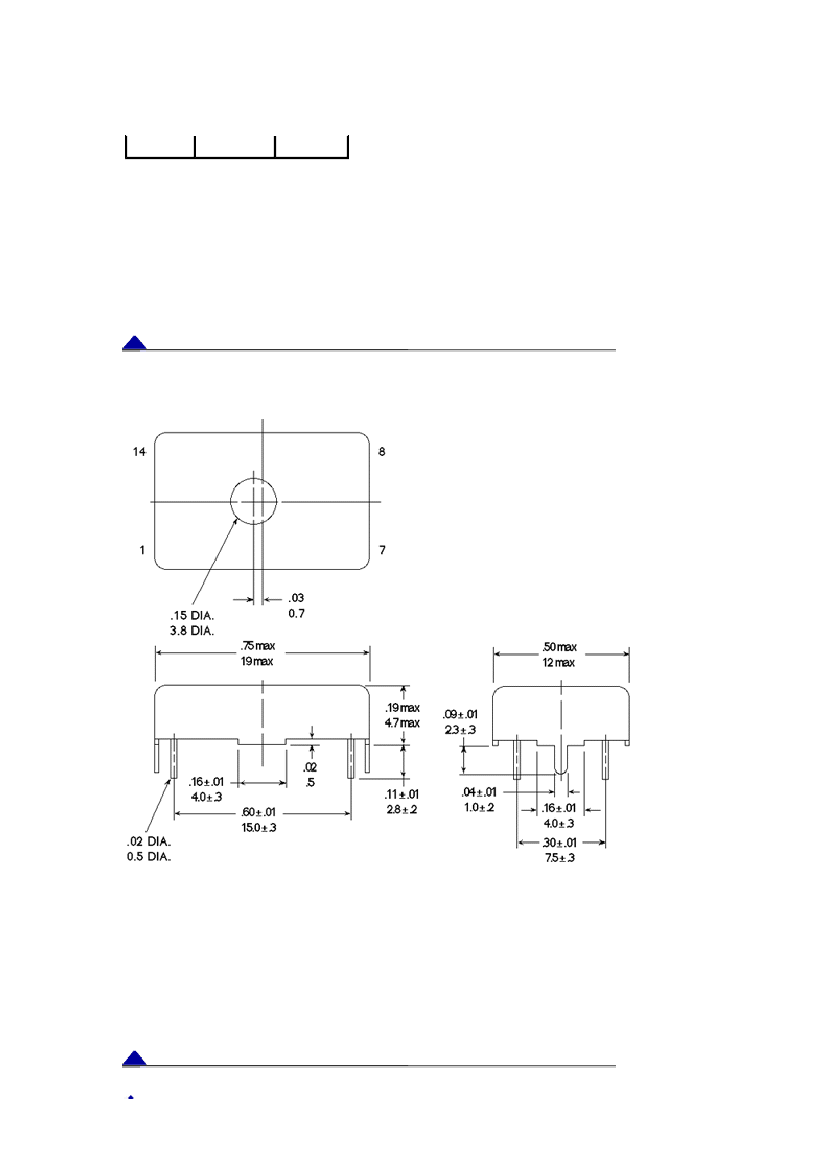

Note: dimensions in inches.
Pinouts
1* Optional VCO
7 Ground Case
8 Output
14 Supply
*Pin omitted if no VC.
file://P:\Web%20Development\vectron.web\products\tcxo\t1100t1150.htm
8/26/2003
Vectron Products - Miniature TCXOs - T-1100, T-1150 Series
Page 3 of 3
