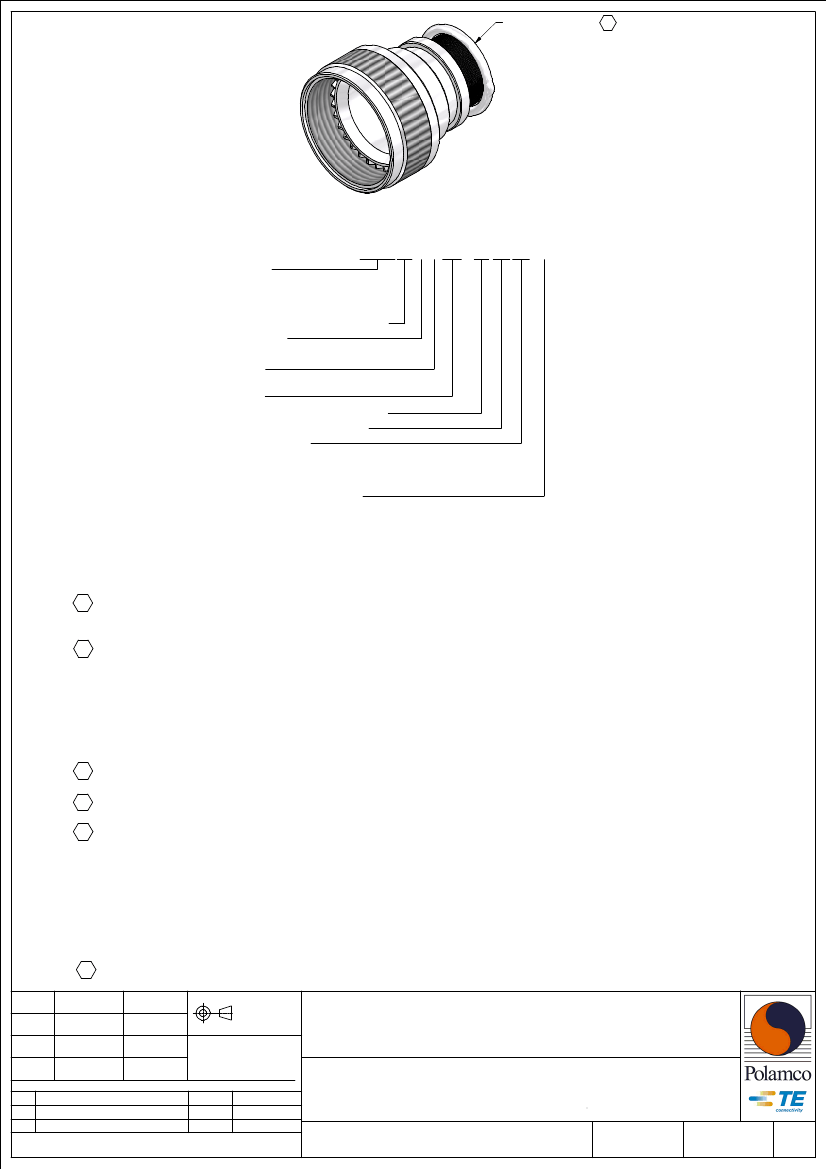

TINEL LOCK RING 3
CODE 54 - TINEL-LOCK BACKSHELL
TXR54AB00-1608AI-S
SERIES
TXR: RING INCLUDED
(SEE RING OPTION)
TX: RING NOT INCLUDED
CONNECTOR INTERFACE
MATERIAL
REFER TO CH00-0250-008
FINISH
REFER TO CH00-0250-008
ANGLE
DASH NUMBER (TABLE 1)
ENTRY SIZE (TABLE 2)
RING OPTION
AI - TO SUIT SINGLE BRAID
BI - TO SUIT DOUBLE BRAID
FOR TX, LEAVE BLANK
MODIFICATION CODE
NOTES:
REFER TO CH00-0250-008
1. THIS PRODUCT IS DESIGNED TO TERMINATE A BRAIDED CABLE SHIELD AND
A HEAT SHRINKABLE LIPPED BOOT TO A CONNECTOR.
2. FOR ADDITIONAL DIMENSIONS, ORDERING INFORMATION AND MODIFICATIONS,
SEE CH00-0250-008.
3. SEE DRAWING TR FOR DETAIL ON TINEL-LOCK RING, RINGS ARE DESIGNED
TO BE HEATED ELECTRICALLY, ALL RINGS ARE MARKED WITH THERMOCHROMIC
PAINT WHICH CHANGES COLOUR WHEN INSTALLATION TEMPERATURE IS REACHED.
4. BACKSHELL TO BE PERMANENTLY MARKED/BAGGED AND LABELLED WITH CODE
IDENTIFICATION NUMBER AND PART NUMBER LESS RING DESIGNATOR. (e.g. 06090-TXR54AB00-1206).
RING SHALL BEAR NO MARKING.
5. FOR LARGER ENTRY SIZES, A 2 PIECE BACKSHELL ASSEMBLY (TYPE 2) IS SUPPLIED.
6. BACKSHELL MATES TO MIL-C-81703, SERIES III, MS3424, MS3446, MS3464, MS3467, MS3468
7. BACKSHELL MATES TO MIL-C-5015G, MS3400 SERIES, CLASS D, E, K, L, U & W,
MS3400, MS3401, MS3404, MS3406 MS3424, MS3446, MS3464, MS3467, MS3468,
MS3450, MS3451, MS3454, MS3456, MS3470, MS3471, MS3472,
MS3474, MS3475, MS3476. MIL-C-83723, SERIES II, CLASS A & L. MIL-C-83723,
SERIES I & II, CLASS A, G, K, R & S: M83723/1, /2, /3, /4, /5, /6, /7, /8, /13,
/14, /36, /37, /38, /39, /40, /41, /42, /43, /48, /49, /65, /66, /67, /68, /69,
/70, /71, /72, /73, /74, /75, /76, /77, /78, /82, /83, /84, /85, /86, /87, /91, /92, /95, /97, /98,
(MS3155 CONTROLLED INTERFACE).
8. THESE DIMENSIONS APPLY IF A SELF-LOCKING COUPLING NUT IS USED.
DRAWN
K.WINCZURA
CHECKED
APPROVED
K.SHEPPARD
APPROVED
REVISIONS
LTR
DESCRIPTION
K REVISED PER ECO-15-002312
L
REVISED PER ECO-17-009011
DATE
01/12/2014
01/12/2014
04/12/2014
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
TINEL-LOCK BACKSHELL
ASSY USED ON:
DATE
13.02.15
21.06.17
APPROVED
H.SMITH
MIL-DTL-26482 SERIES II / MIL-DTL-83723 SERIES I & III
TE CONNECTIVITY - POLAMCO LTD RESERV ES TH E RIGH T TO AMEND TH IS DRAW ING
AND THE INFORMATIO N SET FORTH HEREON AT ANY T IME. USERS SH OULD
IND EPENDENTLY EVALUATE TH E SUITABILITY OF THE PRODUCT FOR TH EIR APPLICATION.
D.JONES
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
DRAWING NO:
DRAWING REV:
SHT
TXR54
L
1

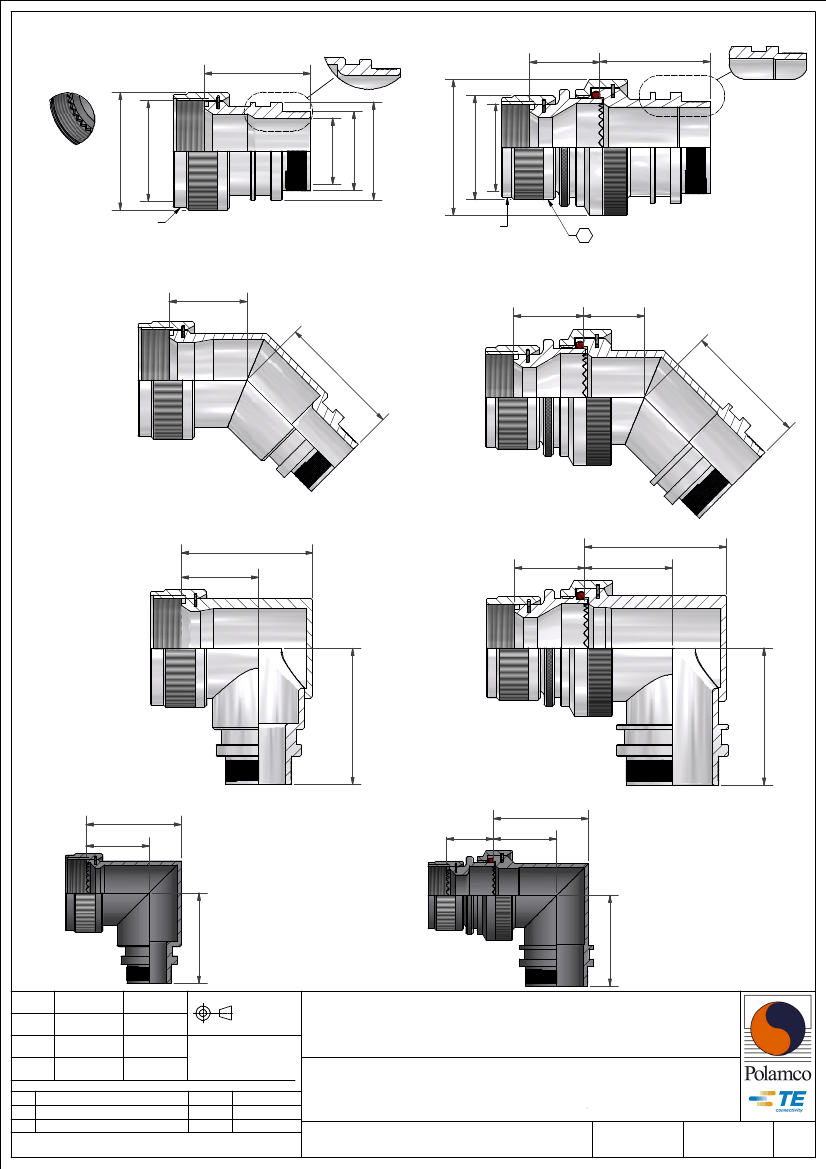

ALTERNATIVE
PROFILE
25,50
IF MAX ENTRY IS EXCEEDED BACKSHELL
WILL BE SUPPLIED AS TYPE 2
16,80
`
0,50
26,50
ALTERNATIVE
PROFILE
A THREAD
PART MARK
HERE
XXXX
PART MARK
HERE
XXXX
STAINLESS
STEEL
TEETH VIEW
A THREAD
ØK
ØB
ØS
ØY
ØZ
ØB
5
STRAIGHT BACKSHELL - TYPE 1
C
STRAIGHT BACKSHELL - TYPE 2
16,80
`
0,50
F
D
G
45° BACKSHELL - TYPE 1
45° BACKSHELL - TYPE 2
W
16,80
`
0,50
T
M
H
E
90° BACKSHELL - TYPE 1
W
T
16,80
`
0,50
M
H
90° BACKSHELL - TYPE 2
E
90° BACKSHELL - TYPE 1
STAINLESS STEEL AND
NICKEL ALUMINIUM BRONZE
DRAWN
K.WINCZURA
CHECKED
APPROVED
K.SHEPPARD
APPROVED
REVISIONS
LTR
DESCRIPTION
K REVISED PER ECO-15-002312
L
REVISED PER ECO-17-009011
J
90° BACKSHELL - TYPE 2
STAINLESS STEEL AND
NICKEL ALUMINIUM BRONZE
DATE
01/12/2014
01/12/2014
04/12/2014
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
TINEL-LOCK BACKSHELL
ASSY USED ON:
DATE
13.02.15
21.06.17
APPROVED
H.SMITH
D.JONES
MIL-DTL-26482 SERIES II / MIL-DTL-83723 SERIES I & III
TE CONNECTIVITY - POLAMCO LTD RESERV ES TH E RIGH T TO AMEND TH IS DRAW ING
AND THE INFORMATIO N SET FORTH HEREON AT ANY T IME. USERS SH OULD
IND EPENDENTLY EVALUATE TH E SUITABILITY OF THE PRODUCT FOR TH EIR APPLICATION.
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
DRAWING NO:
DRAWING REV:
J
SHT
TXR54
L
2

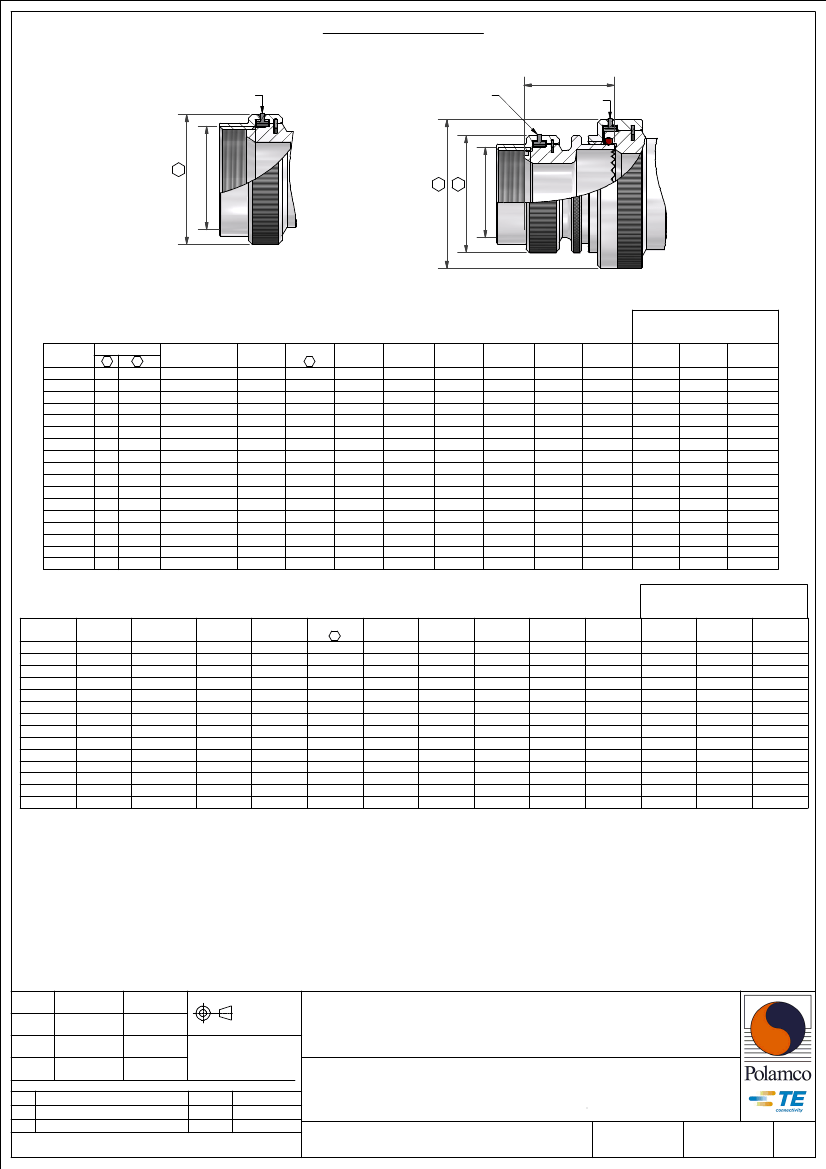

MODIFICATION S
(SELF-LOCKING COUPLING NUT)
21,60
`
0,50
SELF-LOCKING
MECHANISM
SELF-LOCKING
MECHANISM
SELF-LOCKING
MECHANISM
A THREAD
ØB 8
BACKSHELL - TYPE 1
BACKSHELL - TYPE 2
THESE DIMENSIONS APPLY IF
BACKSHELL IS STAINLESS STEEL
OR NICKEL ALUMINIUM BRONZE
TABLE 1
ORDER
NO.
03
08
10
12
14
16
18
20
22
24
28
32
36
40
44
48
61
SHELL SIZE
6
7
3
8 & 8S
A THREAD
9/16-24 UNEF
1/2-20 UNF
10, 10S, 10SL
5/8-24 UNEF
7 12 & 12S 3/4-20 UNEF
12 14 & 14S 7/8-20 UNEF
19 16 & 16S
1-20 UNEF
18
1 1/16-18 UNEF
27
1 3/16-18 UNEF
20
37
1 5/16-18 UNEF
22
24
1 7/16-18 UNEF
28
1 3/4-18UNS
32
2-18 UNS
36
2 1/4-16 UN
40
2 1/2-16 UN
2 3/4-16 UN
44
48
3-16UN
1 1/2-18 UNEF
61
ØB
MAX
17,0
15,6
18,6
21,7
24,9
28,2
30,9
34,1
37,3
40,4
50,0
56,3
62,7
69,0
75,4
81,7
42,0
ØB MAX
8
19,4
18,0
21,0
25,0
28,0
31,0
34,0
36,5
39,8
42,0
49,8
57,2
63,6
70,0
75,4
81,7
43,6
MAX
ENTRY
04
04
06
08
08
10
12
14
16
18
22
24
28
28
28
28
18
C
±0,5
16,8
16,6
16,8
17,3
18,1
19,0
19,2
20,1
20,3
21,8
23,3
25,0
26,2
28,6
30,1
31,3
22,1
D
±0,5
27,0
26,8
27,5
28,0
29,0
29,7
30,5
30,9
31,1
32,1
32,5
29,3
30,7
32,0
33,7
34,9
26,6
A THREAD
W
±0,5
26,4
24,5
26,5
29,0
30,5
34,0
37,0
42,0
44,0
45,0
54,2
60,9
67,2
73,2
79,5
85,8
47,8
ØK 8
ØB 8
T
±0,5
17,8
17,5
17,8
18,7
19,0
21,0
23,5
27,0
27,0
27,0
31,4
36,4
38,0
41,0
44,1
47,2
28,0
E
±0,5
25,9
26,2
28,0
29,5
30,3
32,7
32,7
34,3
35,8
37,4
41,9
45,3
48,4
51,4
54,6
57,7
38,7
W
±0,5
26,3
22,4
25,0
28,3
30,4
33,5
35,5
38,8
41,9
44,8
50,7
60,0
65,5
72,0
75,5
75,5
48,3
T
±0,5
16,0
17,5
18,8
20,4
21,5
23,0
24,0
25,7
27,2
28,7
31,6
33,5
36,0
39,3
40,8
40,8
27,0
E
±0,5
25,9
26,2
28,0
29,5
31,0
32,7
32,7
34,3
35,8
37,4
41,9
45,3
48,4
51,4
54,6
57,7
38,7
TABLE 2
ENTRY
SIZE
04
05
06
07
08
10
12
14
16
18
20
22
24
28
THESE DIMENSIONS APPLY IF
BACKSHELL IS STAINLESS STEEL
OR NICKEL ALUMINIUM BRONZE
ØZ
MIN
6,35
7,92
9,53
11,10
12,70
15,88
19,05
22,23
25,40
28,58
31,75
34,93
38,10
44,45
ØS
9,49 +/-0,04
11,06 +/-0,04
12,66 +/-0,04
14,21 +/-0,07
15,81 +/-0,07
18,96 +/-0,08
22,14 +/-0,08
25,30 +/-0,08
28,48 +/-0,08
31,65 +/-0,08
34,83 +/-0,08
37,98 +/-0,08
41,15 +/-0,08
47,50 +/-0,08
ØY
± 0,3
14,00
15,50
17,10
18,70
20,30
23,50
26,70
29,80
33,00
36,20
39,40
42,50
45,70
52,00
ØK
MAX
NA
21,0
21,0
21,0
24,5
29,0
32,5
35,5
37,0
40,0
43,5
48,5
52,1
58,5
ØK MAX
8
NA
24,6
24,6
24,6
28,3
32,4
35,6
38,5
41,7
43,9
47,0
50,0
56,0
61,0
F
±0,5
NA
12,5
12,5
12,5
13,1
13,5
14,5
15,5
16,1
16,5
17,0
18,5
21,9
26,9
G
±0,5
NA
27,5
27,5
27,5
28,0
29,0
29,7
30,5
30,9
31,1
32,1
35,3
38,1
44,4
H
±0,5
NA
24,0
24,0
24,0
27,0
31,0
34,0
35,0
38,0
42,0
45,0
54,5
58,0
65,5
M
±0,5
NA
15,5
15,5
15,5
17,0
19,5
21,0
20,0
21,5
24,0
25,5
31,0
33,0
36,5
J
±0,5
NA
27,95
27,95
27,95
29,45
31,00
32,70
34,25
35,80
37,40
38,90
42,00
46,00
51,1
H
±0,5
NA
24,3
24,3
24,3
28,3
31,1
34,2
38,5
40,7
43,7
46,4
50,0
53,5
60,3
M
±0,5
NA
17,2
17,2
17,2
19,4
21,0
22,8
25,3
26,1
27,6
29,1
31,0
33,0
36,5
J
±0,5
NA
28,2
28,2
28,2
29,7
31,2
32,9
34,5
36,1
37,6
39,1
42,0
46,0
51,1
DRAWN
K.WINCZURA
CHECKED
APPROVED
K.SHEPPARD
APPROVED
DATE
01/12/2014
01/12/2014
04/12/2014
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
TINEL-LOCK BACKSHELL
ASSY USED ON:
REVISIONS
LTR
DESCRIPTION
K REVISED PER ECO-15-002312
L
REVISED PER ECO-17-009011
DATE
13.02.15
21.06.17
APPROVED
H.SMITH
D.JONES
MIL-DTL-26482 SERIES II / MIL-DTL-83723 SERIES I & III
TE CONNECTIVITY - POLAMCO LTD RESERV ES TH E RIGH T TO AMEND TH IS DRAW ING
AND THE INFORMATIO N SET FORTH HEREON AT ANY T IME. USERS SH OULD
IND EPENDENTLY EVALUATE TH E SUITABILITY OF THE PRODUCT FOR TH EIR APPLICATION.
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
DRAWING NO:
DRAWING REV:
SHT
TXR54
L
3
