75730-0212: DescriptionBoard to Board u0026 Mezzanine Connectors ASSEMBLY VRM HEADER R 4MM CL 12 CKT LONG; CategoryThe connector; File Size25KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

75730-0212 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	75730-0212	-	-	View	Buy Now

75730-0212 Overview

Board to Board u0026 Mezzanine Connectors ASSEMBLY VRM HEADER R 4MM CL 12 CKT LONG

75730-0212 Parametric

Parameter Name	Attribute value
Product Category	Board to Board & Mezzanine Connectors
Manufacturer	Molex
RoHS	Details
Product	Headers
Number of Positions	12 Position
Number of Rows	1 Row
Termination Style	Through Hole
Current Rating	16 A
Voltage Rating	250 V
Packaging	Tray
Contact Material	Copper
Contact Plating	Tin Lead
Housing Material	Thermoplastic
Factory Pack Quantity	420
Unit Weight	0.089384 oz

Preview

Download Datasheet

View All

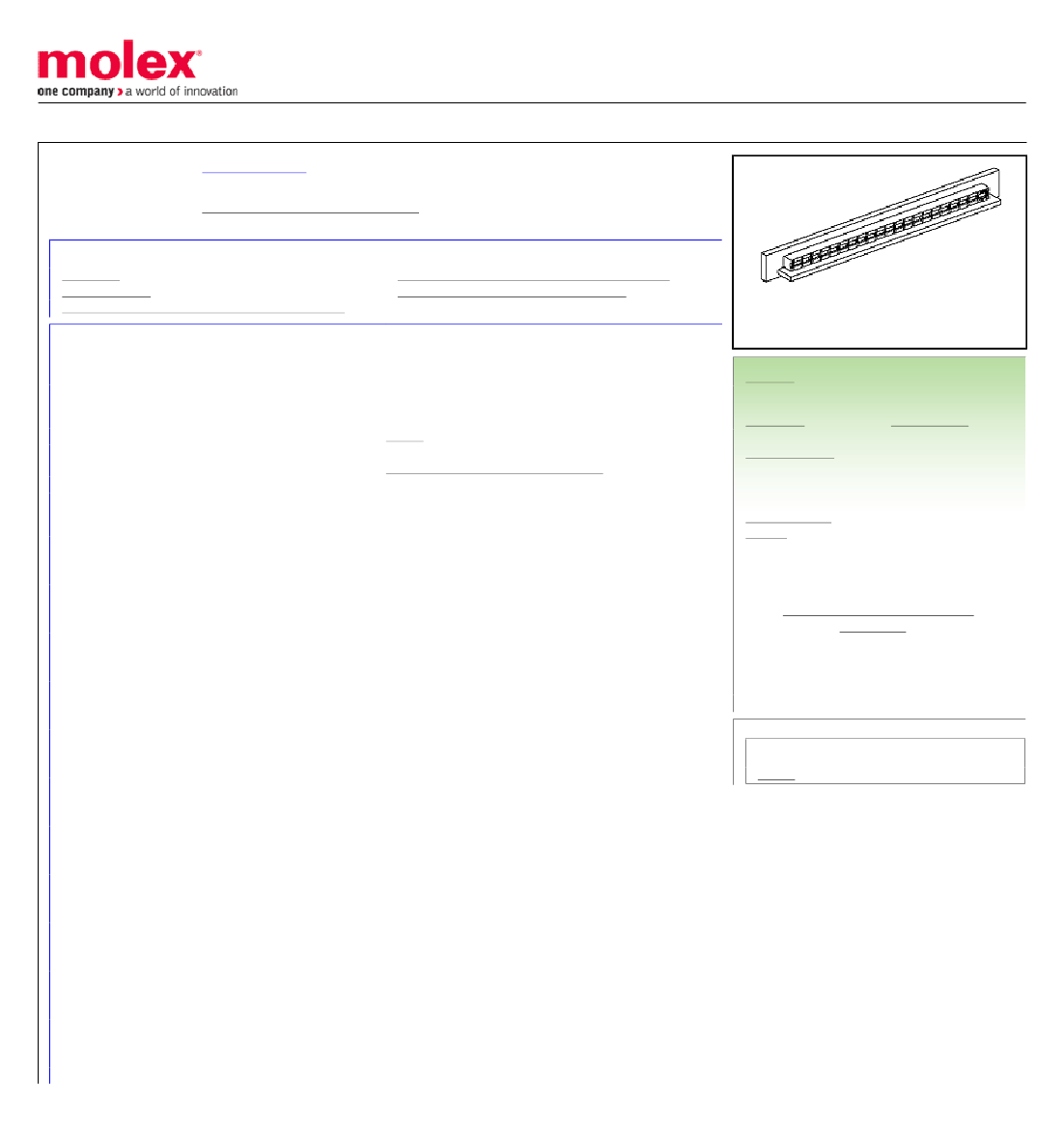

This document was generated on 10/23/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0757300212

Active

EXTreme MicroPower™ Connectors

4.00mm EXTreme MicroPower Header, 12 Circuits, 3.81mm Tail Length

Documents:

3D Model

Drawing (PDF)

Product Specification PS-75730-999-001 (PDF)

Agency Certification

CSA

UL

General

Product Family

Series

Application

Overview

Product Name

UPC

Physical

(p)ower-(s)ignal Configuration

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Packaging Specification PK-75730-118 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

LR19980

E29179

PCB Headers

75730

Board-to-Board, Power

EXTreme MicroPower™ Connectors

EXTreme MicroPower

822350843805

12p - 0s

No

12

Black

No

94V-0

No

None

No

Copper

Tin

High Temperature Thermoplastic

2.534/g

1

Right Angle

3.81mm

No

Yes

1.70mm, 3.18mm

Tray

4.00mm

2.540µm

No

Yes

-40°C to +105°C

Through Hole

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

75730 Series
