CHG-2034-001010-KCP datasheet, PDF

Datasheet> All Categories > The connector> The connector> CHG-2034-001010-KCP

CHG-2034-001010-KCP: DescriptionHeaders u0026 Wire Housings 34 POS 2.54MM HOUSING SKT; CategoryThe connector The connector; File Size410KB，2 Pages; Manufacturer3M; Websitehttp://3M.com/esd; Environmental Compliance

Download Datasheet Parametric Compare View All

CHG-2034-001010-KCP Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CHG-2034-001010-KCP	-	-	View	Buy Now

CHG-2034-001010-KCP Overview

Headers u0026 Wire Housings 34 POS 2.54MM HOUSING SKT

CHG-2034-001010-KCP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	3M
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.198 inch
subject depth	0.6 inch
body length	1.725 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact completed and terminated	NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	CHG
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Plating thickness	30u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	34
Maximum wire diameter	26 AWG
Minimum wire diameter	28 AWG

Preview

Download Datasheet

View All

™

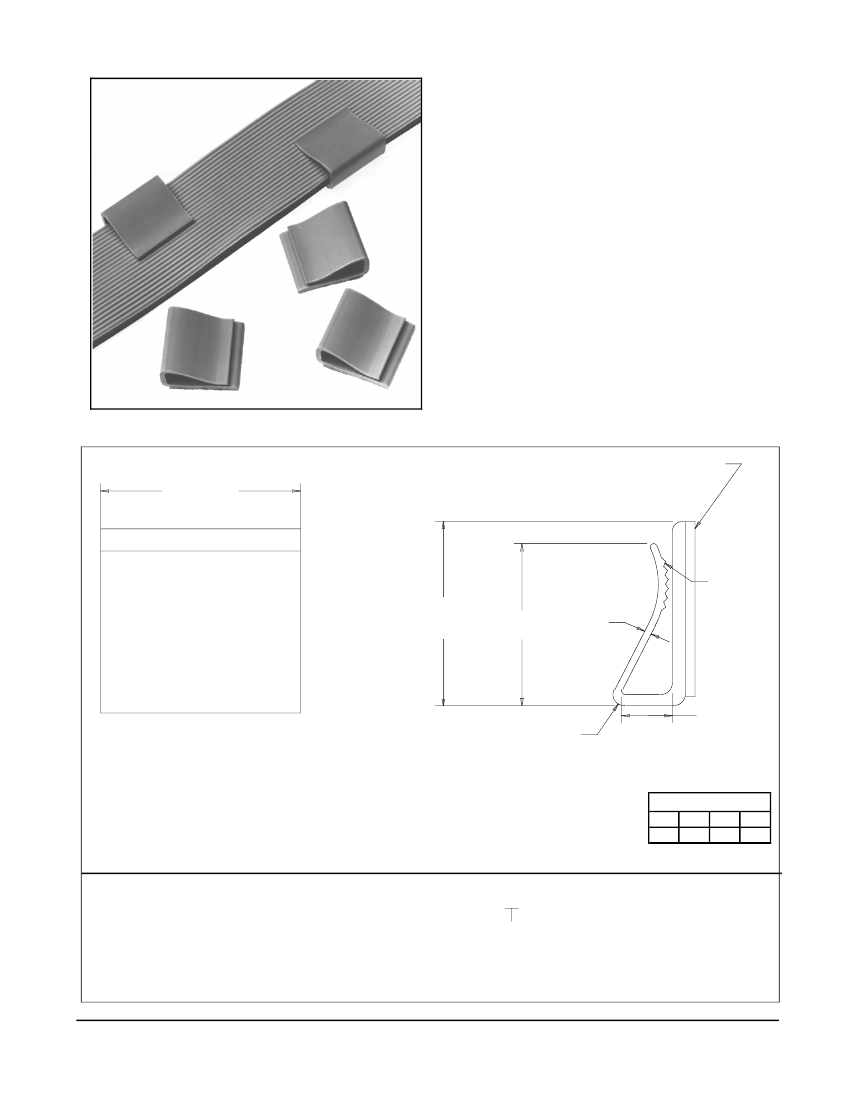

Cable Accessory

Cable Clamp

3484 Series

•

Cable Clamp

organizes cable routing by

clamping and retaining up to six layers of flat cable.

• RoHS* compliant

Date Modified: February 8, 2005

TS-0260-08

Sheet 1 of 1

1.00

.05

[ 25.4 ]

Urethane Foam Tape

1/32 Inch Thick (.79)

(Scotch #4032)

Serrations

+ .08

1.00 -.05

[ 25.4 ]

.88

.03

[ 22.4 ]

.04

[ 1.0 ]

Gray Polyvinyl Chloride

Flammability Rating: UL 94V-0

.25

.03

[ 6.4 ]

In c h

[m m ]

T o le ra n c e U n le s s N o te d

Notes:

1.Maximum recommended use temperature 65°C.

2.Recommended application temperature 21°C minimum.

in c h

± .1

.0 0

.0 0 0

± .0 1 ± .0 0 5

[ ] D im e n s io n s fo r R e fe re n c e

O n ly

Ordering Information

3484-X000

1 = With Urethane Foam Tape

3 = Without Tape

Note: Packaged in 100 per bag or 1000 in box, please specify when ordering.

*RoHS = Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment

Interconnect Solutions

http://www.3M.com/interconnects/

3M is a trademark of 3M Company.

For technical, sales or ordering information call

800-225-5373

CHG-2034-001010-KCP Related Products

	CHG-2034-001010-KCP	CHG-2050-001010-KCP	CHG-2034-001010-KEP	CHG-2008-001010-KEP	CHG-2016-001010-KCP	CHG-2008-001010-KCP	CHG-2072-001010-KCP	CHG-2046-001010-KEP	CHG-2072-001010-KEP	CHG-2014-001010-KEP
Description	Headers u0026 Wire Housings 34 POS 2.54MM HOUSING SKT	Headers u0026 Wire Housings 50 CONTACTS 26/28AWG SOLID/STRANDED	Headers u0026 Wire Housings 34P WIREMNT SCKT	Headers u0026 Wire Housings 8/2R/WM SKT/ .100/30 GOLD	Headers u0026 Wire Housings 16P WIREMNT SCKT 26/28 AWG	Headers u0026 Wire Housings 8 POS 2.54MM HOUSING SKT	Headers u0026 Wire Housings 72/2R/WM SKT /.100/30 GOLD	TWO PART BOARD CONNECTOR	TWO PART BOARD CONNECTOR	Headers u0026 Wire Housings 14P 2 ROW IDC SOCKET
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
body width	0.198 inch	0.198 inch	0.198 inch	0.198 inch	0.198 inch	0.198 inch	0.198 inch	0.198 inch	0.198 inch	0.198 inch
subject depth	0.6 inch	0.6 inch	0.6 inch	0.6 inch	0.6 inch	0.6 inch	0.6 inch	0.605 inch	0.605 inch	0.6 inch
body length	1.725 inch	2.525 inch	1.725 inch	0.425 inch	0.825 inch	0.425 inch	3.625 inch	2.325 inch	3.625 inch	0.725 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	SOCKET	SOCKET	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	NOT SPECIFIED	AU ON NI
Contact completed and terminated	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	Nickel (Ni)	NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	NOT SPECIFIED	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	707VAC V	707VAC V	1000VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER/POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYESTER/POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYESTER
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Plating thickness	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch
Rated current (signal)	1.5 A	1.5 A	2 A	2 A	1.5 A	1.5 A	1.5 A	4.5 A	4.5 A	2 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL	UL	UL
Termination type	IDC	IDC	IDC	IDC	IDC	IDC	IDC	IDC	IDC	IDC
Total number of contacts	34	50	34	8	16	8	72	46	72	14
Maximum wire diameter	26 AWG	26 AWG	22 AWG	22 AWG	26 AWG	26 AWG	26 AWG	22 AWG	22 AWG	22 AWG
Minimum wire diameter	28 AWG	28 AWG	24 AWG	24 AWG	28 AWG	28 AWG	28 AWG	24 AWG	24 AWG	24 AWG
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	-	conform to	conform to
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	-	-	PREASSEM CONN
Insulator color	GRAY	GRAY	GRAY	GRAY	GRAY	GRAY	GRAY	-	-	GRAY
Manufacturer's serial number	CHG	CHG	CHG	CHG	CHG	CHG	CHG	-	-	CHG
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL
