46012-1141-Mouser-Reel datasheet, PDF

Datasheet> All Categories > The connector> 46012-1141-Mouser-Reel

46012-1141-Mouser-Reel: DescriptionBoard Mount Temperature Sensors Prec Centigrade Temp Sensor; CategoryThe connector; File Size76KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

46012-1141-Mouser-Reel Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	46012-1141-Mouser-Reel	-	-	View	Buy Now

46012-1141-Mouser-Reel Overview

Board Mount Temperature Sensors Prec Centigrade Temp Sensor

46012-1141-Mouser-Reel Parametric

Parameter Name	Attribute value
Product Category	Headers & Wire Housings
Manufacturer	Molex
RoHS	Details
Product	Contacts
Type	-
Number of Positions	-
Pitch	-
Number of Rows	-
Mounting Style	-
Termination Style	Crimp
Mounting Angle	-
Contact Gender	Pin (Male)
Contact Plating	Tin
Packaging	Reel
Accessory Type	-
Application	Power
Contact Material	Copper
Contact Type	Male
Current Rating	13 A
Flammability Rating	-
Housing Gender	-
Housing Material	-
Insulation Resistance	-
Latching Type	-
Mating Post Length	-
Row Spacing	-
Factory Pack Quantity	1000
Termination Post Length	-
Voltage Rating	600 V
Wire Gauge	20-18

Preview

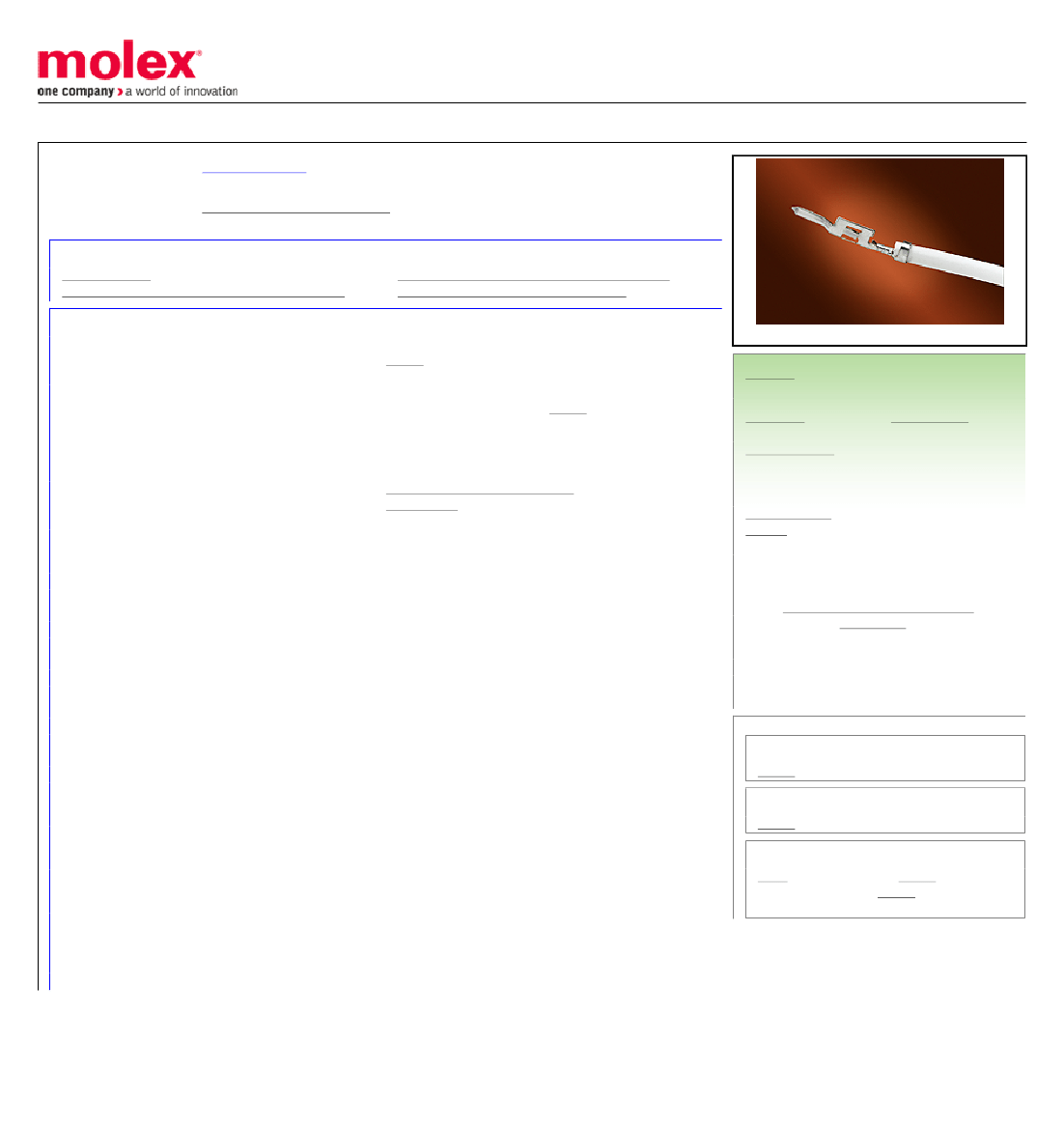

Download Datasheet

View All

This document was generated on 11/01/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0460121141

Active

Mini-Fit Plus Connector System

Mini-Fit Plus Crimp Terminal, 18-20 AWG, Reel, Tin (Sn) Plating

Documents:

Drawing (PDF)

Product Specification PS-45750-001-001 (PDF)

General

Product Family

Series

Application

Comments

Packaging Specification PK-46012-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Compliant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Compliant

Not Contained

Crimp Quality Equipment

Overview

Packaging Alternative

Product Name

UPC

Physical

Durability (mating cycles max)

Gender

Material - Metal

Material - Plating Mating

Material - Plating Termination

Net Weight

Packaging Type

Plating min - Mating

Plating min - Termination

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire Size mm²

Electrical

Current - Maximum per Contact

Voltage - Maximum

Solder Process Data

Lead-freeProcess Capability

Material Info

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

Crimp Terminals

46012

Power

Current = 13A max. per circuit when header is mated

to a receptacle loaded with 45750 series terminals

crimped to 16 AWG wire. . See Molex product

specification PS-45750-001 for additional current de-

rating information.

Yes

Mini-Fit Plus Connector System

46012-1142 (Loose)

Mini-Fit Plus

822350570435

Male

Copper

Tin

0.145/g

Reel

2.540µm

Crimp or Compression

1.65-2.95mm

18, 20

N/A

13.0A

600V

N/A

Search Parts in this Series

46012 Series

Mates With

45750 Mini-Fit Plus Crimp Terminal

Use With

5559 Mini-Fit Jr. Plugs, 42475 Mini-Fit MBI

Panel Mount Plugs, 30068 Mini-Fit TPA

Plugs

PK-46012-001

PS-45750-001-001

SD-46012-001-001

This document was generated on 11/01/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

46012-1141-Mouser-Reel Related Products

	46012-1141-Mouser-Reel	46012-1141
Description	Board Mount Temperature Sensors Prec Centigrade Temp Sensor	Headers u0026 Wire Housings MN-FT TERM 10-12G F Reel of 2500
