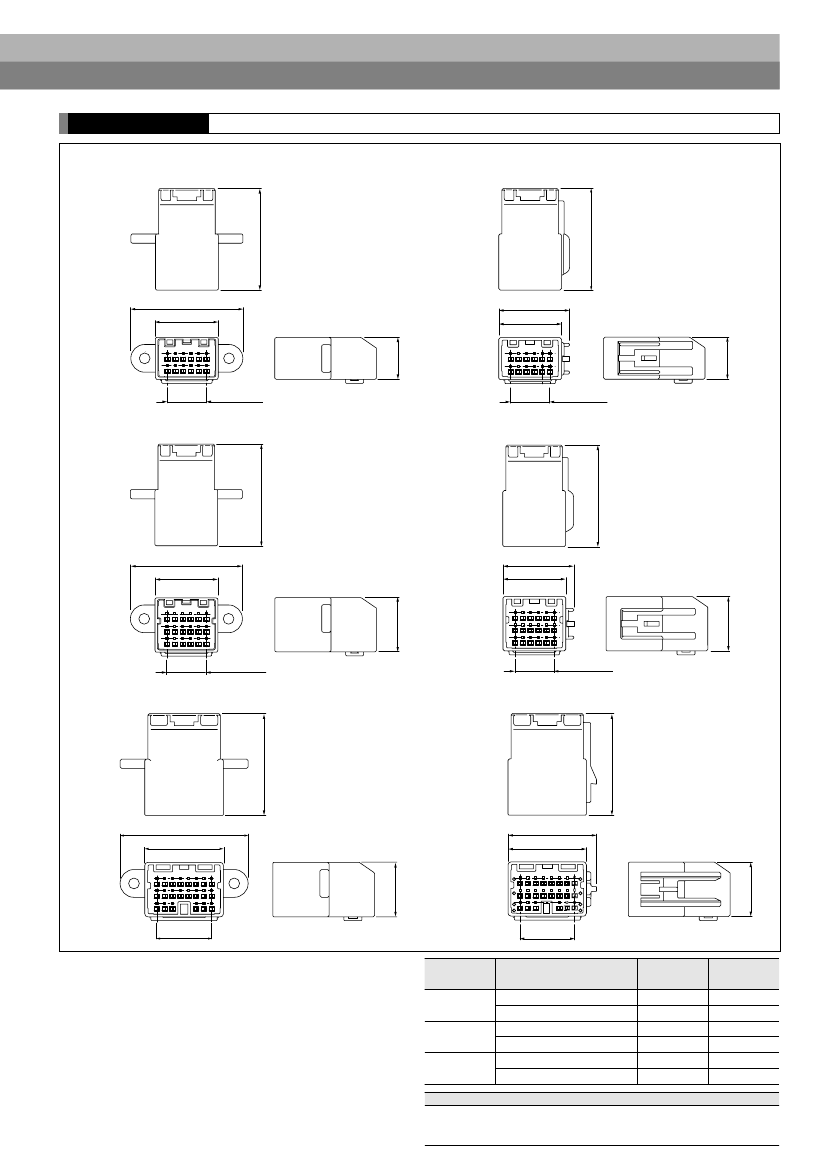

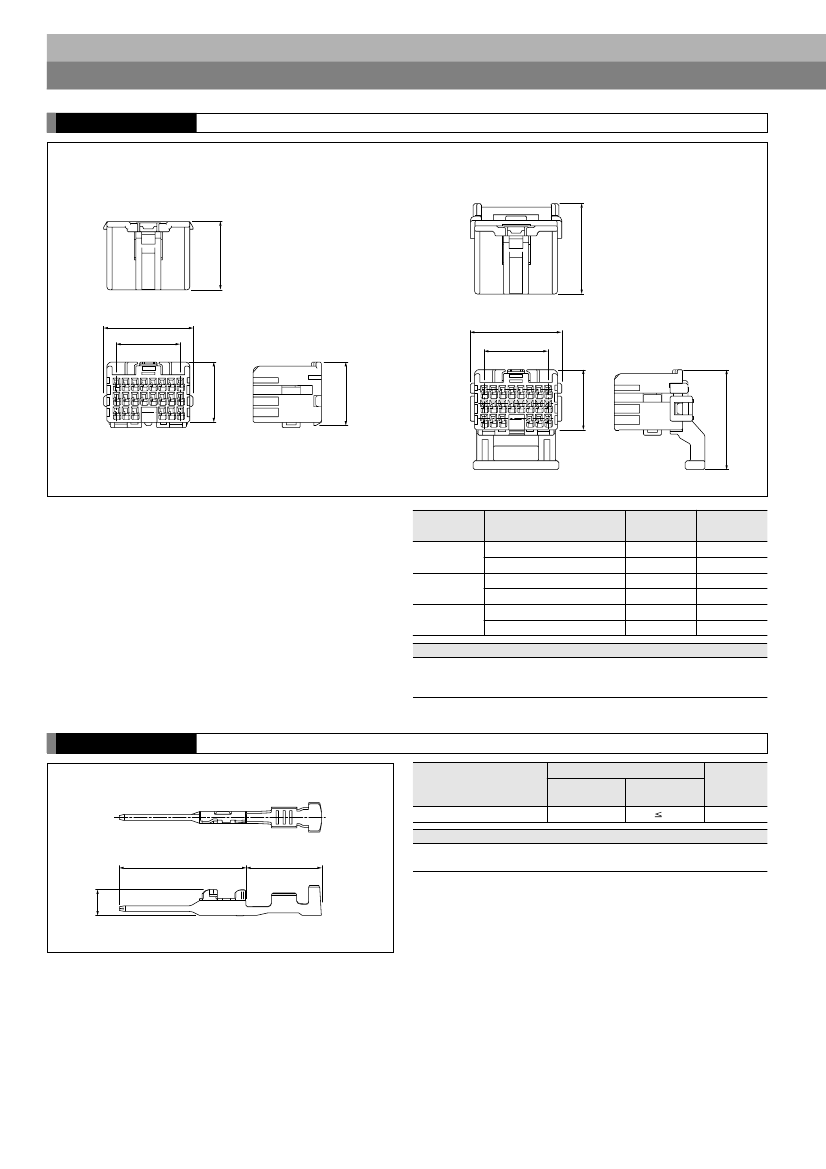

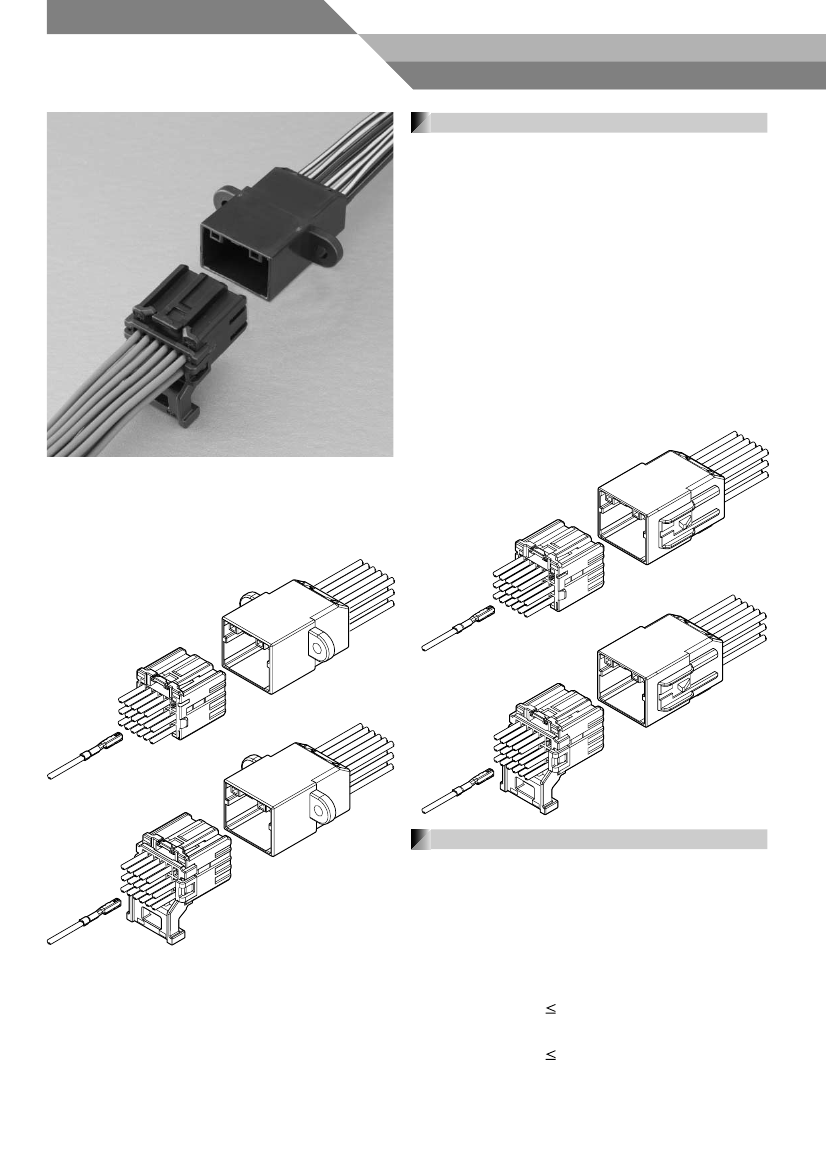

ARV
CONNECTOR
Wire-to-wire
Features
G12
Circuits, 18 Circuits and 22 Circuits Wire-to-Wire
Connection
GOptional
Wire Routing Attachment (to optimize
packaging space)
GVersatile
Mounting Options
GLatch
Overstress Feature
GBoth
Female and Male Connectors utilize
Independent Secondary Lock for Terminal retention
0.64 Unsealed wire-to-wire connection system for
unsealed applications, requiring Automotive durability.
Clip mountable type
¡Normal
type
JS
T
1
6
18
Screw hole type
¡Normal
type
JS
T
¡With
back cover type
C-
B
1
6
JS
T
1
18
6
12
18
¡With
back cover type
JS
T
Specifications
C-
B
1
6
12
18
JS
T
C-
B
¡Current
rating: 5 A DC max.
¡Voltage
rating: 14 V DC
¡Temperature
range: - 40°C to +125°C
(including temperature rise in applying
electrical current)
¡Contact
resistance: Initial value/ 15 mΩ max.
After environmental tests/ 15 mΩ max.
¡Insulation
resistance: 100 MΩ min.
¡Applicable
Wire: TXL/ ISO 0.35 mm
2
to 0.75 mm
2
O.D.
1.9 mm (AWG #22 to #18)
(Female Terminal)
2
ISO 0.35 mm to 0.5 mm
2
O.D.
1.7 mm (AWG #22 to #20)
(Male Terminal)
∗
Compliant with ELV/RoHS.
∗
Contact JST for details.
1
ARV
CONNECTOR

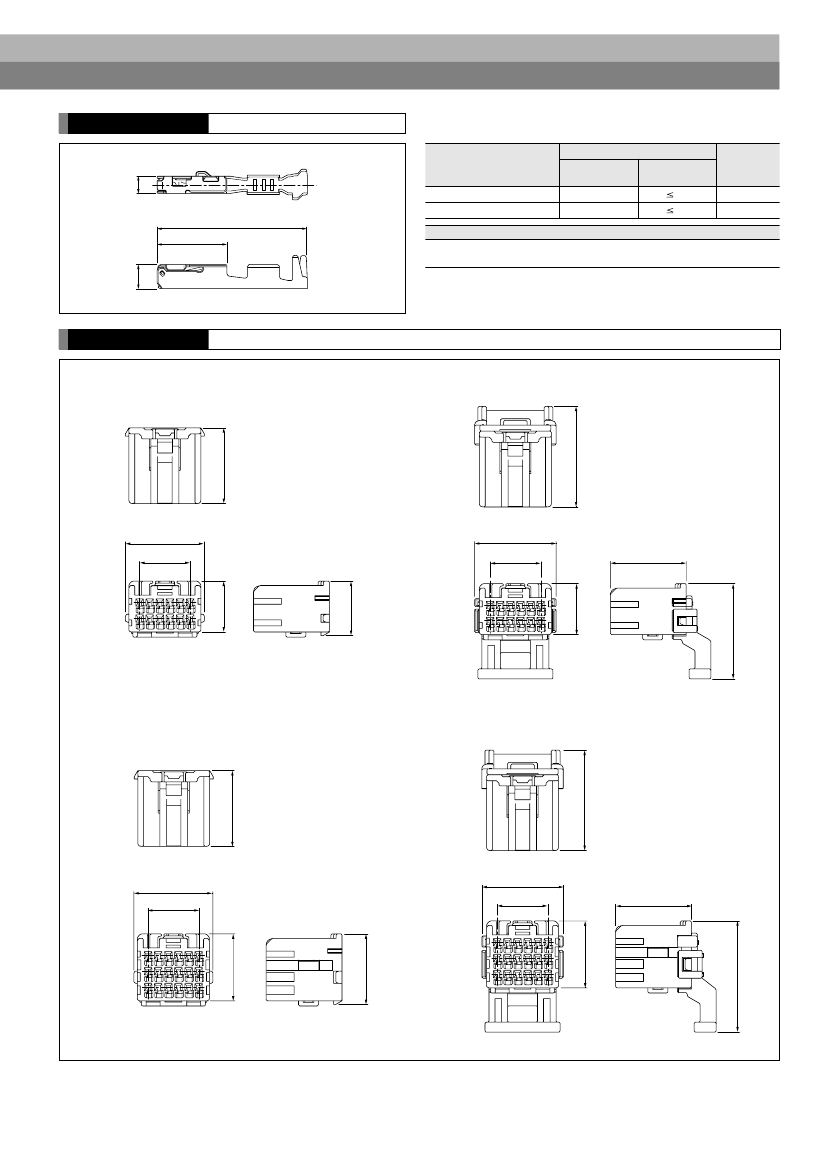

Female terminal
Applicable wire range
Model No.
1.6
Conductor
(mm
2
)
0.35 to 0.5
0.75
Material and Finish
Insulation O.D.
(mm)
1.9
1.9
Q’ty/reel
6,500
6,500
SAIT-A03T-M064
SAIT-A02T-M064
14
6.5
Copper alloy, tin-plated (reflow treatment)
2.25
Female connector
¡12
circuits
¡12
circuits (With back cover)
19
19.8
5
X
2.54=12.7
(20.4)
5
X
2.54=12.7
19
12.75
13.65
12.75
(25.2)
¡18
circuits
¡18
circuits (With back cover)
19
19.8
5
X
2.54=12.7
(20.4)
5
X
2.54=12.7
19
16.75
17.65
16.75
(25.2)
(27.85)
(23.85)
2
ARV
CONNECTOR
Female connector
¡22
circuits
¡22
circuits (With back cover)
24.88
7
X
2.54=17.78
(25.48)
7
X
2.54=17.78
16.75
17.65
16.75
(25.2)
19
Circuits
12
18
22
Model No.
ARVPB-12-2AK
ARVPB-12C12-2AK
ARVPB-18-3AK
ARVPB-18C18-3AK
ARVPB-22-3AK
ARVPB-22C22-3AK
Material and Finish
Back Cover
No
Yes
No
Yes
No
Yes
Q’ty/box
1,500
1,500
1,000
1,000
600
500
Housing: PBT, Black
TPA: Glass-filled PBT, Natural (White)
Back cover: Glass-filled PBT, Black
Male terminal
Applicable wire range
Model No.
SNAC3W-A021T-0.64
Conductor
(mm
2
)
0.35 to 0.5
Material and Finish
14.9
8.9
Insulation O.D.
(mm)
1.7
Brass, tin-plated (reflow treatment)
3
3
(27.85)
Q’ty/reel
7,000
ARV
CONNECTOR
Male connector
¡12
circuits (Screw hole Mountable Type)
¡12
circuits (Clip Mountable Type)
33
36.4
20.4
23.04
20.4
33
5
X
2.54=12.7
13.65
5
X
2.54=12.7
¡18
circuits (Screw hole Mountable Type)
¡18
circuits (Clip Mountable Type)
33
36.4
20.4
23.04
20.4
33
17.65
5
X
2.54=12.7
5
X
2.54=12.7
¡22
circuits (Screw hole Mountable Type)
¡22
circuits (Clip Mountable Type)
33
41.48
25.48
28.73
25.48
33
17.65
13.65
7
X
2.54=17.78
17.65
7
X
2.54=17.78
Circuits
12
18
22
Model No.
ARVWSB-12B-2AK
ARVWSB-12BC-2AK
ARVWSB-18-3AK
ARVWSB-18C-3AK
ARVWSB-22-3AK
ARVWSB-22C-3AK
Material and Finish
Mountable
Style
Screw hole
Clip
Screw hole
Clip
Screw hole
Clip
Q’ty/box
1,000
1,000
750
750
450
450
Housing: Glass-filled PBT, Black
PBT, Black (22P only)
TPA: Glass-filled PBT, Natural (White)
17.65
4
ARV
CONNECTOR
Assemby layout
¡12
circuits
¡18,
22 circuits
(4.1)
(4.1)
33
33
¡12
circuits (With back cover)
(13.85)
¡18,
22 circuits (With back cover)
(4.1)
33
(4.1)
33
(23.85)
(6.25)
(27.85)
(17.85)
(6.25)
Crimping machine, Applicator
Strip terminal
SAIT-A03( )-M064
SAIT-A02( )-M064
SNAC3W-A021( )-0.64
AP-K2N
Crimping
machine
Crimp applicator MKS-L
Dies
MK/SAIT-A03-064
MK/SAIT-A02-064
MK/SNAC3W-A021-064
Crimp applicator with dies
APLMK SAIT-A03-064
APLMK SAIT-A02-064
APLMK SNAC3W-A021-064
Note: When crimping operation is conducted using an applicator and die set other than the above, JST cannot guarantee the performance of the terminal.
