Single Slot SMT Connectors for Card-Bus Based PC Cards
IC14 Series
PC Card Standard Compliant
Board Space-Saving
SMT Unit
Guide Unit
Secure board retention
s

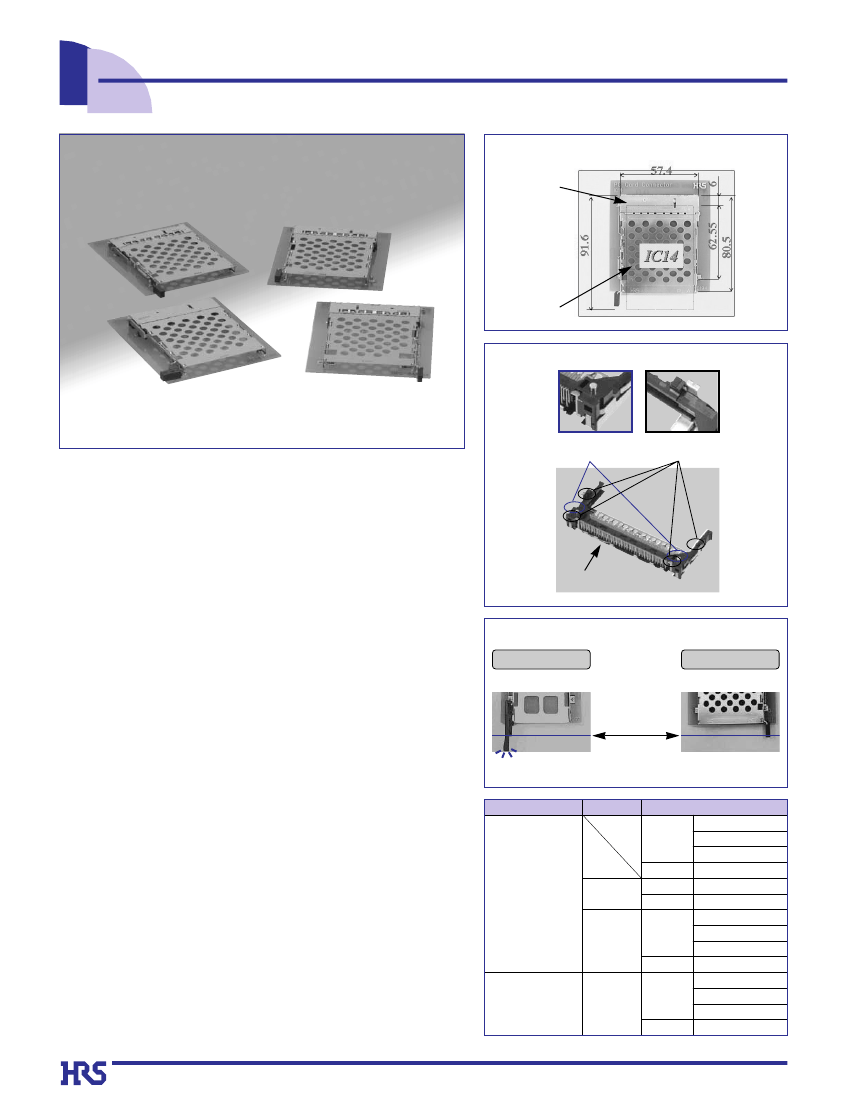

Features
1. Space-Saving design facilitates pattern routing
Responding to the need for the equipment miniaturization,
the board mounting area has been further reduced by
relocation of the mounting screws away from the possible
routing of the conductive traces.
Two anchoring
pins
Four metal fittings
2. Card insertion shock protection
Total of 6 board retention points assures that there is no
transfer of card insertion forces to the solder terminations.
SMT Unit
3. New “Pop-Up” button card ejection mechanism
The button does not protrude without the card being
inserted, preventing it’s damage when carrying the
notebook computer.
Three-stage “Pop-Up” card ejection mechanism
Existing products
IC14
When the eject button is mistakenly pressed without a PC card inserted
4. Customized ejection buttons
The configuration, color or length can be designed for
customer’s specific applications.
Equipment
outline
5. Reliable and balanced card ejection mechanism
Hirose’s unique ejection mechanism will apply force equally
at each edge of the inserted card. In addition, large distance
of the ejection allows easy hold on the card.
Protruding button is
vulnerable to damage.
Board mounting
Standoff
Left
Eject button
Pop-up
Folding
Rigid
Pop-up
Pop-up
Pop-up
Pop-up
Folding
Rigid
Pop-up
Pop-up
Folding
Rigid
Pop-up
s
Applications
Notebook PCs, audio/video equipment and other devices
utilizing PC cards.
Standard
1.5mm
Right
Left
Right
Left
Right
Left
Right
2.2mm
Reverse
2.2mm
A2
sProduct
Specifications
Current
Ratings
rating
Voltage
rating
0.5A
Operating temperature
range
Operating humidity
range
-55ç to +85ç (Note 1)
Relative humidity 95% max.
(No condensation)
Storage temperature
range
Storage humidity
range
-40ç to +70ç (Note 2)
125V AC
40% to 70% (Note 2)
Item
1. Insulation resistance
2. Withstanding voltage
3. Contact resistance
4. Vibration
5. Humidity
6. Temperature cycle
Specifications
1000 Mø min.
No flashover or insulation breakdown.
60 mø max. (Initial value)
No electrical discontinuity of 100 ns or more.
Insulation resistance: 100 Mø min.
Insulation resistance: 100 Mø min.
Conditions
500 V DC
500 V AC / one minute
1mA DC
Frequency: 10 to 2000 Hz, single amplitude of 1.52 mm or
acceleration of 147m/s2 (peak), 4 hours / 3 axis
96 hours at temperature of 40ç±2ç and humidity of 90% to
95%
Temperature: -55ç
/
+5ç to +35ç
/
+85ç
/
+5ç to +35ç
Duration:
30
/
+5
max.
/
30
/
+5
max. (Minutes)
5 cycles
10000 cycles at 400 to 600 cycles per hour
Reflow: At the recommended temperature profile
Manual soldering: 300ç for 3 seconds
7. Durability
(mating/unmating)
8. Resistance to
soldering heat
Contact resistance: 20mø max. from initial value
No deformation of any component. No affect on
contacts.
Note 1: Includes temperature rise caused by current flow.
Note 2: The term ”storage” refers to products stored for long period of time prior to mounting and use. Operating Temperature Range
and Humidity range covers non- conducting condition of installed connectors in storage, shipment or during transportation.
sMaterials/Finish
SMT unit
Component
Insulator
Contacts
Ground/eject metal fittings
Positioning pin
Material
Heat resistant thermoplastic compound
Brass
Stainless
Brass
Finish
Color: Black
Contact area: Gold plated
Termination area: Tin-lead plated (Note)
----------
Tin-lead plated (Note)
Remarks
UL94V-0
----------
----------
----------
Guide unit
Component
Insulator
Cover/Eject metal fittings
Spring
Material
PBT
Stainless
Steel
Finish
Color: Black
----------
----------
Remarks
UL94V-0
----------
----------
Note: Lead-free specified connectors are tin plated.
A3
sOrdering
information
q
SMT unit
IC14 A - PLR - SF - EJR -(71)
1
2
: IC14
3
4
5
6
1
Series name
2
Standoff type
4
SF : SMT unit
5
Eject button position
EJR : Right-side eject
EJL : Left-side eject Number of ground contacts
6
Product specification code
Blank : Tin-lead plated
(71): Lead-free plated
Blank
: 0 mm
A
: 2.2 mm
B
: 1.5 mm
3
Board mounting type
PL: Standard type
PLR: Reverse type
q
Guide unit
IC14 A - G - P EJR
7
8
9
10
11
: IC14
: 0 mm
: 2.2 mm
: 1.5 mm (Note 1)
7
Series name
8
Standoff type
Blank
A
B
9
G: Guide unite
10
Eject button type
Blank : Rigid button
P
: Pop-up button
F
: Folding button
11
Eject button position
EJR: Right-side eject
EJL: Left-side eject
Note 1: In the IC14B type, the screw attachment holes in the Guide unit are not threaded.
Note 2: In this series the SMT unit and the Guide unit must be used in combinations shown below.
Note 2:
Other combinations cannot be used.
* Series name
* Standoffs
* Ejection button position
(
1
⇔
7
)
(
2
⇔
8
)
(
5
⇔
11
)
A4

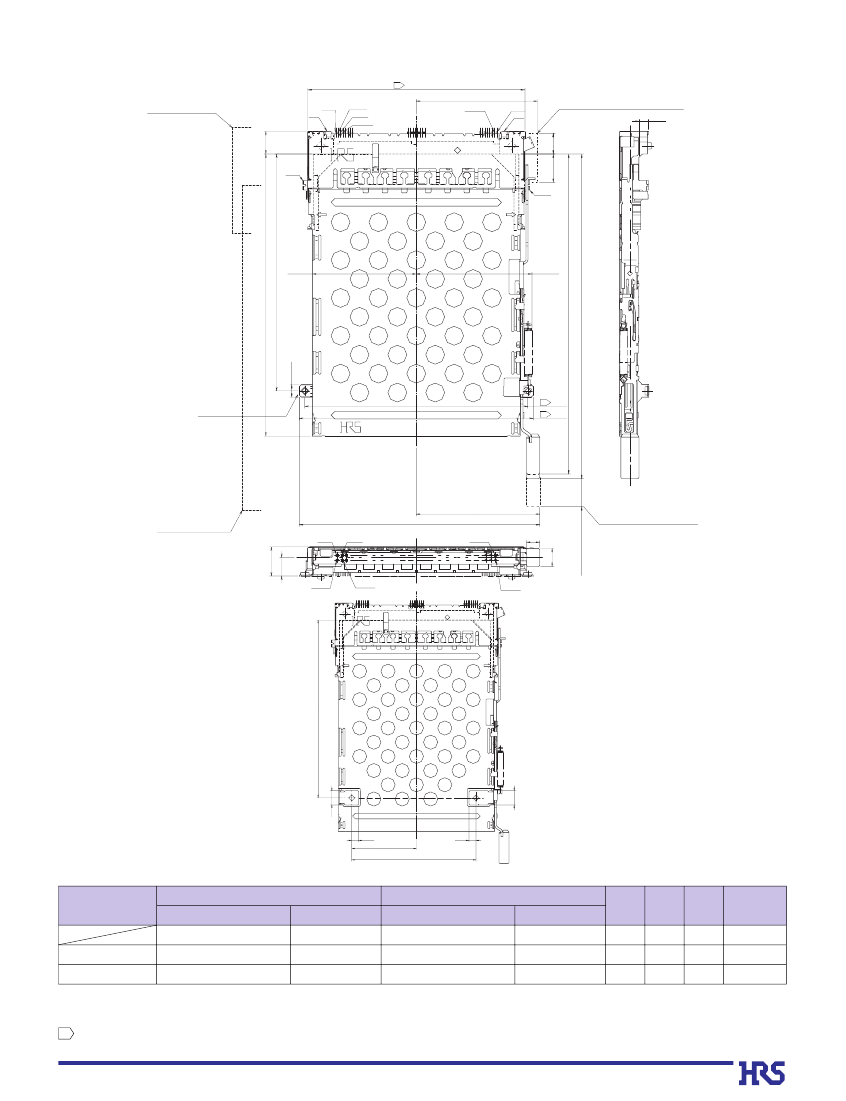

sStandard
Right Pop-up button
q
IC14, IC14A
SMT unit(1)
No.1
GND
No.35
No.2
No.36
3
57.4
32MAX
No.34
No.68
GND
7.5MAX 5.5MAX
Eject metal components movable range
C
6
SAR
GND
GND
3.3
3 58.9
#2-M2(2X)
PRA
3 61.8
32.6
85.8 (Card fully inserted)
27.45
30.55
84.55(Ejector button pushed-in for withdrawal)
74.5
62.55
Guide unit(
2
)
No.1
B
No.2
63.5
No.34
3.5
4.8
Button position for card ejection
No.35
No.36
No.68
q
IC14B
SBR
62.6
5
2.5
22.8
43.8
PRBM3
2.5
Stand off height
SMT unit
1
Part Number
IC14-PL-SF-EJR
CL No.
CL640-1301-0
CL640-1303-6
CL640-1309-2
Guide unit
2
Part Number
IC14-G-PEJR
IC14A-G-PEJR
IC14B-G-PEJR
CL No.
CL640-1409-7
CL640-1411-9
CL640-1413-4
5
(7.4)
A
A
(mm)
2.7
4.9
4.2
B
(mm)
5.5
7.7
7
C
(mm)
0.3
2.5
1.8
Weight (g)
13.1
13.5
13.3
2.2mm
1.5mm
1
2
3
IC14A-PL-SF-EJR
IC14B-PL-SF-EJR
: All illustrations show the SMT unit (1)
and Guide unit (2) assemblied.
: Dimensions for card insertion are in accordance with “PC card standard”.
: Indicated dimensions are symmetrical to the center of the card insertion slot.
A5

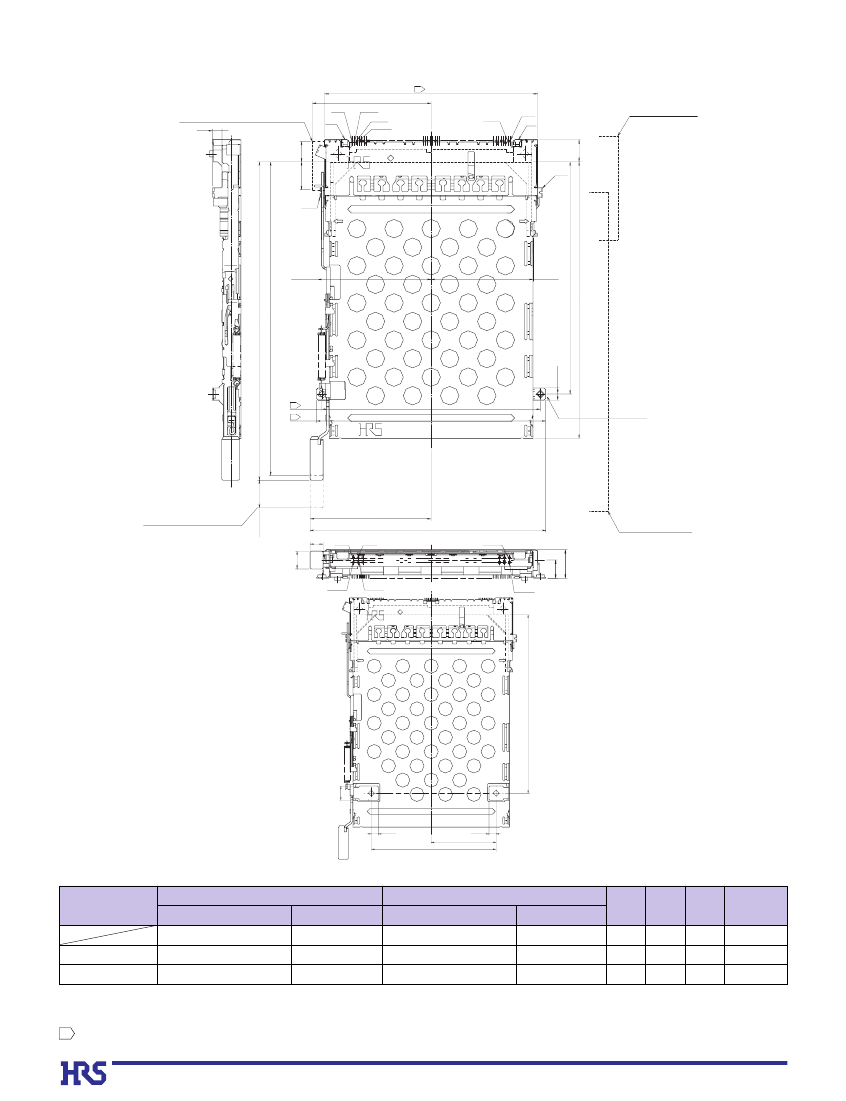

sStandard
Left Pop-up button
q
IC14, IC14A
No.1
Eject metal components movable range
C
7.5MAX 5.5MAX
GND
3 57.4
32MAX
No.35
No.2
No.36
No.68
GND
No.34
SMT unit(1)
SAL
GND
GND
84.55(Ejector button pushed-in for withdrawal)
85.8 (Card fully inserted)
30.55
27.45
62.55
74.5
3 58.9
3 61.8
PLA
#2-M2(2X)
(7.4)
Button position for card ejection
32.6
63.5
3.5
4.8
No.1
No.2
No.34
B
3.3
6
Guide unit(
2
)
No.35
No.36
No.68
q
IC14B
SBL
5
2.5
43.8
PLBM9
2.5
22.8
Stand off height
SMT unit
1
Part Number
IC14-PL-SF-EJL
CL No.
CL640-1302-3
CL640-1304-9
CL640-1310-1
Guide unit
2
Part Number
IC14-G-PEJL
IC14A-G-PEJL
IC14B-G-PEJL
CL No.
CL640-1410-6
CL640-1412-1
CL640-1414-7
62.6
A
A
(mm)
2.7
4.9
4.2
B
(mm)
5.5
7.7
7
C
(mm)
0.3
2.5
1.8
Weight (g)
13.1
13.5
13.3
2.2mm
1.5mm
1
2
3
IC14A-PL-SF-EJL
IC14B-PL-SF-EJL
: All illustrations show the SMT unit (1) and Guide unit (2) assemblied.
: Dimensions for card insertion are in accordance with “PC card standard”.
: Indicated dimensions are symmetrical to the center of the card insertion slot.
A6
