Part Number

Search

M80-7960342

Description
Headers u0026 Wire Housings 3 SIL MALE HORIZ F/LOCK 4.5MM TAIL
CategoryThe connector    The connector

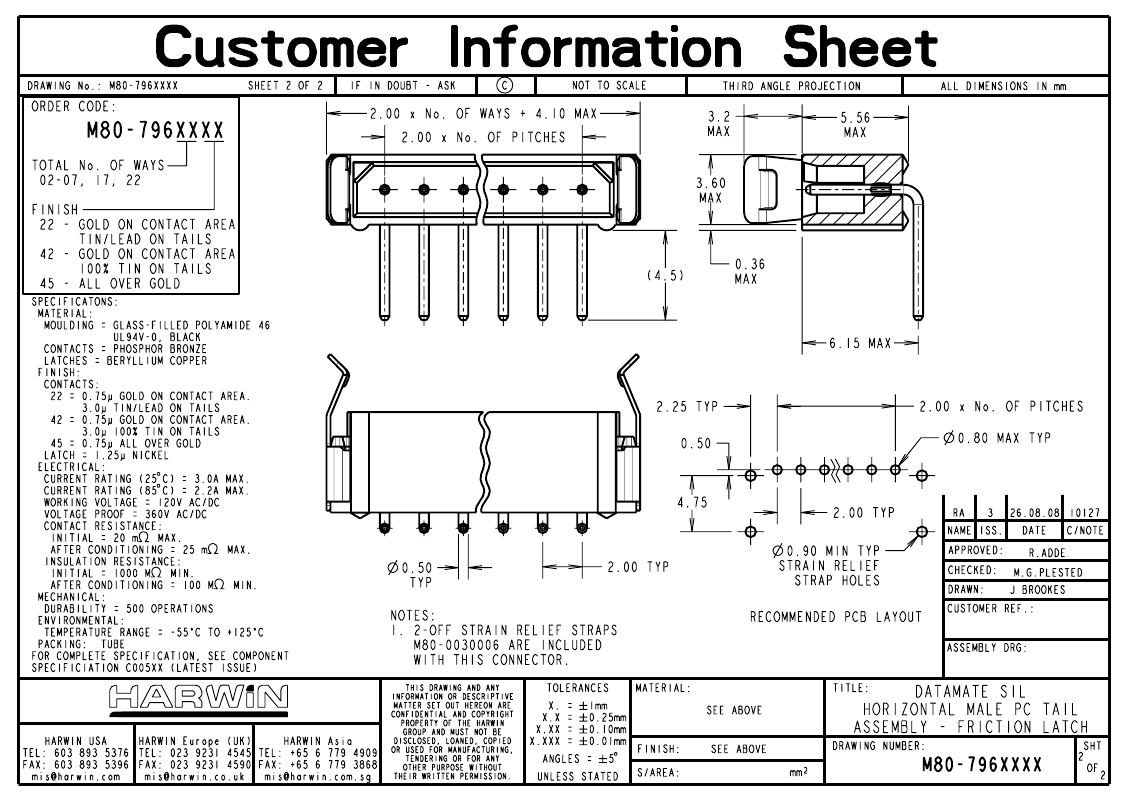

File Size94KB,1 Pages
ManufacturerHarwin
Websitehttp://www.harwin.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

M80-7960342 Online Shopping

Suppliers Part Number Price MOQ In stock
M80-7960342 - - View Buy Now

M80-7960342 Overview

Headers u0026 Wire Housings 3 SIL MALE HORIZ F/LOCK 4.5MM TAIL

M80-7960342 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerHarwin
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresLATCHED
body width0.156 inch
subject depth0.252 inch
body length0.398 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD (30)
Contact completed and terminatedMatte Tin (Sn)
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance25 mΩ
Contact styleRND PIN-SKT
DIN complianceNO
Durability500 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force2.78 N
Insulation resistance100000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYAMIDE
JESD-609 codee3
MIL complianceNO
Plug contact pitch0.079 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1LATCH
Installation option 2FRICTION LOCK
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
Plating thickness30u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.177 inch
Terminal pitch2 mm
Termination typeSOLDER
Total number of contacts3
UL Flammability Code94V-0
Evacuation force-minimum value.1946 N

M80-7960342 Related Products

M80-7960342 M80-7960242 M80-7960542 M80-7960442
Description Headers u0026 Wire Housings 3 SIL MALE HORIZ F/LOCK 4.5MM TAIL Headers u0026 Wire Housings 2 WAY MALE HORIZ F/LOCK 4.5MM TAIL Headers u0026 Wire Housings 5 SIL MALE HORIZ F/LOCK 4.5MM TAIL Headers u0026 Wire Housings 4 SIL MALE HORIZ F/LOCK 4.5MM TAIL
Is it lead-free? Lead free Lead free Lead free Lead free
Is it Rohs certified? conform to conform to conform to conform to
Maker Harwin Harwin Harwin Harwin
package instruction ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT
Reach Compliance Code compliant compliant compliant compliant
ECCN code EAR99 EAR99 EAR99 EAR99
Other features LATCHED LATCHED LATCHED LATCHED
body width 0.156 inch 0.156 inch 0.156 inch 0.156 inch
subject depth 0.252 inch 0.252 inch 0.252 inch 0.252 inch
body length 0.398 inch 0.319 inch 0.555 inch 0.476 inch
Body/casing type RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation GOLD (30) GOLD (30) GOLD (30) GOLD (30)
Contact completed and terminated Matte Tin (Sn) Tin (Sn) - with Nickel (Ni) barrier Tin (Sn) - with Nickel (Ni) barrier Matte Tin (Sn)
Contact point gender MALE MALE MALE MALE
Contact material PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE
contact mode RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Contact resistance 25 mΩ 25 mΩ 25 mΩ 25 mΩ
Contact style RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT
DIN compliance NO NO NO NO
Durability 500 Cycles 500 Cycles 500 Cycles 500 Cycles
Filter function NO NO NO NO
IEC compliance NO NO NO NO
maximum insertion force 2.78 N 2.78 N 2.78 N 2.78 N
Insulation resistance 100000000 Ω 100000000 Ω 100000000 Ω 100000000 Ω
Insulator color BLACK BLACK BLACK BLACK
insulator material GLASS FILLED POLYAMIDE GLASS FILLED POLYAMIDE GLASS FILLED POLYAMIDE GLASS FILLED POLYAMIDE
JESD-609 code e3 e3 e3 e3
MIL compliance NO NO NO NO
Plug contact pitch 0.079 inch 0.079 inch 0.079 inch 0.079 inch
Plug information MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE
Mixed contacts NO NO NO NO
Installation option 1 LATCH LATCH LATCH LATCH
Installation option 2 FRICTION LOCK FRICTION LOCK FRICTION LOCK FRICTION LOCK
Installation method RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD BOARD BOARD
Number of connectors ONE ONE ONE ONE
PCB row number 1 1 1 1
Number of rows loaded 1 1 1 1
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
PCB contact pattern RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Plating thickness 30u inch 30u inch 30u inch 30u inch
polarization key POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING
Rated current (signal) 3 A 3 A 3 A 3 A
Guideline UL UL UL UL
reliability COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Terminal length 0.177 inch 0.177 inch 0.177 inch 0.177 inch
Terminal pitch 2 mm 2 mm 2 mm 2 mm
Termination type SOLDER SOLDER SOLDER SOLDER
Total number of contacts 3 2 5 4
UL Flammability Code 94V-0 94V-0 94V-0 94V-0
Evacuation force-minimum value .1946 N .1946 N .1946 N .1946 N
