ISM81-3753BO-1.000 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ISM81-3753BO-1.000

ISM81-3753BO-1.000: DescriptionCMOS Output Clock Oscillator,; CategoryPassive components oscillator; File Size143KB，2 Pages; ManufacturerILSI; Websitehttp://www.ilsiamerica.com

Download Datasheet Parametric View All

ISM81-3753BO-1.000 Overview

CMOS Output Clock Oscillator,

ISM81-3753BO-1.000 Parametric

Parameter Name	Attribute value
Maker	ILSI
Reach Compliance Code	compliant
Other features	TR, 7/10 INCH
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Installation features	SURFACE MOUNT
Nominal operating frequency	1 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Oscillator type	CMOS
Output load	15 pF
physical size	7.0mm x 5.0mm x 1.7mm
longest rise time	5 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	45/55 %
Base Number Matches	1

Preview

Download Datasheet

View All

5.0 mm x 7.0 mm Ceramic Package SMD Oscillator

ISM81 Series

Product Features:

Wide Temperature Range (-55º to +125ºC)

Frequency Stability option ±50 ppm over the full operating temperature range.

Low Phase Noise

RoHS Compliant

Frequency

Output Level

CMOS

Duty Cycle

Rise / Fall Time

Output Load

Frequency Stability

1.000 MHz to 125.000 MHz

Logic ‘0’ = 10% of Vcc max

Logic ‘1’ = 90% of Vcc min

Specify 50% ±10% or ±5% See Table in Part Number Guide

5 nS Max. for 10% to 90% of waveform

15 pF

See Frequency Stability Table (Includes room temperature tolerance

and stability over operating temperature)

±3 ppm max

5 mS Max.

See Input Voltage Table, tolerance ±5 %

50 mA Max.

1.50

7.00

IYWW

FREQ

5.00

1.70 max

5.08

1.40

2.60

Aging (Initial First

Year)

Start-up Time

Supply Voltage

Current

Operating

Storage

Phase Jitter:

(12kHz – 20MHz)

Tri-State (Pin 1)

Function

Enable / Disable Time

Current, Standby Mode

5.08

0.01

3.70

-55



C to +125



-55



C to +125



1 pS RMS max

Standby

100 nS Max. N.C. or

≥

70% Vcc = Enable.

≤

30% Vcc = Disable

20 µA

2.40

Recommended

Pad Layout

Pin Connections

PIN 1

PIN 2

PIN 3

PIN 4

Enable / Disable

or NC

Ground

Output

Vcc

Dimension Units: mm

Part Number Guide

Input

Package

Voltage

1 = 1 .8 V

2 = 2.7 V

3 = 3.3 V

6 = 2.5 V

7 = 3.0 V

Sample Part Number:

Operating

Temperature

= -55ºC to +125ºC

Symmetry

(Duty Cycle)

5 = 45 / 55 max

6 = 40 / 60 max

Output

3 = 15pF

6 = 30pF *

ISM81-3756BH-20.000

Stability (in

Enable /

Frequency

ppm)

Disable

B = ±50 ppm

C= ±100 ppm

H = Enable

O = N/C

20.000

ISM81

*Oscillator

may not meet 5% symmetry over temperature range with 30 pF load.

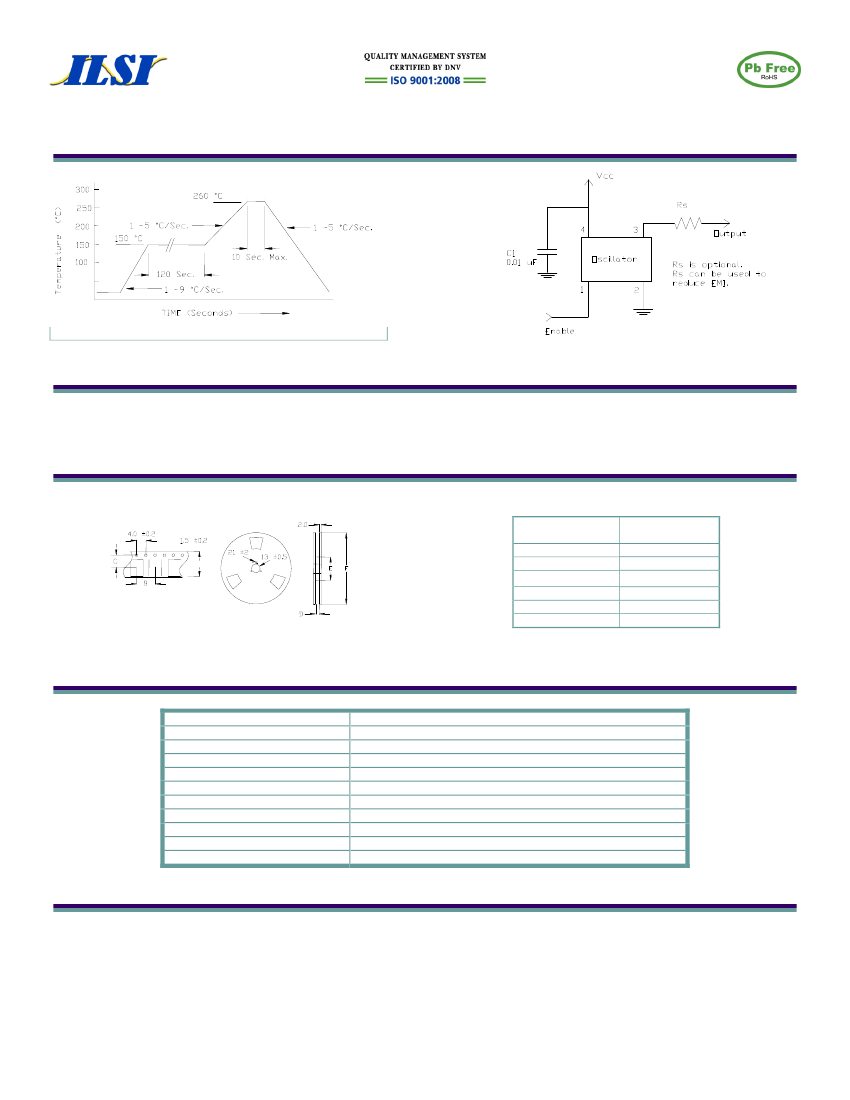

NOTE:

A 0.01 µF bypass capacitor is recommended between Vcc (pin 4) and GND (pin 2) to minimize power supply noise.

ILSI

America

Phone: 775-851-8880 • Fax: 775-851-8882• e-mail: e-mail@ilsiamerica.com • www.ilsiamerica.com

07/14/14_A2

Specifications subject to change without notice

Page 1
