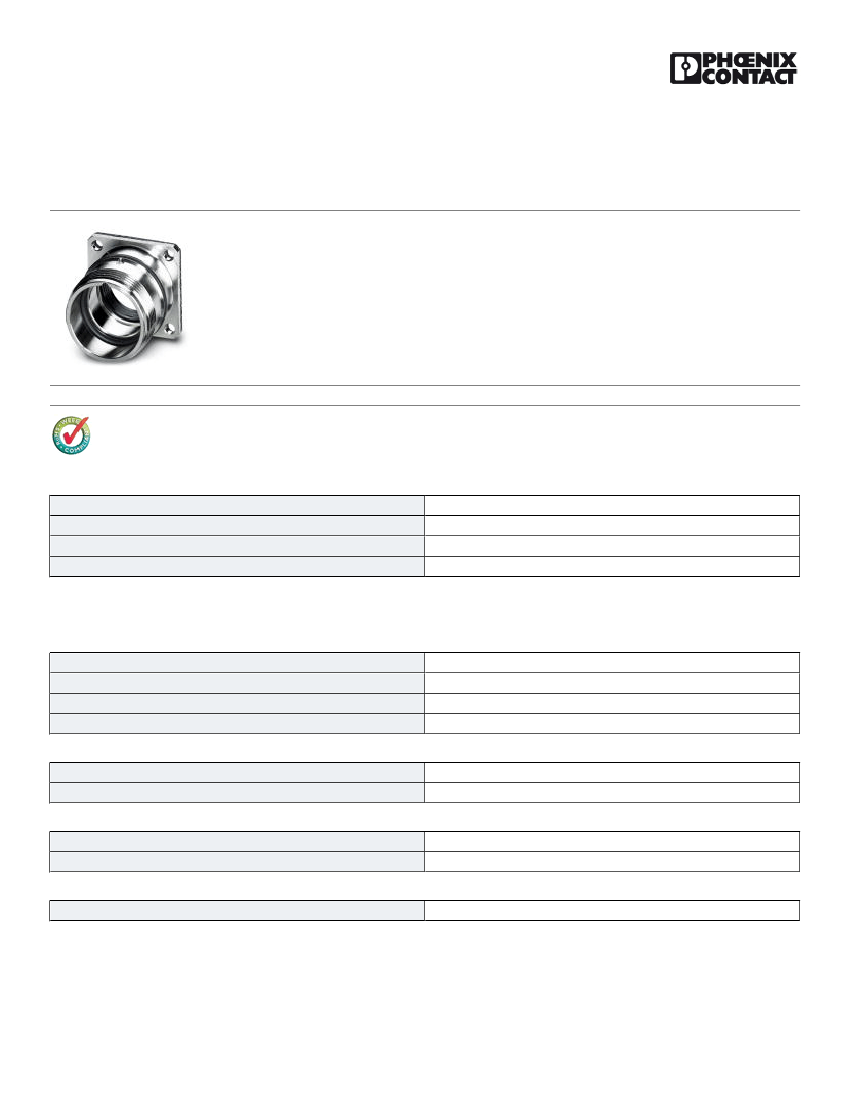

Panel mounting base - RC-00000002200 - 1592574
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Panel mounting base, straight, Screw locking, M23, Flat gasket, 4xØ2,7, shielded: yes, Flange dimensions: 25
mm x 25 mm, Panel thickness min.: 1 mm
Key Commercial Data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
26.44 g
85389099
Germany
Technical data
General
Note
Type of locking
Pg housing screw connection
Mounting type
Order information: Order contact inserts separately
Screw locking
none
4xØ2,7
Ambient conditions
Ambient temperature
Degree of protection
-20 °C ... 125 °C
IP67
Material
Housing material
Gasket and O-ring material
Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn)
FPM
Specifications according to DIN EN 61984:2001
Installation height max.
2000 m
04/14/2016 Page 1 / 3
https://www.phoenixcontact.com/us/products/1592574
Panel mounting base - RC-00000002200 - 1592574
Drawings
Diagram
Current carrying capacity [A]
Diagram
1
2
Attenuation [dB]
9
8
7
6
5
4
3
2
1
0
100
80
60
40
20
1
= 3x0,5mm²
2
= 6x0,5mm²
3
= 9x0,5mm²
4
= 12x0,5mm²
0
20
40
4
3
60
80
100
120
Ambient temperature [°C]
0
10
100
1000
Frequency [MHz]
Dimensional drawing
21,3
1,5
1
25
Dimensional drawing
M23
Ø2,7
Ø20+0,1
Ø 4x2,7
RC-00000002200
Flat gasket
Installation dimensions
Flat gasket, radial O-ring
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
19,8±0,1
19,8
04/14/2016 Page 3 / 3
