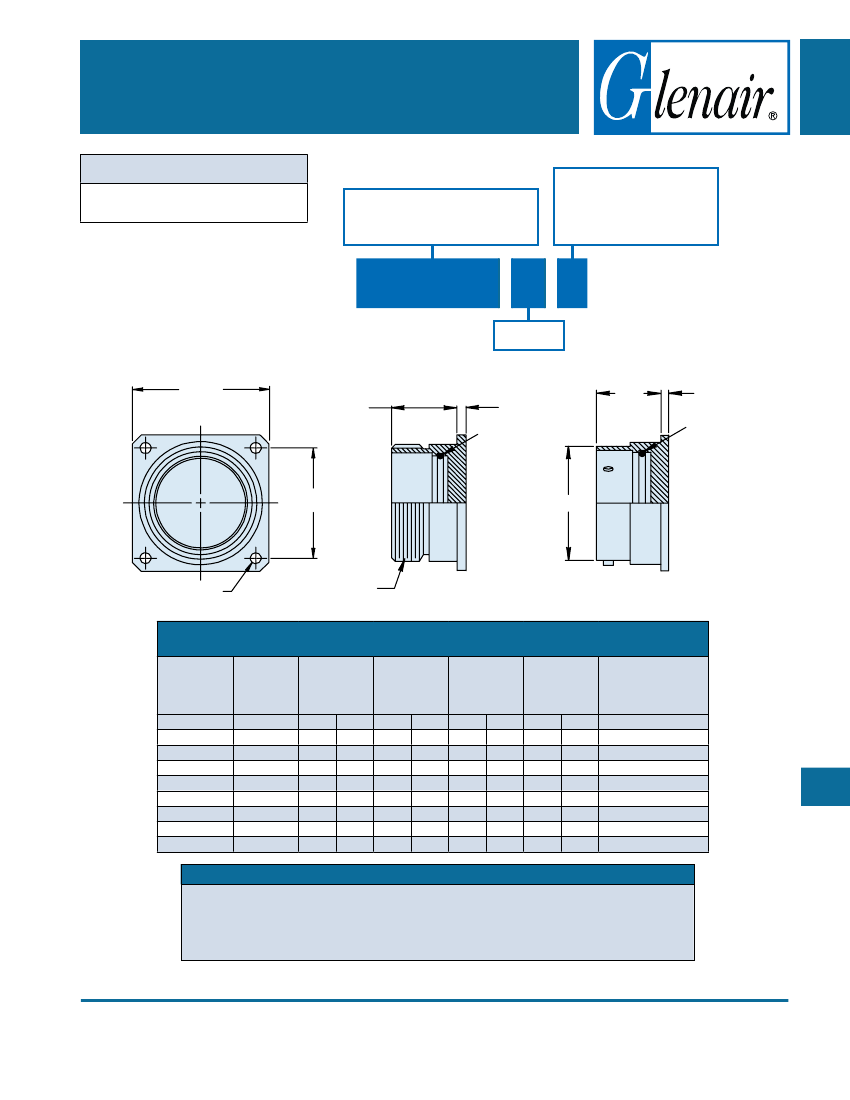

M83723/61, MS27296 and MS27297
Dummy Stowage Receptacle
Threaded or Bayonet Coupling
MATING CONNECTOR
MIL-DTL-26500 and
MIL-DTL-83723, Series III
Basic Part No.
M83723/61-1
Threaded Coupling
M83723/61-2
Bayonet Coupling
Material and Finish
A
= Black Anodize
R
= Electroless Nickel
W
= Cadmium Olive Drab
over Electroless Nickel
M83723/61-1 18
Shell Size
A
F
.718 (18.2)
.062 (1.6)
O-Ring
.718
(18.2)
.062 (1.6)
O-Ring
G
E Dia
H Dia
J Thread
TABLE I: Dash Number, Cable Entry
and Backshell Dimensions
M83723
Shell Size
8
10
12
14
16
18
20
22
24
MS27296
MS27297
Dash No.
Ref
7
1
2
3
4
5
8
6
9
ØE
Max
.561
.696
.875
.935
1.062
1.187
1.312
1.437
1.562
(14.2)
(17.7)
(22.2)
(23.7)
(27.0)
(30.1)
(33.3)
(36.5)
(39.7)
F
Dim
.812
.937
1.031
1.125
1.250
1.343
1.437
1.562
1.703
(20.6)
(23.8)
(26.2)
(28.6)
(31.8)
(34.1)
(36.5)
(39.7)
(43.3)
G
Dim
.594
.719
.812
.906
.969
1.062
1.156
1.250
1.375
(15.1)
(18.3)
(20.6)
(23.0)
(24.6)
(27.0)
(29.4)
(31.8)
(34.9)
ØH
Max
.125
.125
.125
.125
.125
.125
.125
.125
.154
(3.2)
(3.2)
(3.2)
(3.2)
(3.2)
(3.2)
(3.2)
(3.2)
(3.9)
J
Thread
9/16 - 24 UNEF
11/16 - 24 UNEF
7/8 - 20 UNEF
15/16 - 20 UNEF
1 1/16 - 18 UNEF
1 3/16 - 18 UNEF
1 5/16 - 18 UNEF
1 7/16 - 18 UNEF
1 9/16 - 18 UNEF
APPLICATION NOTES
1.
2.
3.
Assembly to be identified with manufacturer’s name and part number, space permitting.
For complete dimensions, see the applicable Military Specification.
Metric dimensions (mm) are in parentheses.
