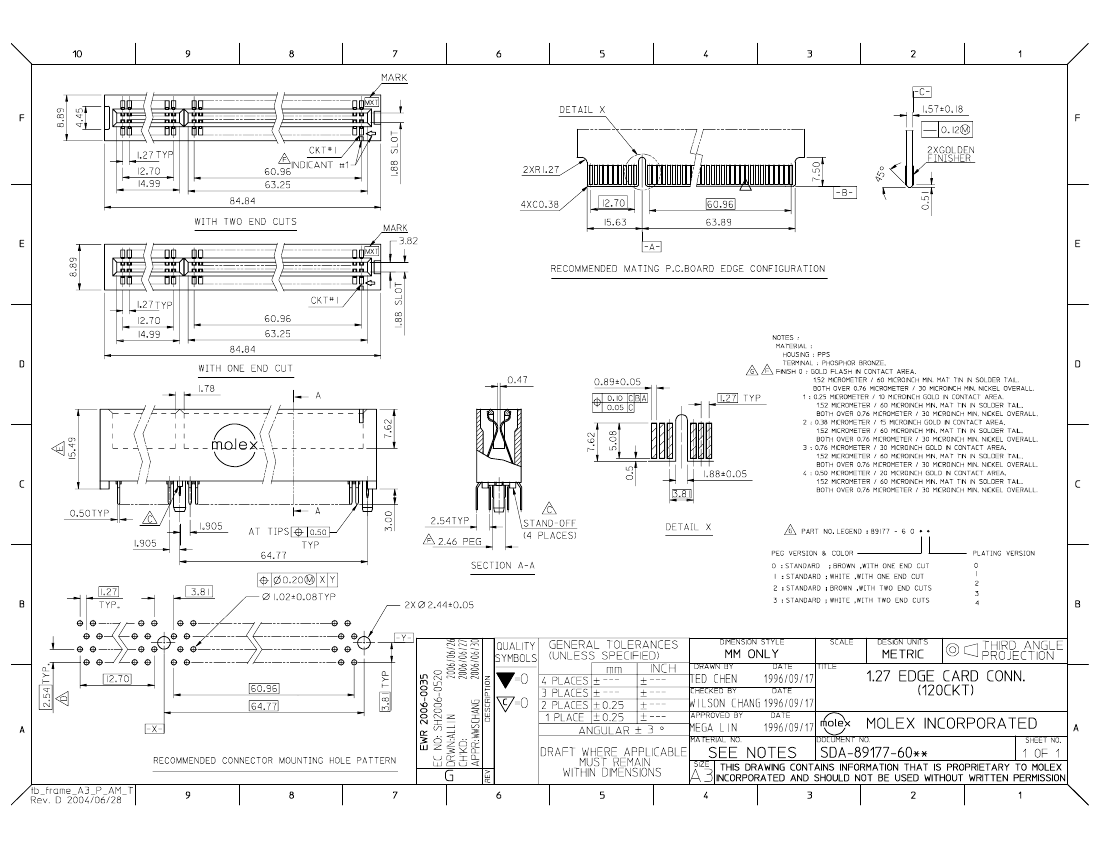

Standard Card Edge Connectors PCI EDGE CARD CONNEC
| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Maker | Molex |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | STAGGERED CONFIGURATION |
| Board mount options | PEG |
| body width | 0.35 inch |
| subject depth | 0.61 inch |
| body length | 3.34 inch |
| Body/casing type | RECEPTACLE |
| Connector type | CARD EDGE CONNECTOR |
| Contact to complete cooperation | GOLD (15) OVER NICKEL (30) |
| Contact completed and terminated | MATTE TIN (60) OVER NICKEL (30) |
| Contact point gender | FEMALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact resistance | 30 mΩ |
| Contact style | BELLOWED TYPE |
| DIN compliance | NO |
| Dielectric withstand voltage | 500VAC V |
| Durability | 50 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 116.5376 N |
| Insulation resistance | 1000000000 Ω |
| Insulator color | WHITE |
| insulator material | GLASS FILLED POLYPHENYLENE SULPHIDE |
| JESD-609 code | e3 |
| MIL compliance | NO |
| Plug contact pitch | 0.05 inch |
| Mixed contacts | NO |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 4 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 2.54 mm |
| Plating thickness | 15u inch |
| Rated current (signal) | 1 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.118 inch |
| Terminal pitch | 1.27 mm |
| Termination type | SOLDER |
| Total number of contacts | 120 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | 9.7856 N |
| Base Number Matches | 1 |
