352-900-1161H

Description
RF SMA Connector, Male, Cable Mount, Crimp Terminal, Plug
CategoryThe connector    The connector
File Size43KB,1 Pages
ManufacturerWinchester Electronics
Download Datasheet Parametric View All

352-900-1161H Overview

RF SMA Connector, Male, Cable Mount, Crimp Terminal, Plug

352-900-1161H Parametric

Parameter NameAttribute value
MakerWinchester Electronics
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresAPPLICABLE CABLE: RG-142, RG-400
Body/casing typePLUG
Characteristic impedance50 Ω
Connector typeRF SMA CONNECTOR
Contact to complete cooperationGOLD
Contact completed and terminatedGOLD
Contact point genderMALE
Coupling typeTHREADED
DIN complianceNO
Filter functionNO
IEC complianceNO
insulator materialPOLYTETRAFLUORO ETHYLENE
JESD-609 codee4
MIL complianceNO
Manufacturer's serial number352
Installation methodRIGHT ANGLE
Installation typeCABLE
Maximum operating frequency18 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
Termination typeCRIMP
voltage standing wave ratio1.51
Base Number Matches1

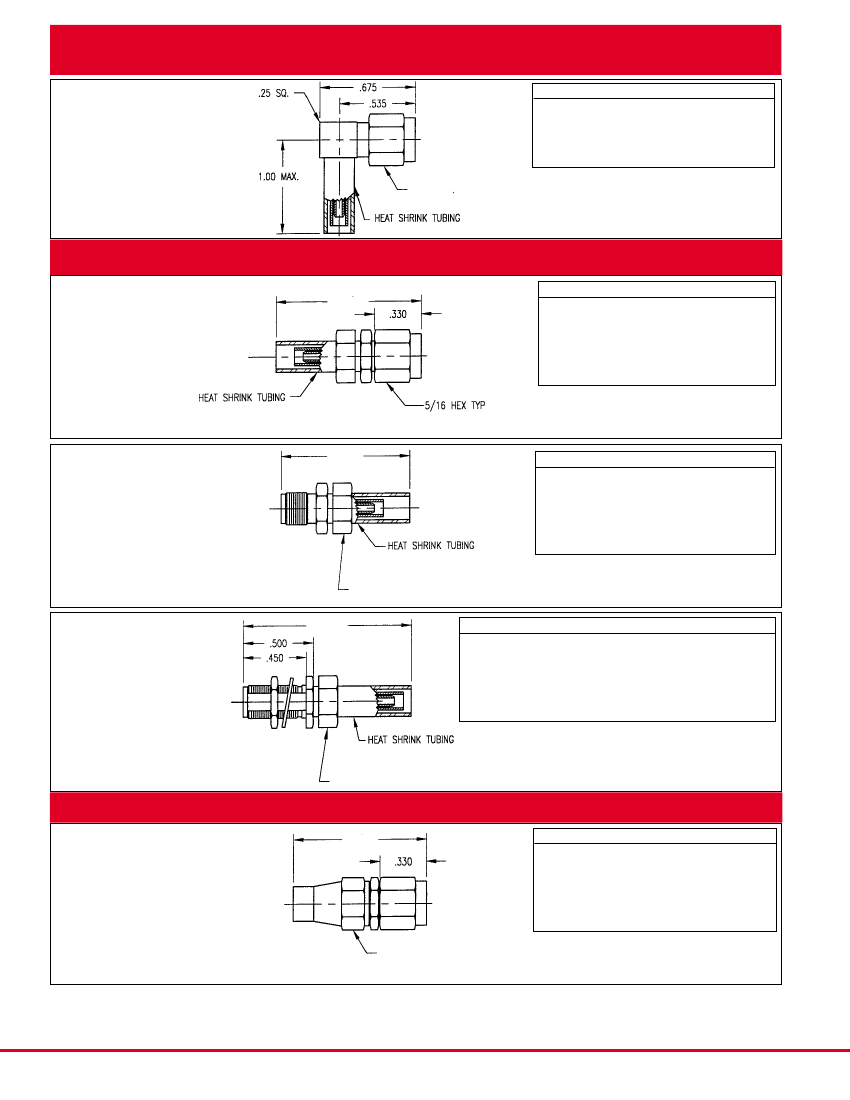

SMA Brass:
Right Angle
Plug
Crimp Flexible Cable
Part Number
352-900-0630H
352-900-0631H
352-900-1160H
352-900-1161H
5/16 HEX
Cable
RG-316
RG-316 double shielded
RG-303, 141
RG-142, 400
• See page 109 for cable assembly procedures: 9-05
• Part number shown is for gold plated.
• For nickel plate change suffix to “N”.
SMA Brass:
Straight Plug
Captive Contact
Crimp/Clamp Flexible Cable
1.03
Part Number
350-800-0360H
350-800-0630H
350-800-0631H
350-800-1160H
350-800-1161H
Cable
RG-178
RG-316
RG-316 double shielded
RG-303, 141
RG-142, 400
• See page 103 for cable assembly procedures: 8-01
• Part number shown is for gold plated.
• For nickel plate change suffix to “N”.
Straight Jack
Captive Contact
.91
Part Number
351-800-0360H
351-800-0630H
351-800-0631H
351-800-1160H
351-800-1161H
Cable
RG-178
RG-316
RG-316 double shielded
RG-303, 141
RG-142, 400
5/16 HEX TYP
1.19
• See page 103 for cable assembly procedures: 8-01
• Part number shown is for gold plated.
• For nickel plate change suffix to “N”.
Straight Jack
Bulkhead Mount
Captive Contact
Part Number
351-875-0360H
351-875-0630H
351-875-0631H
351-875-1160H
351-875-1161H
Cable
Mounting Hole
RG-178
No. 075
RG-316
No. 075
RG-316 double shielded
No. 075
RG-303, 141
No. 075
RG-142, 400
No. 075
5/16 HEX TYP
• See page 103 for cable assembly procedures: 8-01
• See page 83 for mounting hole layout.
• Part number shown is for gold plated.
• For nickel plate change suffix to “N”.
SMA Brass:
Straight Plug
Captive Contact
Clamp, Flexible Cable
.94
Part Number
350-700-0360H
350-700-0630H
350-700-0631H
350-700-1070H
350-700-1161H
5/16 HEX TYP
Cable
RG-178
RG-316
RG-316 double shielded
RG-180
RG-142, 400
• See page 97 for cable assembly procedures: 7-01
• Part number shown is for gold plated.
• For nickel plate change suffix to “N”.
Note: Dimensions shown in inches.
Winchester/Retconn
RF/18
400 Park Road • Watertown, Connecticut 06795-5000 • Phone: (860) 945-5000 • FAX: (860) 945-3950• Internet: http://www.litton-wed.com
