TC9278F datasheet, PDF - EEWORLD Datasheet

TC9278F: DescriptionCMOS DIGITAL INTEGRATED CIRCUIT SILICON MONOLITHIC; CategoryAnalog mixed-signal IC converter; File Size480KB，11 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

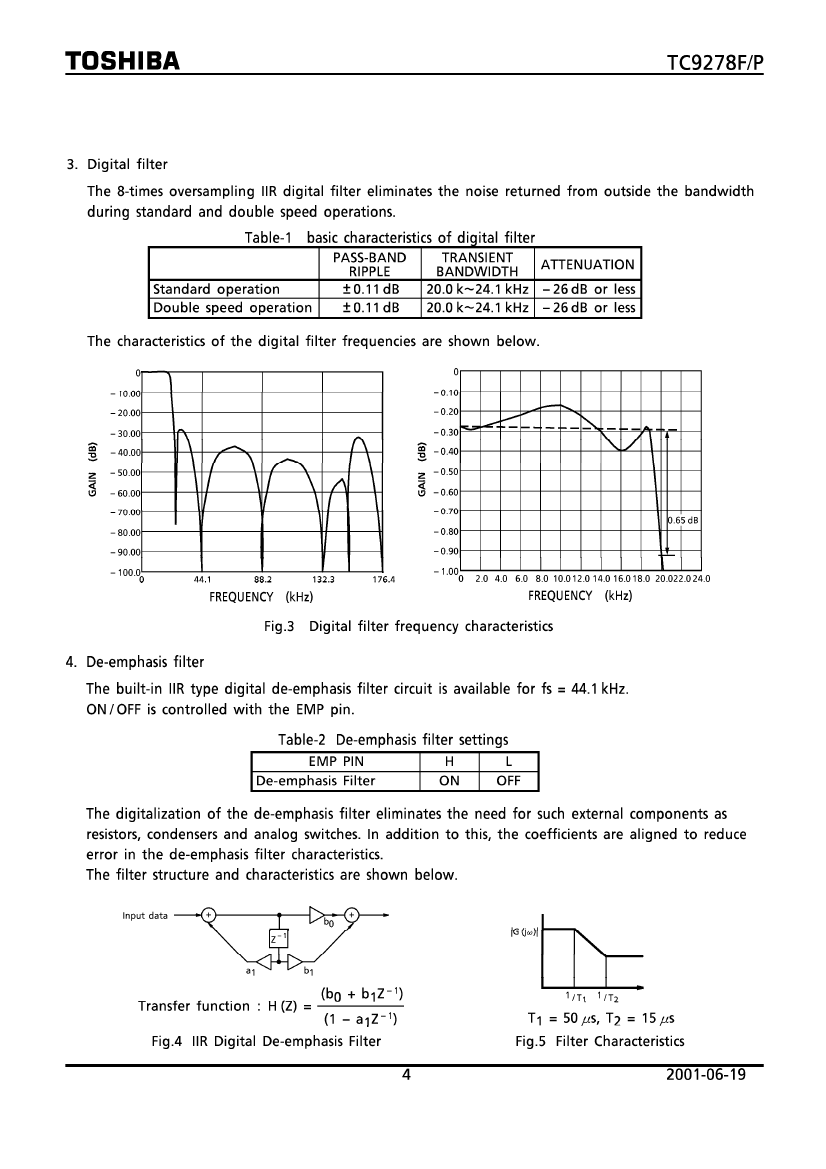

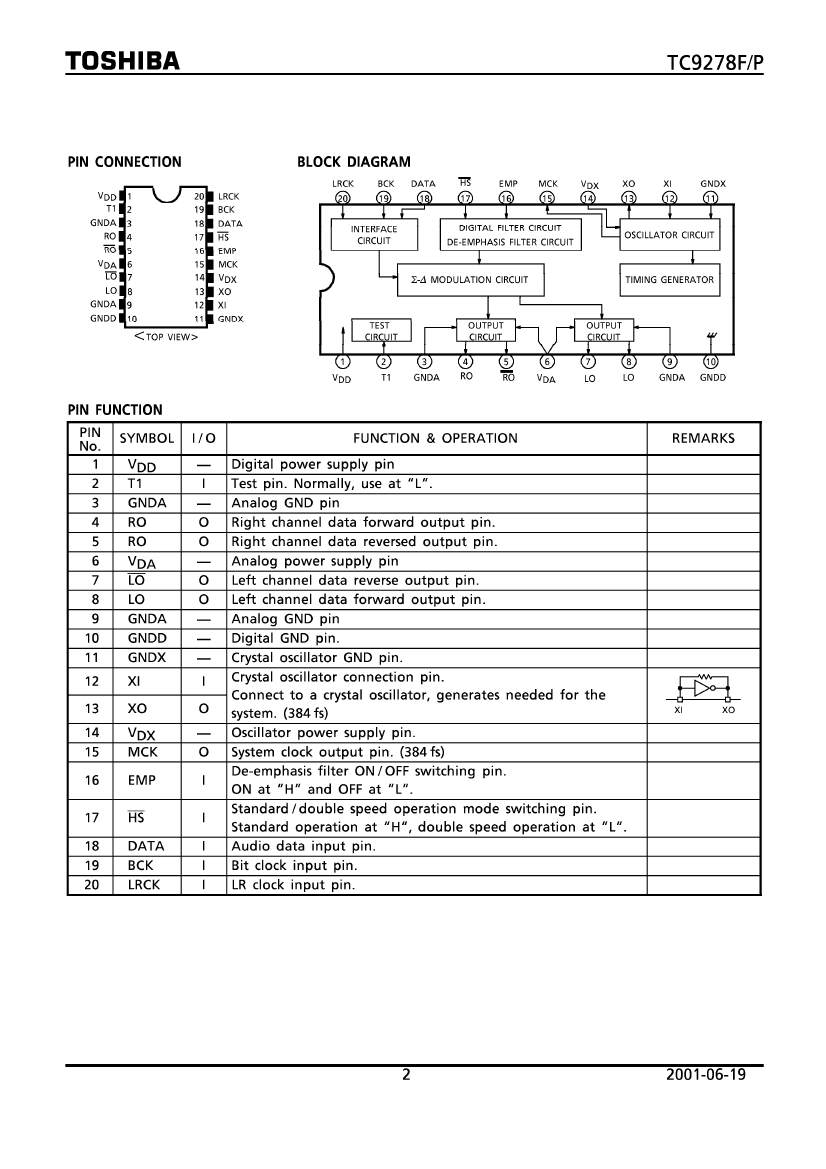

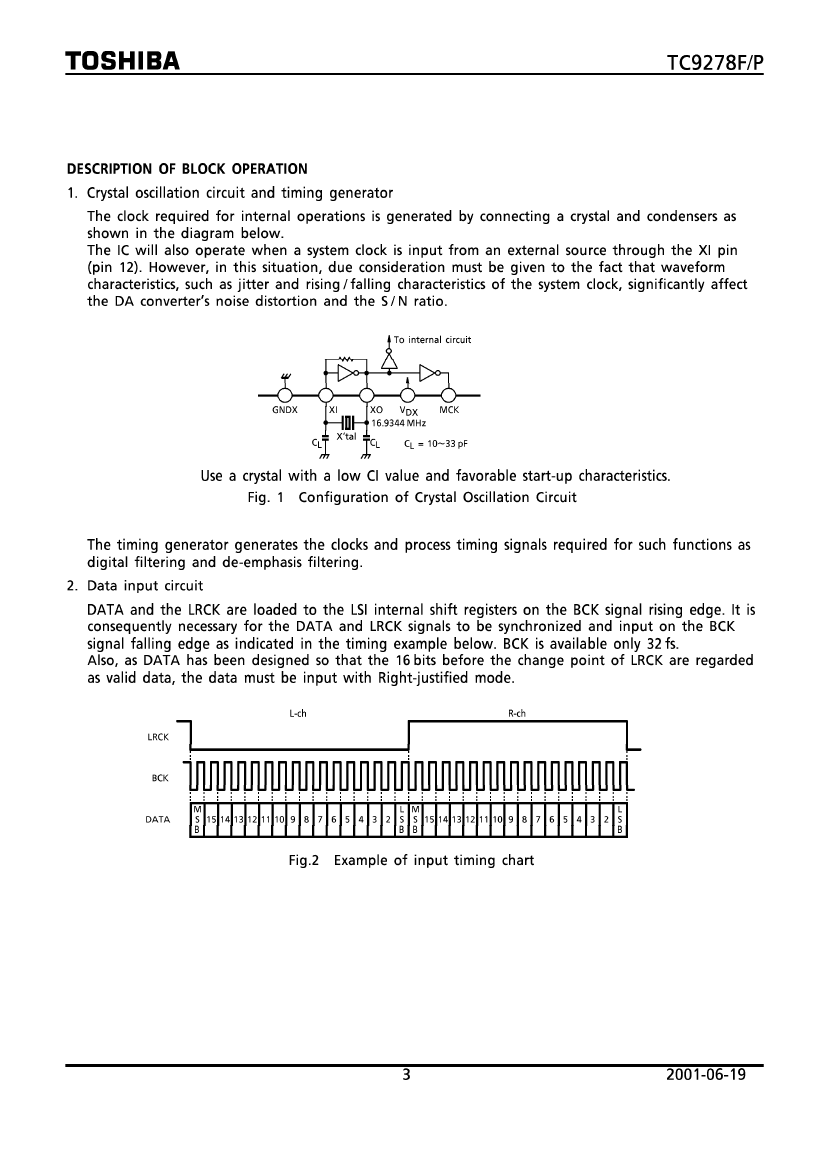

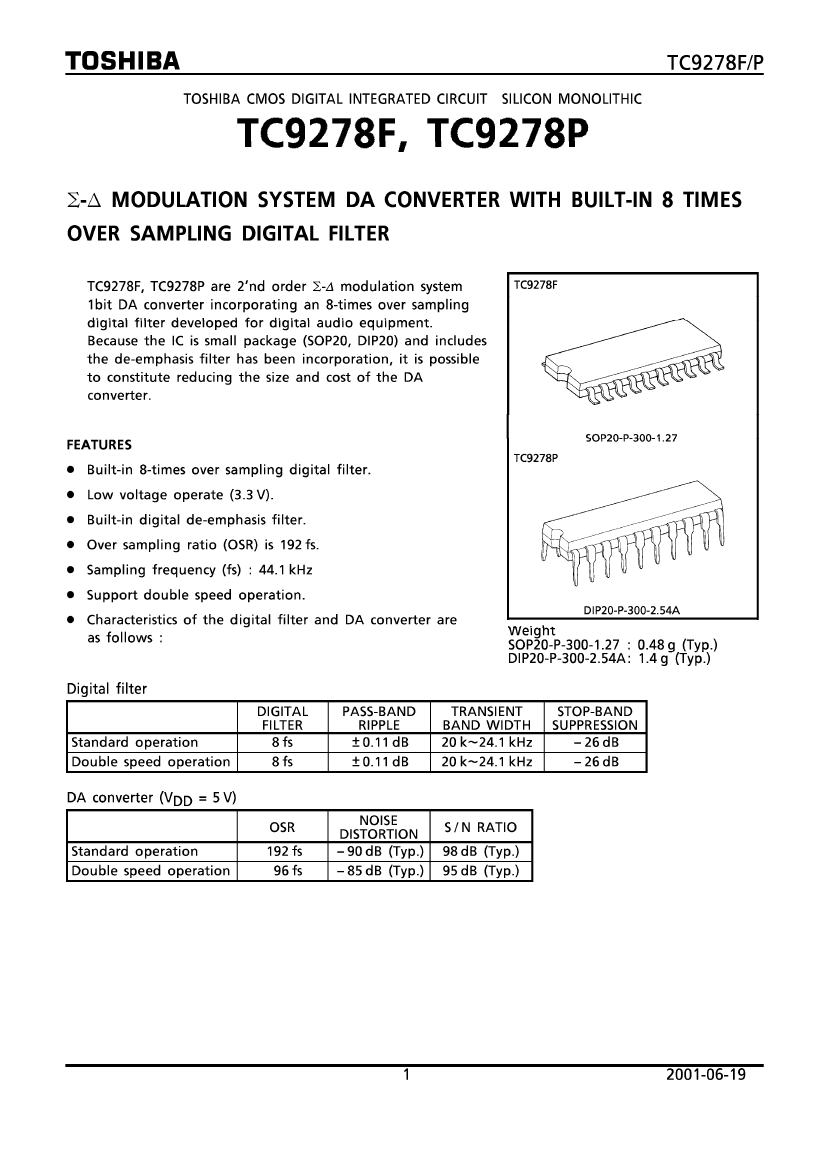

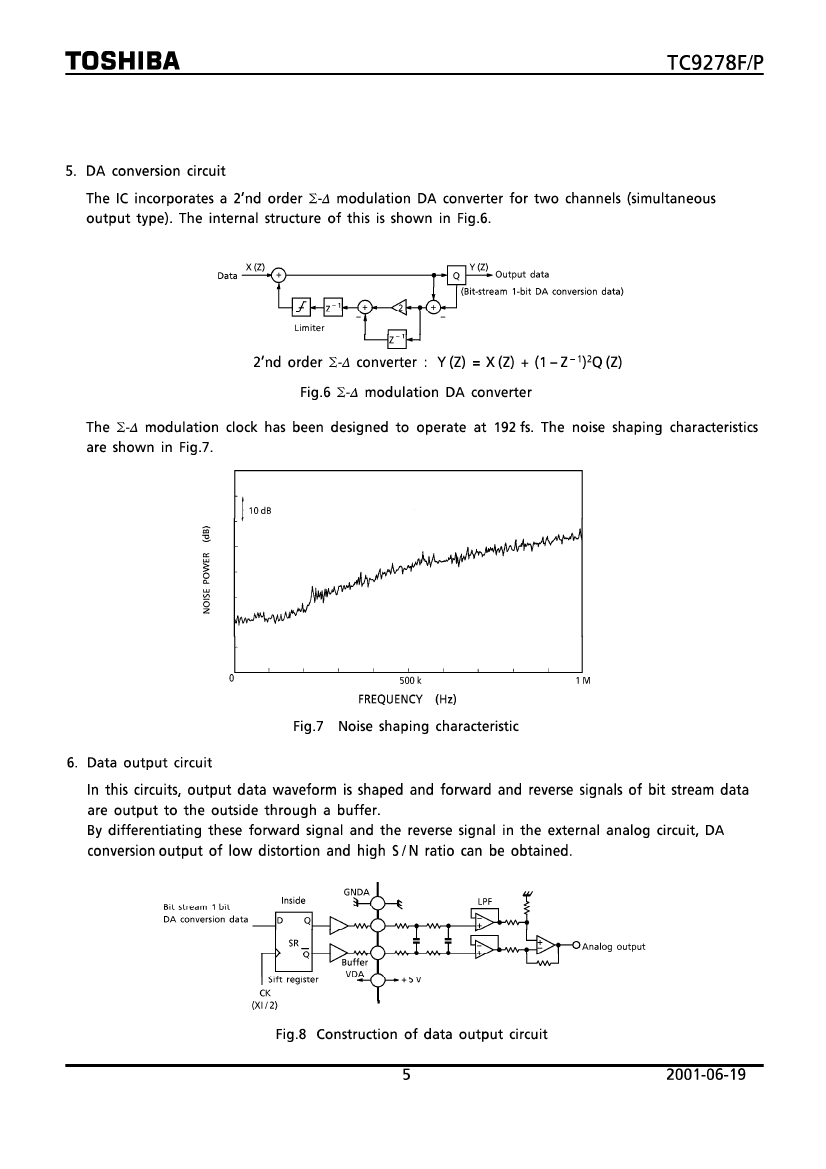

TC9278F Overview

CMOS DIGITAL INTEGRATED CIRCUIT SILICON MONOLITHIC

Parameter Name	Attribute value
Parts packaging code	SOIC
package instruction	SOP, SOP20,.3
Contacts	20
Reach Compliance Code	unknow
Converter type	D/A CONVERTER
Enter bit code	BINARY
Input format	SERIAL
JESD-30 code	R-PDSO-G20
JESD-609 code	e0
length	12.8 mm
Number of digits	1
Number of functions	1
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-35 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP20,.3
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5 V
Certification status	Not Qualified
Maximum seat height	1.8 mm
Maximum slew rate	20 mA
Nominal supply voltage	3.5 V
surface mount	YES
technology	CMOS
Temperature level	OTHER
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	5.3 mm
Base Number Matches	1

	TC9278F	TC9278P
Description	CMOS DIGITAL INTEGRATED CIRCUIT SILICON MONOLITHIC	CMOS DIGITAL INTEGRATED CIRCUIT SILICON MONOLITHIC
Parts packaging code	SOIC	DIP
package instruction	SOP, SOP20,.3	DIP, DIP20,.3
Contacts	20	20
Reach Compliance Code	unknow	unknow
Converter type	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY	BINARY
Input format	SERIAL	SERIAL
JESD-30 code	R-PDSO-G20	R-PDIP-T20
JESD-609 code	e0	e0
length	12.8 mm	24.6 mm
Number of digits	1	1
Number of functions	1	1
Number of terminals	20	20
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-35 °C	-35 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP
Encapsulate equivalent code	SOP20,.3	DIP20,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.8 mm	4.45 mm
Maximum slew rate	20 mA	20 mA
Nominal supply voltage	3.5 V	3.5 V
surface mount	YES	NO
technology	CMOS	CMOS
Temperature level	OTHER	OTHER
Terminal surface	TIN LEAD	TIN LEAD
Terminal form	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL
width	5.3 mm	7.62 mm
Base Number Matches	1	1
