76055-1218 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 76055-1218

76055-1218: DescriptionHigh Speed / Modular Connectors Impact BP 5x12 LW Sn; CategoryThe connector The connector; File Size30KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

76055-1218 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	76055-1218	-	-	View	Buy Now

76055-1218 Overview

High Speed / Modular Connectors Impact BP 5x12 LW Sn

76055-1218 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
Factory Lead Time	11 weeks
Is Samacsys	N
Base Number Matches	1

Preview

Download Datasheet

View All

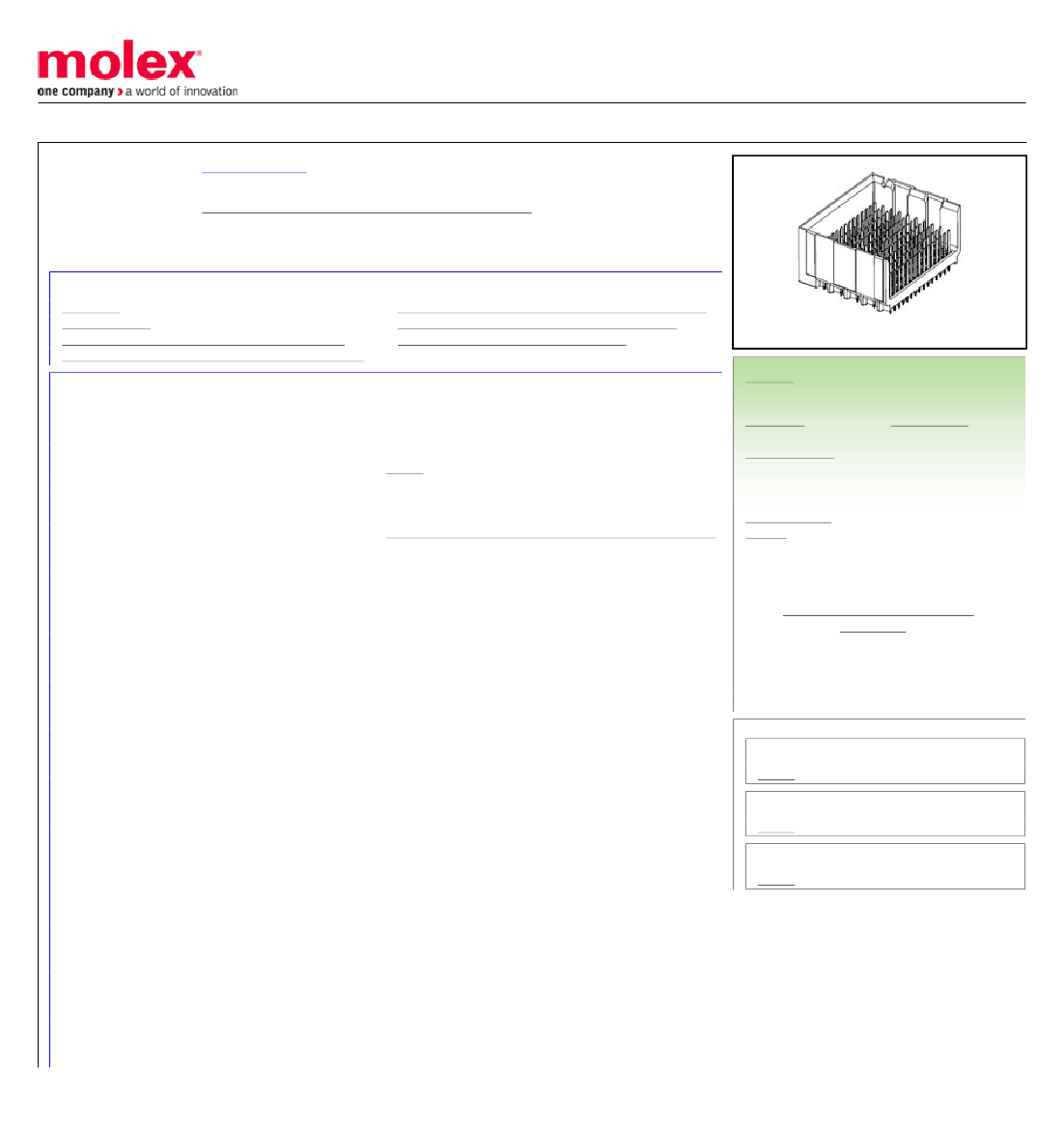

This document was generated on 10/13/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0760551218

Active

Impact™ Backplane Connectors and Cable Assemblies

Impact 100 Ohm 5 Pair Vertical Backplane Header, Unguided, Left Endwall, 12

Columns, 180 Circuits, Pin Length 5.50mm, Plated Through Hole Dimension 0.39mm,

Lead-Free

Documents:

3D Model

Drawing (PDF)

Product Specification PS-76060-999-001 (PDF)

Application Specification AS-76060-990-001 (PDF)

Agency Certification

General

Product Family

Series

Application

Application Tooling Documents

Component Type

Overview

Product Name

UPC

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Guide to Mating Part

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Columns

Number of Pairs

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Application Specification AS-76060-9999-001 (PDF)

Packaging Specification PK-70873-7702 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Relevant

E29179

Backplane Connectors

76055

Conventional, Mezzanine

TM-622018799

PCB Header

Impact™ Backplane Connectors and Cable Assemblies

Impact

884982941816

180

Black

200

94V-0

None

High Performance Alloy (HPA)

Gold

Tin

High Temperature Thermoplastic

4.107/g

Vertical

1.40mm

None

1.00mm

Tray

1.90mm

0.762µm

-55°C to +85°C

Through Hole - Compliant Pin

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained
