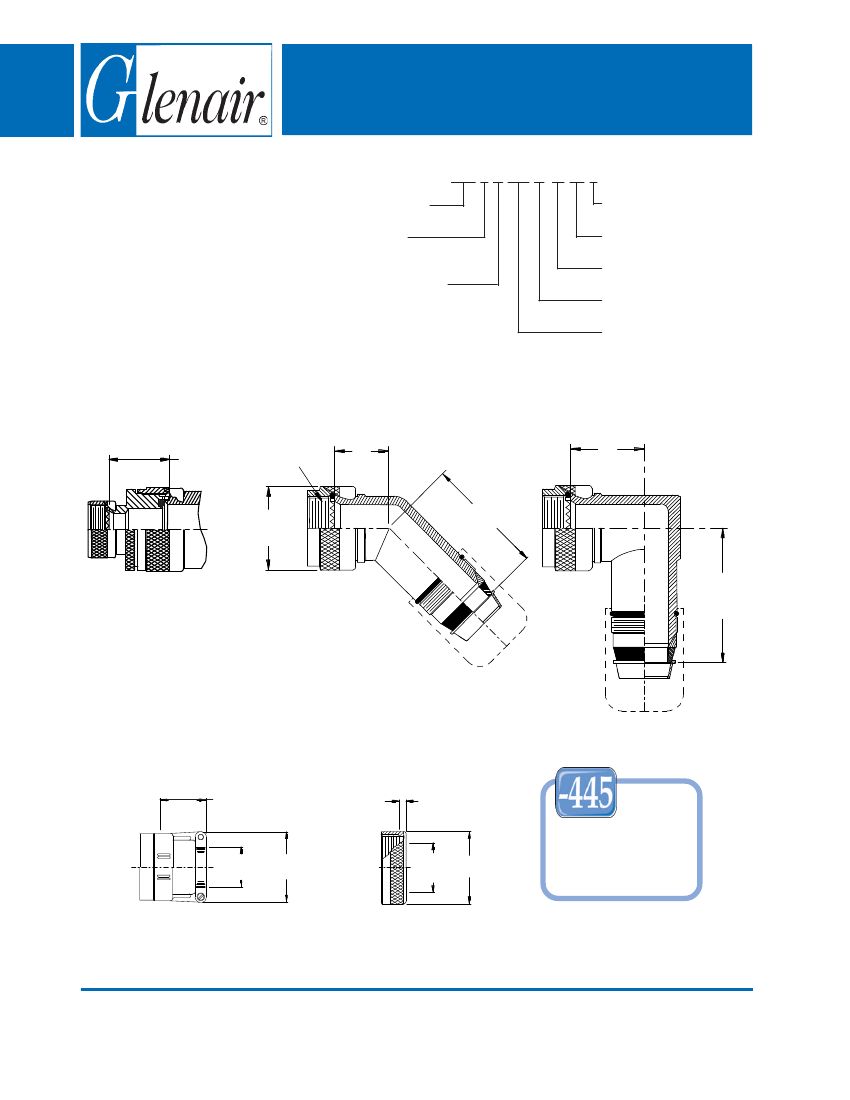

Splash-Proof EMI/RFI Cable Sealing Backshell
Light-Duty with Strain Relief
Type C - Rotatable Coupling - Standard Profile
39
CONNECTOR
DESIGNATORS
390 F K 011 M 16 05 L
Product Series
Connector
Designator
Angle and Profile
K = 45°
L = 90°
See 39-38 for straight
Strain Relief Style (L, G)
Cable Entry (Table IV)
Shell Size (Table I)
Finish (Table II)
Basic Part No.
A-F-H-L-S
ROTATABLE
COUPLING
TYPE C OVERALL
SHIELD TERMINATION
.88 (22.4)
Max
A Thread
(Table I)
E
(Table III)
G
(Table III)
C Typ.
(Table I)
F (Table III)
STYLE 2
(45° & 90°
See Note 1)
H
(Table III)
STYLE L
Light Duty
(Table IV)
.850 (21.6)
Max
STYLE G
Light Duty
(Table IV)
.072 (1.8)
Max
Now Available
with the “NESTOR”
Cable
Range
K
Cable
Range
L
Add “-445” to Specify
Glenair’s Non-Detent,
Spring-Loaded, Self-
Locking Coupling. See
Page 41 for Details.
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 39 - Page 40
Light-Duty with Strain Relief
Type C - Rotatable Coupling - Low Profile
See inside back cover fold-out or pages 13 and 14 for Tables I and II.
TABLE III: ELBOW DIMENSIONS
Shell Size
Conn. Desig.
H
A-F-L-S
09
08
11
10
13
12
15
14
17
16
19
18
21
20
23
22
25
24
28
32
36
E
±.062
.398
.458
.518
.588
.678
.868
.868
.958
.958
1.041
1.092
1.138
±(1.6)
(10.1)
(11.6)
(13.2)
(14.9)
(17.2)
(22.0)
(22.0)
(24.3)
(24.3)
(26.4)
(27.7)
(28.9)
±.062
2.210
2.270
2.330
2.420
2.530
2.720
2.720
2.870
2.870
3.020
3.270
3.500
F
±(1.6)
(56.1)
(57.7)
(59.2)
(61.5)
(64.3)
(69.1)
(69.1)
(72.9)
(72.9)
(76.7)
(83.1)
(88.9)
±.062
.438
.533
.548
.638
.823
.913
.913
1.063
1.063
1.230
1.610
1.720
G
±(1.6)
(11.1)
(13.5)
(13.9)
(16.2)
(20.9)
(23.2)
(23.2)
(27.0)
(27.0)
(31.2)
(40.9)
(43.7)
±.062
2.080
2.120
2.090
2.090
2.130
2.250
2.180
2.240
2.170
2.320
2.570
2.800
H
±(1.6)
(52.8)
(53.8)
(53.1)
(53.1)
(54.1)
(57.2)
(55.4)
(56.9)
(55.1)
(58.9)
(65.3)
(71.1)
Dash
No.
01
02
03
04
05
06
07
08
09
10
K
Max
.781 (19.8)
.968 (24.6)
1.046 (26.6)
1.156 (29.4)
1.218 (30.9)
1.343 (34.1)
1.468 (37.3)
1.593 (40.5)
1.718 (43.6)
1.843 (46.8)
TABLE IV: CABLE ENTRY
Cable
L
Min
Max
.062 (1.6)
.593 (15.1)
.125 (3.2)
.718 (18.2)
.250 (6.4)
.843 (21.4)
.375 (9.5)
.968 (24.6)
.500 (12.7)
1.109 (28.2)
.625 (15.9)
1.218 (30.9)
.750 (19.1)
1.343 (34.1)
.875 (22.2)
1.468 (37.3)
1.593 (40.5) 1.000 (25.4)
1.718 (43.6) 1.125 (28.6)
Range
Max
.125 (3.2)
.250 (6.4)
.375 (9.5)
.500 (12.7)
.625 (15.9)
.750 (19.1)
.875 (22.2)
1.000 (25.4)
1.125 (28.6)
1.250 (31.8)
1. When maximum cable entry (page 21) is exceeded, Style 2 will be supplied.
Dimensions E, F, G and H will not apply. Please consult factory.
2. Metric dimensions (mm) are indicated in parentheses.
3. Cable range is defined as the accommodations range for the wire bundle or
cable. Dimensions shown are not intended for inspection criteria.
4. Consult factory for shorter lengths on straight backshells.
5. Interface O-Ring not supplied with Connector Designator A.
6. -445 modification not available on MIL-DTL-38999 Series II.
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 39 - Page 41
39
390-011
Splash-Proof EMI/RFI Cable Sealing Backshell
