TH71082
868/915MHz
ASK Transmitter / LO Source
Features
!
Fully integrated, PLL-stabilized VCO
!
Flexible frequency range from 800 MHz to 930 MHz
!
ASK achieved by on/off keying of internal
power amplifier
!
FM possible with external varactor
!
Wide power supply range from 2.2 V to 5.5 V
!
High over-all frequency accuracy
!
Very low standby current
!
!
!
!
!
Adjustable output power range from
-18 dBm to -2 dBm
Adjustable current consumption from
6.2 mA to 12.5 mA
Single-ended RF output
Clock output for µC drive
Conforms to EN 300 220 and similar
standard
Ordering Information
Part No.
TH71082
Temperature Range
-40 C° to 85 °C
Package
SOIC8
Application Examples
!
!
!
!
!
!
Keyless car and central locking
Low-power telemetry
Alarm and security systems
General digital data transmission
General analog audio signal transmission
Local oscillator signal generation

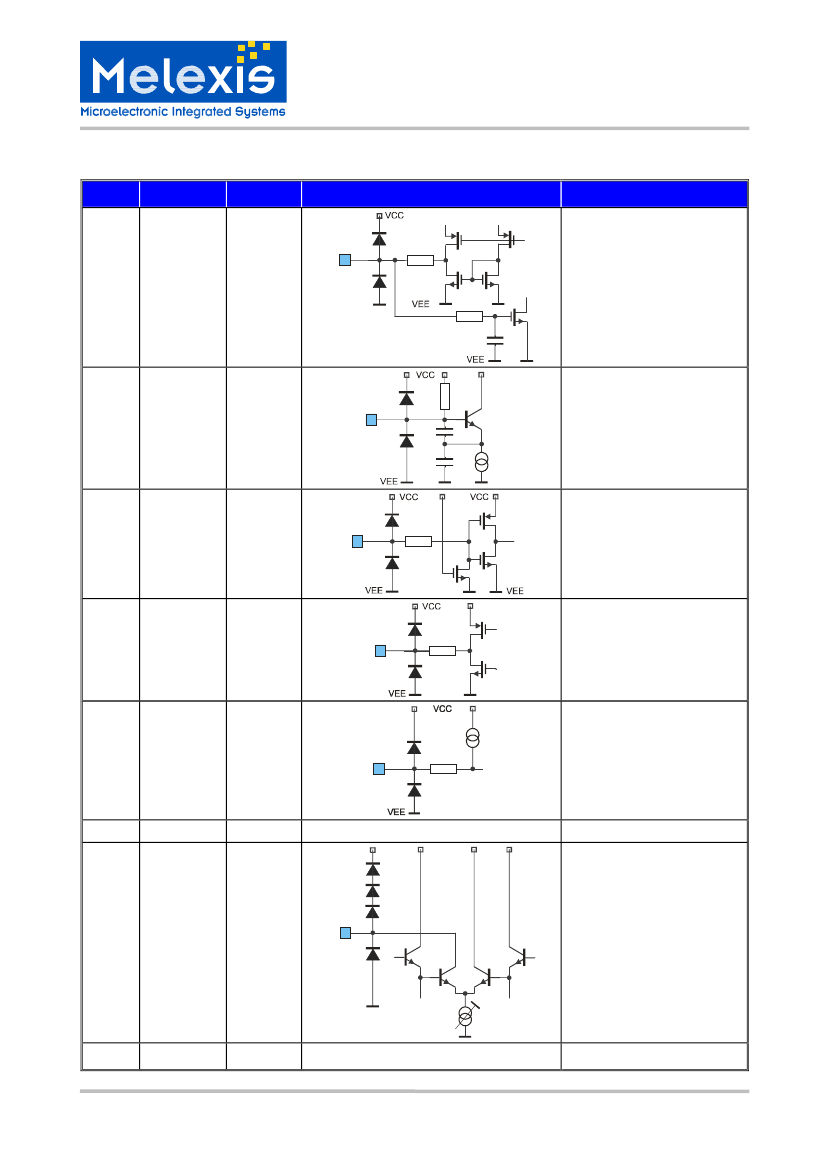

Pin Description
LF
1
8
VEE
RO
2
ENTX
3
CKOUT
4
TH71082
7
OUT
6
VCC
5
PS/DATA
TH71082 Data Sheet
3901071082
Page 1 of 10
Dec. 2001
Rev. 004
TH71082
868/915MHz
ASK Transmitter / LO Source
General Description
The TH71082 ASK transmitter IC is designed for
applications in the European 868MHz industrial-
scientific-medical (ISM) band, according to the EN
300 220 telecommunications standard. It can also
be used for any other system with carrier
frequencies ranging from 800 MHz to 930 MHz
(e.g. for applications in the US 915MHz ISM band).
The transmitter's carrier frequency f
c
is determined
by the frequency of the reference crystal f
ref
that is
used. The integrated PLL synthesizer ensures that
each RF value, ranging from 800 MHz to 930 MHz,
can be achieved by using a crystal with reference
frequency according to: f
ref
= f
c
/N, where N = 32 is
the PLL feedback divider ratio.
Theory of Operation
General
As depicted in Fig.1, the TH71082 transmitter
consists of a fully integrated voltage-controlled
oscillator (VCO), a divide-by-32 divider (div32), a
phase-frequency detector (PFD) and a charge
pump. An external loop filter at pin LF determines
the dynamic behaviour of the PLL and suppresses
reference spurious signals.
The VCO’s output signal feeds the power amplifier
(PA). RF signal power P
o
can be adjusted in six
steps from P
o
= –15 dBm to -1 dBm, either by
changing the value of resistor R
1
or by varying the
voltage V
PS
at pin PS/DATA. The open-collector
output (OUT) can be used to either drive a loop
antenna or to feed a single-ended load impedance.
This could be, for example
λ
/4 monopol antenna
or a 50Ω output port. In any case, an impedance
matching network should be added in order to
achieve maximum available RF power.
Bandgap biasing ensures stable operation of the IC
at a power supply range of 2.2 V to 5.5 V.
Clock Output
The TH71082 feature a clock output (CKOUT) that
can be used to drive a µC. The frequency at
CKOUT is f
ref
/8. The clock output is slew-rate limited
in order to keep spurious signal emission as low as
possible. The voltage swing at CKOUT depends on
the capacitive loading at this pin.
It is approximate 2 V
pp
at C
load
= 5 pF
ASK Modulation
The TH71082 can be ASK-modulated by applying
data directly at pin PS. This turns the PA on and off
and therefore leads to an ASK signal at the output.
LO Source
Many applications require a stable RF source. For
this purpose, the TH71082 can be used without
modulation as an easy-to-use, PLL-stabilized,
continuous wave (CW) generator.
Frequency Modulation (FM)
For FM operation an external varactor is required. It
simply acts as a pulling capacitor connected in
series to the crystal. Then the analog modulation
signal, applied through a series resistor, directly
modulates the XOSC.
Mode Control Logic
The mode control logic allows two different modes
of operation as listed in the following table. The
mode control pin ENTX is pulled-down internally.
This guarantees that the whole circuit is shut down
if this pin is left floating.
ENTX
Mode
Description
0
1
TX disabled whole circuit in standby
TX enable TX active
Table 1: Modes of operation
TH71082 Data Sheet
3901071082
Page 2 of 10
Dec. 2001
Rev. 004
