NUMBER
TYPE
GS-12-433
TITLE
PRODUCT SPECIFICATION
PAGE
REVISION
1 of 10
C
DATE
SUB DELTA-D RIGHT ANGLE PIP
FCI P/N : D--P/S 13 A/B 4/6------LF(EUROPE STANDARD)
D--P/S 33E 4/6------LF(US STANDARD)
D--P/S 13A/B 4/6—108-LF(EUROPE REVERSE)
AUTHORIZED BY
ALIAS BABU
09 June 2015
CLASSIFICATION
UNRESTRICTED
DELTA D R/A PIP

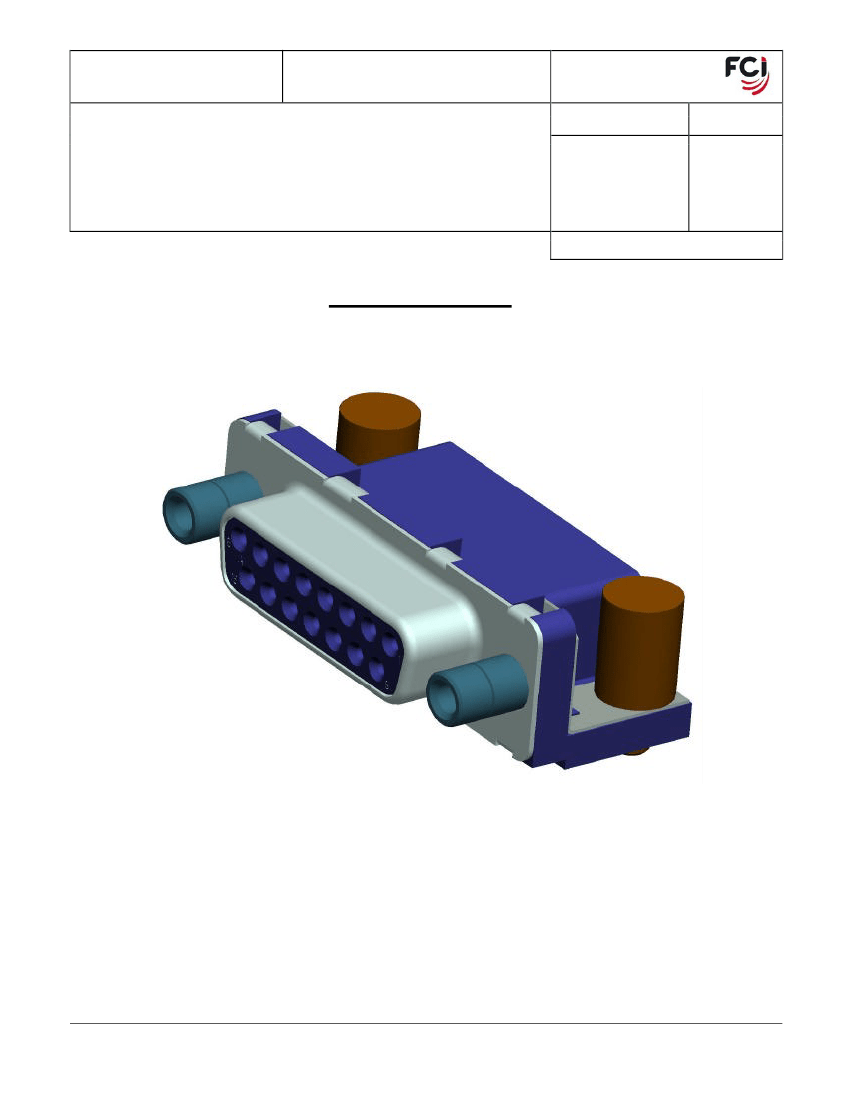

Fig: 1
Copyright FCI.
Form E-3701 – Revision C
GS-01-029
PDS: Rev :C
STATUS:Released
Printed: Jul 03, 2015
NUMBER
TYPE
GS-12-433
TITLE
PRODUCT SPECIFICATION
PAGE
REVISION
2 of 10
C
DATE
SUB DELTA-D RIGHT ANGLE PIP
FCI P/N : D--P/S 13 A/B 4/6------LF(EUROPE STANDARD)
D--P/S 33E 4/6------LF(US STANDARD)
D--P/S 13A/B 4/6—108-LF(EUROPE REVERSE)
AUTHORIZED BY
ALIAS BABU
09 June 2015
CLASSIFICATION
UNRESTRICTED
1.0
Objective
This specification defines the performance, test, quality and reliability requirements of SUB DELTA D PIP
Right Angle.
2.0
Scope
This product specification covers the requirements of a SUB DELTA D PIP Right Angle (Male & Female):
US STANDARD 9,15, 25 & 37 POS
EUROPE STANDARD 9,15, 25 & 37 POS
EUROPE Reverse
For Product Pick Process: Hand Placing / Gripper / Vacuum Nozzle
3.0
Ratings
3.1
3.2
3.3
3.4
3.5
3.6
3.7
Rated Voltage = 300V
Test Voltage = 1000V
Max. Current Rating = 5A
Contact Resistance
≤
25mΩ
Shell Resistance
≤
5mΩ
Insulation Resistance
≥
5000 MΩ
Operating Temperature Range = -55
o
C to 125
o
C
4.0
Applicable Documents
4.1
FCI Specifications
4.1.1 Engineering drawings
4.1.2 Packing Specifications:
In accordance with GS-14-1139 for Tape & Reel Packaging
In accordance with GS-14-1157 for Tray Packaging
Copyright FCI.
Form E-3701 – Revision C
GS-01-029
PDS: Rev :C
STATUS:Released
Printed: Jul 03, 2015
NUMBER
TYPE
GS-12-433
TITLE
PRODUCT SPECIFICATION
PAGE
REVISION
3 of 10
C
DATE
SUB DELTA-D RIGHT ANGLE PIP
FCI P/N : D--P/S 13 A/B 4/6------LF(EUROPE STANDARD)
D--P/S 33E 4/6------LF(US STANDARD)
D--P/S 13A/B 4/6—108-LF(EUROPE REVERSE)
AUTHORIZED BY
ALIAS BABU
09 June 2015
CLASSIFICATION
UNRESTRICTED
4.2
OTHER STANDARDS AND SPECIFICATIONS
4.2.1
4.2.2
4.2.3
4.2.4
4.2.5
4.2.6
IEC 512
CECC 75 301
DIN 41652
MIL-DTL-24308
Flammability: UL94 V-0
Lead free soldering
In accordance with: JSTD_020
5.0
Requirements
5.1
Qualification
Connectors furnished under this specification shall be capable of meeting the qualification test
requirements specified herein.
5.2
Materials
5.2.1 Housing dielectric material: Thermoplastic- PA 33% Glass Filled
UL94 V-0 rating Black colour
5.2.2 Terminal material: Copper Alloy
Brass/Phosphorous Bronze for male contact
Phosphorous Bronze for female contact
5.2.3 Shell Material: Steel
5.2.3 Accessory Material: Brass/Mild Steel
5.3
Finish
5.3.1 Terminal Plating: Gold over Nickel on mating area metal
Tin over Nickel on termination
5.3.2 Shell Plating: Nickel over Copper or Zinc Cr3+
5.3.3 Accessory Plating:
Nickel
LIF Metal Peg: - Tin over Nickel.
Female Screw, Insert & Metal Bracket: - Nickel Sulfamate or Tin over
Copyright FCI.
Form E-3701 – Revision C
GS-01-029
PDS: Rev :C
STATUS:Released
Printed: Jul 03, 2015
NUMBER
TYPE
GS-12-433
TITLE
PRODUCT SPECIFICATION
PAGE
REVISION
4 of 10
C
DATE
SUB DELTA-D RIGHT ANGLE PIP
FCI P/N : D--P/S 13 A/B 4/6------LF(EUROPE STANDARD)
D--P/S 33E 4/6------LF(US STANDARD)
D--P/S 13A/B 4/6—108-LF(EUROPE REVERSE)
AUTHORIZED BY
ALIAS BABU
09 June 2015
CLASSIFICATION
UNRESTRICTED
5.4
Design and Construction
Connectors shall be of the design, construction, and physical dimensions specified on the applicable
product drawing. There shall be no cracks, burrs, or other physical defects that may impair
performance.

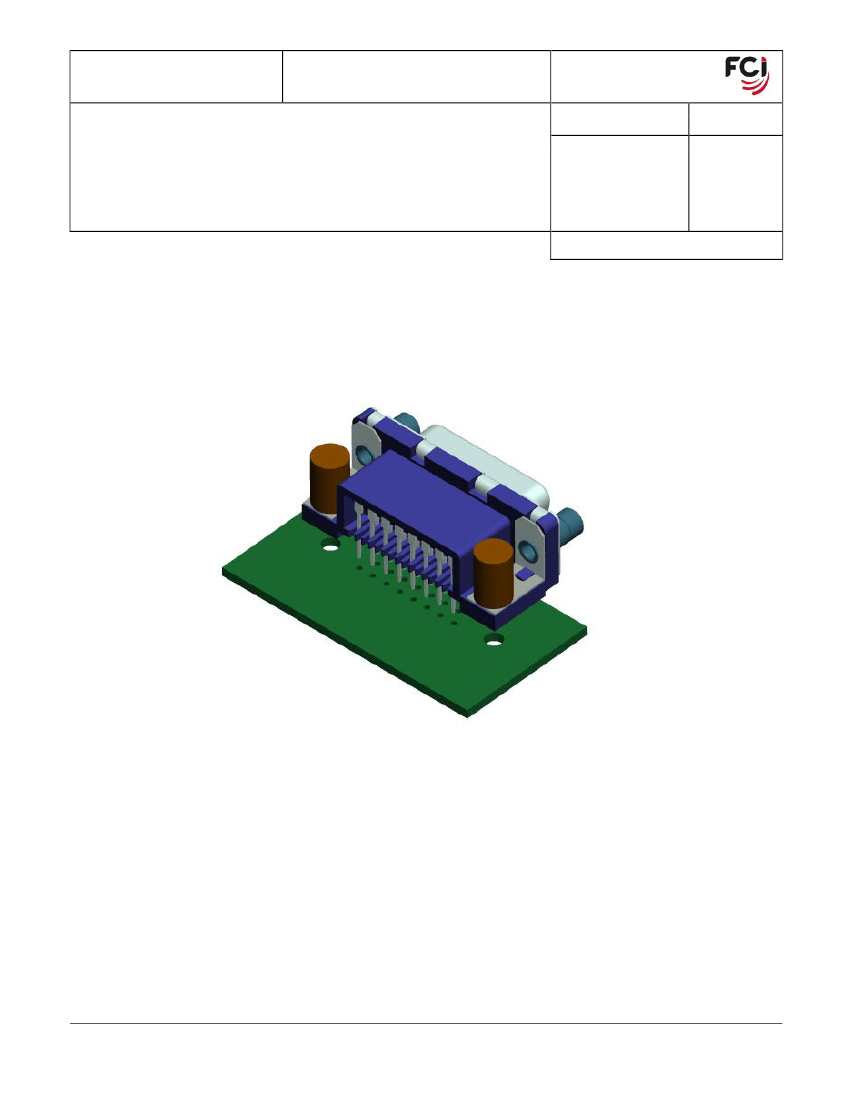

Fig: 2
PRODUCT LEAD FREE IN ACCORDANCE TO RoHS 2002/EC/95
5.4.1 Mating: The connector shall be capable of mating and unmating by hand without the use of
special tools with specified temperature range.
5.4.2 Workmanship: Connectors shall be uniform in quality and shall be free from burrs, scratches,
cracks, voids, chips, blisters, pin holes, sharp, edges and other defects that will adversely affect life or
serviceability.
5.4.3 Interchangeability: Individual plugs and sockets shall be capable of mating with any appropriately
constituted female or male standard D-subminiature connector of the same population without
degradation in performance.
Copyright FCI.
Form E-3701 – Revision C
GS-01-029
PDS: Rev :C
STATUS:Released
Printed: Jul 03, 2015
NUMBER
TYPE
GS-12-433
TITLE
PRODUCT SPECIFICATION
PAGE
REVISION
5 of 10
C
DATE
SUB DELTA-D RIGHT ANGLE PIP
FCI P/N : D--P/S 13 A/B 4/6------LF(EUROPE STANDARD)
D--P/S 33E 4/6------LF(US STANDARD)
D--P/S 13A/B 4/6—108-LF(EUROPE REVERSE)
AUTHORIZED BY
ALIAS BABU
09 June 2015
CLASSIFICATION
UNRESTRICTED
6.0
Electrical Characteristics
6.1.
Contact Resistance, Low Level (LLCR)
The low level contact resistance shall not exceed 25 milliohms (Max. rise 10mΩ in relation to initial
values in other tests) when measured in accordance with IEC 512-2, Method Test 2a.
The following detail shall apply:
a. Method of Connection - attach current and voltage leads as shown in figure 3.
b. Test Voltage: Not to exceed 20 millivolts DC or AC. Peak, open circuit.
c. Test Current: Not to exceed 100 milliamperes. AC or DC
6.2.
Insulation Resistance
The insulation resistance of unmated connectors shall be not less than 5,000 megohms when
measured in accordance with IEC 512-2, Method Test 3a.
The following detail shall apply:
a. Test Voltage: 100V±15V d.c
b. Electrification Time: 60 ± 5 sec
c. Point of Measurement: Between adjacent contacts.
6.3 Voltage Proof (DWV)
There shall be no breakdown or flashover and maximum permissible leakage current shall not be
exceeded when voltage specified is applied and when the unmated connectors are tested in
accordance with IEC 512-2, Method Test 4a.
The following detail shall apply:
a. Test Voltage
i. Contacts/Contacts: 1000 V r.m.s
ii. Contact/Test panel:1200 V r.m.s
b. Test duration: 60 ± 5 sec
c. Test Condition: Standard atmospheric conditions
Copyright FCI.
Form E-3701 – Revision C
GS-01-029
PDS: Rev :C
STATUS:Released
Printed: Jul 03, 2015
