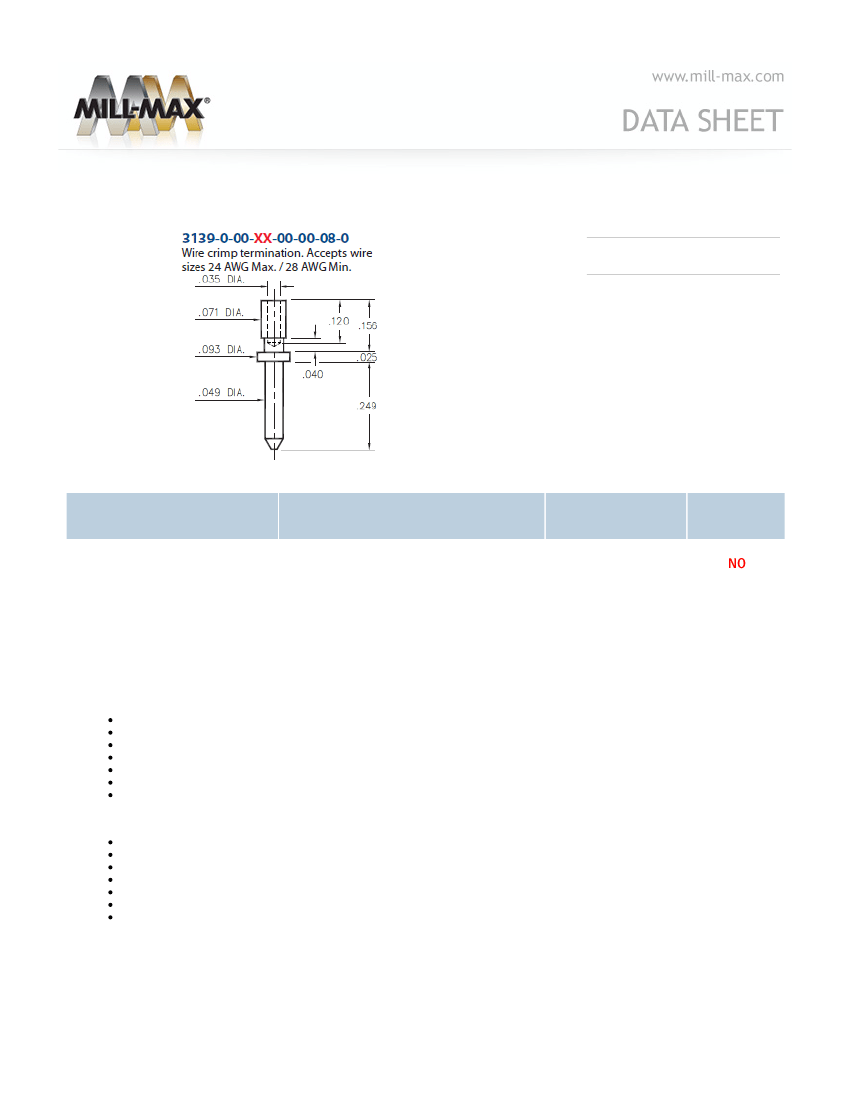

Product Number: 3139-0-00-01-00-00-08-0
Description:
3139
- Wire Termination Pin - Crimp Type
Packaging:
Packaged in Bulk
Mill-Max
Part
Number
3139-0-00-01-00-00-08-0
Shell Plating
Contact Plating
RoHS
Compliant
200 - 300 μ" Tin/Lead over Nickel
00
SHELL MATERIAL:
BRASS ALLOY
360 per ASTM B 16, or 385 per ASTM B455
Properties of BRASS ALLOY 360 ASTM B 16:
Chemical composition: Cu 63% (max), Pb 3.7% (max)†, Fe .35% (max), Zn remainder
Temper as machined: H02/H04
Yield Strength: 25-45 ksi
Tensile strength: 57-80 ksi
Hardness as machined: 80-90 Rockwell B
Electrical conductivity: 26% IACS*
Melting point: 1000°C/840°C (liquidus/solidus)
Properties of BRASS ALLOY 385 ASTM B 455:
Chemical composition: Cu 60% (max), Pb 3.5% (max)†, Fe .35% (max), Zn remainder
Temper as machined: H02/H04
Yield Strength: 16 ksi(min)
Tensile strength: 48 ksi(min)
Hardness as machined: 80-90 Rockwell B
Electrical conductivity: 28% IACS*
Melting point: 1000°C/840°C (liquidus/solidus)
After machining, brass parts are often annealed (softened) for subsequent bending, swaging or crimping. A partial anneal
down to 60±10 RB is recommended for 90° bends, a full anneal down to 35±15 RB is recommended for pins or terminals
that are swaged (riveted) to a circuit board or crimped to a wire.
†RoHS-2 directive 2011/65/EU, exemption 6c allows up to 4% lead as an alloy agent in copper.
*International Annealed Copper Standard, i.e. as a % of pure copper.
Mill-Max Mfg. Corp. Datasheet — Last Modified 12/5/2017
Page 1 of 2
Certificate of Compliance:
This is to Certify that the product described above is manufactured to Mill-Max quality standards in accordance with all
applicable specifications and drawing. Mill-Max certifies this product to be free from defects of materials and workmanship.
This Certificate of Compliance covers the following requirements:
Dimensional (all features verified to be within tolerances described on the applicable drawing).
Raw Material (materials and properties verified to be as described on the applicable drawing).
Plating (platings as required, thickness verified, and performance including solderability per mil-standard).
Performance (insertion extraction or other force requirements as described on the applicable drawing).
Compliance Statement for Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Reference:
1. Regulation EC No 1907/2006 of the European Parliament and of the Council of 18 December 2006, concerning the
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
2. ECHA, Candidate list of Substances of Very High Concern (SVHC)
http://echa.europa.eu/reach_en.asp
Mill-Max is aware of the regulation and the SVHC list the EU published (referenced above). Mill-Max does not produce or sell any
of the listed substances in their homogeneous form. These substances are not intentionally added during the manufacturing of
any Mill-Max products. To our knowledge, our products do not contain the substances described on the ECHA SVHC list. Testing
is not performed for materials and substances that were not intentionally added. No warranty, liability of indemnification is
expressed or implied with this information. Mill-Max maintains surveillance of the ECHA website to obtain the latest information
and periodically reviews the SVHC list for changes and additions.
Compliance Statement for DRC Conflict Free products.
Reference:
Dodd-Frank Wall Street Reform and Consumer Protection Act, Section 1502, reporting requirements for users of conflict
minerals.
�Conflict minerals,� are Columbite-tantalite (coltan), cassiterite, gold, wolframite, or their derivatives; or any other
mineral or its derivatives determined by the Secretary of State to be financing conflict in the Democratic Republic of the Congo
(DRC) or an adjoining country. Metals derived from these minerals are tin, tantalum, tungsten, and gold. By this definition,
the only minerals of concern that may be found in Mill-Max products are tin and gold.
Mill-Max Mfg.Corp. hereby certifies that its products are manufactured with tin and gold that is derived from material that is
considered DRC Conflict Free. Mill-Max provides this assurance as a result of a due diligence process that includes traceability
to the source and in some cases the identification of recycled and scrap materials included in the subject material.
Mill-Max Mfg. Corp. Datasheet — Last Modified 12/5/2017
Page 2 of 2
