Introduction
Cinch Dura-Con
TM
connectors are designed for applications that require a rugged, durable, and high-performance interconnect.
Dura-Con is the ideal connector for applications where weight and space must be kept to a minimum while maintaining maximum
reliability. Miniaturized airborne electronics and data processing equipment, where shorter signal paths are needed, represent
typical applications for these unique connectors.

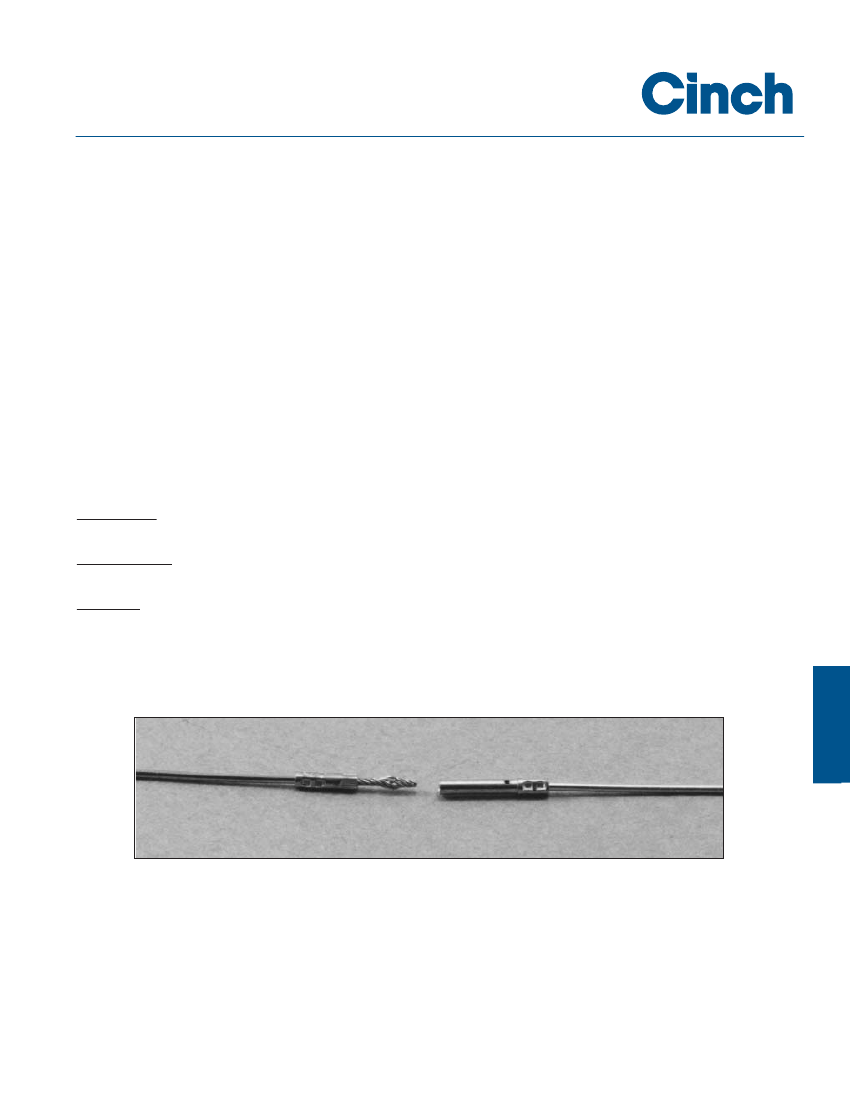

The heart of the Dura-Con system is the Dura-Con pin contact. The Cinch Dura-Con pin contact is made from a precision minia-
ture spring cable with a welded tip. The expanded cable provides seven spring members peripherally around the pin so that con-
tact is maintained with the mating socket wall no matter what radial forces are applied. This spring may be flexed many times
without any evidence of metal fatigue. Reliable mating is further ensured by protecting the pin contact in a tightly toleranced
recessed cavity.
Cinch’s family of Dura-Con connectors includes MIL-C-83513 Series connectors along with our own commercial equivalents.
The commercial Dura-Con product line offers an expanded range of termination and hardware options for all-plastic and metal
shell wire versions and right-angle and straight PC board mount “terminal blocks”. Cinch also packages the Dura-Con contact
in a very low profile plastic strip connector on .050" centers and in a line of high-density microminiature edge (Microedge) board
connectors that meet the requirements of MIL-C-55302. Cinch has created a line of plastic and metal shell Dura-Con
connector savers for very high mating cycle applications such as test equipment.
Termination Options:
Cinch offers the following termination methods for its Dura-Con connectors:
Insulated Wire - Insulated wire is crimped to the Dura-Con contacts then epoxy backpotted at the factory. Wire is available in
standard lengths of 18, 24, 36, and 48 inches.
Uninsulated Wire - 24 AWG, gold-plated, uninsulated wire is crimped to the Dura-Con contact at the factory. Wire is available in
standard lengths of 0.5, 1.0, and 2.0 inches. This option allows the user greater flexibility when installing the connector.
Solder Cup - For applications that require the lowest contact resistance, Cinch offers Dura-Con connectors with solder cups for
termination by the user.
5
Dura-Con is a trademark of Cinch Connectors.
5-1
Call Toll Free: 1 (800) 323-9612
Dura-Con
Introduction
Custom Capabilities:

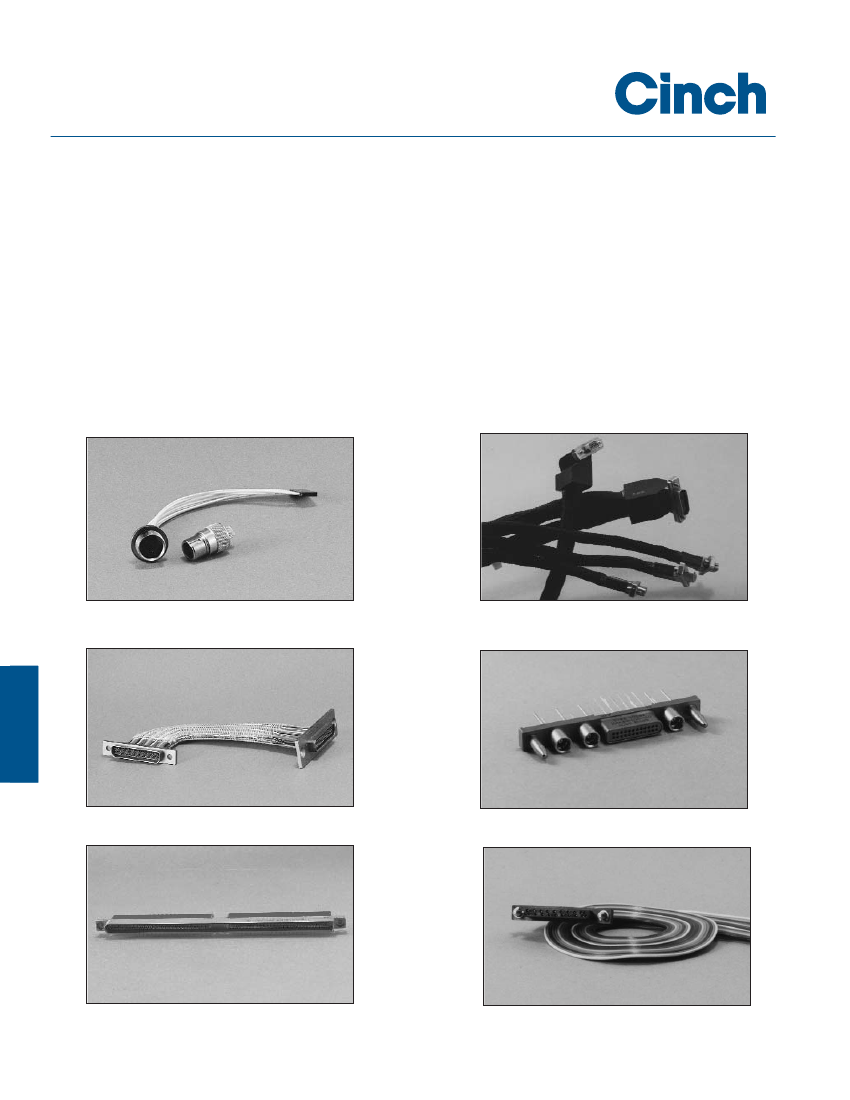

Standard Cinch Dura-Con connectors satisfy a wide variety of applications. Cinch’s line of Dura-Con D-microminiature
connectors is one of the most versatile in the industry. There are over 50,000 possible combinations of Cinch standard options
such as connector type, size, materials, hardware, and termination.
When special application requirements arise, Cinch Dura-Con connectors take this versatility to the next level. Whether specific
needs entail new variations of simple end-to-end connector assemblies or more complex and intricate harness assemblies,
Cinch Connector Division has the state-of-the-art engineering resources and research facilities in place to meet your needs.
Cinch approaches your business with a well-defined goal: to ensure the integrity of your design and to execute our contribution to
it in a responsible, cost-effective manner. This philosophy has led Cinch to a position of industry leadership.
For complete information regarding the total capabilities of the Dura-Con connector series, or for custom application assistance,
contact your nearest Cinch Connectors sales office.
5
Call Toll Free: 1 (800) 323-9612
5-2
Dura-Con
High Reliability
All-Plastic
.050" (1.27mm) Density
Solder Cup/Wire
D-Microminiature
■

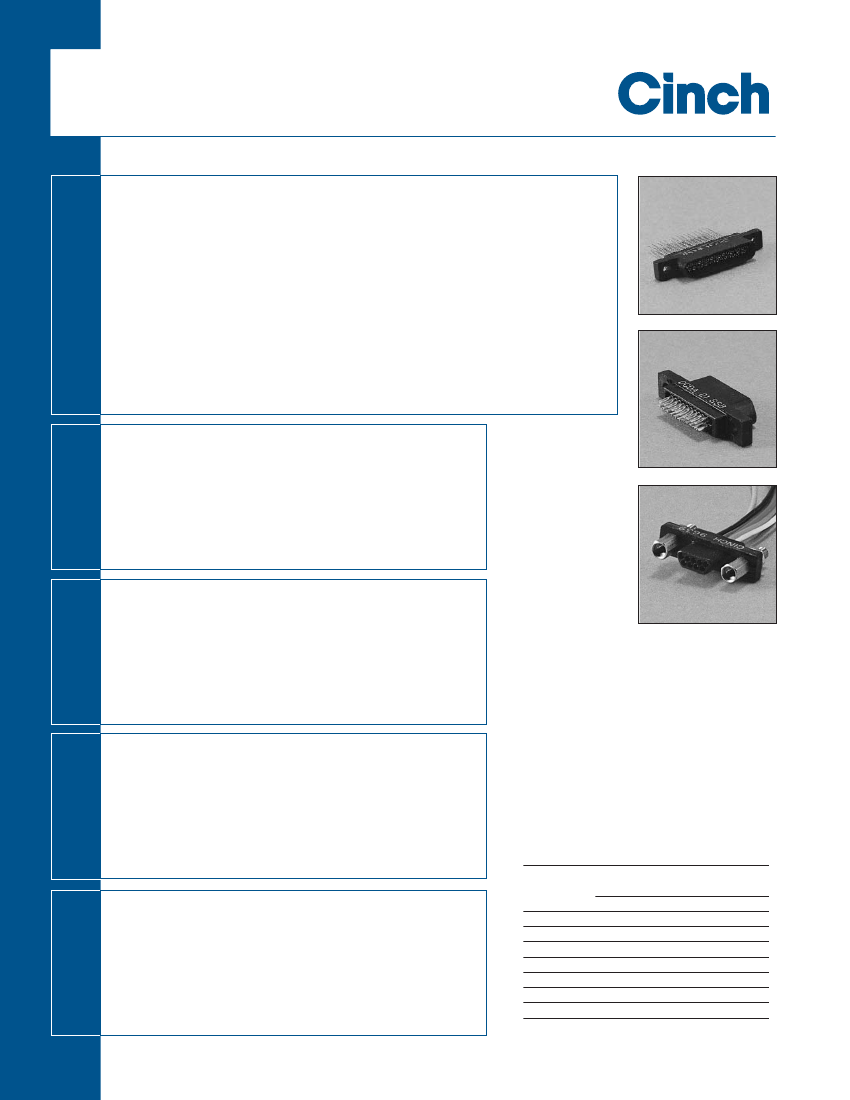

Both plug and socket available in 9, 15, 21, 25, 31, 37, and 51 positions.
■
Termination styles - solder cup, gold-plated solid wire, and insulated
stranded wire.
F
EATURES
M
ATERIALS
E
NVIRONMENTAL
E
LECTRICAL
■
Several styles of mounting hardware are available for cable-to-cable,
cable-to-board mount, and cable-to-panel mount applications.
■
High-performance Dura-Con twist-pin contact.
■
Economical all-plastic shell for lightweight applications where no
shielding is required.
■
Meets requirements of MIL-C-83513 except where noted.
Insulator:
UL94V-0 rated glass-filled polyester
Contacts:
Pins - Copper alloy, Sockets - Copper alloy (machined)
Contact Plating:
.000050 in gold
Operating Temperature:
-55° C to +135° C
Current Rating:
Withstanding Voltage:
Contact Resistance:
3 Amps maximum
600 VAC RMS @ sea level
8 milliohms maximum change
Individual Contact:
6 oz. (170.40 g) maximum insertion;
0.5 oz. (14.20 g) minimum withdrawal
Mating / Unmating Force:
See table
No. of
Contacts
9
15
21
25
31
37
51
Maximum
Mating Force
Lb.
Kg
5.63
2.56
9.38
4.26
13.13
5.96
15.63
7.10
19.38
8.80
23.13
10.50
31.88
14.47
Minimum
Unmating Force
Lb.
Kg
.28
.13
.47
.21
.66
.30
.78
.35
.97
.44
1.16
.53
1.59
.72
M
ECHANICAL
Call Toll Free: 1 (800) 323-9612
5-4
Dura-Con
High Reliability
All-Plastic

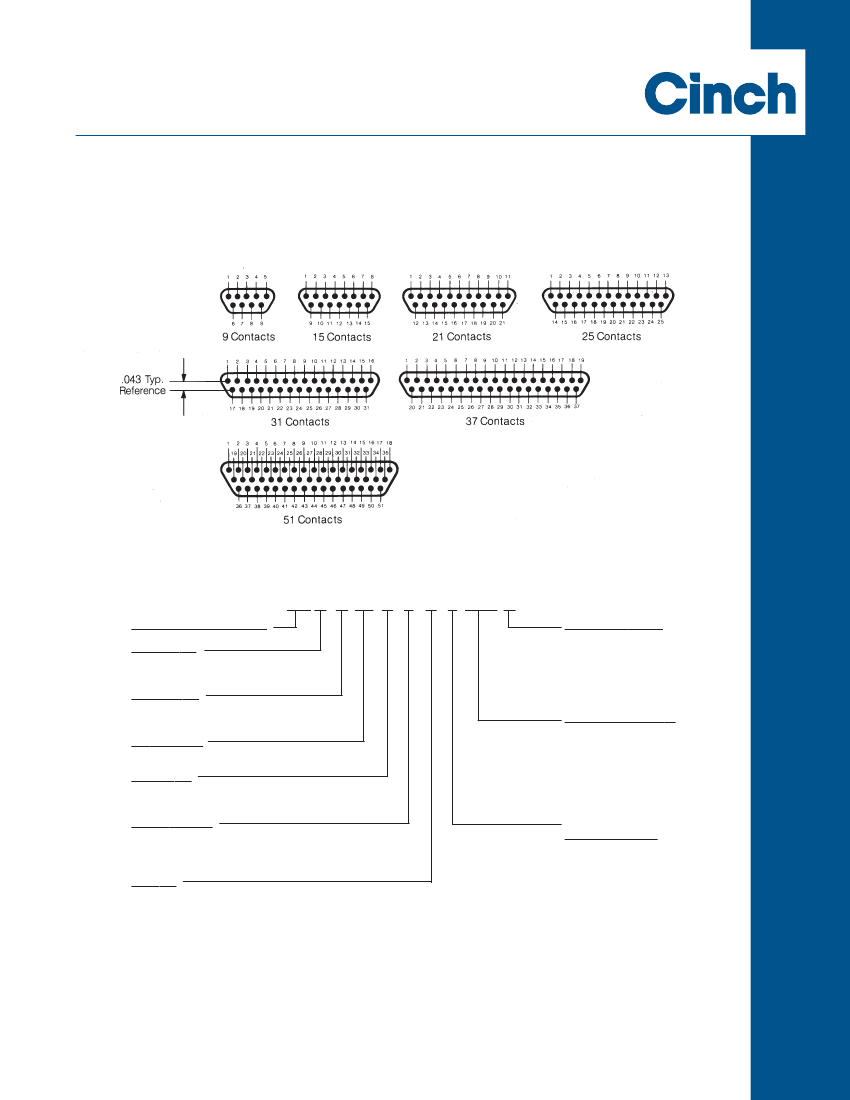

Contact Arrangements
(Face view of pin insulator)
(Use reverse order for socket)
.050" (1.27mm) Density
Solder Cup/Wire
D-Microminiature
Ordering Information
DC D A 37 P 6 E 2 -18.0 K
Cinch Dura-Con D Connector
Insulator Type
*D
= Thermoplastic
Glass Reinforced
Mounting Type
*A
= Screw Mount Flange
Mounting Hardware**
B
= No Hardware
F
= Float Mount
R
= Reverse Float Mount
K
= Jackscrew (Standard)
L
= Jackscrew (Low Profile)
P
= Jackpost, MIL-C-83513/5-07
Lead Length
in inches***
00.5
Solid copper wire only
01.0
Solid copper wire only
02.0
Solid copper wire only
18.0
Stranded wire only
24.0
Stranded wire only
36.0
Stranded wire only
48.0
Stranded wire only
Insulation
Color or Wire Finish
1
= White
*2
= Yellow (Stranded Wire)
3
= Tin-Plated
*4
= Gold-Plated (Solid Wire Only)
*5
= Color Coded Per MIL-Std. (681)
System 1. (Stranded Wire Only)
No. of Contacts
9, 15, 21, 25, 31, 37, 51
Contact Type
P
– Pin (Plug)
S
– Socket (Receptacle)
Wire Size in AWG
5
= 25 AWG Solid Copper
6
= 26 AWG Stranded
S
= Solder Cup (Skip to Mounting Hardware)
Wire Type
E
= MIL-W-16878/4, 7 Strand
C
= Solid Copper - Uninsulated
(
Consult factory for non-standard wire types)
*
- Indicates Cinch std. option.
**
- See p. 5-12 for std. hardware dims. See p. 5-13 for non-std. hardware & p. 5-31 for Mil spec. hardware both sold separately.
***-
Length Tolerance: solid wire = ± 3/32”, standard wire = ± 1/4”.
5-5
