8-215570-0: Description(8-215570-0) MICRO-MATCH PBC.10P; CategoryThe connector The connector; File Size303KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

8-215570-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8-215570-0	-	-	View	Buy Now

8-215570-0 Overview

(8-215570-0) MICRO-MATCH PBC.10P

8-215570-0 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1417575353
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	PCB Mount Paddleboard Connector, Vertical, Cable-to-Board, 10 Position, .05 in [1.27 mm] Centerline, Ribbon Cable, Micro-MaTch Industrialn
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2023-04-02 06:25:08
YTEOL	9.15
Other features	MICRO-MATCH
Board mount options	SOLDERABLE RETENTION CLIPS
body width	0.201 inch
subject depth	0.2 inch
body length	0.638 inch
Body/casing type	RECEPTACLE
Cable type	RIBBON
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT APPLICABLE
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	DUAL PRONG
DIN compliance	NO
Electromagnetic interference shielding	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
maximum insertion force	4.8928 N
Insulation resistance	1000000000 Ω
Insulator color	RED
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Power Connector Ratings	1.5A
Plug contact pitch	0.1 inch
Match contact row spacing	0.059 inch
Mixed contacts	NO
Installation option 2	FRICTION LOCK
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of ports	1
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Panel mounting	NO
Plating thickness	196.85u inch
polarization key	POLARIZED
Rated current (signal)	1.5 A
Rated voltage	100 V
Guideline	UL
Terminal length	0.125 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	10
UL Flammability Code	94V-0
Maximum wire diameter	28 AWG
Evacuation force-minimum value	1.0008 N

Preview

Download Datasheet

View All

4

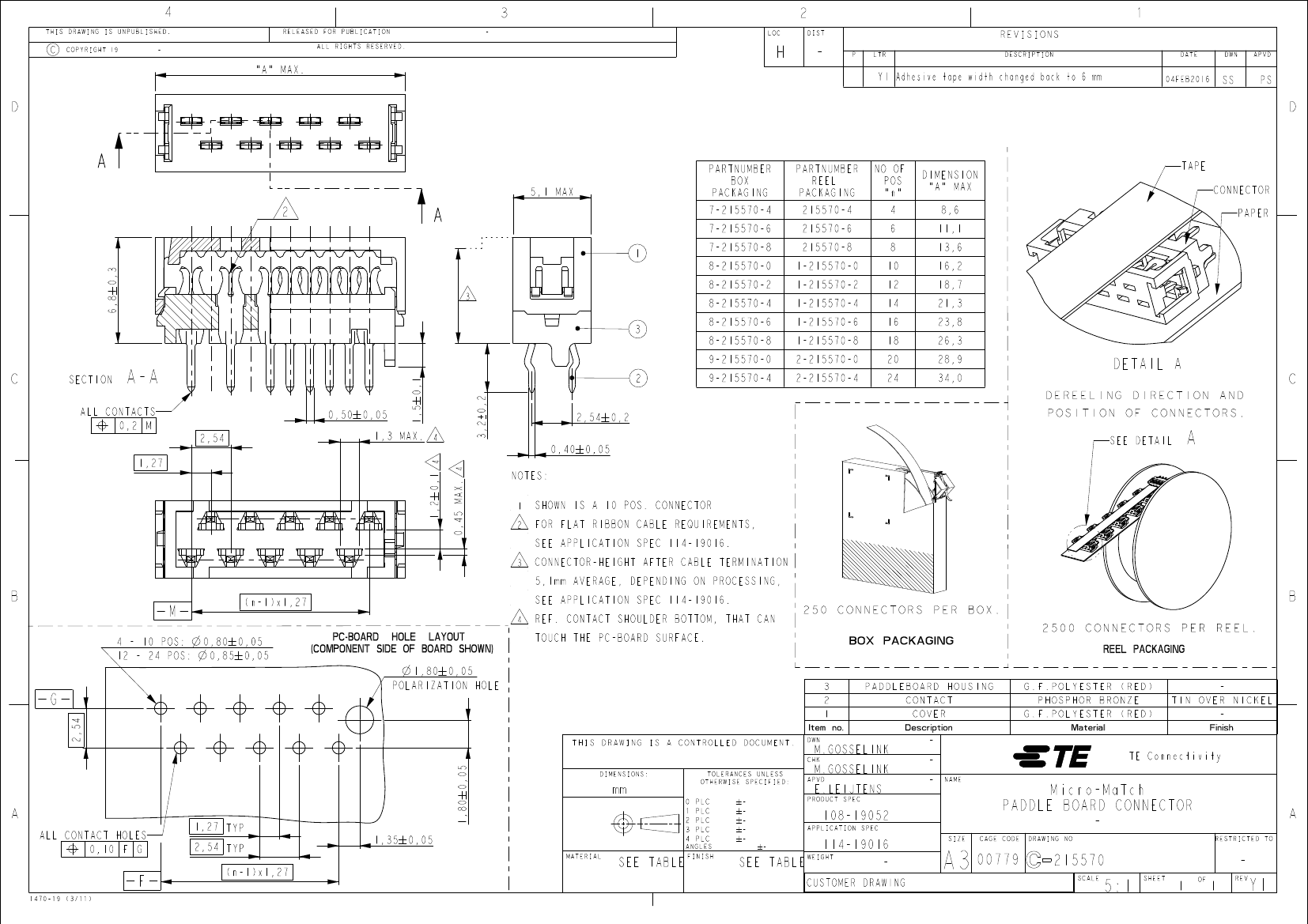

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

-

3

LOC

2

DIST

1

C

COPYRIGHT 19

-

"A" MAX.

H

-

REVISIONS

P

LTR

DESCRIPTION

DATE

DWN

APVD

Y1 Adhesive tape width changed back to 6 mm

04FEB2016

SS

PS

D

5,1 MAX

PARTNUMBER

BOX

PACKAGING

7-215570-4

7-215570-6

1

7-215570-8

8-215570-0

8-215570-2

8-215570-4

3

8-215570-6

8-215570-8

9-215570-0

9-215570-4

PARTNUMBER

REEL

PACKAGING

215570-4

215570-6

215570-8

1-215570-0

1-215570-2

1-215570-4

1-215570-6

1-215570-8

2-215570-0

2-215570-4

NO OF

POS

"n"

4

6

8

10

12

14

16

18

20

24

DIMENSION

"A" MAX

8,6

11,1

13,6

16,2

18,7

21,3

23,8

26,3

28,9

34,0

TAPE

CONNECTOR

PAPER

2

6,8 0,3

3

1,5 0,1

C

SECTION

A-A

0,50 # 0,05

2,54

2

3,2±0,2

2,54 # 0,2

0,40 0,05

0,45 MAX.

4

NOTES:

1

2

DETAIL A

DEREELING DIRECTION AND

POSITION OF CONNECTORS.

C

ALL CONTACTS

0,2 M

1,27

1,3 MAX.

4

1,2 # 0,1

4

SEE DETAIL

A

SHOWN IS A 10 POS. CONNECTOR

FOR FLAT RIBBON CABLE REQUIREMENTS,

SEE APPLICATION SPEC 114-19016.

CONNECTOR-HEIGHT AFTER CABLE TERMINATION

5,1mm AVERAGE, DEPENDING ON PROCESSING,

SEE APPLICATION SPEC 114-19016.

3

B

M

4 - 10 POS:

12 - 24 POS:

(n-1)x1,27

4

REF. CONTACT SHOULDER BOTTOM, THAT CAN

TOUCH THE PC-BOARD SURFACE.

250 CONNECTORS PER BOX.

BOX PACKAGING

2500 CONNECTORS PER REEL.

B

0,80

n 0,85 # 0,05

PC-BOARD HOLE LAYOUT

(COMPONENT SIDE OF BOARD SHOWN)

1,80 0,05

POLARIZATION HOLE

REEL PACKAGING

G.F.POLYESTER (RED)

Material

G

2,54

3

2

Item no.

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

CHK

DIMENSIONS:

PADDLEBOARD HOUSING

CONTACT

COVER

1

PHOSPHOR BRONZE

TIN OVER NICKEL

Finish

-

Description

M.GOSSELINK

-

1,80 0,05

mm

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

-

NAME

TE Connectivity

APVD

A

ALL CONTACT HOLES

0,10 F G

1,27 TYP

2,54 TYP

(n-1)x1,27

1,35 0,05

MATERIAL

0

1

2

3

4

ANGLES

PLC

1470-19 (3/11)

F

SEE TABLE

FINISH

114-19016

WEIGHT

-

SEE TABLE

-

PRODUCT SPEC

E.LEIJTENS

APPLICATION SPEC

108-19052

SIZE

CUSTOMER DRAWING

A3

00779

CAGE CODE

Micro-MaTch

PADDLE BOARD CONNECTOR

-

DRAWING NO

A

RESTRICTED TO

215570

SCALE

5:1

SHEET

1

OF

1

REV

-

Y1
