8001-0-19-15-07-27-10-0 datasheet, PDF

Datasheet> All Categories > The connector> terminals> 8001-0-19-15-07-27-10-0

8001-0-19-15-07-27-10-0: DescriptionHeaders u0026 Wire Housings 10uAU OVER NI 07CON; CategoryThe connector terminals; File Size756KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

8001-0-19-15-07-27-10-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8001-0-19-15-07-27-10-0	-	-	View	Buy Now

8001-0-19-15-07-27-10-0 Overview

Headers u0026 Wire Housings 10uAU OVER NI 07CON

8001-0-19-15-07-27-10-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Manufacturer's serial number	8001
terminal gender	FEMALE
Terminal and terminal strip types	WIRE TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

MALE PCB

PINS

PRINTED CIRCUIT PINS

3408

.053 DIA.

.039 DIA.

.072 DIA.

.061 DIA.

.053 DIA.

3408-X-00-XX-00-00-03-0

Press-fit in .057 mounting hole

0270/0282

Basic Part

Number

Length

.035 SLOT

.072 DIA.

02XX-0-01-XX-00-00-03-0

Press-fit in .057 mounting hole

.071

.051

.142

Basic Part

Number

.100

.157

Pin Material

.028

.139

3408-1

3408-2

.121

.181

.061 DIA.

.053 DIA.

.028

.103

0270-0

0282-0

Phosphor Bronze 544

Brass 360

.020 DIA.

.018 DIA.

.156

0700

0700-0-00-XX-00-00-03-0

Press-fit in .057 mounting hole

.053 DIA.

.032 DIA.

.072 DIA.

.060 DIA.

.053 DIA.

.028

.103

.079

.058

.158

8006

8006-0-00-XX-00-00-03-0

Press-fit in .034 mounting hole

.016 DIA.

.400

.032 DIA.

.036 DIA.

.024

.035

.083

0265

0265-0-01-XX-00-00-03-0

Press-fit in .057 mounting hole

0272

0272-0-01-XX-00-00-03-0

Press-fit in .057 mounting hole

.035 SLOT

.072 DIA.

.060 DIA.

.053 DIA.

.100

.035 SLOT

.072 DIA.

.061 DIA.

.136

.157

.100

.157

.028

.053 DIA.

.018 DIA.

.028

.103

.020 DIA.

.156

.016 DIA.

.480

.020 DIA.

.124

.156

8000

.039 DIA.

HOLE

.072 DIA.

8000-0-01-XX-00-00-03-0

Press-fit in .057 mounting hole

For wire sizes up to 22 AWG

0275

0275-0-01-XX-00-00-03-0

.038 DIA.

HOLE

.086

1107

.045 DIA.

HOLE

Press-fit in .057 mounting hole

Pin material is Phosphor Bronze 544 (B2)

For wire sizes up to 22 AWG

1107-0-01-15-00-00-03-0

Press-fit in .057 mounting hole

For wire sizes up to 20 AWG

9976

.030 DIA.

.060 DIA.

9976-0-00-XX-00-00-03-0

Press-fit in .038 mounting hole

.035

.057 .115

.100

.126

.158

.072 DIA.

.150

.232

.072 DIA.

.110

.190 .200

.300

.037 DIA.

.039 DIA.

.060 DIA.

.053 DIA.

.028

.093

.061 DIA.

.053 DIA.

.028

.103

.059 DIA.

.053 DIA.

.030 DIA.

.028

.467

.018 DIA.

.125

.020 DIA.

.166

.020 DIA.

.156

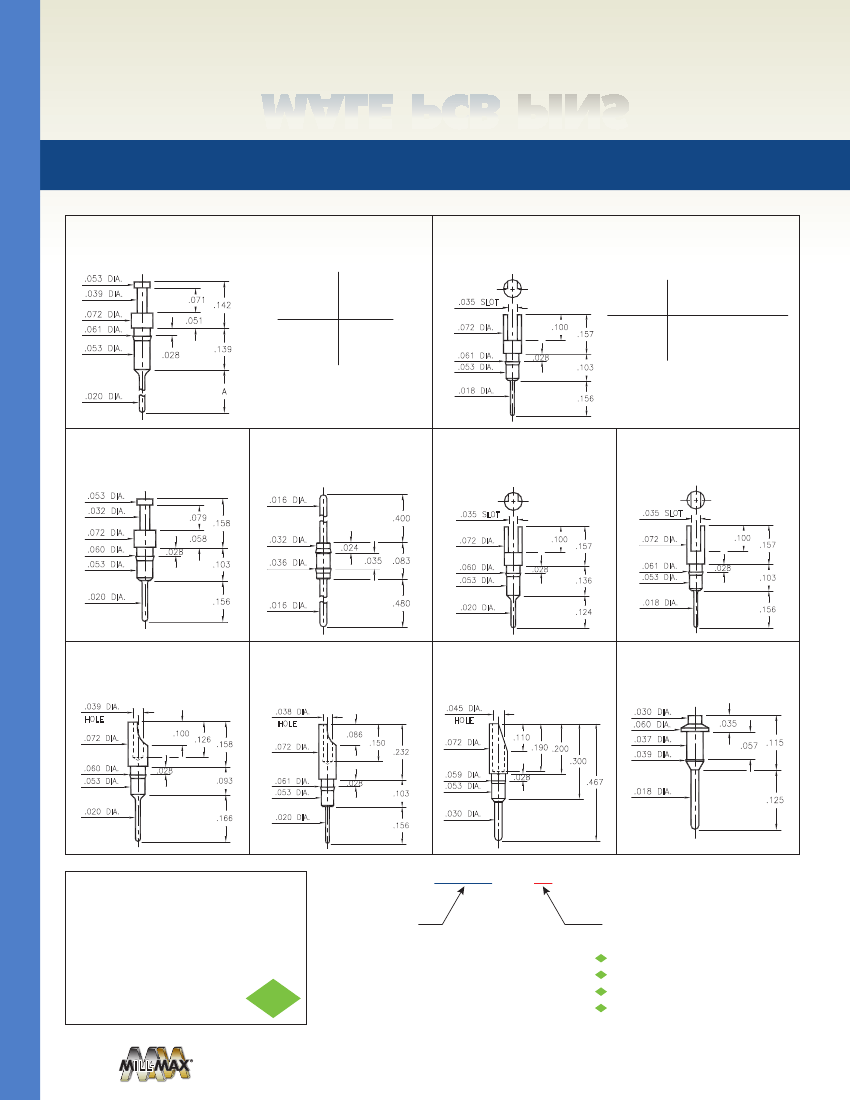

PAGE 216 | MALE PCB PINS

SPECIFICATIONS:

Pin Material:

Brass Alloy 360, 1/2 Hard

( Except where noted )

Dimensions: Inches

Tolerances On:

Lengths: ± .005

Diameters: ± .002

Angles:

±2°

ORDER CODE: XXXX - X - 0X -

- 00 - 00 - XX - 0

BASIC PART #

SPECIFY PIN FINISH:

200

μ”

TIN/LEAD OVER NICKEL

200

μ”

TIN OVER NICKEL (RoHS)

μ”

GOLD OVER NICKEL (RoHS)

μ”

GOLD OVER NICKEL (RoHS)

μ”

GOLD OVER NICKEL (RoHS)

2011/65/EU

RoHS - 2

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
