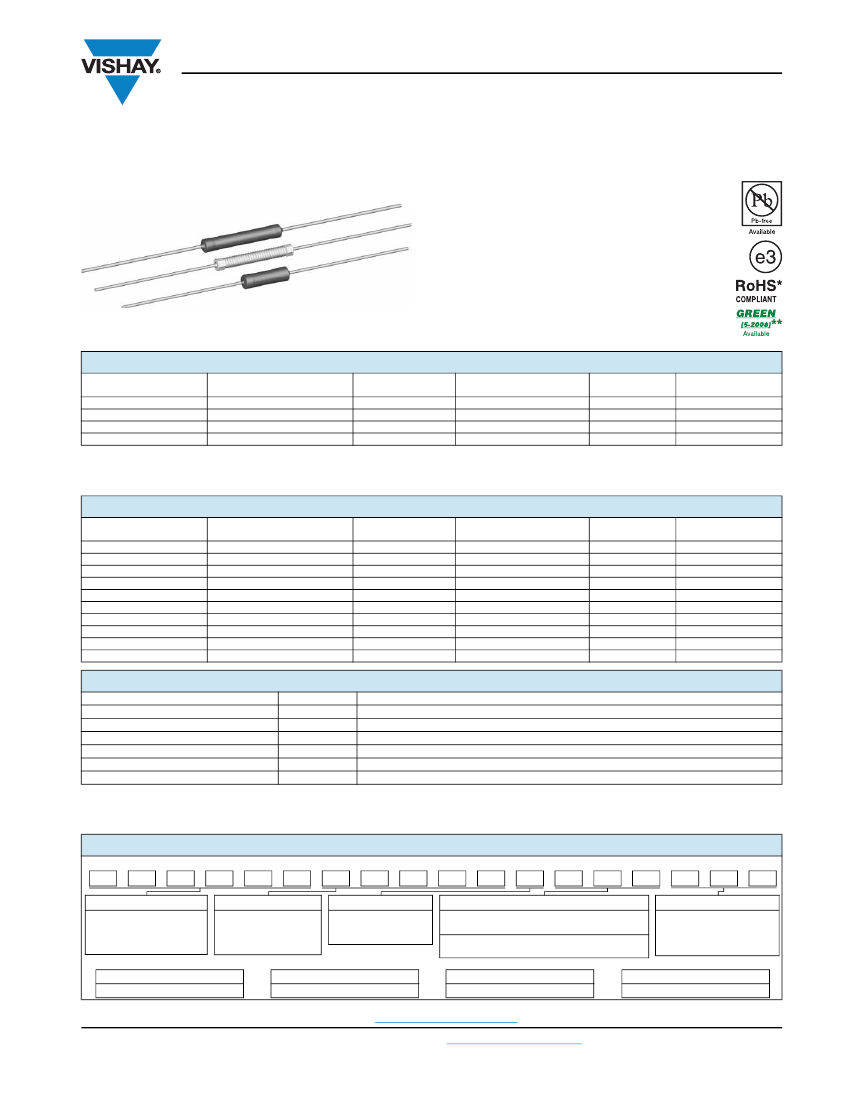

CA
Vishay Dale
Wirewound Resistors, Commercial Power, Axial Lead
FEATURES
• High performance for low cost
• Auto insertable
• CA0001, CA0002 and CA5000 models are
supplied with a high temperature silicone
coating for additional environmental protection
• Lead forming available
• Compliant to RoHS Directive 2002/95/EC
APPLICATIONS
Kitchen appliances: Percolators, blenders,
mixers, ranges, toasters, deep fryers.
Entertainment devices: Radios, televisions,
computers and power supplies.
STANDARD ELECTRICAL SPECIFICATIONS
GLOBAL MODEL
(1)
HISTORICAL MODEL
(1)
CA0001
CA-1
CA0002
CA-2
CA4000
CA-4xxx
CA5000
CA-5xxx
Note
(1)
CA4000 and CA5000 model numbers are calculated from the CA4000 power rating of 4 W per inch and CA5000 power rating of 5 W per
inch. The last three digits of the model number are the body length of the resistor in inches (decimal is between the first and second digit).
Example: CA5150 = 1.50 inches x 5 W per inch = 7.5 W.
POWER RATING
P
25 °C
W
1.0
2.0
2.0 to 8.8
2.5 to 11.0
RESISTANCE RANGE
0.1 to 1K
0.1 to 2.4K
0.1 to 1.02K
0.1 to 7K
TOLERANCE
±%
5, 10
5, 10
5, 10
5, 10
WEIGHT (typical)
g
0.65
0.80
See below
See below
EXAMPLES
GLOBAL MODEL
CA4050/CA5050
CA4055/CA5055
CA4060/CA5060
CA4070/CA5070
CA4080/CA5080
CA4090/CA5090
CA4100/CA5100
CA4150/CA5150
CA4200/CA5200
CA4220/CA5220
HISTORICAL MODEL
CA-4050/CA-5050
CA-4055/CA-5055
CA-4060/CA-5060
CA-4070/CA-5070
CA-4080/CA-5080
CA-4090/CA-5090
CA-4100/CA-5100
CA-4150/CA-5150
CA-4200/CA-5200
CA-4220/CA-5220
POWER RATING
P
25 °C
W
2.0/2.5
2.2/2.75
2.4/3.0
2.8/3.5
3.2/4.0
3.6/4.5
4.0/5.0
6.0/7.5
8.0/10.0
8.8/11.0
RESISTANCE RANGE
0.1 to 170/0.1 to 2.7K
0.1 to 195/0.1 to 3.1K
0.1 to 220/0.1 to 3.5K
0.1 to 270/0.1 to 4.3K
0.1 to 320/0.1 to 5.1K
0.1 to 370/0.1 to 5.9K
0.15 to 420/0.15 to 6.7K
0.2 to 630/0.2 to 7K
0.2 to 920/0.2 to 7K
0.2 to 1.02K/0.2 to 7K
TOLERANCE
±%
5, 10
5, 10
5, 10
5, 10
5, 10
5, 10
5, 10
5, 10
5, 10
5, 10
WEIGHT (typical)
g
0.64/0.78
0.65/0.80
0.66/0.82
0.68/0.86
0.70/0.90
0.72/0.94
0.74/0.98
0.84/1.19
0.94/1.40
0.98/1.48
TECHNICAL SPECIFICATIONS
PARAMETER
UNIT
CA RESISTOR CHARACTERISTICS
Temperature Coefficient
ppm/°C
± 300 1
and above, ± 600 below 1
Short Time Overload
-
5 x rated power for 5 s
Maximum Working Voltage
V
(P x
R)
1/2
Dielectric Withstanding Voltage
V
AC
600 (CA0001, CA0002 and CA5xxx only)
Operating Temperature Range
°C
- 65 to + 275
Terminal Strength (minimum)
lb
10
Note
• Wirewound CA resistors can reliably function as a fuse and as a resistor. Such components involve compromise between fusing and resistive
functions; therefore, each design should be tailored to the application to ensure optimum performance. Contact factory by using the e-mail
address at the bottom of this page for design assistance.
GLOBAL PART NUMBER INFORMATION
Global Part Numbering example: CA000150R00JR05
C
A
0
0
0
1
5
0
R
0
0
J
R
0
5
SPECIAL
(Dash Number)
(up to 3 digits)
From
1 to 999
as applicable
R05
PACKAGING
GLOBAL MODEL
VALUE
TOLERANCE
PACKAGING
(See Standard
R
= Decimal
H
= ± 3.0 %
E14
= Lead (Pb)-free bulk
Electrical Specifications
K
= Thousand
J
= ± 5.0 %
E05
= Lead (Pb)-free tape and reel
Global Model
R1500
= 0.15
K
= ± 10.0 %
B14
= Tin/lead bulk
column for options)
1K500
= 1500
R05
= Tin/lead tape and reel
Historical Part Numbering example: CA-1 50
5 % R05
CA-1
50
5%
HISTORICAL MODEL
RESISTANCE VALUE
TOLERANCE CODE
* Pb containing terminations are not RoHS compliant, exemptions may apply
** Please see document “Vishay Material Category Policy”:
www.vishay.com/doc?99902
Document Number: 30214
Revision: 14-Feb-11
For technical questions, contact:
ww2aresistors@vishay.com
www.vishay.com
1
CA
Vishay Dale
Wirewound Resistors, Commercial
Power, Axial Lead
DIMENSIONS
in inches [millimeters]
[1.625 ± 0.125]
(1)
41.28 ± 3.15
[1.625 ± 0.125]
(1)
41.28 ± 3.15
A
Figure 1
A
A'
C
B
Figure 2
A
'
C
B
Note
(1)
On some standard reel pack methods, the leads may be trimmed to a shorter length than shown.
GLOBAL
MODEL
CA0001
CA0002
CA4050
CA4055
CA4060
CA4070
CA4080
CA4090
CA4100
CA4150
CA4200
CA4220
CA5050
CA5055
CA5060
CA5070
CA5080
CA5090
CA5100
CA5150
CA5200
CA5220
A ± 0.031 [0.794]
0.400 [10.16]
0.570 [14.48]
0.500 [12.70]
0.550 [13.97]
0.600 [15.24]
0.700 [17.78]
0.800 [20.32]
0.900 [22.86]
1.00 [25.40]
1.50 [38.10]
2.00 [50.80]
2.20 [55.88]
0.500 [12.70]
0.550 [13.97]
0.600 [15.24]
0.700 [17.78]
0.800 [20.32]
0.900 [22.86]
1.00 [25.40]
1.50 [38.10]
2.00 [50.80]
2.20 [55.88]
A’ (MAXIMUM)
0.460 [11.68]
0.630 [16.00]
0.594 [15.09]
0.644 [16.36]
0.694 [17.63]
0.794 [20.17]
0.894 [22.71]
0.994 [25.25]
1.094 [27.79]
1.594 [40.49]
2.094 [53.19]
2.294 [58.27]
0.625 [15.88]
0.675 [17.15]
0.725 [18.42]
0.825 [20.96]
0.925 [23.50]
1.025 [26.04]
1.125 [28.58]
1.625 [41.28]
2.125 [53.98]
2.325 [59.06]
DIMENSIONS
in inches [millimeters]
B ± 0.001 [0.025]
C
0.032 [0.813]
0.170 maximum [4.32 maximum]
0.032 [0.813]
0.170 maximum [4.32 maximum]
0.032 [0.813]
0.140 ± 0.031 [3.56 ± 0.794]
0.032 [0.813]
0.140 ± 0.031 [3.56 ± 0.794]
0.032 [0.813]
0.140 ± 0.031 [3.56 ± 0.794]
0.032 [0.813]
0.140 ± 0.031 [3.56 ± 0.794]
0.032 [0.813]
0.140 ± 0.031 [3.56 ± 0.794]
0.032 [0.813]
0.140 ± 0.031 [3.56 ± 0.794]
0.032 [0.813]
0.140 ± 0.031 [3.56 ± 0.794]
0.032 [0.813]
0.140 ± 0.031 [3.56 ± 0.794]
0.032 [0.813]
0.140 ± 0.031 [3.56 ± 0.794]
0.032 [0.813]
0.140 ± 0.031 [3.56 ± 0.794]
0.036 [0.914]
0.170 ± 0.031 [4.32 ± 0.794]
0.036 [0.914]
0.170 ± 0.031 [4.32 ± 0.794]
0.036 [0.914]
0.170 ± 0.031 [4.32 ± 0.794]
0.036 [0.914]
0.170 ± 0.031 [4.32 ± 0.794]
0.036 [0.914]
0.170 ± 0.031 [4.32 ± 0.794]
0.036 [0.914]
0.170 ± 0.031 [4.32 ± 0.794]
0.036 [0.914]
0.170 ± 0.031 [4.32 ± 0.794]
0.036 [0.914]
0.170 ± 0.031 [4.32 ± 0.794]
0.036 [0.914]
0.170 ± 0.031 [4.32 ± 0.794]
0.036 [0.914]
0.170 ± 0.031 [4.32 ± 0.794]
FIGURE
2
2
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
MATERIAL SPECIFICATIONS
Element:
Copper-nickel alloy or nickel-chrome alloy,
depending on resistance value
Core:
Woven fiberglass
Coating:
Special high temperature silicone (CA4000 series
is not coated)
Terminals:
Tin/lead electroplated copper (lead (Pb)-free will
be 100 % tin)
End Caps:
Tin plated steel
Part Marking:
CA0001 and CA0002 are printed with value
and tolerance
DERATING
RATED POWER IN %
120
100
80
60
40
20
0
- 65
- 25
25
75
125
175
225
275
AMBIENT TEMPERATURE IN °C
PERFORMANCE
TEST
Thermal Shock
Short Time Overload
Dielectric Withstanding Voltage
Low Temperature Storage
Humidity
Load Life
Terminal Strength
Resistance to Solder Heat
www.vishay.com
2
CONDITIONS OF TEST
- 55 °C to + 275 °C, 5 cycles, 30 min dwell time
5 x rated power for 5 s
600 V
AC
for 1 min (CA0001, CA0002 and CA5xxx only)
- 65 °C, full rated working voltage for 45 min
75 °C, 90 % to 100 % RH, 240 h
1000 h at rated power, + 25 °C, 1.5 h “ON”, 0.5 h “OFF”
10 pounds for 30 s; body twisted about axis, 3 x 360° rotations
Terminal immersed 3.5 s in molten solder at 1/8" to 3/16" from body
For technical questions, contact:
ww2aresistors@vishay.com
TEST LIMITS (EIA RS-344)
± (5.0 % + 0.05
) R
± (4.0 % + 0.05
) R
± (2.0 % + 0.05
) R
± (3.0 % + 0.05
) R
± (5.0 % + 0.05
) R
± (10.0 % + 0.05
) R
± (2.0 % + 0.05
) R
± (4.0 % + 0.05
) R
Document Number: 30214
Revision: 14-Feb-11
